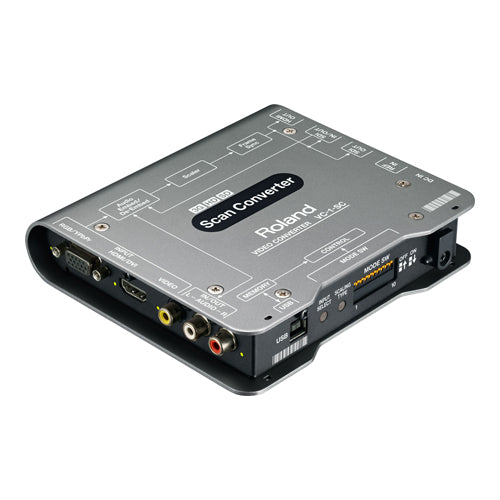

Roland VC-1-SC Up/Down/Cross Scan Converter to/from SDI/HDMI

The Roland VC-1-SC is a professional up/down/cross scan converter with frame sync and scaler, offering seamless video conversion between SDI and HDMI formats for live production and broadcast environments .

1-3 werkdagen
  • €825,00 (excl. btw)
    €998,25 incl. btw
  • €949,00
  • - 0%

The Roland VC-1-SC is a high-performance up/down/cross scan converter designed to provide seamless video conversion between SDI and HDMI formats. This versatile converter supports 3G (Level A&B), HD, and SD SDI, as well as HDMI input and output, ensuring compatibility with a wide range of professional video equipment. The VC-1-SC features a built-in frame synchronizer and scaler, allowing for precise frame rate, interlaced/progressive, and aspect ratio conversion. It also supports input from analog sources such as RGB and component, making it ideal for integrating legacy equipment into modern workflows. The converter is HDCP compliant, enabling the conversion or pass-through of HDCP signals, except for any SDI output. Selectable audio embedding and de-embedding allow for flexible audio routing to and from video devices, ensuring high-quality audio signals through digital AES/EBU input and output. The on-board re-clocker compensates for signal attenuation over long distances, making the VC-1-SC perfect for extended setups. Additionally, the VC-1-SC can be controlled via the VC-1 RCS software application for PC and Mac, providing an intuitive interface for configuring and managing the converter's settings. This robust and reliable converter is an essential tool for any professional video setup, offering unparalleled flexibility and performance.

Input Connectors
SDI
Connector: BNC type x 1 (Combined use with SDI Out Connector)
Signal Standards: SMPTE 424M (SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
HDMI
Connector: Type A (19 pins) x 1
Signal Standard: HDMI HDCP support (When an HDCP-applied signal is input, output from the SDI OUT connector is stopped)
RGB/Component
Connector: HD DB-15 type x 1
Signal Level: 1.0Vp-p (Y signal), 0.7Vp-p (R/G/B/Pb/Pr signals), 5VTTL (H/V signals)
Impedance: 75 ohms
Composite
Connector: BNC type x 1
Signal Level: 1.0 Vp-p (Y signal), 0.286 V-p (C signal (NTSC)), 0.3 V-p (C signal (PAL))
Impedance: 75 ohms
Analog Audio
Connector: RCA phono type x 1 pair (L/R) (Combined use with Analog Audio Out Connector)
Input Level: -6dBV
Maximum Input Level: +6dBV
Impedance: 22 k ohms
Reference
Connector: BNC type x 1
Impedance: 75 ohms
Signal Format: Black Burst, Bi-level, Tri-level
Output Connectors
SDI
Connector: BNC type x 2 (One is Combined with SDI In Connector)
Signal Standards: SMPTE 424M (SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
HDMI
Connector: Type A (19 pins) x 1
Signal Standards: HDMI HDCP support
Analog Audio
Connector: RCA phono type x 1 pair (L/R) (Combined use with Analog Audio In Connector)
Input Level: -6dBV
Maximum Output Level: +6dBV
Impedance: 2.2 k ohms
Input Formats
SDI
Connector: BNC type x 1 (Combined use with SDI Out Connector)
Signal Standards: SMPTE 424M (SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
Video Formats: 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i
1920x1080/30PsF/29.97PsF/25PsF/24PsF/23.98PsF (Conforms to SMPTE 274M)
1280x720/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p (Conforms to SMPTE 296M)
720x480/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5)
Color Format: 10 bits YCC 4:2:2
Audio Format: Linear PCM, 24 bits, 48 kHz, 16 ch (Conforms to SMPTE 299M, SMPTE 272M-C)
*When frame synchronizer is engaged, CH 3-8 of HDMI and CH 3-16 of SDI audio output are not available.
HDMI
Video Formats: 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i
1280x720/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p
720x480/59.94p/59.94i, 720x576/50p/50i (Conforms to CEA-861-E)
PC Formats: 640x480/60/72/75/85Hz, 800x600/56/60/72/75/85Hz, 1024x768/60/70/75/85Hz, 1280x768/60/75/85/Hz, 1360x768/60Hz, 1152x864/75Hz, 1400x900/60/75/85Hz, 1280x960/60/85Hz, 1280x1024/60/75/85Hz, 1400x1050/60/75Hz, 1680x1050/60Hz, 1600x1200/60Hz, 1920x1200/60Hz Reduced blanking (Conforms to VESA DMT Version 1.0 Revision 11)
Color Format: 10 bits YCC 4:2:2, 8 bits YCC 4:4:4, 8 bits RGB 4:4:4
Audio Format: Linear PCM, 24 bits, 48 kHz, 8 ch
RGB/Component
Video Formats: 1920x1080/60p/59.94p/50p/60i/59.94i/50i/24PsF/23.98PsF (Conforms to SMPTE 274M)
1280x720/60p/59.94p/50p (Conforms to SMPTE 296M)
720x480/59.94p/59.94i, 720x576/50p/50i
PC Formats: 640x480/60/72/75/85Hz, 800x600/56/60/72/75/85Hz, 1024x768/60/70/75/85Hz, 1280x720/60Hz, 1280x768/60/75/85/Hz, 1360x768/60Hz, 1152x864/75Hz, 1400x900/60/75/85Hz, 1280x960/60/85Hz, 1280x1024/60/75/85Hz, 1400x1050/60/75Hz, 1680x1050/60Hz, 1600x1200/60Hz, 1920x1080/60Hz, 1920x1200/60Hz Reduced blanking (Conforms to VESA DMT Version 1.0 Revision 11)
Composite
Video Formats: NTSC, PAL
Processing
Audio Embed/De-embed
2ch
Frame Synchronizer
Frame sync is activated when a reference signal is detected. When frame synchronizer is engaged, CH 3-8 of HDMI and CH 3-16 of SDI audio output are not available.
Resolution Conversion
Selectable Full/LetterBox/Crop/Dot-by-Dot Type
Frame Rate Conversion
Frame Skip/Repeat Type
Others
USB
USB Type B (Hi-Speed USB) x 1
Power Supply
DC 9 V (AC Adaptor)
Operation Temperature
+0--+40 degrees Celsius +41--+104 degrees Fahrenheit
Size and Weight
Width
150 mm
5-15/16 inches
Depth
130 mm
5-1/8 inches
Height
30 mm
1-3/16 inches
Weight
500 g
1 lbs. 2 oz.

VC-1-SC Up/Down/Cross Scan Converter

AC Adapter

Power Cord

Operation Manual
