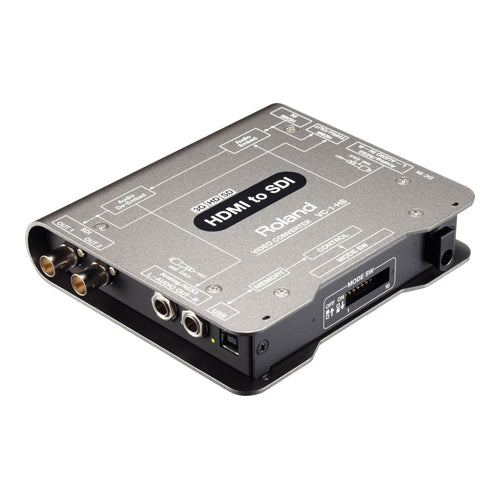

The Roland VC-1-HS is a high-performance HDMI to SDI video converter designed to meet the demands of live production and post-production environments. This converter ensures lossless image conversion, maintaining the original signal's rich blacks and super-whites without interlacing artifacts or signal errors. It supports 3G (Level A&B), HD, and SD SDI formats, making it versatile for various professional applications. The VC-1-HS features HDCP support, allowing for the conversion or pass-through of HDCP signals, except for any SDI output. With selectable audio embedding and de-embedding, you can route different audio sources to or from video devices, ensuring high-quality audio signals through digital AES/EBU input and output. The on-board re-clocker compensates for signal attenuation over long distances, making it ideal for extended setups. This converter is especially complementary to the Roland V-1600HD and V-800HD multi-format video mixers, providing seamless integration for camera inputs on the mixer.
- Input
- HDMI
- Type A (19 pins ) x 1
- Analog Audio Connector
- 1/4" TRS phone type ( balanced ) x 1 pair (L/R)
- Digital Audio Connector
- 1/4" TRS phone type ( balanced ) x 1 ( Combined use with Analog Audio R ch Connector )
- Processing
- Audio embedding Audio de-embedding
- Output
- SDI Connector
- BNC type x 2
- HDMI Connector
- Type A (19 pins ) x 1 (Thru/Out )
- Analog Audio Connector
- 1/4" TRS phone type ( balanced ) x 1 pair (L/R)
- Digital Audio Connector
- 1/4" TRS phone type ( balanced) x 1 ( Combined use with Analog Audio R ch Connector )
- Input / Output Format
- SDI Input Signal Standards
- SMPTE 424M(SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
- SDI Input Video Format
- 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M ), 1280x720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M ), 720x487/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5 )
- Audio Format
- Linear PCM, 24 bits, 48 kHz, 16 ch (Conforms to SMPTE 299M, SMPTE 272M-C)
- HDMI Input Video Format
- 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280x720/60p/59.94p/50p/30p/29.97p/25p, 720x480/59.94i, 720x576/50i (Conforms to CEA-861-E)
- HDMI Input Audio Format
- Linear PCM, 24 bit, 48 kHz, 8 ch
- SDI Output Signal Standards
- SMPTE 424M (SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
- SDI Output Video Format
- 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M ), 1280x720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M), 720x487/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5 )
- SDI Output Audio Format
- Linear PCM, 24 bits, 48 kHz, 16 ch (Conforms to SMPTE 299M, SMPTE 272M-C)
- HDMI Output Video Format
- 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280x720/60p/59.94p/50p/30p/29.97p/25p, 720x480/59.94i, 720x576/50i (Conforms to CEA-861-E)
- HDMI Output Audio Format
- Linear PCM, 24 bit, 48 kHz, 8 ch
- Audio Input / Output
- Analog Audio Input Level
- +4dBu
- Analog Audio Maximum Input Level
- +24dBu
- Analog Audio Input Impedance
- 110 ohms
- Analog Audio Output Level
- +4dBu
- Analog Audio Output Impedance
- 600 ohms
- Digital Audio Output Signal Format
- AES3, 16/24 bits, 32/48 kHz, 2 ch
- Digital Audio Output Impedance
- 110 ohms
- Others
- USB Connector
- USB Type B (Hi-Speed USB) x 1
- Power Supply
- DC 9V
- Power Consumption
- 8W
- Operation Temperature
- +0 to + 40 degrees Celsius
-
- Size and Weight
- Width
- 150 mm
5-15/16 inches
- Depth
- 130 mm
5-1/8 inches
- Height
- 30 mm
1-3/16 inches
- Weight
- 500 g
1 lbs. 2 oz.
VC-1-HS HDMI to SDI Video Converter
AC Adapter
Power Cord
Operation Manual
