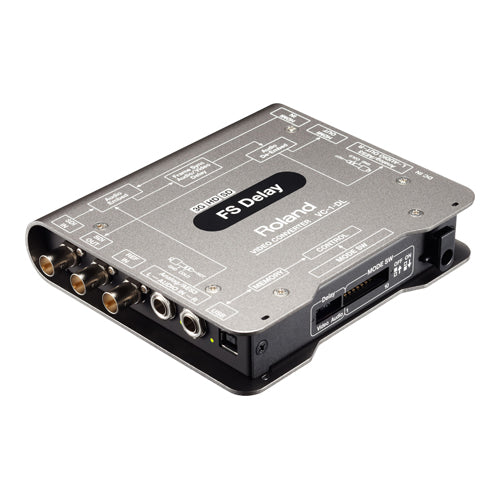

The Roland VC-1-DL is a versatile bi-directional SDI/HDMI video converter designed to meet the rigorous demands of live production, broadcast, and recording applications. This advanced converter ensures lossless image conversion, maintaining the original signal's rich blacks and super-whites without interlacing artifacts or signal errors. It supports 3G (Level A&B), HD, and SD SDI formats, making it adaptable for various professional uses. The VC-1-DL features built-in frame synchronization and delay adjustment of up to 9 fields (4.5 frames) for both audio and video, allowing precise synchronization of multiple video sources and ensuring seamless integration with projectors and LED walls. This converter also supports HDCP, enabling the conversion or pass-through of HDCP signals, except for any SDI output. With selectable audio embedding and de-embedding, you can route different audio sources to or from video devices, ensuring high-quality audio signals through digital AES/EBU input and output. The on-board re-clocker compensates for signal attenuation over long distances, making it ideal for extended setups. The VC-1-DL is an indispensable tool for any professional video setup, providing reliable and high-quality conversion and synchronization capabilities.
- Input
- SDI Connector
- BNC type x 1
- HDMI Connector
- Type A (19 pins) x 1
- Analog Audio Connector
- 1/4" TRS phone type ( balanced ) x 1 pair (L/R)
- Digital Audio Connector
- 1/4" TRS phone type ( balanced ) x 1 (Combined use with Analog Audio R ch Connector )
- Reference Connector
- BNC type x 1
- Reference Signal Format
- Black Burst, Bi-level, Tri-level
- Reference Impedance
- 75 ohms
- Processing
- Video delay ( 0 to 4.5 frames ) Audio delay ( 0 to 4.5 frames ) Audio embedding Audio de-embedding
- Output
- SDI Connector
- BNC type x 1
- HDMI Connector
- Type A (19 pins ) x 1
- Analog Audio Connector
- 1/4" TRS phone type ( balanced ) x 1 pair ( L/R)
- Digital Audio Connector
- 1/4" TRS phone type (balanced ) x 1 (Combined use with Analog Audio R ch Connector )
- Input / Output Format
- SDI Input Signal Standards
- SMPTE 424M(SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
- SDI Input Video Format
- 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M ), 1280x720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M ), 720x487/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5 )
- Audio Format
- Linear PCM, 24 bits, 48 kHz, 16 ch *1 (Conforms to SMPTE 299M, SMPTE 272M-C)
- HDMI Input Video Format
- 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280x720/60p/59.94p/50p/30p/29.97p/25p, 720x480/59.94i, 720x576/50i (Conforms to CEA-861-E)
- HDMI Input Audio Format
- Linear PCM, 24 bit, 48 kHz, 8 ch *1
- SDI Output Signal Standards
- SMPTE 424M (SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
- SDI Output Video Format
- 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M ), 1280x720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M), 720x487/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5 )
- SDI Output Audio Format
- Linear PCM, 24 bits, 48 kHz, 16 ch *1 (Conforms to SMPTE 299M, SMPTE 272M-C)
- HDMI Output Video Format
- 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280x720/60p/59.94p/50p/30p/29.97p/25p, 720x480/59.94i, 720x576/50i (Conforms to CEA-861-D)
- HDMI Output Audio Format
- Linear PCM, 24 bit, 48 kHz, 8 ch *1
- Audio Input / Output
- Analog Audio Input Level
- +4dBu
- Analog Audio Maximum Input Level
- +24dBu
- Analog Audio Input Impedance
- 110 ohms
- Analog Audio Output Level
- +4dBu
- Analog Audio Output Impedance
- 600 ohms
- Digital Audio Output Signal Format
- AES3, 16/24 bits, 32/48 kHz, 2 ch
- Digital Audio Output Impedance
- 110 ohms
- Others
- USB Connector
- USB Type B (Hi-Speed USB) x 1
- Power Supply
- DC 9V
- Power Consumption
- 8W
- Operation Temperature
- +0 to + 40 degrees Celsius
- Size and Weight
- Width
- 150 mm
5-15/16 inches
- Depth
- 130 mm
5-1/8 inches
- Height
- 30 mm
1-3/16 inches
- Weight
- 500 g
1 lbs. 2 oz.
VC-1-DL Bi-directional SDI/HDMI Video Converter
AC Adapter
Power Cord
Operation Manual
