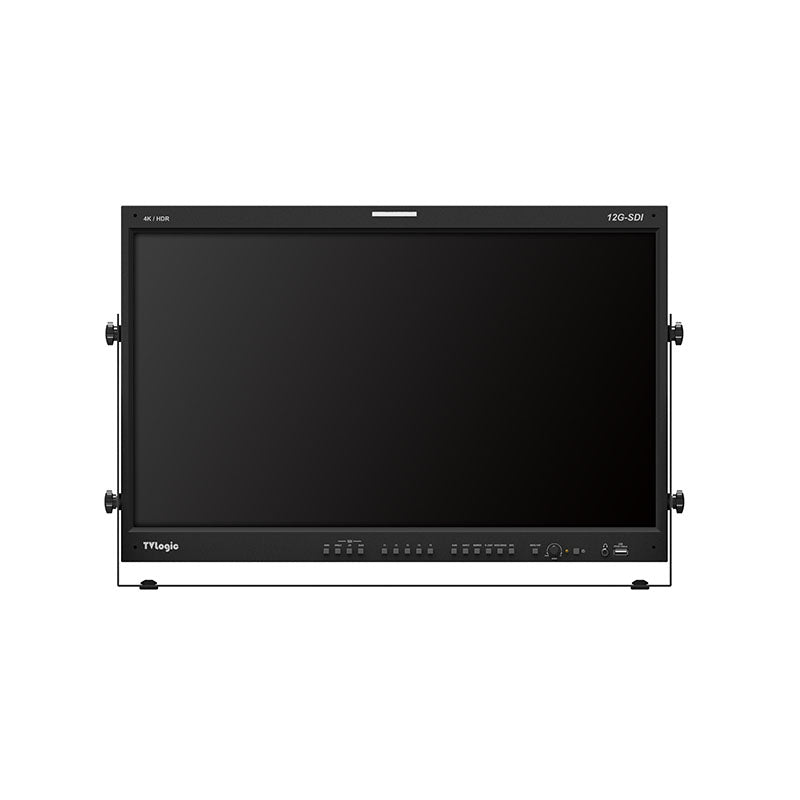

De LUM-242G is een 24 inch UHD-resolutie (3840 x 2160) monitor met een maximale luminantie van 500nit, een contrastverhouding van 1.200:1, een breed kleurengamma en een brede kijkhoek.
The LUM-242G is a 24 inch UHD resolution (3840 x 2160) monitor with maximum luminance of 500nit, contrast ratio of 1,200:1, wide color gamut and wide viewing angle.
Equipped with 4 BNCs (2×12G-SDI + 2×3G-SDI) and HDMI 2.0 interface, it supports various video formats up to 4K/60p through single-link 12G-SDI, Quad 3G-SDI and HDMI 2.0. In addition to various professional features such as Waveform monitor and Vectorscope, the LUM-242G provides HDR emulation function with HDR EOTFs of PQ, HLG and SLog3.
Display
| Panel Type | IPS-Type LCD |
| Display Size | 24.00" / 61.0 cm |
| Screen Area | 20.7 x 11.7" / 526 x 296 mm |
| Resolution | 3840 x 2160 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 178° Vertical: 178° |
| Touchscreen | No |
| Maximum Brightness | 500 cd/m2 |
| Contrast Ratio | 1200:1 |
| Dot Pitch | 0.137 x 0.137 mm |
| Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) |
| HDR Compatibility | Hybrid Log Gamma, Advanced HDR |
| Pixels Per Inch (ppi) | 183 ppi |
| Real-Time LUT Monitoring | SDR, HDR |
| Image Controls | Blue Only, Check Field, Focus Assist, H/V Delay, Screen Markers, Underscan, Vectorscope, Waveform |
I/O

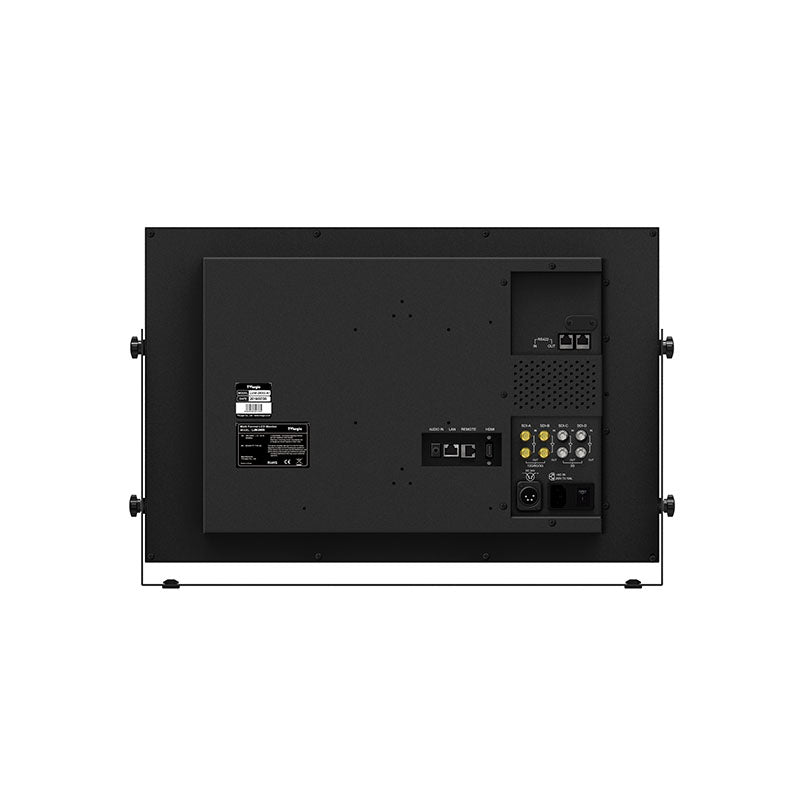

| Video | 2 x BNC (12G-SDI) Input 2 x BNC (3G-SDI) Input 1 x HDMI Type A (HDMI 2.0) Input 2 x BNC (12G-SDI) Output 2 x BNC (3G-SDI) Output |
| Embedded Audio | HDMI/SDI: 2-Channel |
| Audio | 1 x 1/8" / 3.5 mm Line Input 1 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | 1 |
| Power I/O | 1 x XLR 4-Pin (24 VDC) Input |
| Other I/O | 1 x GPI (RJ45) Input/Output 1 x LAN (RJ45) Input/Output 1 x RS-422 (RJ45) Input 1 x RS-422 (RJ45) Output 1 x USB 2.0 (USB Type-A) Input |
| Media/Memory Card Slot | None |
| Wi-Fi | None |
Format Support
| Video Format | HDMI UHD 4K 1080p 1080i 720p 576p 576i 480p 480i SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Gamma Curve | HDR-HLG, HDR-PQ, Sony S-Log 3 |
Power
| DC Input Power | 24 VDC |
General
| Dimensions | 21.7 x 14.2 x 3.9" / 552 x 360 x 98.5 mm 23.1 x 15.3 x 5.9" / 586 x 388 x 150 mm, Including Stand |
| Weight | 22.7 lb / 10.3 kg |
