  • Teradek Bolt 6 Monitor Module 750 TX
Teradek
TER-10-2198-7

Teradek Bolt 6 Monitor Module 750 TX

De Bolt 6 TX-monitormodule is een realtime draadloze videozender die 4K-video ondersteunt met de gepatenteerde Zero-Delay-technologie van Teradek, nu met minder interferentie dankzij de nieuw geopende 6 GHz draadloze frequentie.

Levertijd opvraagbaar
  • $2,176.00 (excl. btw)
    $2,632.96 incl. btw
  • - 0%

The Bolt 6 TX Monitor Module is a real-time wireless video transmitter that supports 4K video with Teradek’s patented Zero-Delay technology, now with less interference using the newly opened 6GHz wireless frequency. This Receiver Monitor Module integrates directly with the SmallHD Smart 7 Monitor Series. Send color-accurate, 4K HDR videos in under 0.001 seconds.

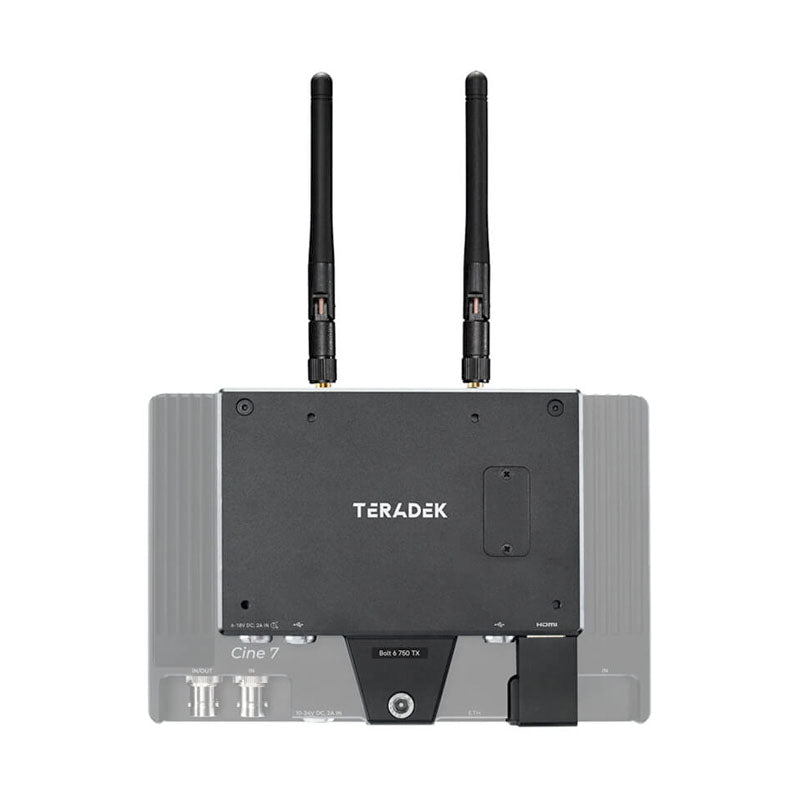

The Bolt 6 Transmitter Monitor Module easily attaches to the back of SmallHD’s Cine 7, 702 Touch, and Indie 7 Smart Monitors. With direct integration, the Bolt 6 and Smart monitor are able to share power and video, allowing you to reduce the amount of cables on set.

Key features of the Bolt 6 TX Monitor Module include range options designed for a variety of production needs, fast reconnection times, intuitive and easy setup with the Bolt Manager App for iOS or Android, and consistent, stable connectivity. The Bolt 6 series utilizes the 6GHz band to give users better image quality and reduced interference. And when used in high-traffic areas, 6GHz wireless frequency gives Bolt 6 users more options for frequency adjustments with 12 new channels. Bolt 6 can also pass metadata, timecode, and start/stop flags from most camera manufacturers.

With the Bolt 6 Monitor Module, Wireless Camera-Control is also made possible, because it integrates directly into SmallHD Smart Monitors. Bolt 6 also offers new tools for high-end users to have better visibility over their connections and signals, adding confidence to the workflow no matter how challenging the environment.

The Bolt 6 TX Monitor Module is cross-compatible with the entire Bolt 4K Series – including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules – giving you the option to expand your workflow requirements. Link up to 6 receivers to one transmitter, or unlimited receivers when used in Broadcast Mode (available on MAX models).

Bolt 6 Transmitter Monitor Module offers three line-of-sight options: 750 ft., 1500 ft., and the MAX Set, which can be configured for up to 5,000+ ft. Additionally, you can upgrade your set to include Gold or V-Mount Battery plates.

About 6GHz

Wifi routers, cell phones, IOT devices, and competitor wireless video systems are among the many devices that use the 5GHz frequency to communicate wirelessly, making it a highly crowded space where you’ll likely encounter frequent interference and even video dropouts. Bolt 6 uses the newly opened 6GHz wireless frequency for a dramatically quieter wireless environment (though it can still be set up in 5GHz Mode for backwards compatibility). In 6GHz Mode, Bolt 6 users will access faster connections and less interference for a better wireless experience. 6GHz frequency is now available in the US and Canada under UNII-5 government specifications. More countries will open the 6GHz frequency in 2023.

Video -

Video Inputs

  • 1 x HDMI 1.4b Type-A receptacle

Sdi Ancillary Data Support

  • Supports reading metadata, timecode, and start/stop flags from most camera manufacturers.

Color Sampling

  • SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit

Delay Tx To Rx

  • <0.001sec

Supported Resolutions -

Supported Resolutions

  • 4Kp23.98/24/25/29.97/30
  • 1080p23.98/24/25/29.97/30/50/59.94/60
  • 1080psf23.98/24/25/29.97/30
  • 1080i50/59.94/60
  • 720p50/59.94/60
  • 480p50 576p59.94/60
  • 480i(NTSC)/576i(PAL)

Video Processing -

Video Compression

  • Visually Lossless

Color Correction

  • None

Audio Processing -

Audio Compression

  • 48kHz 24-bit PCM

Inputs -

Audio Input

  • Embedded HDMI Audio Input (2 Channel)

Physical -

Dimensions

  • 60mm x 103mm x 33mm

Weight

  • 206g (7.3oz)

Construction

  • Milled Aluminum(Chassis) and regulation-compliant PCB

Mountability

  • SmallHD 7" Monitor

Interfaces -

Configuration Interfaces

  • SmallHD Monitor UI

Mobile App

  • Bolt App

Usb Interface Functionality

  • SmallHD Monitor UI
  • 2x 5pin Locking Connector CCU (Host)

Bluetooth

  • Via SmallHD Monitor

Network -

Antennas

  • 2 External 2dBi antennas (included)

Wireless

  • Non-DFS Frequencies:
  • 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz
  • DFS Frequencies:
  • 5.270 ~ 5.670 GHz

Rf Channel Selection

  • Auto, Manual

Encryption

  • AES-256, RSA-1024 key exchange

Rf Power

  • 23 dbm EIRP

Range

  • Up to 750 ft, line of sight

Unicast Multicast

  • Can connect one Transmitter to up to 6 Receivers

Noise Rejection

  • Can coexist with WiFi and 5GHz cordless phones
  • Can operate up to 6 sets in same location

Interoperability

  • Can transmit wireless video to all ranges of Bolt 4K XT and Bolt 4K LT receivers (limited by shortest range device)

Power -

Power Input

  • 2-Pin Circular locking Connector 6-18 VDC

Battery

  • None, optional Sony/Canon dual battery plate

Nominal Power Consumption

  • 7 Watts

Environmental -

Operating Temperature

  • 0-40℃

Compare Chart -

Ghz Support

  • ✔️

Compatible With Bolt4k

  • ✔️

Available Ranges

  • 750 ft / 1500 ft

Maximum Sdi Resolution

Maximum Hdmi Resolution

  • UHDp30**

Smallhd Wireless Camera Control Port

  • ✔️

Transmitter Weight

  • 7.3 oz / 206 g

Receiver Connectivity

Zerodelay

  • ✔️
  • 1 x Bolt 6 Monitor Module 750 TX
  • 1 x Hex L key 3/16" x 2 13/16" length
  • 1 x Hex L key 2mm size 3-3/8" length
  • 1 x Screw Socket Head Black 1/4-20 x 3/8" length
  • 2 x Screw Socket Head Low Profile Black Oxide M3 x 20mm
  • 2 x Antenna 2dBi Rigid V 4.9-7.3Ghz RP-SMA
  • 1 x Lightstand Adapter 1/4-20in
  • 1 x HDMI Adapter Bolt 4K TX Monitor Module
