Teradek
10-2241

Teradek Ace 750 TX

Ace 750 TX delivers zero-delay wireless HDMI video up to 229 m with AES-256 encryption and a compact design for gimbals and handheld rigs.

1-3 werkdagen
  • €439,23 (excl. btw)
    €531,47 incl. btw
  • €618,63
  • - 0%

The Teradek Ace 750 TX is a compact, zero-delay HDMI wireless transmitter designed for filmmakers who need reliable performance in a lightweight form factor. Operating on the 5GHz band, it delivers visually lossless 1080p60 video with less than 1 ms latency, ensuring real-time monitoring without compromise. With a range of up to 229 meters, the Ace 750 TX provides secure transmission using AES-256 encryption and integrates seamlessly with Ace 750 receivers for a streamlined workflow. Its HDMI input makes it ideal for mirrorless and DSLR cameras, while the internal antenna design keeps setups clean and portable. Built for gimbals, drones, and handheld rigs, this transmitter combines Teradek’s industry-leading technology with affordability, making it the perfect solution for small crews and independent productions.

Wireless
• Frequency: 5GHz band
• Range: Up to 229 meters (750 ft) line-of-sight
• Latency: <1 ms (zero-delay)
• Encryption: AES-256 for secure transmission

Video
• Resolution: Up to 1080p60
• Color: 10-bit 4:2:2 HDR
• Compression: Visually lossless

Inputs
• HDMI input only (TX unit does not have HDMI output for monitoring)

Power
• Power input: 6–28V DC

Physical Attributes
• Lightweight, compact design for gimbals and handheld rigs
• Internal antennas for streamlined setup

Environmental
• Operating temperature: -20°C to 50°C
• Storage temperature: -40°C to 85°C

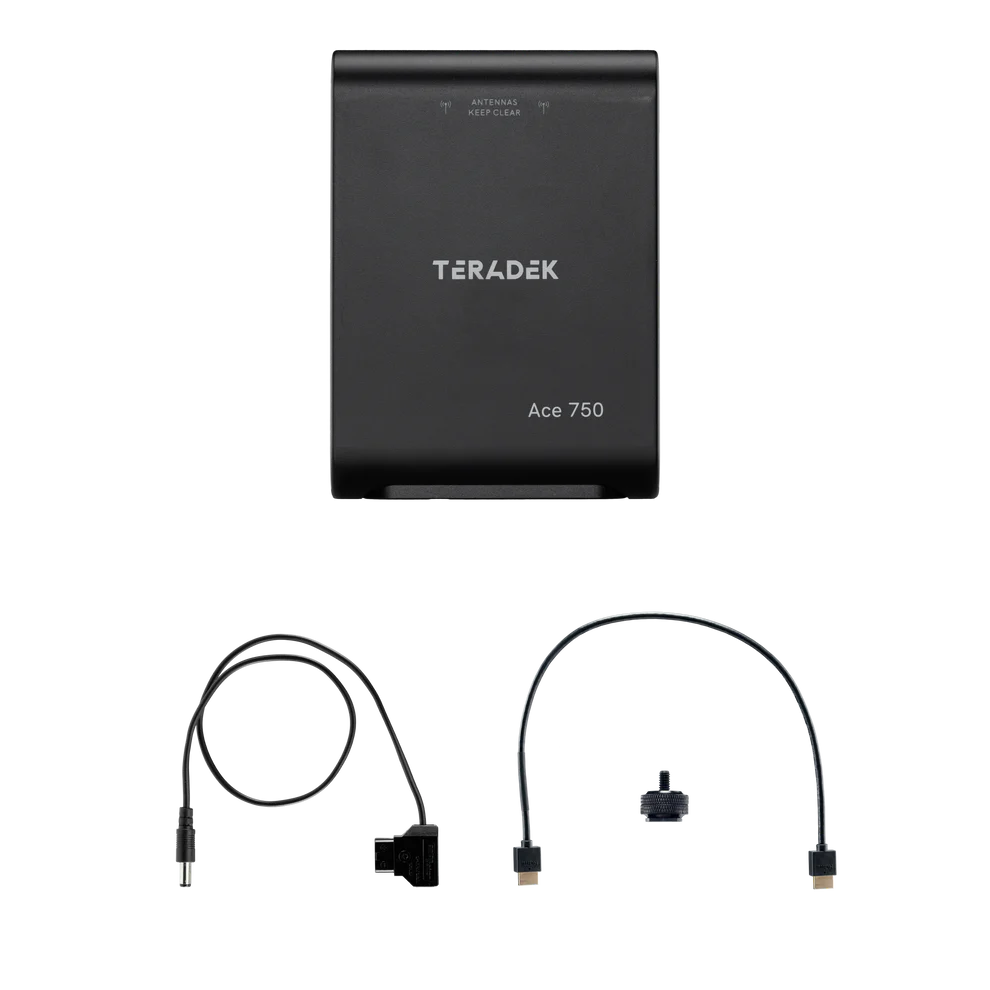

1 x Ace 750 Transmitter

1 x Hot Shoe Adaptor

1 x Ultra Thin HDMI Male Type A - HDMI Male Type A - 18in Cable

1 x PTap to r/a barrel - 18in Cable
