SWIT 73Wh NP-1 Type Battery Pack (S-8073N)

73Wh NP-1 battery with dual D-tap outputs and LED indicators. Air travel-safe and ideal for powering wireless systems and ENG accessories.

1-3 werkdagen
  • €169,00 (excl. btw)
    €204,49 incl. btw
  • - 0%

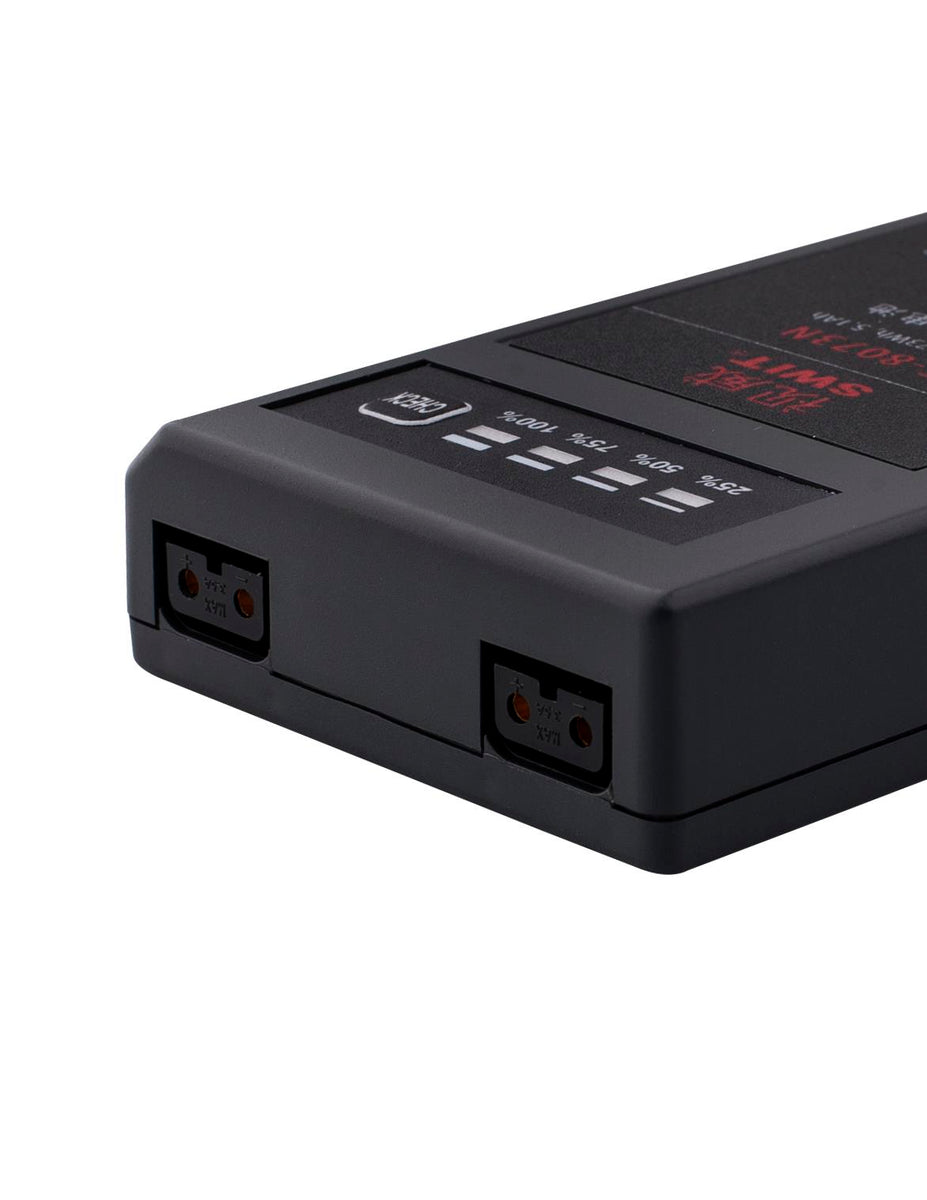

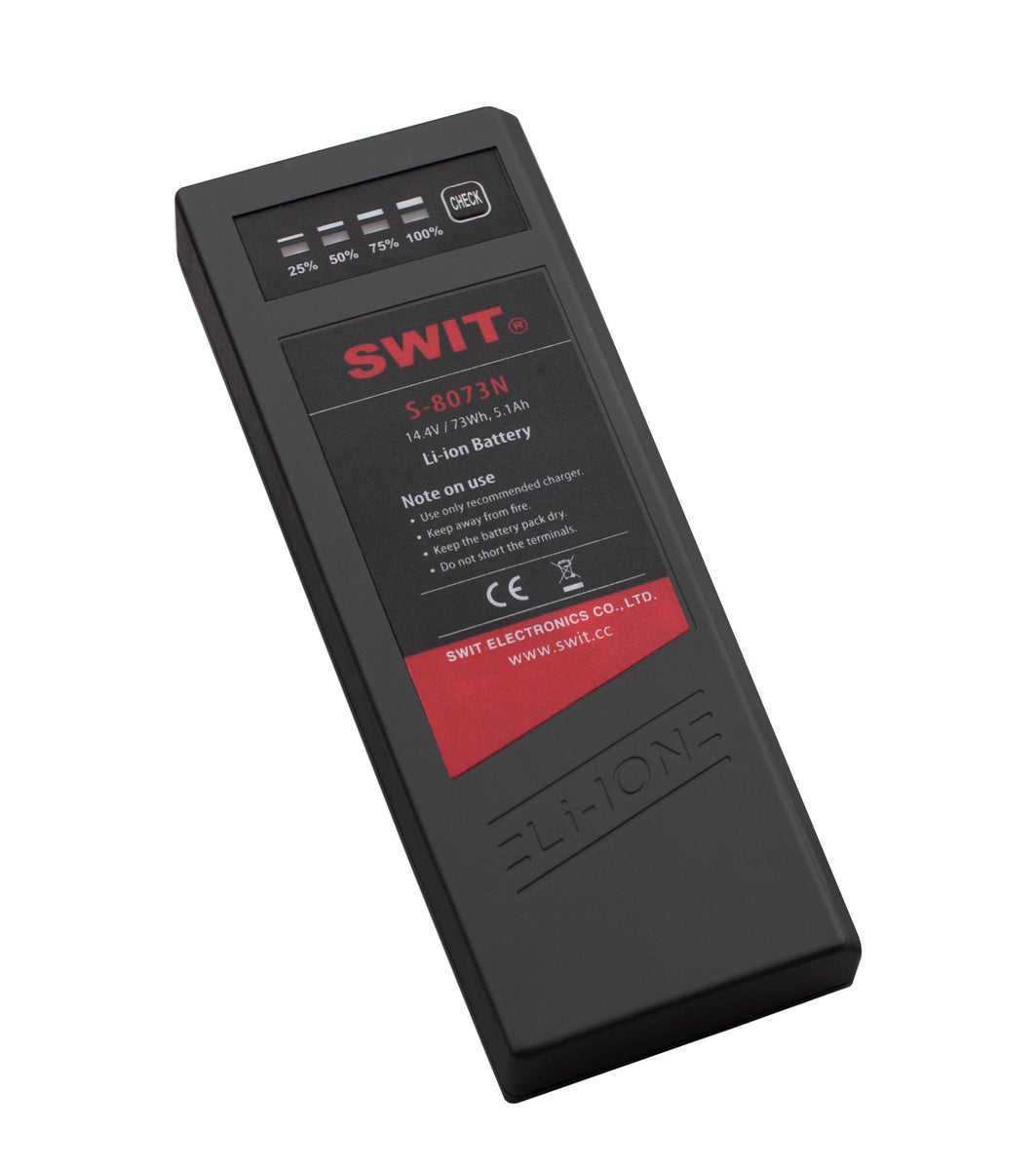

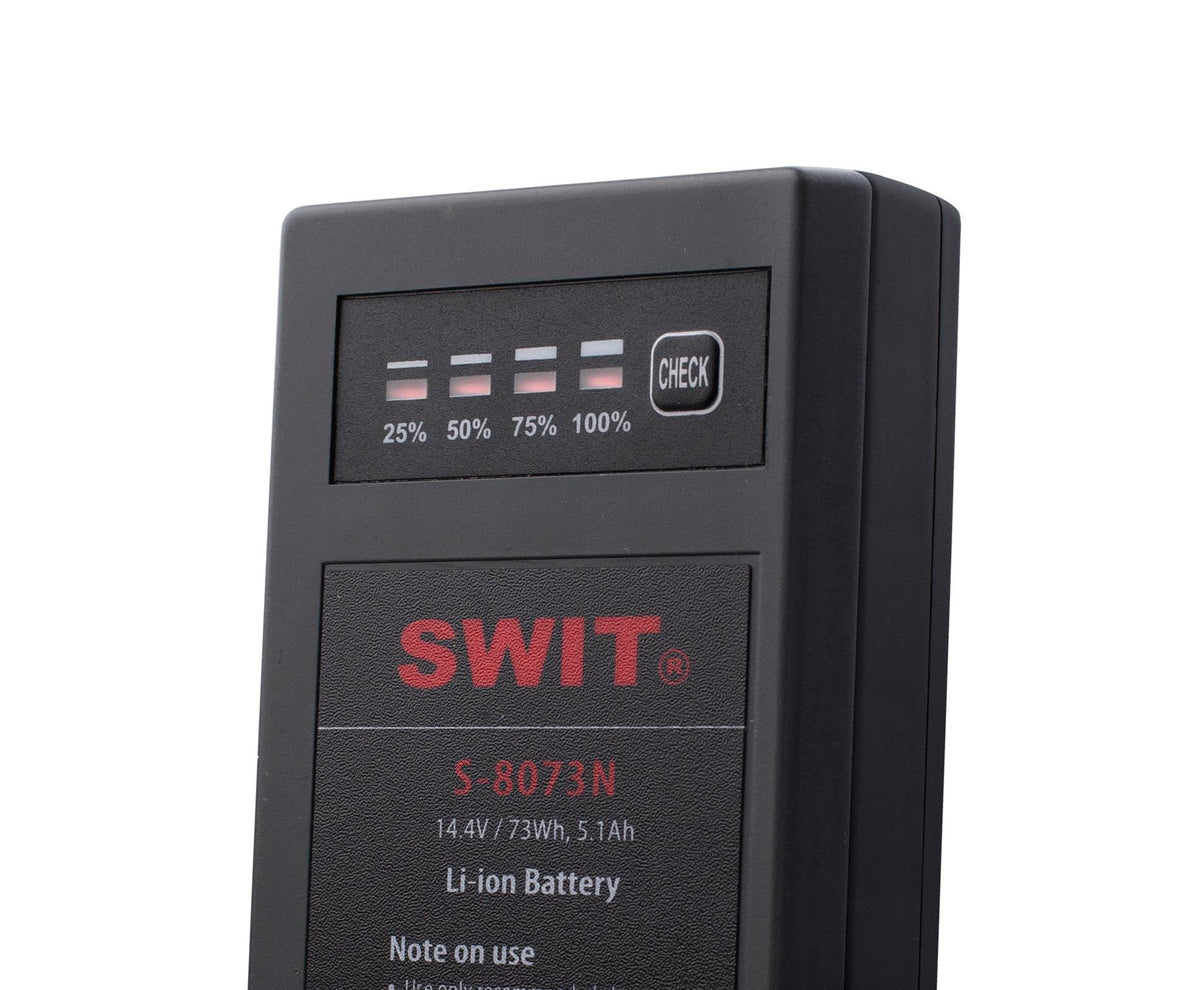

The S-8073N is a compact 73Wh (5.1Ah) NP-1 type Li-ion battery designed for professional video and broadcast equipment. Operating at 14.4V, it delivers reliable power for recorders, wireless systems, and ENG accessories. It features two D-tap DC output sockets, allowing simultaneous power supply to additional devices such as wireless receivers or on-camera lights. With a maximum output of 66W/5.5A, the S-8073N ensures stable performance under moderate loads. A 4-level LED indicator provides real-time battery status, and built-in circuit protections guard against overcharge, over-discharge, and short circuits. Its IATA-compliant design makes it safe for air travel, making it a dependable choice for mobile production environments.

Nominal Voltage

14.4V

Capacity

 73Wh/5.1Ah

Max output power

In total:66W
Electrodes:66W,5.5A
D-tap:66W,5.5A

Mount Type

NP-1

Charging Temperature

 0-40°C
      Discharging Temperature -20°C-50°C（Capacity and Max Load may decrease when operating below 0°）

Net weight

Net 0.45kg; With package 0.5kg

Dimensions

 185×72×25mm
