SWIT 290Wh 28.8V B-mount Battery Pack (HB-A290B)

290Wh 28.8V B-mount battery with 250W load, dual D-tap, USB-C 60W, OLED display, and rugged drop-proof design—ideal for ARRI and cine gear.

1-3 werkdagen
  • $500.00 (excl. btw)
    $605.00 incl. btw
  • $883.00
  • - 43%

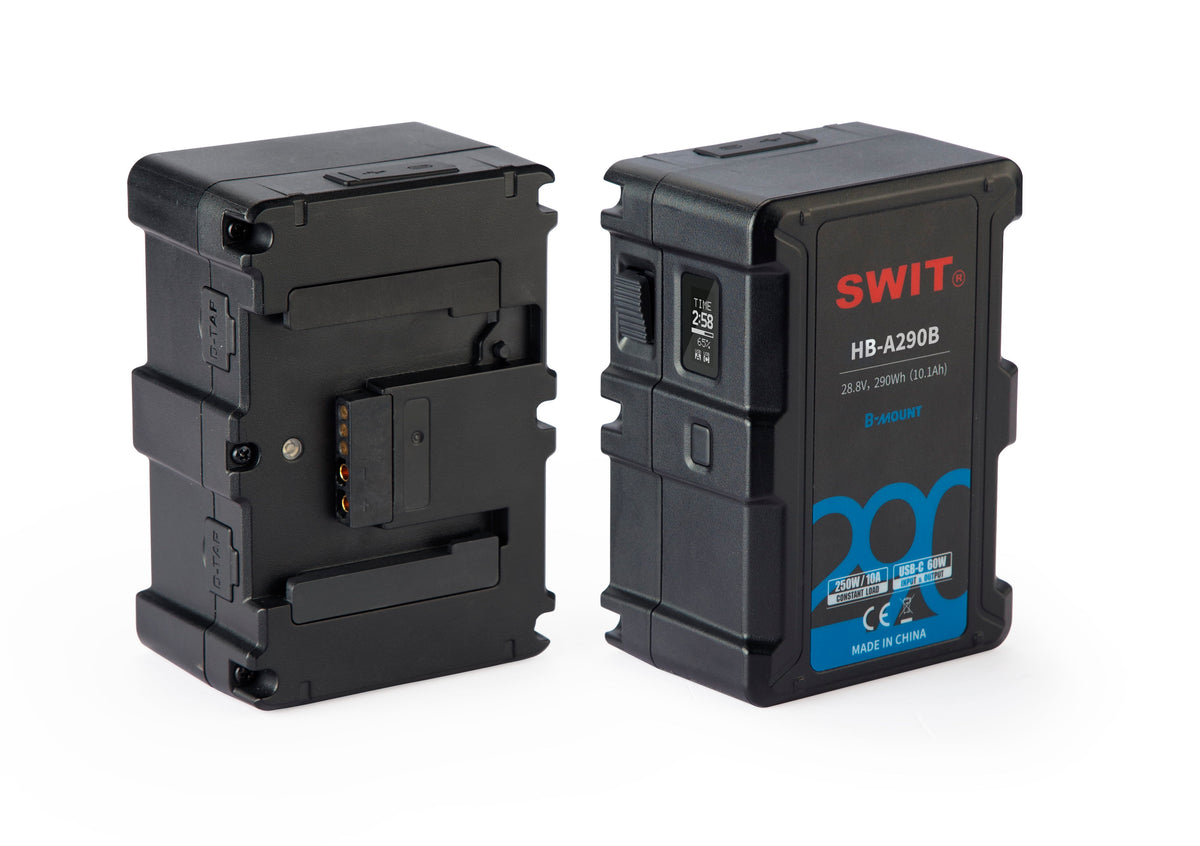

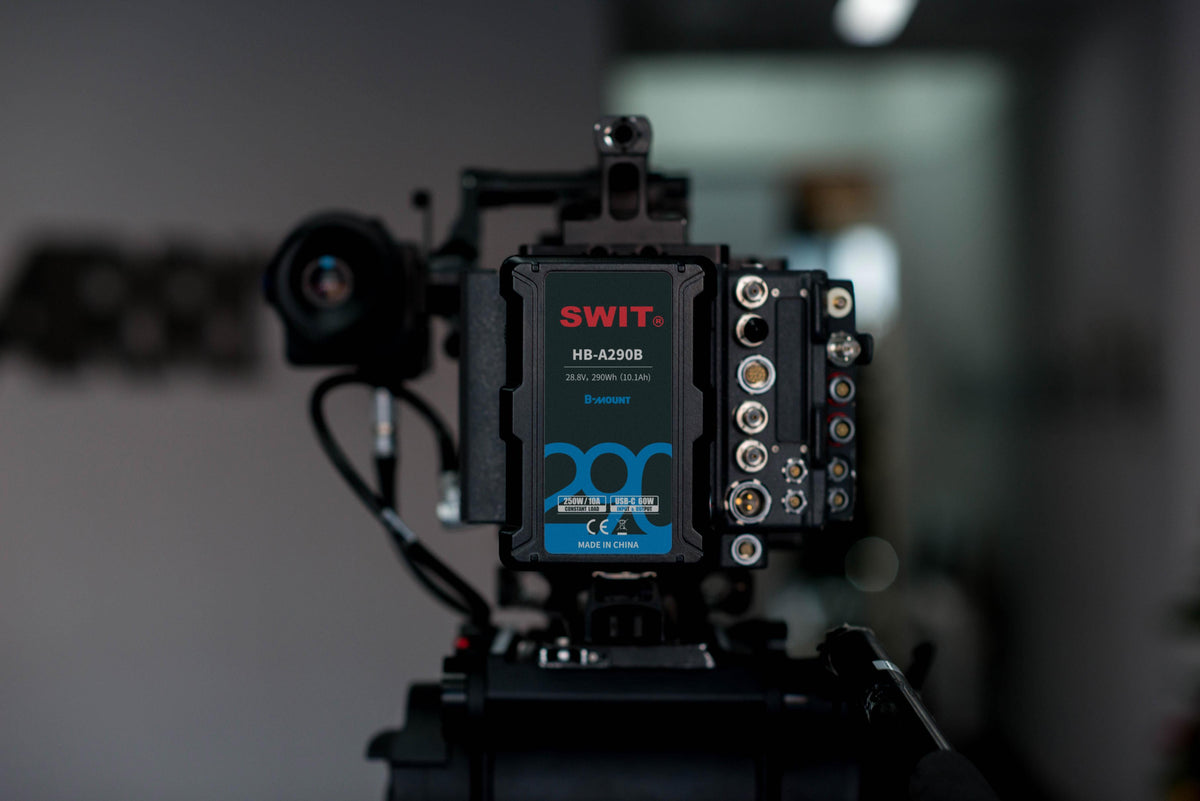

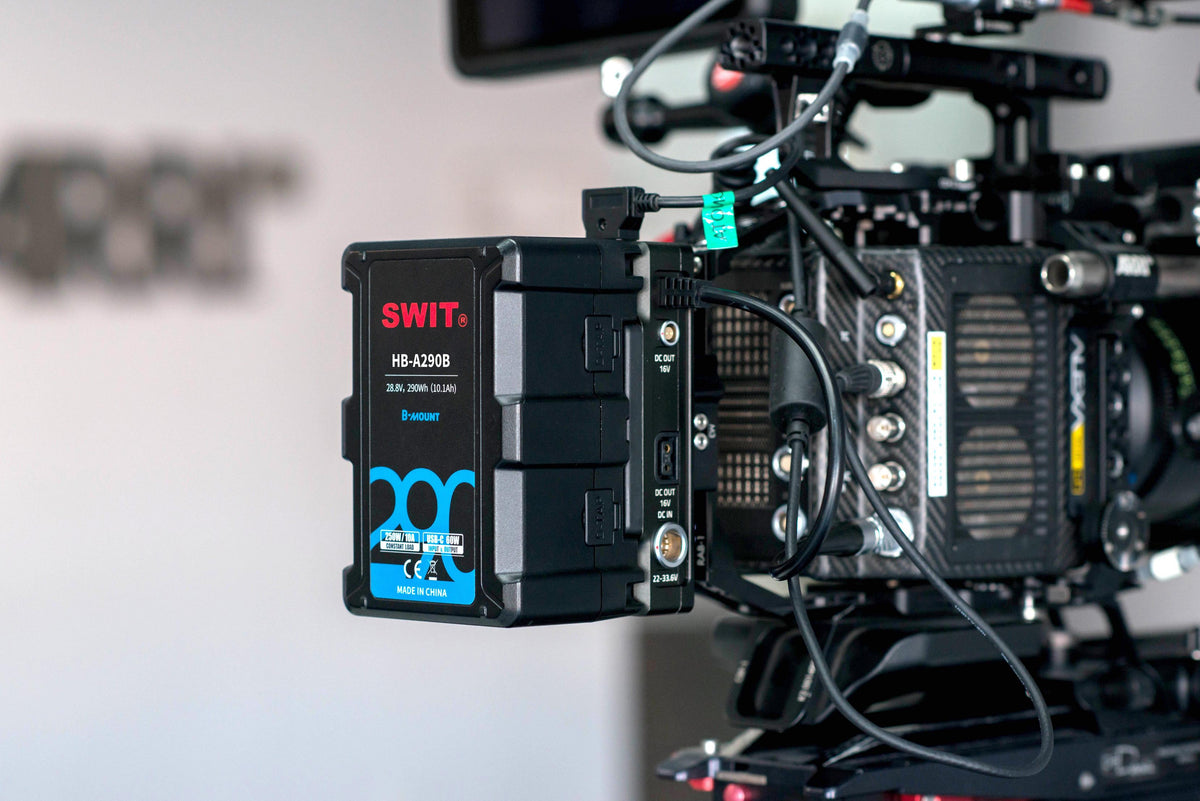

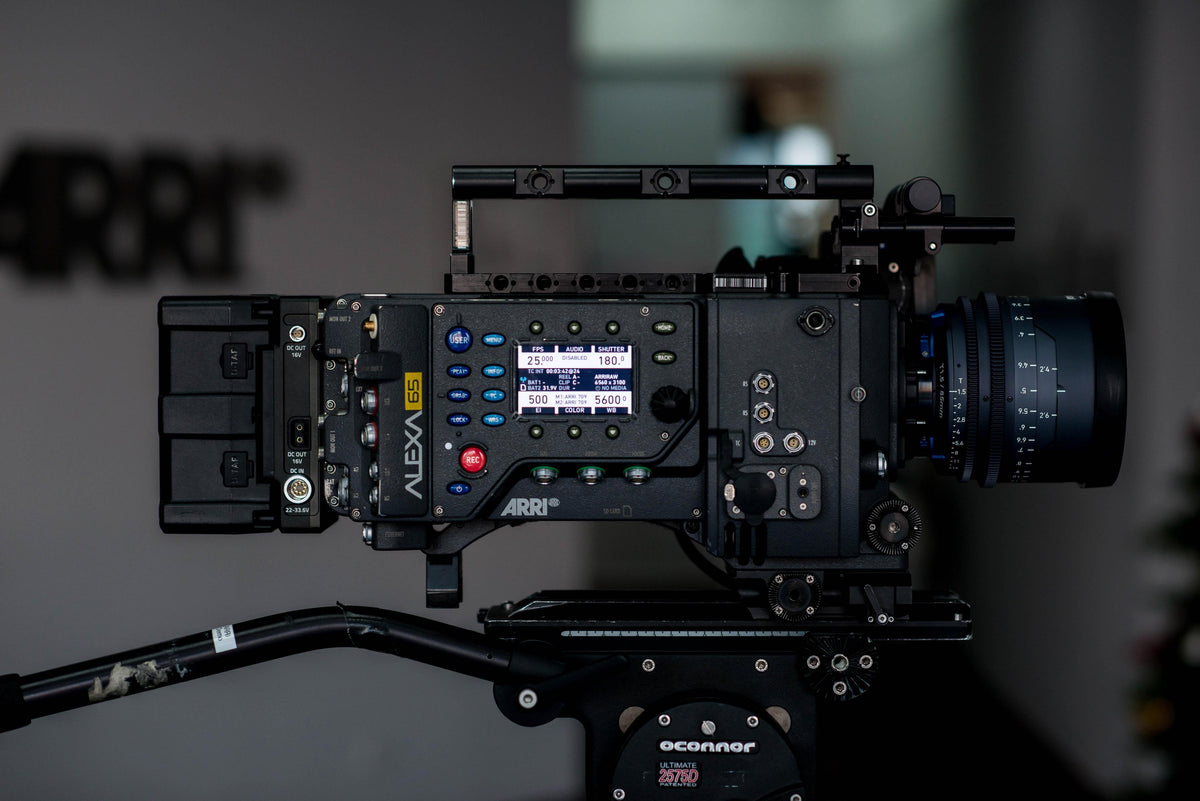

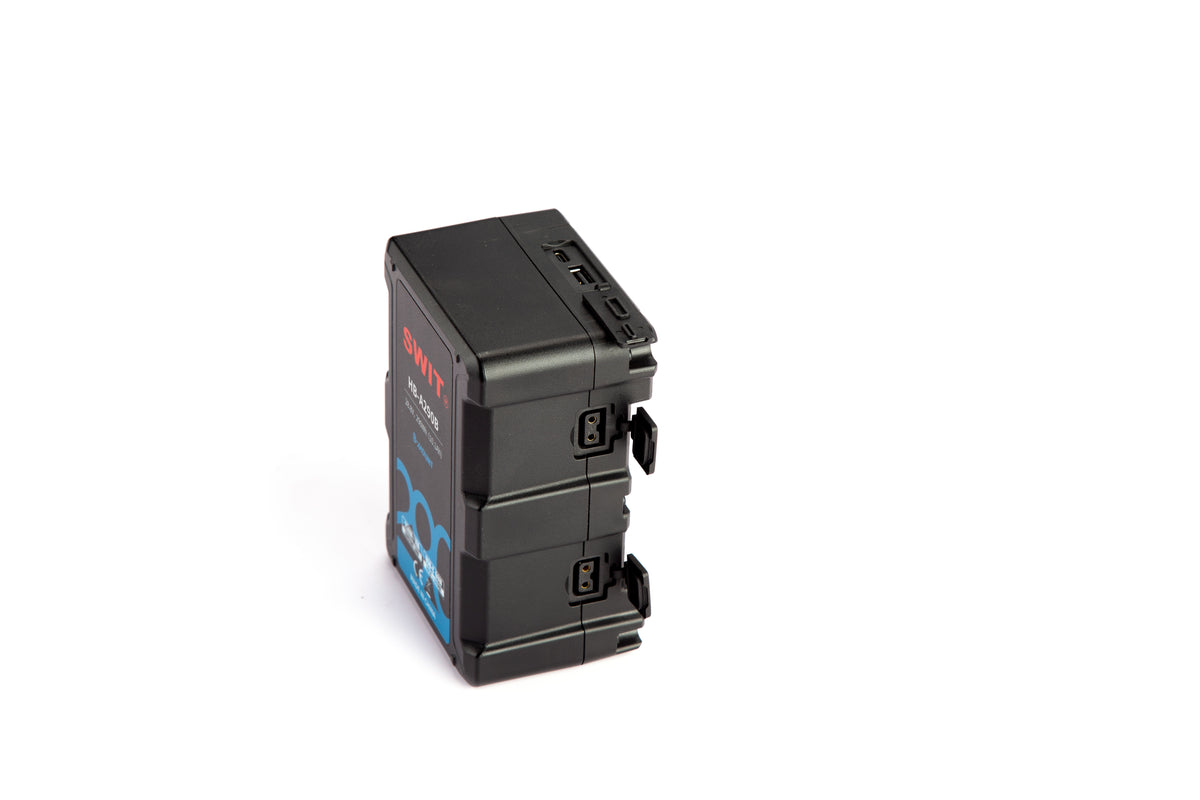

The HB-A290B is a high-capacity 290Wh B-mount battery engineered for professional cine cameras such as the ARRI ALEXA 35, ALEXA 265, and Blackmagic URSA Cine. Operating at 28.8V and delivering a robust 250W/10A constant load, it ensures stable and extended power for high-draw camera systems and accessories. The battery supports 100W/3A fast charging, significantly reducing downtime during production.

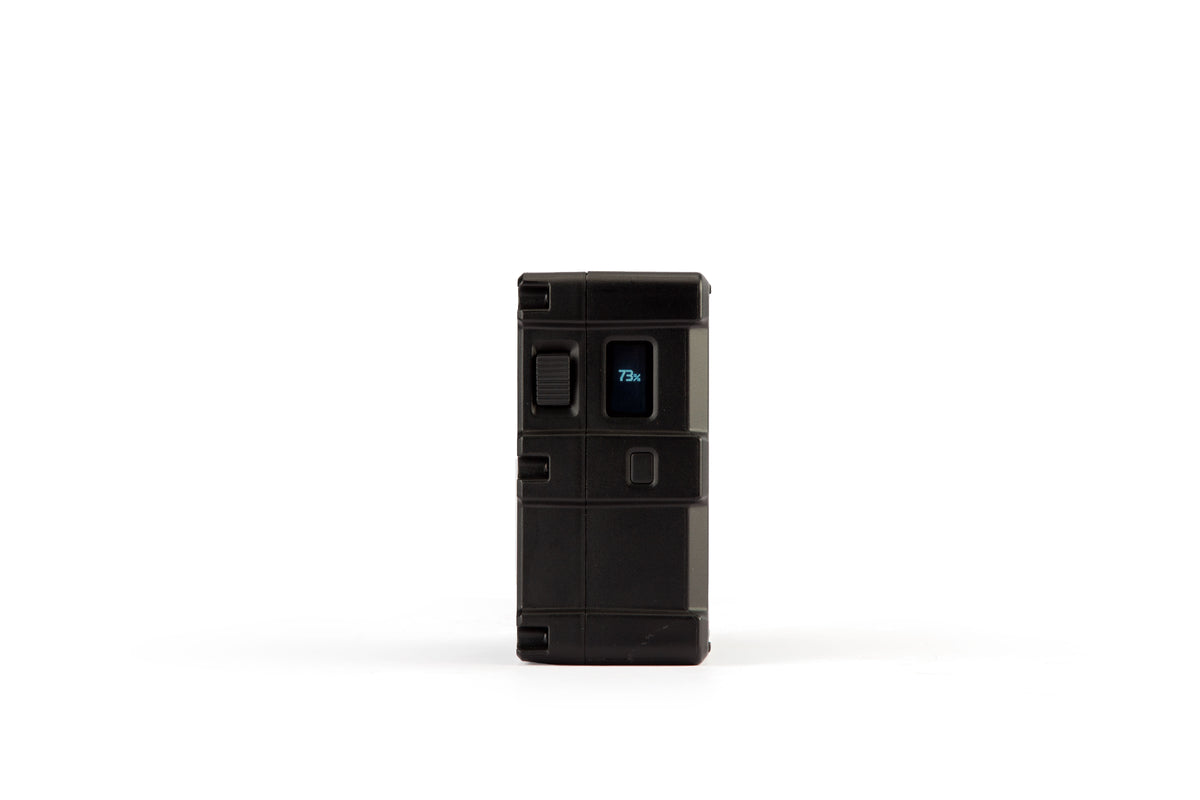

Equipped with dual 16V regulated D-tap outputs, a 60W USB-C port (input/output), and a 5V/2A USB-A output, the HB-A290B offers versatile power distribution for monitors, wireless systems, and mobile devices. An integrated OLED display provides real-time power information, including voltage, runtime, and capacity percentage. The battery also features a built-in LED flashlight for on-set convenience and is drop-proof from 1.2 meters, ensuring durability in demanding environments. Multiple circuit protections safeguard against overcharge, over-discharge, overcurrent, and short circuits, making it a reliable choice for professional cinematographers.

Voltage

28.8V (21.6-33.6V)

Capacity

290Wh/10.05Ah

Constant load

250W / 10A

Max charging current

100W / 3A fast charging

Mount Type

B-mount

D-tap ×2

16V regulated, 60W 3.8A load

USB-C

60W out  5V/9V/12V/15V/20V(Max) 3A

BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP

60W in 15V/20V(Max) 3A

USB-A

10W, 5V/2A

Charging Temperature

0-40°C
      Discharging Temperature -20°C-50°C (Capacity and Max Load may decrease when operating below 0°)

Net weight

Net 1.52kg; With package 1.6kg

Dimensions

144×100×79mm
