The Sonnet Echo II DV Desktop Two-Slot Full-Length Thunderbolt PCIe Card System offers high-performance expansion with Thunderbolt 3 connectivity, ensuring fast data transfer and versatile use. Perfect for professionals and enthusiasts alike.

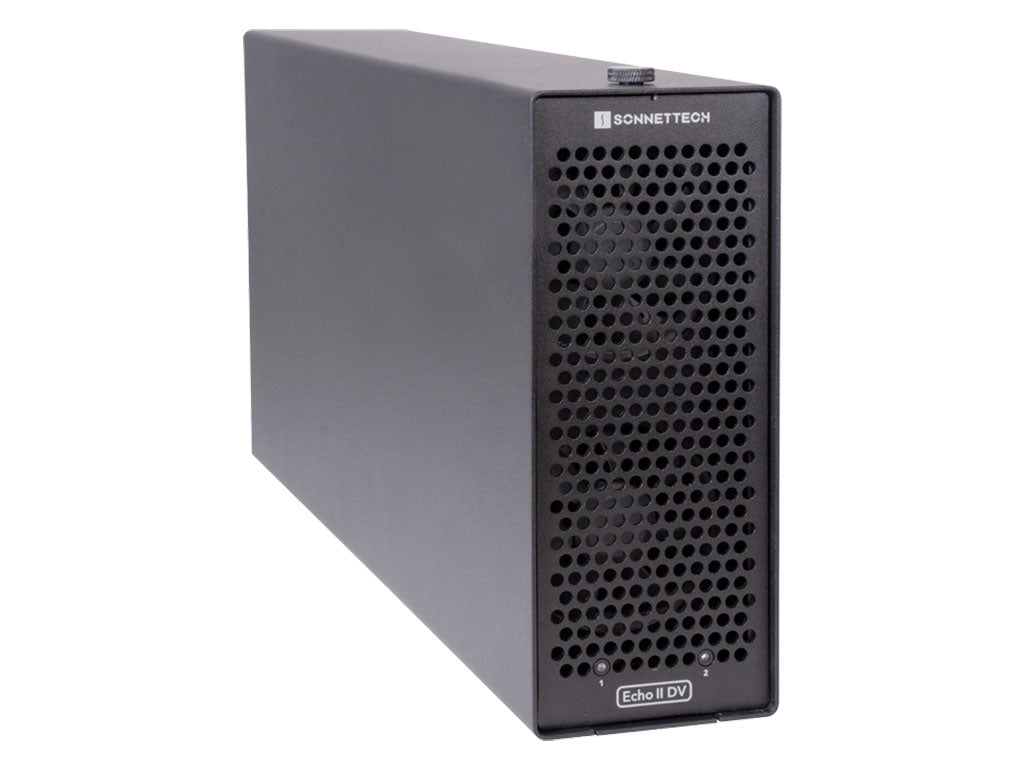

The Sonnet Echo II DV Desktop Two-Slot Full-Length Thunderbolt PCIe Card System (ECHO-2DDV-TB3) is a cutting-edge solution designed to enhance your computing experience. This system features two full-length PCIe slots, allowing for the installation of high-performance expansion cards. With Thunderbolt 3 connectivity, it offers lightning-fast data transfer speeds and unparalleled versatility. The sleek desktop design ensures it fits seamlessly into any workspace, while the robust construction guarantees durability and reliability. Whether you're a professional seeking to expand your workstation's capabilities or an enthusiast looking for top-tier performance, the Echo II DV delivers exceptional functionality and efficiency.
Computer System Requirements
To support maximum performance when using two bandwidth-hungry PCIe cards, Echo II DV Desktop requires the following:
Two connections between the Echo II DV module and the host computer(s) with the supplied (or comparable) Thunderbolt cables (or any Thunderbolt 4 cables), and:
For full performance:
Mac (M series)
Mac (Intel), PC, or Linux computer with three or four Thunderbolt 3(1) ports
Connecting each card to a different Thunderbolt computer
For reduced performance:
Mac (Intel), PC, or Linux computer with one or two Thunderbolt 3 ports
macOS Compatibility
macOS 10.13+
macOS Sequoia compatible
Windows Compatibility
Windows 11
Linux Compatibility
Linux Kernel 6.12+
PCIe Card Compatibility
Part Number
ECHO-2DDV-TB3
Warranty
2-year
Form Factor
Thunderbolt desktop enclosure
External Connectors
Four Thunderbolt ports(2)
Power (C14-type)
Expansion Slot
Two x16 mechanical (x4 electrical) PCIe 3.1
PCIe Cards Supported
Two full-length, full-height, single-width PCIe cards
Power Supply
Universal 400W, 115-230V AC, 50-60 Hz(3)
Operating Temperature
0ºC to 35ºC (32ºF to 95ºF)
Dimensions (WxDxH)
3.5 x 16.7 x 9 in. (8.9 x 42.4 x 22.9 cm)
Weight
9.7 lbs (4.40 kg)
Compliance
RoHS 3 (Directive 2015/863)
IEC62368-1 and IEC62368-2
Echo II DV Desktop System
Region-specific power cable for US, Australia, Europe, Japan, Switzerland, or UK
Two 6-pin PCIe auxiliary power cables
Two 0.8- meter Thunderbolt cables(4)
Three ThunderLok-A Connector Locks (secures Sonnet Thunderbolt cables with ThunderLok compatible products)(5)
Documentation
