Experience uncompromising clarity and wireless freedom with the SmallHD Ultra 7 Bolt 6 RX 750 Gold Mount, bright, rugged, and built for professional production.

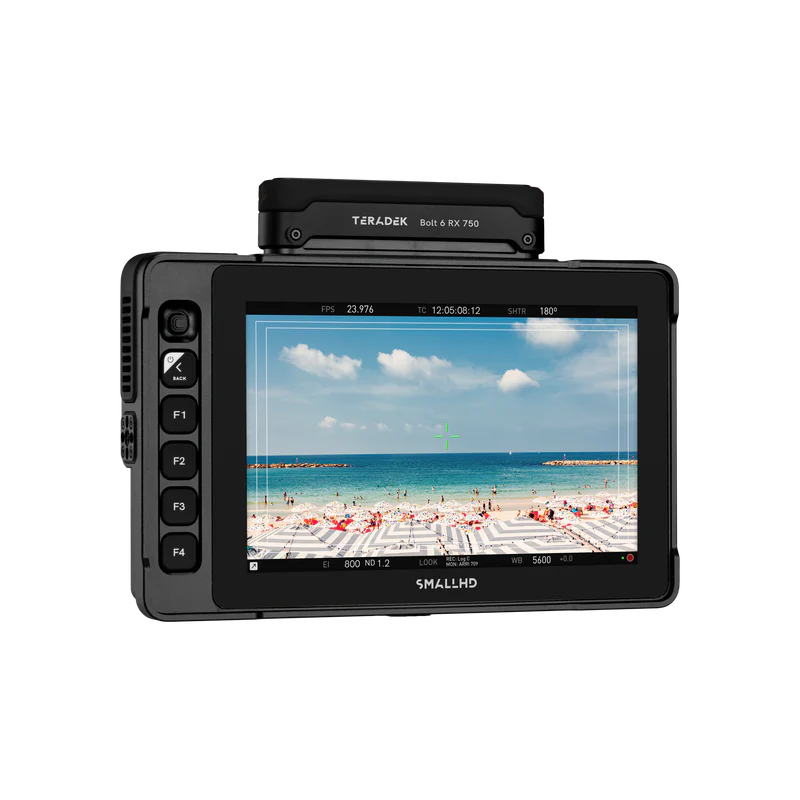

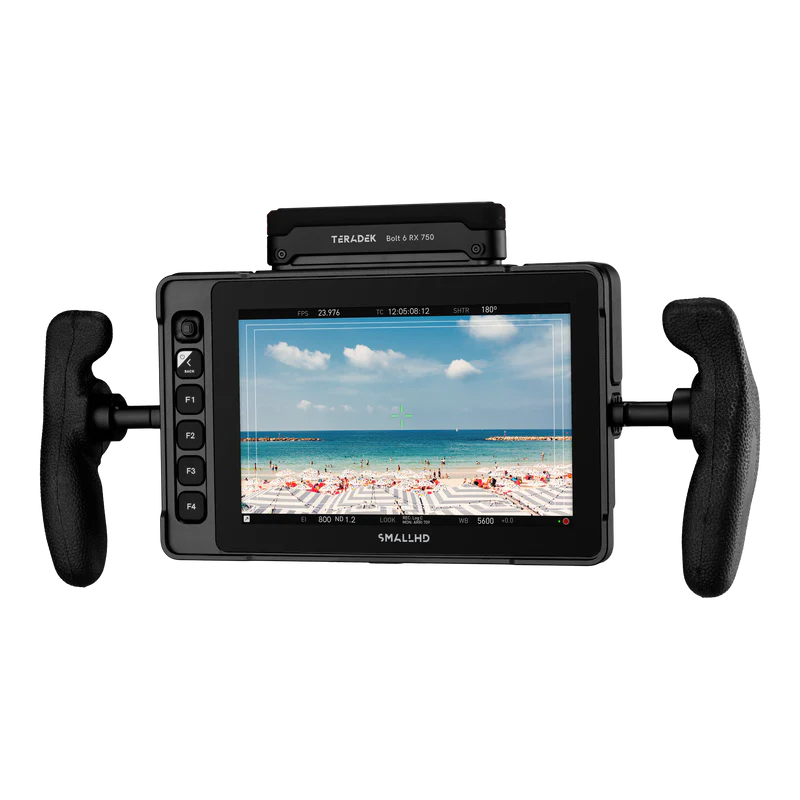

The SmallHD Ultra 7 Bolt 6 RX 750 Gold Mount is a professional-grade monitor engineered for uncompromising performance in demanding production environments. Featuring a 7-inch daylight-viewable touchscreen with 2300 nits of brightness, it delivers crystal-clear Full HD resolution and vibrant color accuracy even under harsh lighting conditions. Integrated Teradek Bolt 6 wireless technology provides a seamless receiver solution with up to 750 feet (228 meter) of range over the 6GHz band, ensuring interference-free connectivity and ultra-low latency for real-time monitoring. Built with a rugged IP53-rated chassis, the Ultra 7 withstands dust and moisture while maintaining a sleek, ergonomic design. Equipped with HDMI and 6G-SDI inputs, advanced PageOS 5 tools such as waveform, false color, and LUT support, and powered via Gold Mount or 2-pin LEMO, this monitor combines durability, versatility, and cutting-edge wireless capability for modern film and broadcast workflows.
Panel Type
IPS LCD
Diagonal Size
7.02"
Resolution
1920x1200
Max Brightness
2300nits
Contrast
1000:1
Gamut
95% DCI-P3 Coverage / 98% REC 709
Color Depth
10-bit Processing (8-bit panel)
Backlight Type
LED Edgelit
Refresh Rate
Synchronizes with input from 48Hz to 60Hz
3G-SDI Input Types
YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i102
6G-SDI Input Types
YCC 4:2:2 @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p24, 2160p23.98 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95
HD-SDI Input Types
YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.100
SD-SDI Input Types
YCC 4:2:2 @ 10-bits: 480i59.94, 576i52
HDMI Input Types
YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 3840x2160 30p, 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i52
3G-SDI Output Types
YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i102
HD-SDI Output Types
YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.100
SD-SDI Output Types
YCC 4:2:2 @ 10-bits: 480i59.94, 576i52
HDMI Output Types
YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i51
Audio Output Types
HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection

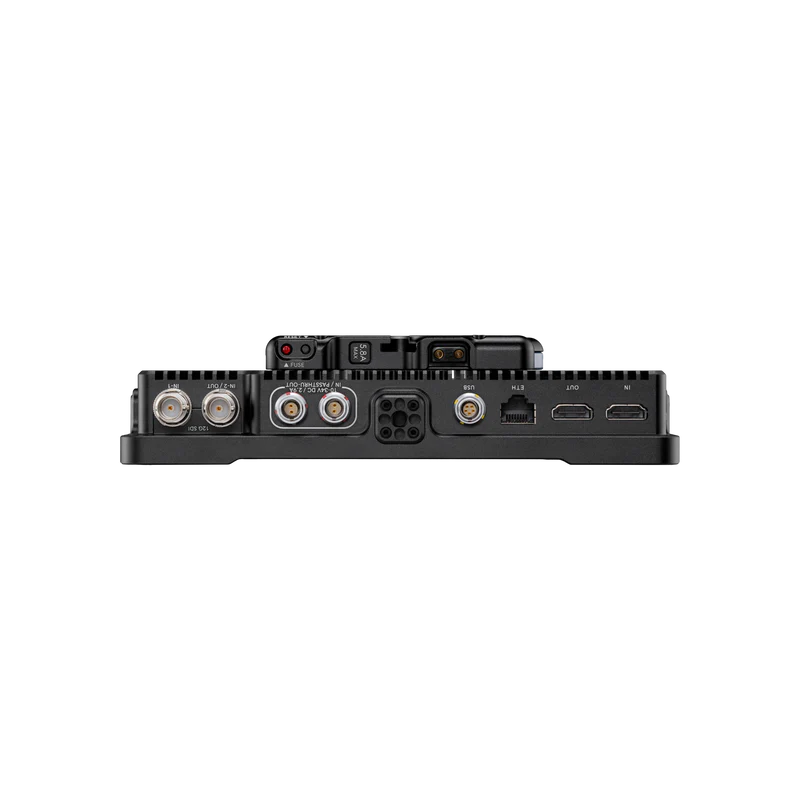

SDI
1x BNC 6G input and 1x BNC 6G input/output
HDMI
1 input and 1 output: HDMI Type-A Receptacles (full size)
Audio
1x 3.5mm 3-pin Stereo Headphone Jack
Ethernet
RJ45
Connector
2-Pin Locking Connector
Voltage
DC in - 10V minimum to 34V maximum, Battery terminals - 10V minimum to 34V max
Power Supply
Recommend DC 12~15V at ~2.5 amp or greater

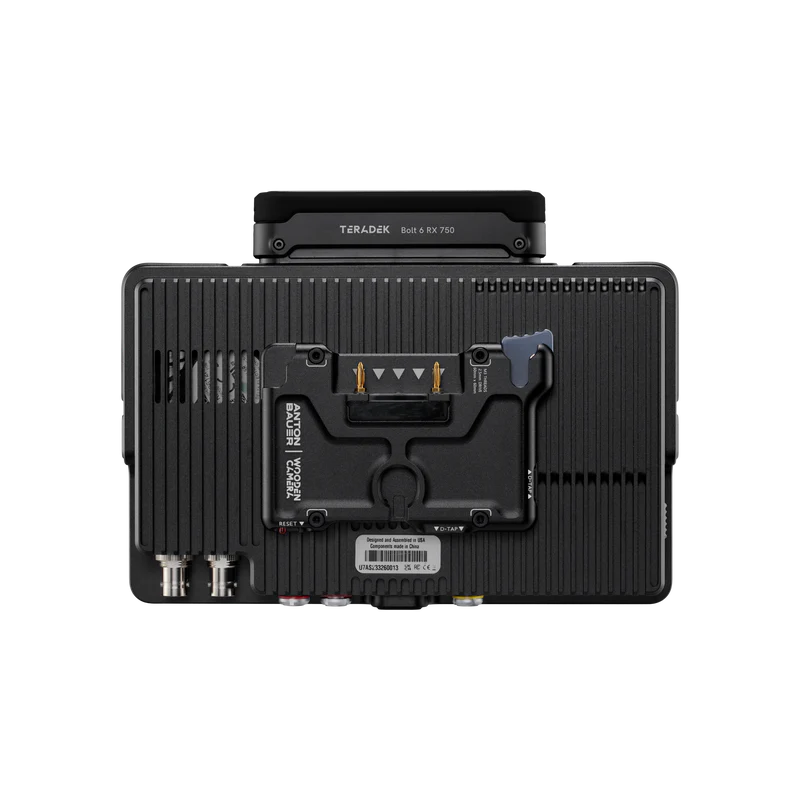

Battery Types
V Mount, Gold Mount Micro Battery Plates
Overload Protection
DC input: Reverse polarity
Pixel Zoom
1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom
Frame Guides
Preset Aspect Ratios & Customizable
DSLR Scale
Canon 5DMkii & Canon 7D
Custom Scale
Yes (Underscan Only)
Anamorphic De-Squeeze
0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x
Image Rotate
Automatic or Manual Control
Image Flip
Automatic or Manual Control
Cross Conversion
Yes: HDMI → SDI & SDI → HDMI (Coming Soon)
Focus Assist
User Adjustable Color Style and Intensity
Peaking
User Adjustable Intensity
False Color
Rainbow, Arri Style, Custom with up to 10 nodes
Zebra
Dual - User Configurable
Waveform
Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
Vectorscope
Yes
RGB Parade
Fully User Customizable
Histogram
Luma & RGB Style
Image Capture
Yes
LUTS
- 33pt User LUT instead of 17pt - 33pt Cal LUT instead of 17pt - LUT tool continues to work after removable media containing the LUT has been removed
Custom LUTS
- Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu - LUT Downstream: Available on SDI or HDMI Out (Coming Soon). Applied on Output Preview Page - LUT Import: via SD Card or USB Storage Device
Color Pipe
- Unique Calibrations may be saved to each Color Pipe - Accurate color processing
Overlay
With Opacity Slider and Blink Setting
Audio Meters
HDMI & SDI up to 8 channel
Multi-View
2 camera feeds simultaneously
SmallHD Ultra 7 Bolt 6 RX 750 Gold mount
Right Angle D-Tap to 2pin Power Cable 18in
Ultra Screen Protector for Ultra 7
