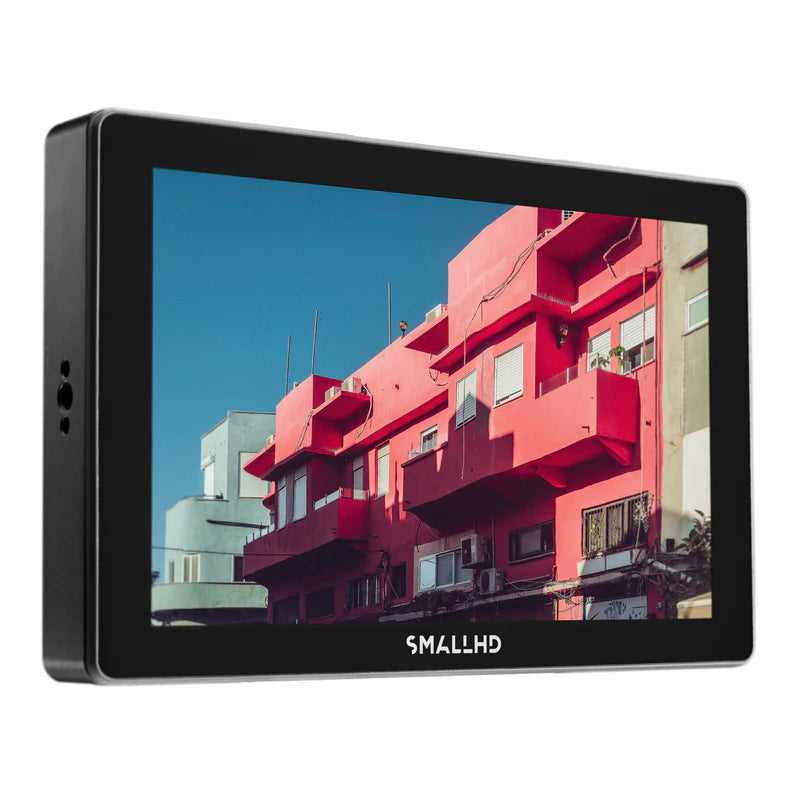

SmallHD Cine 7: A 7-inch ultra-bright touchscreen monitor with DCI-P3 color, HDR support, PageOS tools, and camera control for ARRI, RED®, and Sony. Perfect for precision monitoring in any lighting condition.

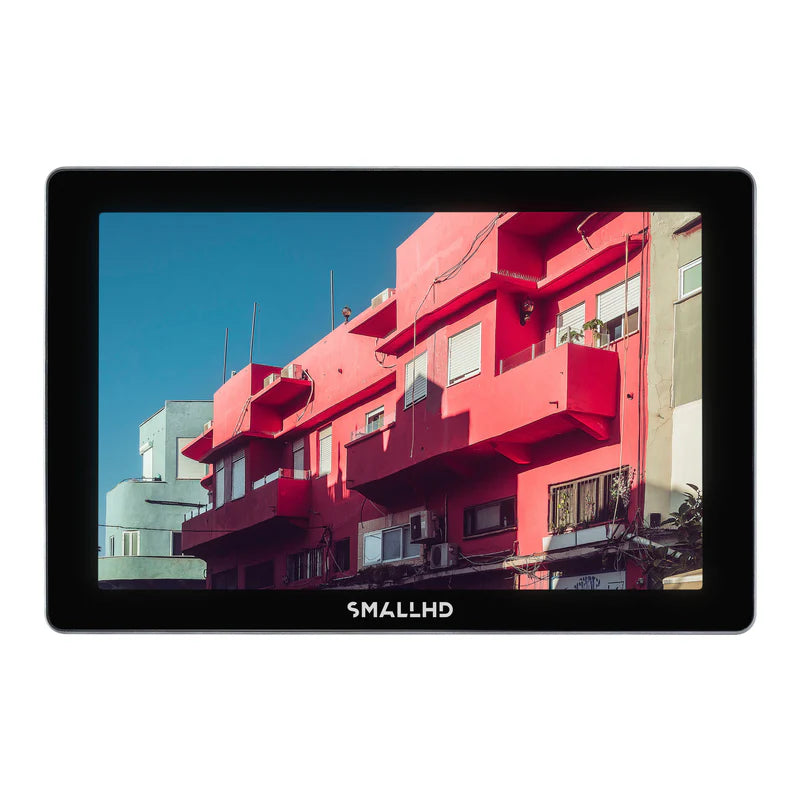

The SmallHD Cine 7 is a premium 7-inch on-camera monitor engineered for cinematographers who demand precision, versatility, and uncompromising image fidelity. Featuring a stunning 1920x1200 IPS LCD display with 10-bit color processing and 100% DCI-P3 coverage, it delivers exceptional color accuracy and clarity in any environment. With an ultra-bright 1800-nit QD-LED edge-lit panel, the Cine 7 ensures flawless visibility even in direct sunlight, while its quantum-dot technology guarantees vibrant, true-to-life colors.
Designed for modern workflows, the Cine 7 supports HDMI and 3G-SDI input/output with seamless loop-through, UHD and HDR compatibility, and zero-delay wireless video options via Teradek Bolt integration. Its advanced PageOS interface offers customizable pages, intuitive navigation, and next-gen tools for exposure, focus, and LUT management, enabling a fully personalized monitoring experience. Camera control licenses for ARRI, RED®, and Sony bring direct access to critical settings right from the touchscreen, streamlining on-set operations.

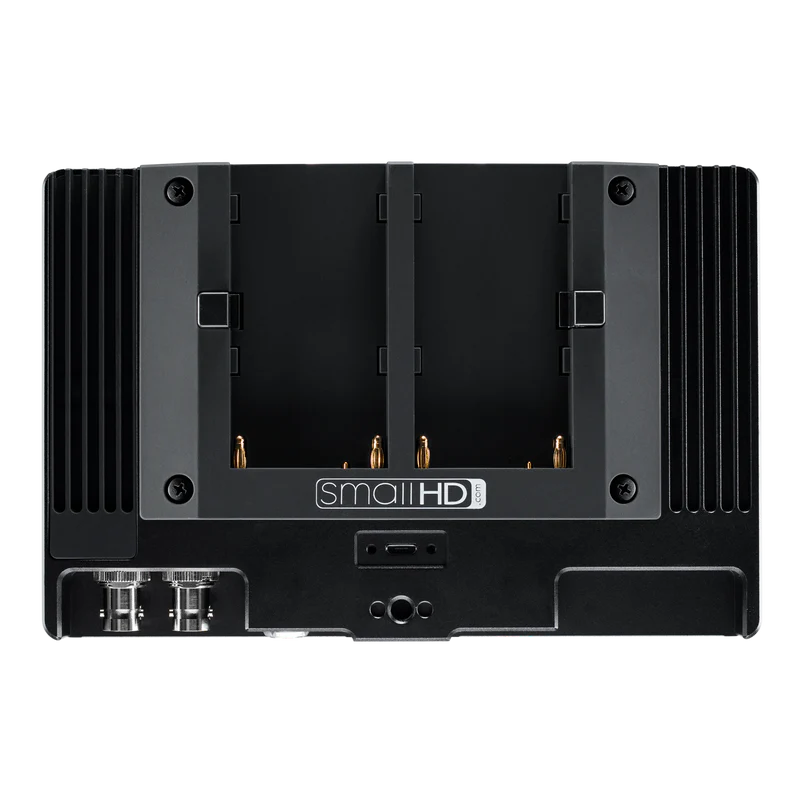

Built for durability and flexibility, the Cine 7 includes multiple mounting points, dual Sony L-Series battery brackets, and optional Gold or V-Mount plates for extended power solutions. Whether paired with wireless modules or used as a standalone monitor, the Cine 7 combines cutting-edge technology with ergonomic design to deliver a professional-grade solution for high-end productions.
Display
Panel Type
IPS LCD
Diagonal Size
7.02
Resolution
1920x1200
Pixel Density
322 ppi
Aspect Ratio
16:9
Active Area
5.95 x 3.72
Max Brightness
1800 NITs
Contrast
1000:1
Color Depth
10-bit Processing (8-bit panel)
Viewing Angle
160
Backlight Type
LED
Adjustable Backlight
Yes
Input Signal
3G-SDI Input Types
YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI Input Types
YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Input Types
YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI Input Types
YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
Audio Input Types
HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels
Output Signal
3G-SDI Output Types
YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI Output Types
YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Output Types
YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI Output Types
YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
Audio Output Types
HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection

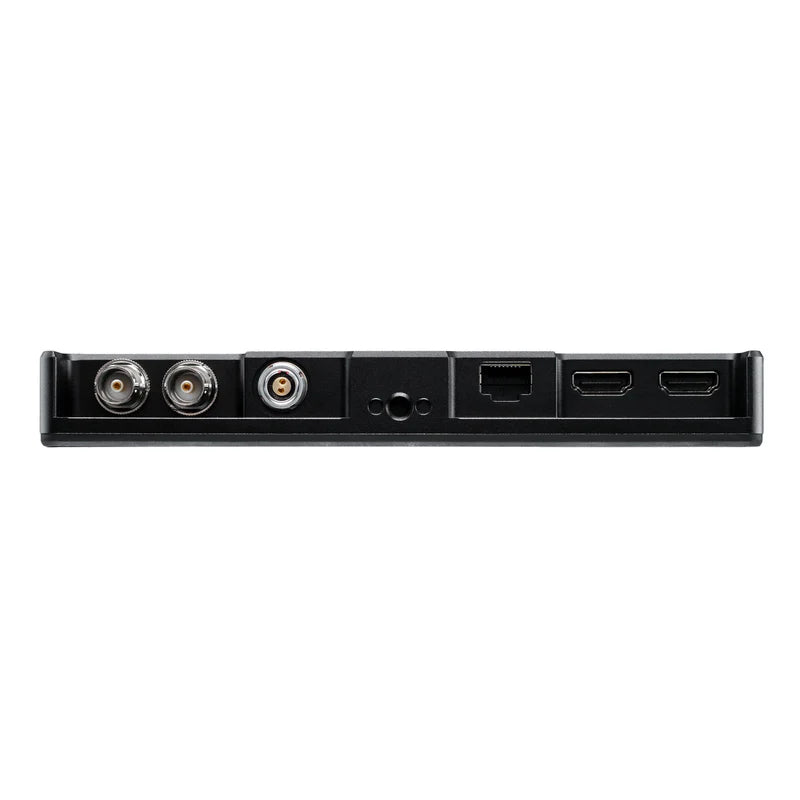

Connector Type
SDI
1x BNC 3G input and 1x BNC 3G selectable input/output
HDMI
1 input and 1 output: HDMI Type-A Receptacles (full size)
Audio
1x 3.5mm 3-pin Stereo Headphone Jack
Power In
2-pin Locking
USB
1x USB 2.0 Micro-B receptacle
Controls
Primary
Touch Screen
Record Capture
Image Capture Tool
Power
Connector
LEMO
Voltage
DC in - 10V minimum to 34V maximum, Battery terminals - 6.0V minimum to 16.8V max
Power Supply
Recommend DC 12~15V at ~2.5 amp or greater
Battery Types
L-Series, V Mount, Gold Mount
Overload Protection
DC input: Reverse polarity
Battery Chemistry
Li-ion
Battery Charging Time
Monitor does not support the charging of batteries
Software
Pixel Zoom
1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom
Frame Guides
Preset Aspect Ratios & Customizable
DSLR Scale
Canon 5DMkii & Canon 7D
Custom Scale
Yes (Underscan Only)
Anamorphic De-Squeeze
0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x
Image Rotate
Automatic or Manual Control
Image Flip
Automatic or Manual Control
Cross Conversion
Yes: HDMI → SDI & SDI → HDMI
Focus Assist
User Adjustable Color Style and Intensity
Peaking
User Adjustable Intensity
False Color
Rainbow, Arri Style, Custom with up to 10 nodes
Zebra
Dual - User Configurable
Waveform
Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
Vectorscope
Yes
RGB Parade
Fully User Customizable
Histogram
Luma & RGB Style
Image Capture
Yes
Custom LUTS
Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu
LUT Downstream
Available on SDI or HDMI Out. Applied on Output Preview Page.
LUT Import
via SD Card or USB Storage Device
Overlay
With Opacity Slider and Blink Setting
Audio Meters
HDMI & SDI up to 8 channel
