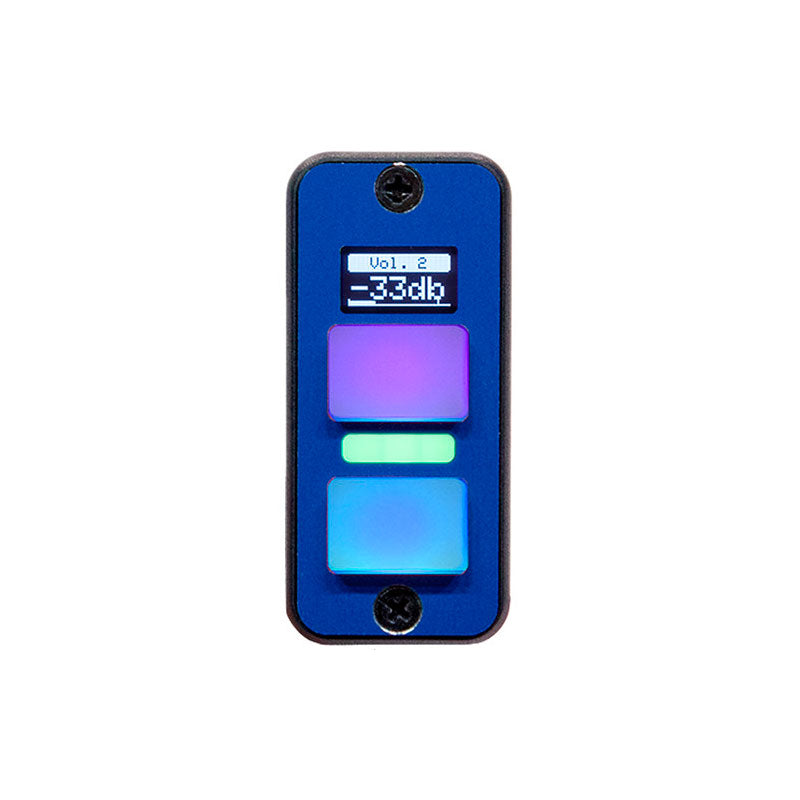

The Micro Fly is a diminutive UniSketch-based control panel that packs a significant punch with two Four-way buttons, an OLED display, and an LED bar. Designed to connect seamlessly to a Blue Pill device, it allows for intricate programming via Reactor's powerful engine, leveraging all available SKAARHOJ device cores for unmatched flexibility. This super tiny panel is perfect for applications where space is at a premium but control and functionality cannot be compromised. Whether for broadcast, live production, or custom integrations, the Micro Fly offers a potent combination of portability and programmability.
Benefits
- Compact design ideal for space-constrained environments
- Two Four-way buttons and an OLED display for versatile control
- Easily programmable via Reactor for custom functionality
- Compatible with all SKAARHOJ device cores for flexibility
- Perfect for broadcast, live production, and custom integrations
Features
- Compact design for simple applications
- Versatile connectivity via IP
- Durable build quality
- 2 user-configurable 4-way buttons
- 2 OLED displays for labels and feedback
- User customization with Unisketch software
- 100M Ethernet w/Power over Ethernet (PoE IEEE802.3af/t)
- Designed and made in Denmark
- Time tested – adopted by professionals worldwide
Connectivity |
Networking |
100 Mbit Ethernet w/Power over Ethernet (PoE IEEE802.3af) |
Power Supply |
12V DC Jack 5.5mm x 2.1mm x 10mm Center Positive PoE IEEE802.3af/t |
Service Port |
Micro USB for updating firmwares and setting manual IP |
Software |
Platform |
UniSketch (Raw Panel Server, Legacy Device Cores) |
Licenses |
N/A |
Physical and Shipping |
Product Weight |
104 g |
Shipping Box Weight |
400 g |
Country of Origin |
Denmark |
EAN Code |
5714074001409 |
(This Product)
12V Power Supply: Manufacturer: PHIHONG, Model Name: PSA15R-120P, Output: 12V/1.25A, Cable Length: 1.5m, Adapter type: EU, GB, US, AU depending on shipping country, DC Output Connector: 5.5mm x 2.1mm x 10mm Center Positive
Micro USB Cable
Getting Started Guide
