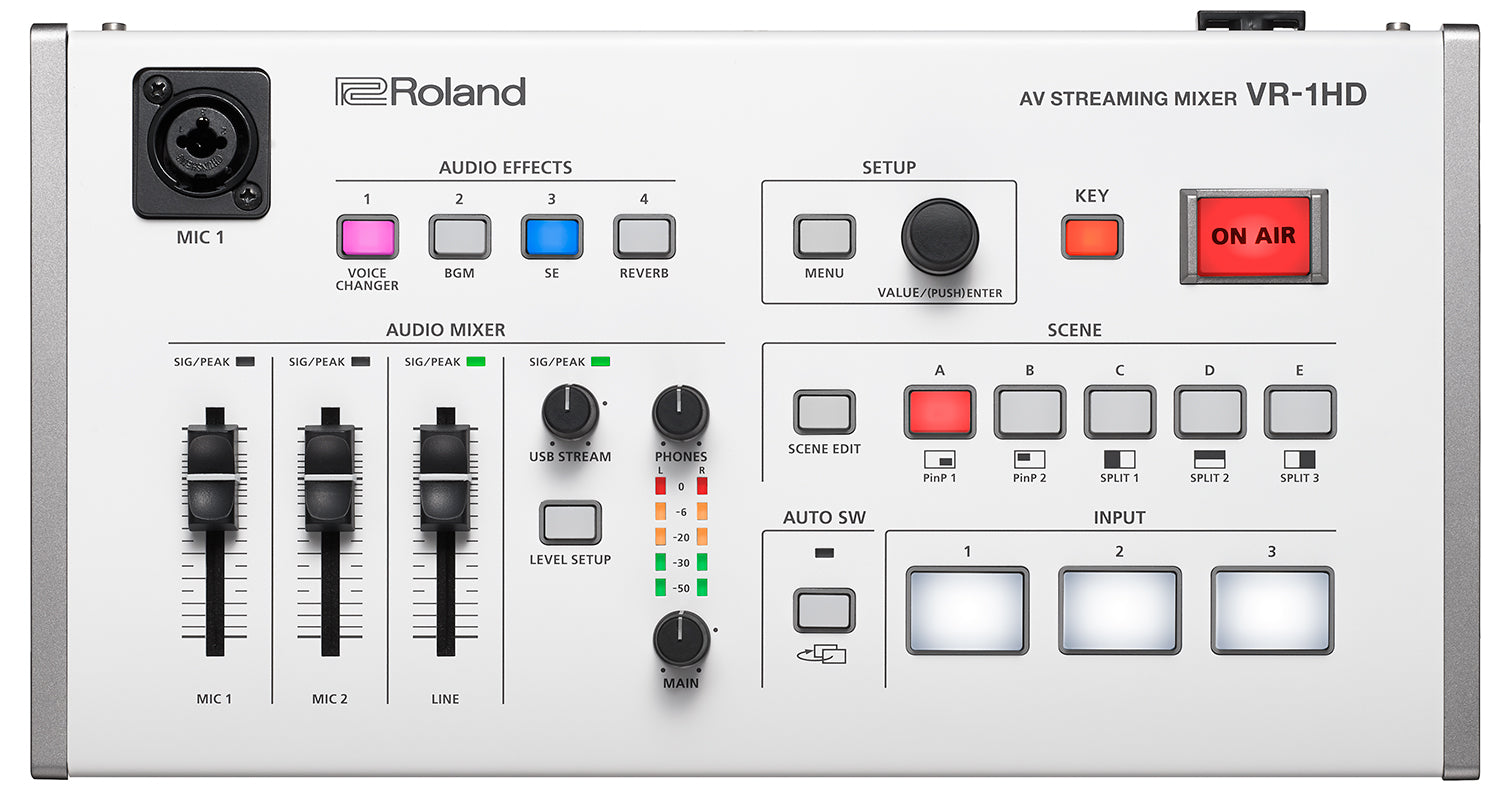

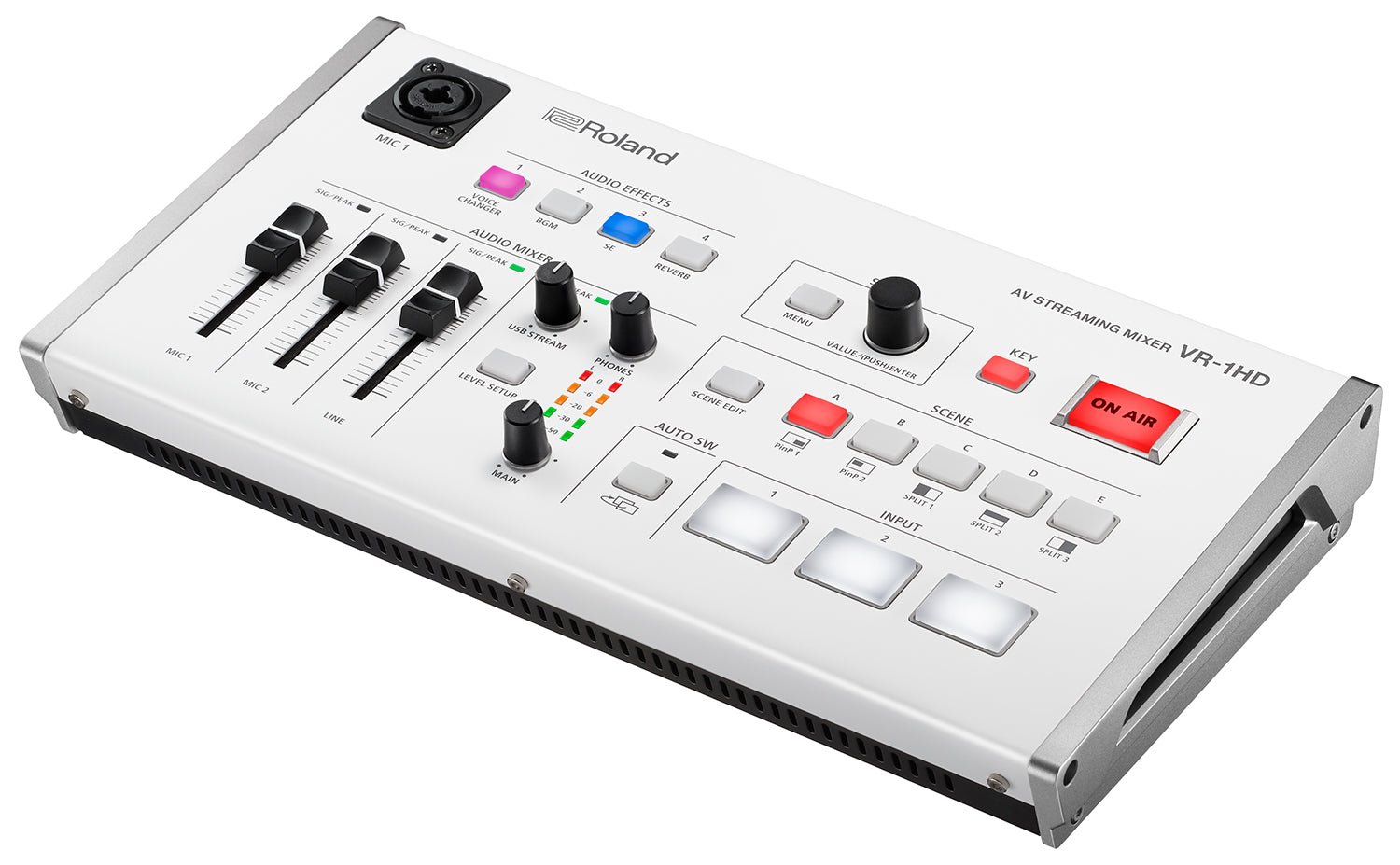

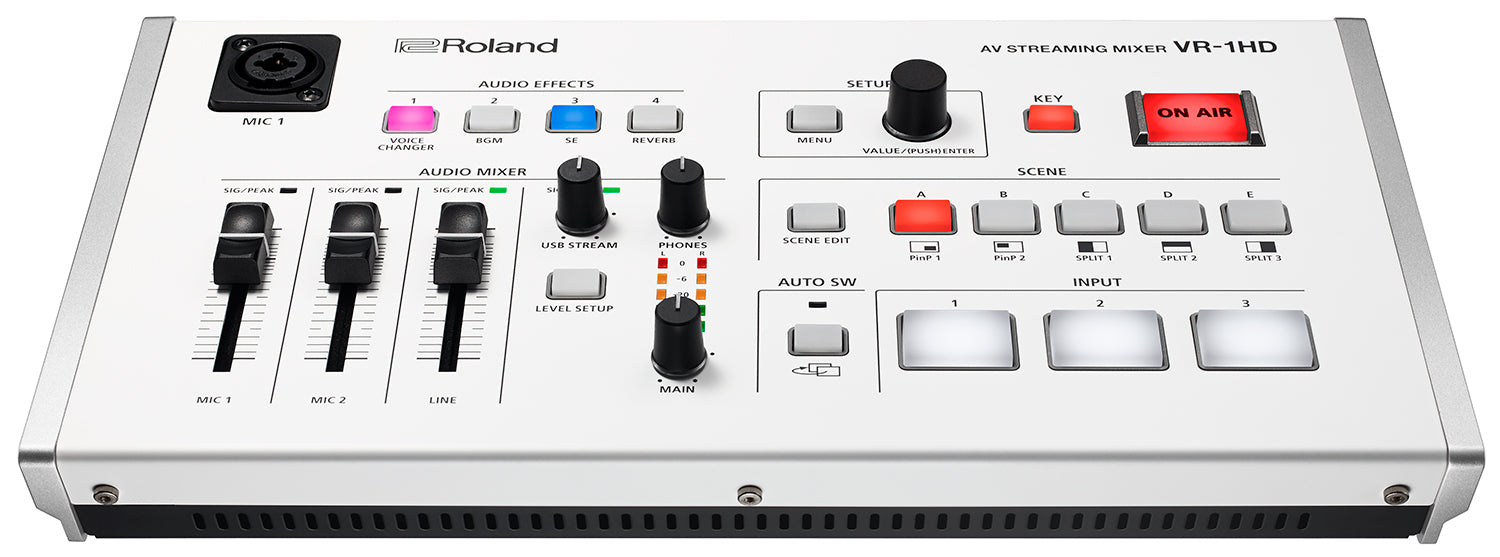

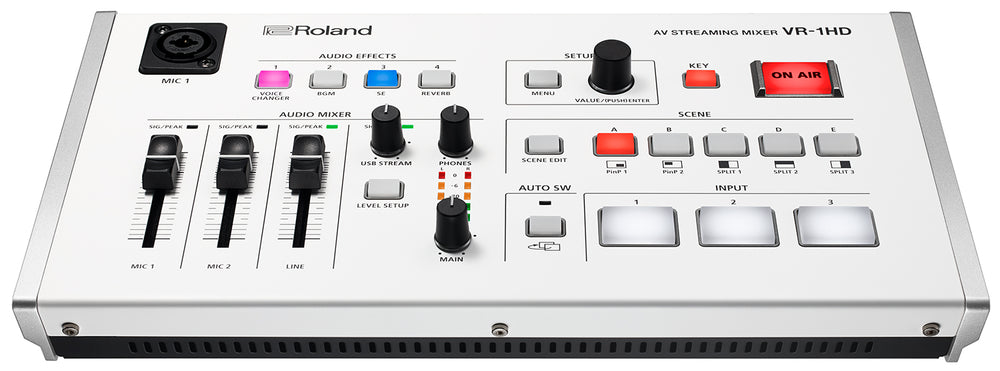

ROLAND VR-1HD
The Roland VR-1HD is a compact AV streaming mixer with three HDMI inputs, a 12-channel audio mixer, and advanced visual effects, perfect for professional-quality livestreams.
Aanbieding
The Roland VR-1HD is an advanced AV streaming mixer designed to elevate your livestreams with professional-quality video and audio. This compact device features three HDMI inputs that support a variety of HD and computer-based video resolutions, allowing you to connect and switch between different sources such as cameras, presentations, gameplay, and even smartphones and tablets. The VR-1HD includes a full 12-channel audio mixer with two studio-quality XLR microphone inputs and a dedicated line input, ensuring your audio is as impressive as your video. With built-in Scene Switching, you can instantly jump between scenes containing preset arrangements of layered sources, displayed within customizable inset windows. The VR-1HD also offers Chroma Key visual effects for background replacement, motion scene switching for fluid transitions, and a unique Picture by Picture layout to show two video sources side by side. The device is designed for live broadcasting, with dedicated controls and a top-mounted mic input for hands-free operation. The VR-1HD is perfect for creators, gamers, commentators, and presenters who want to broadcast dynamic multi-camera livestreams with high production standards.
- Video
- Video Processing
- 4:4:4 (Y/Pb/Pr), 10-bit
- Input Connectors

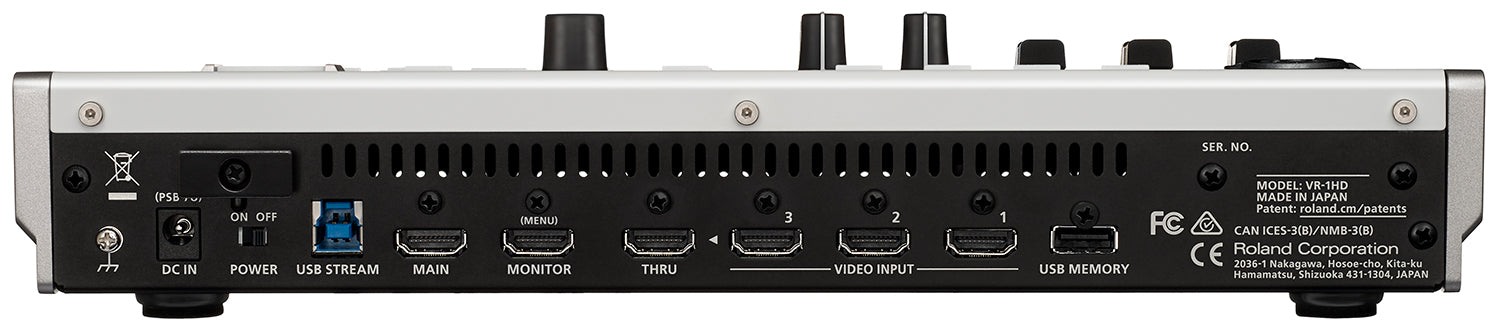

- VIDEO INPUT 1--3 connectors: HDMI type A x 3
* HDCP Supported.
* Multi-format Supported - Output Connectors
- MAIN connector: HDMI type A
* HDCP Supported
MONITOR connector: HDMI type A
* HDCP Supported
THRU connector: HDMI type A
* HDCP Supported
USB STREAM port: USB B type - Input formats
- 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz), HD (1280 x 720/60 Hz), WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz), FWXGA (1366 x 768/ 60 Hz), SXGA+ (1400 x 1050/60 Hz), UXGA (1600 x 1200/60 Hz), FHD (1920 x 1080/60 Hz), WUXGA (1920 x 1200/60 Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to VESA DMT Version 1.0 Revision 11.
* 1920 x 1200, 60 Hz: Reduced blanking
* The video signal frame rate can be selected at the SYSTEM menu (59.94 Hz or 50 Hz). - Output formats
- MAIN, MONITOR connectors:
720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, XGA (1024 x 768/60 Hz) (*1), WXGA (1280 x 800/60 Hz) (*1), SXGA (1280 x 1024/60 Hz) (*1), FWXGA (1366 x 768/60 Hz) (*1), SXGA+ (1400 x 1050/60 Hz) (*1), UXGA (1600 x 1200/60 Hz), FHD (1920 x 1080/60 Hz), WUXGA (1920 x 1200/60 Hz)
* The video signal frame rate can be selected at the SYSYTEM menu (59.94 or 50).
(*1) Output refresh rate is 75 Hz when frame rate is set to 50 Hz.
USB STREAM port:
854 x 480/29.97p, 854 x 480/25p, 854 x 480/59.94p, 854 x 480/50p, 720/29.97p, 720/25p, 720/59.94p, 720/50p, 1080/29.97p, 1080/25p
* The video signal frame rate can be selected at the SYSTEM menu (59.94 Hz or 50 Hz). - Still Image
- Maximum Size: 1920 x 1200 pixels
Format: Windows Bitmap File (.bmp) 24 bit per pixel, uncompressed
* It can be loaded up to 2 files from USB memory at startup. - Video Effects
- Scene: PinP, Split, PbyP
Transition: Black fade, Mix fade, Motion
Key Composition: Luminance key, Chroma key
Other: Still Image playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern output - Audio
- Audio Processing
- Sample rate: 48 kHz, 24 bits
- Audio formats
- VIDEO INPUT 1--3 connectors: Linear PCM, 48 kHz, 24 bits, stereo
USB STREAM port: Linear PCM, 48 kHz, 16 bits, stereo - Input Connectors
- VIDEO INPUT 1--3 connectors: HDMI type A

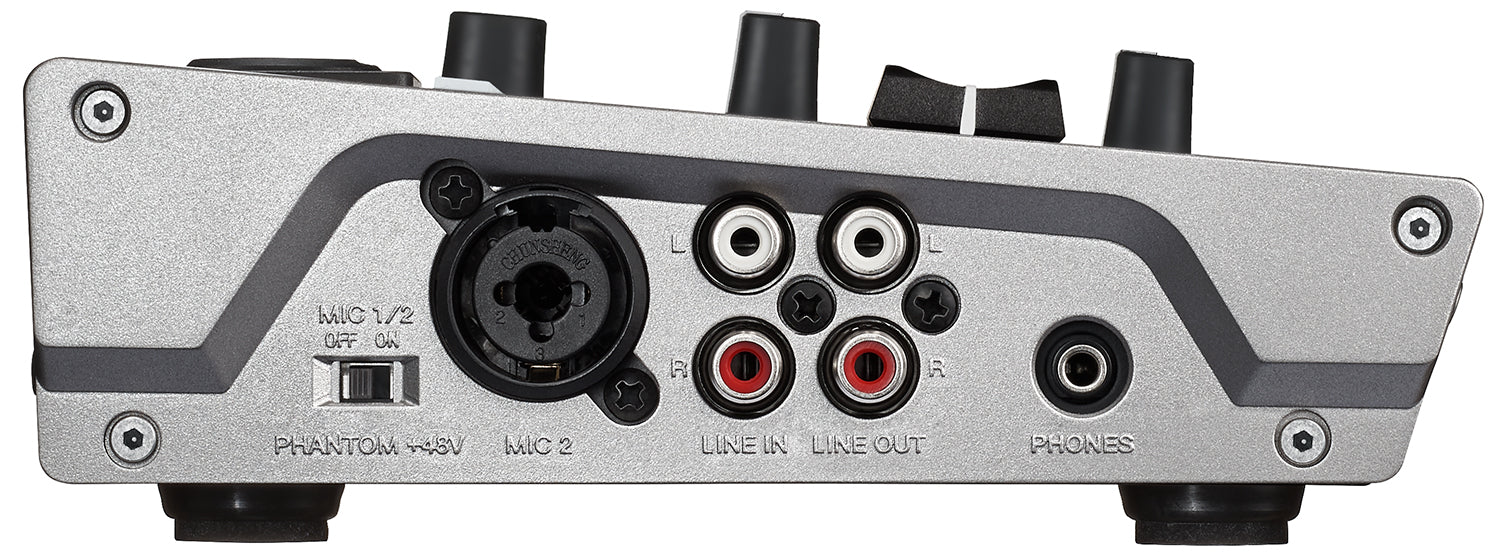

MIC IN 1--2 jacks: Combo type (XLR, 1/4-inch TRS phone), phantom power (DC 48 V, 10 mA Max)
LINE IN jacks: RCA phono type
USB STREAM port: USB B type - Output Connectors
- MAIN connector: HDMI type A
MONITOR connector: HDMI type A
LINE OUT jacks: RCA phono type
USB STREAM port: USB B type
PHONES jack: Stereo miniature phone type - Nominal Input Level
- MIC IN 1--2 jacks: -60--+10 dBu (Maximum input level: +28 dBu)
LINE IN jacks: -10 dBu (Maximum input level: +8 dBu) - Input Impedance
- MIC IN 1--2 jacks: Minimum 10 k ohms (balanced, HEAD AMP GAIN: 0--+17 dBu), Minimum 5 k ohms (balanced, HEAD AMP GAIN: +18--+64 dBu)
LINE IN jacks: 15 k ohms - Nominal Output Level
- LINE OUT jacks: -10 dBu (Maximum input level: +8 dBu)
PHONES jack: 92 mW + 92 mW (32 ohms) - Output Impedance
- LINE OUT jacks: 1 k ohms
PHONES jack: 10 ohms - Audio Effects
- Auto mixing, Echo canceller, Howling canceller, EQ, Delay, Compressor, HPF, Gate, Reverb, Limiter, Voice changer
- Audio Player
- Number of Players: 4
Data Format: WAV (Linear PCM, 48 kHz, 16 bits stereo/44.1 kHz, 16 bits, stereo) - Common Section
- Connectors
- USB MEMORY port (HOST): USB A type (For USB flash drive, Still image, Audio player)
USB STREAM port (DEVICE): USB B type (For USB-VIDEO (USB 3.0), USB-AUDIO (USB2.0): stereo 1 IN/1 OUT, Remote control)
DC IN jack - Functions
- Scene memory : 5
Panel lock function
EDID emulator
Auto switching (Auto scan, Beat sync switching, Video follow audio) - Power Supply
- AC Adaptor
- Current Draw
- 2 A
- Power Consumption
- 24 W
- Operation Temperature
- +0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit - Dimensions
- 314 (W) x 169 (D) x 66 (H) mm
12-3/8 (W) x 6-11/16 (D) x 2-5/8 (H) inches
Roland VR-1HD
Startup Guide
Leaflet “USING THE UNIT SAFELY”
AC adaptor
Power cord
