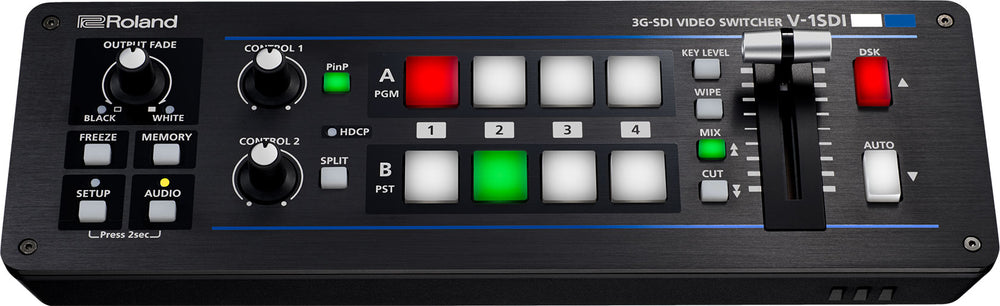

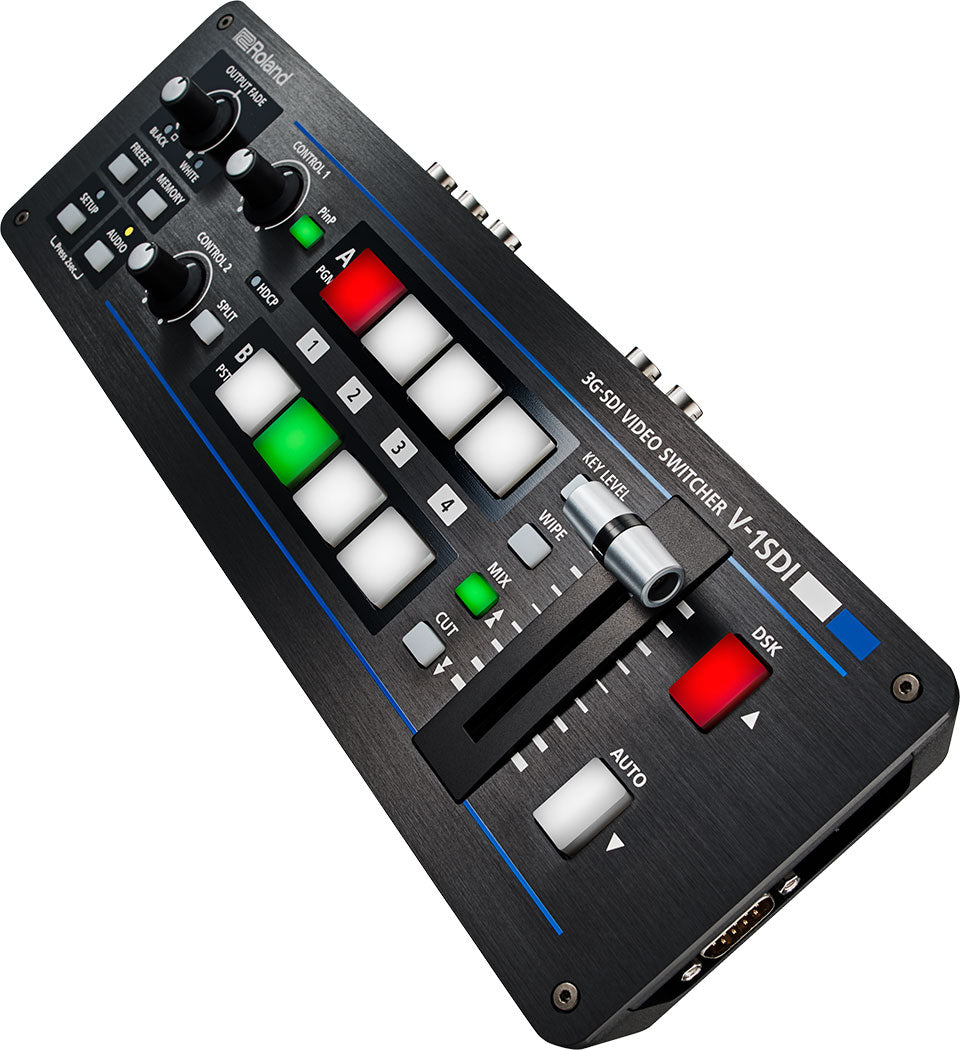

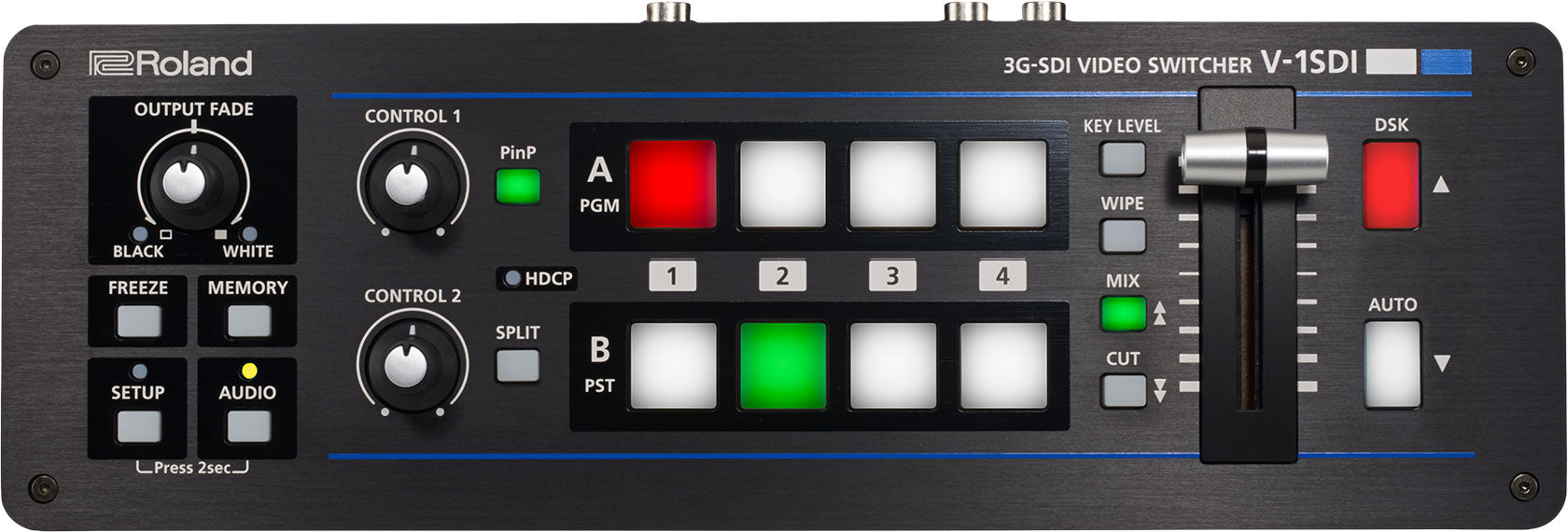

The Roland V-1SDI is a flexible and versatile video switcher that makes it easy to connect and switch professional 3G SDI cameras and playback sources along with HDMI sources including cameras, smartphones, computers, tablets, and Blu-ray players. Compact and portable, the V-1SDI delivers professional switching results with its easy-to-use hardware interface complete with T-Fader and easy-to-see backlit buttons. With support for 3G-SDI, the V-1SDI can operate at full 1080p resolution and can take advantage of the longer cable distance of SDI, making this compact solution suitable for events and applications in even large spaces with the most professional level of SDI camera sources. The V-1SDI features three dedicated 3G SDI inputs, a third channel input that supports 3G SDI or HDMI, and a fourth channel HDMI input that includes scaling. This makes the V-1SDI ideal in a variety of configurations for both all-camera applications and applications that mix cameras, video sources, and computer data sources. The switcher also includes a quad input multi-viewer with source labeling and audio metering, composition effects including DSK (Downstream Keyer) and picture-in-picture, and a full 14-channel audio mixer. The V-1SDI can be controlled using the V-1SDI RCS application for Mac and PC and remotely via RS-232 connection, making it a powerful and versatile tool for webcasting, videography, installations, and live events.
- Video
- Video Processing
- 4:2:2 (Y/Pb/Pr), 8-bit

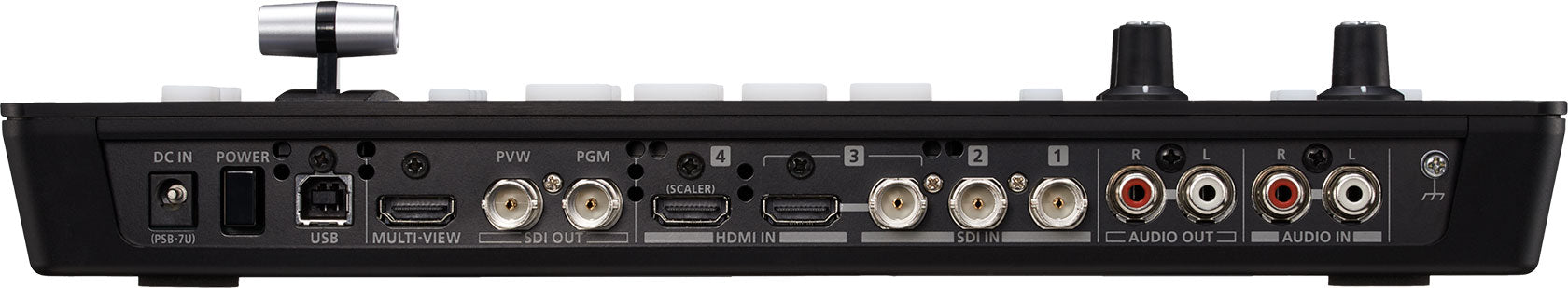

- Input Connectors
- SDI INPUT 1--3: BNC x 3
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
HDMI INPUT 3--4: Type A (19 pins) x 2
* HDCP Supported
* INPUT 3: SDI or HDMI selected.
- Output Connectors
- SDI OUT PGM: BNC x 1
SDI OUT PVW: BNC x 1
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
HDMI OUT MULTI-VIEW: Type A (19 pins) x 1
* HDCP Supported
- Input Formats
- SDI INPUT 1-3 Conforms to SMPTE 296M, SMPTE 274M
HDMI INPUT 3
720/59.94p, 720/50p SMPTE 296M(FORMAT switch = 720p)
1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p SMPTE 274M(FORMAT switch = 1080i or 1080p)
* The input interlaced video signal is converted to progressive video signal by internal processing.
* The video signal frame rate can be selected at the SETUP menu (59.94 or 50).
HDMI INPUT 4
480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p
VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)
WXGA (1280 x 768/60 Hz), SXGA (1280 x 1024/60 Hz)
FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz)
UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to VESA DMT Version 1.0 Revision 11.
* 1920 x 1200/60 Hz: Reduced blanking.
* The input interlaced video signal is converted to progressive video signal by internal processing.
* The video signal frame rate can be selected at the SETUP menu (59.94 or 50).
- Output formats
- SDI OUT(PGM/PVW) Conforms to SMPTE 296M, 274M
HDMI OUT MULTI-VIEW
720/59.94p, 720/50p SMPTE 296M(FORMAT switch = 720p)
1080/59.94i, 1080/50i SMPTE 274M(FORMAT switch = 1080i)
1080/59.94p, 1080/50p SMPTE 274M(FORMAT switch = 1080p)
* The video signal frame rate can be selected at the SETUP menu (59.94 or 50).
- Video Effects
- Transition: CUT, MIX (DISSOLVE/FAM/NAM/MOSAIC), WIPE (30 types)
Composition: PinP, SPLIT, QUAD, DSK (Luminance Key, Chroma Key)
- Audio
- Audio Processing
- Sampling rate: 24 bits/48 kHz
- Audio Formats
- SDI: Linear PCM, 24 bits/48 kHz, 2ch Conforms to SMPTE 299M
HDMI: Linear PCM, 24 bits/48 kHz, 2ch
- Input Connectors
- Digital: SDI INPUT 1--3 (BNC) x 3 SMPTE 299M
HDMI INPUT 3--4 (HDMI Type A 19 pins) x 2
Analog: AUDIO IN (RCA phono type)

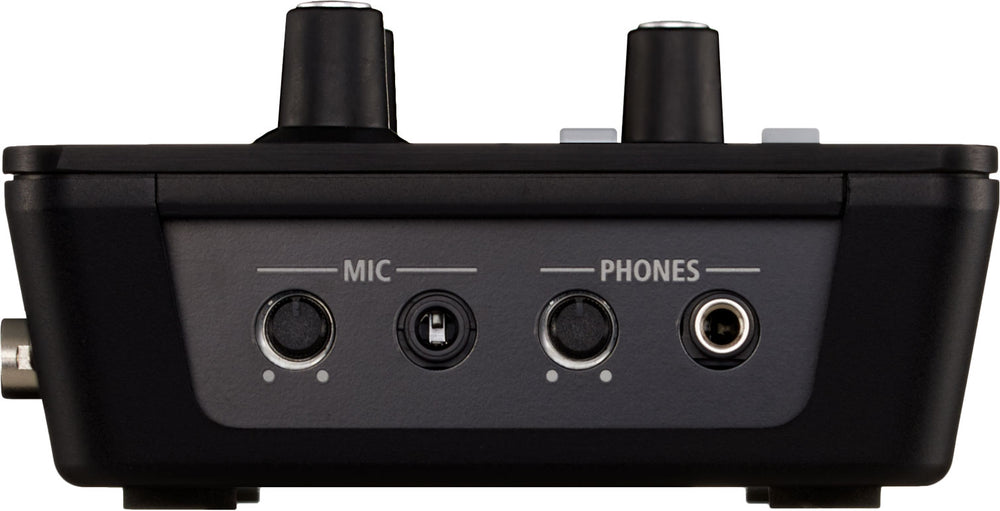

MIC (Stereo mini type, plug-in power supported)
- Output Connectors
- Digital: SDI OUT PGM: BNC x 1 SMPTE 299M
SDI OUT PVW: BNC x 1 SMPTE 299M
HDMI OUT MULTI-VIEW: Type A (19 pins) x 1
Analog: AUDIO OUT (RCA phono type)
PHONES (Stereo mini type)
- Input Level
- AUDIO IN: -10 dBu (Maximum: +8 dBu)
MIC: -41-- -13 dBu (Maximum: -1 dBu)
- Input Impedance
- AUDIO IN: 15 k ohms
MIC: 10 k ohms
- Output Level
- AUDIO OUT: -10 dBu (Maximum: +8 dBu)
PHONES: 92 mW + 92 mW (32 ohms)
- Output Impedance
- AUDIO OUT: 1 k ohm
PHONES: 10 ohms
- Audio Effects
- EQ, Delay, Compressor, HPF, Gate, Reverb, Mastering effect
- Others
- Other Connectors
- USB: B Type (for remote control from PC)

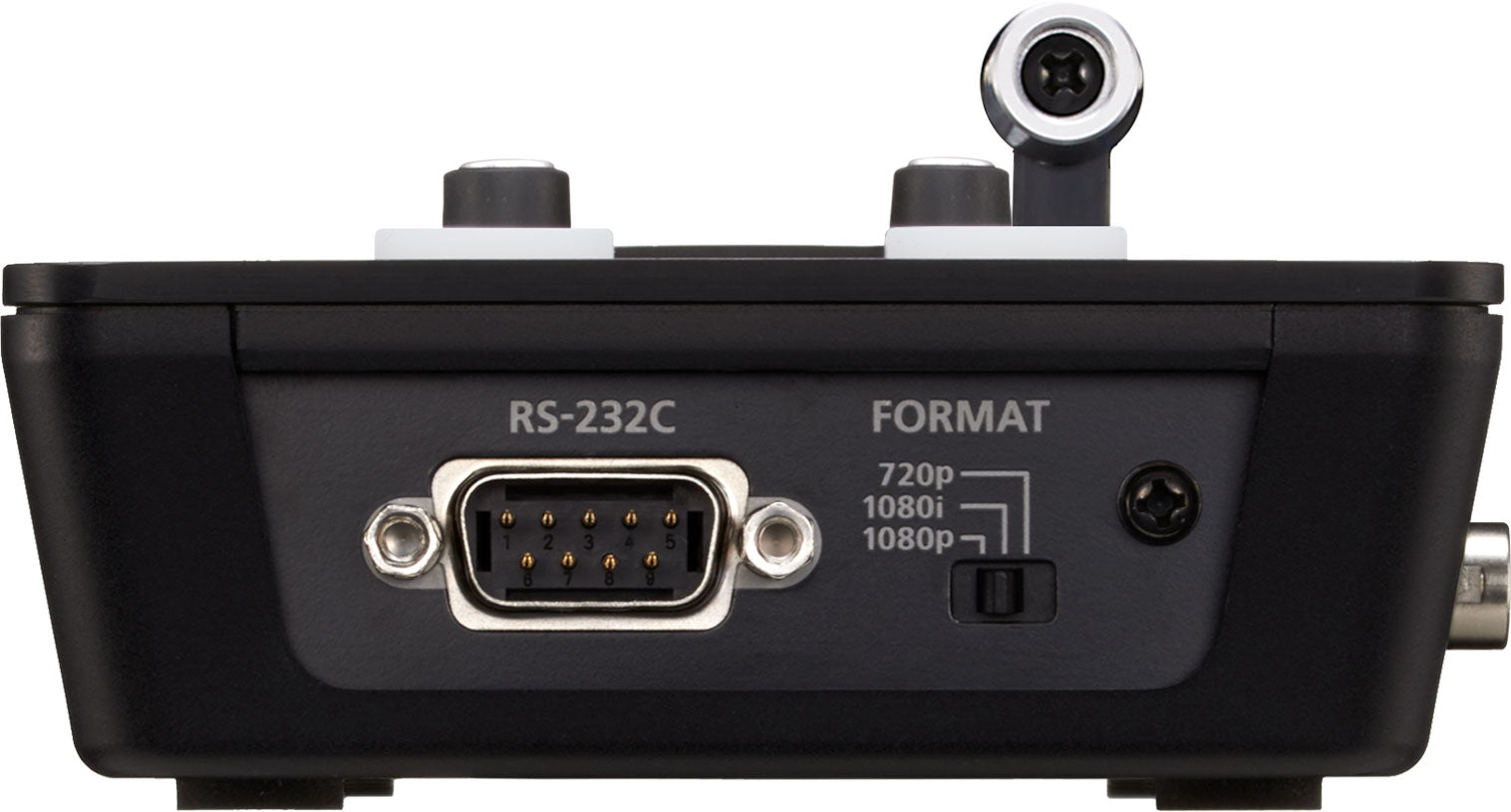

RS-232: DB-9 type
- Other Functions
- MEMORY (8 types)
FREEZE (input video captured)
OUTPUT FADE (Audio, Video: WHITE or BLACK)
- Power Supply
- AC Adaptor
- Current Draw
- 2.1 A
- Power Consumption
- 25 W
- Operation Temperature
- +0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit
- Dimensions
- 313 (W) x 108 (D) x 59 (H) mm
12-1/3 (W) x 4-1/4 (D) x 2-1/3 (H) inches
Roland V-1SDI
Owner's manual
AC adaptor
Power cord
Cord hook
