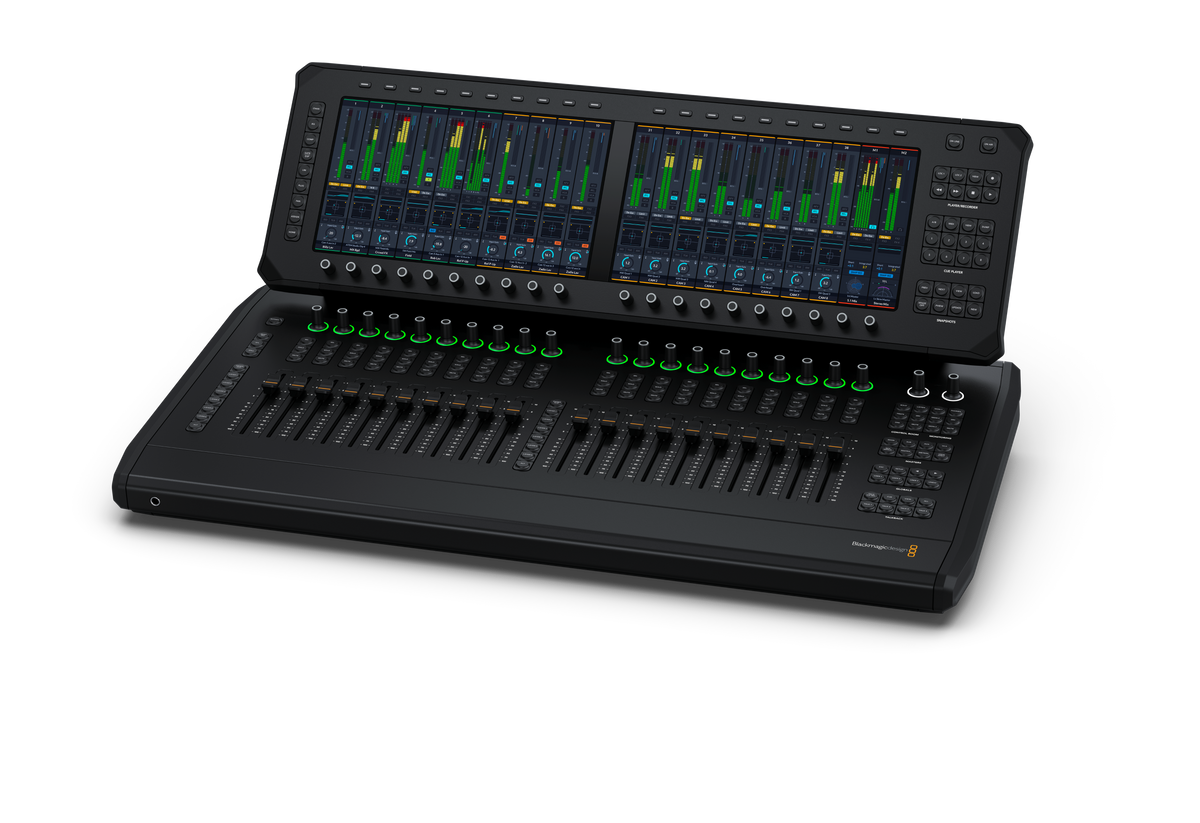

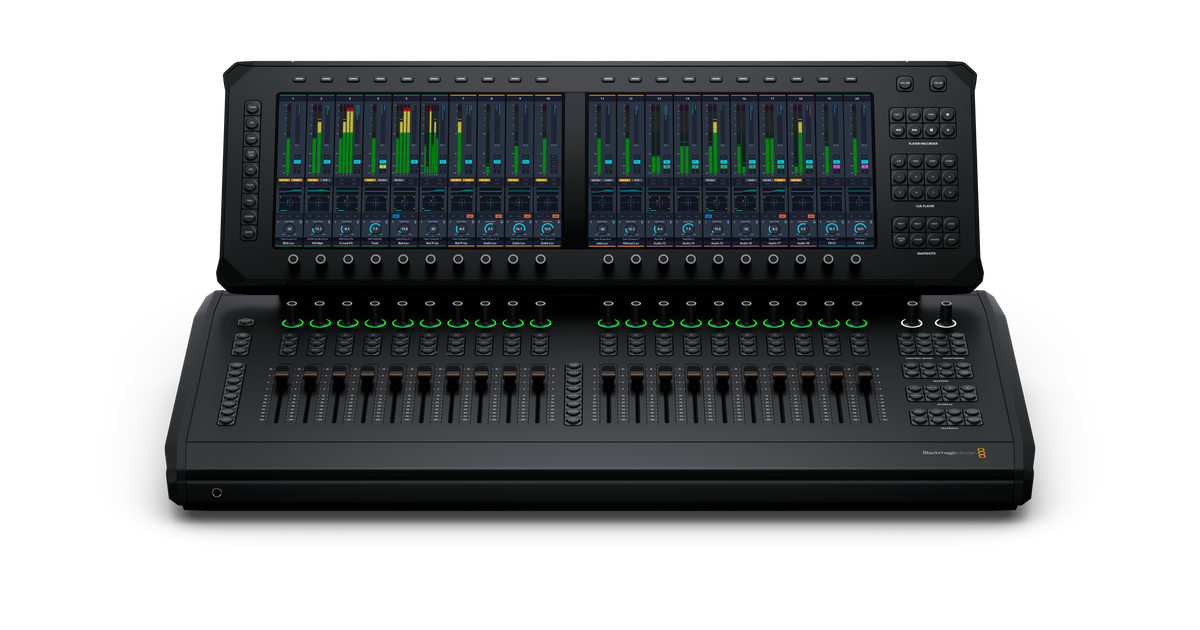

A powerful mid‑size control surface that combines twenty motorised faders with dual touchscreens, delivering fast, precise hands‑on control for professional live audio mixing with Fairlight Live.

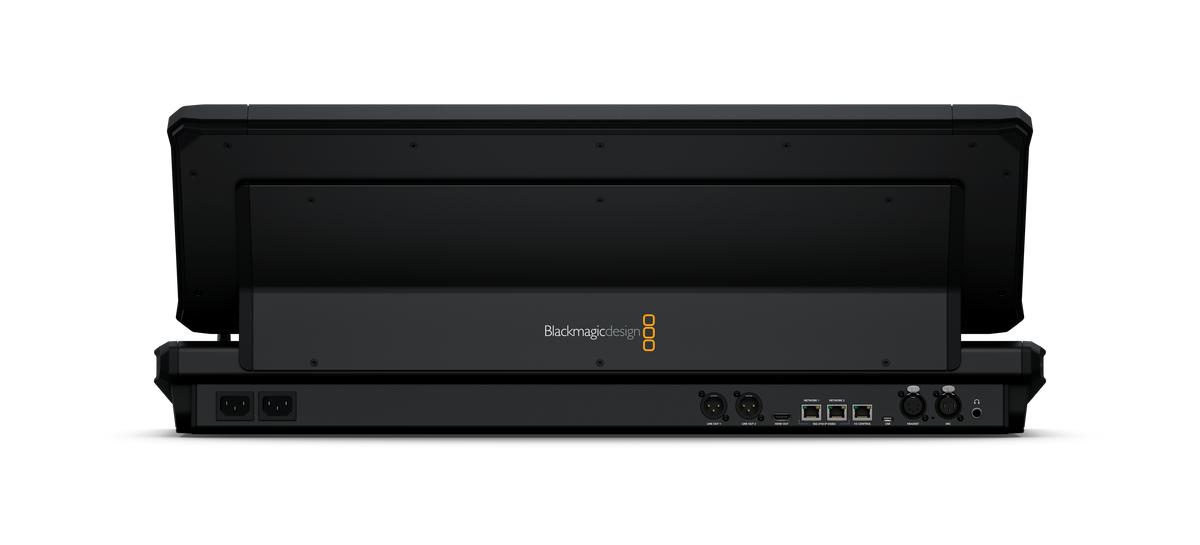

2 x 10G RJ45 Ethernet connections.
Supports 2110 IP video and audio plus analog audio in and out of panel.
1 x 1G RJ45 for computer connection, configuration and software updates.
1
1 x 3-pin XLR for mic level analog audio.
1 x 5-pin XLR for talkback headset.
2 x 3-pin XLR for line level analog audio.
1 x 5-pin XLR for talkback headset.
2 x 6.35mm headphone jack.
1 x USB Type‑C for computer connection, software configuration and software updates.
1 x HDMI Type A.
2 x IEC C14 power inputs.
2 x 11.6 inch 1920 x 1080 LCD touch screens.
HD or Ultra HD
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
20 flying faders.
20 multi function rotary knobs with ring LED indicators.
Select, Solo and Mute for each channel.
Processing and input controls for selected channel.
20 rotary knobs to adjust associated parameters appearing on lower row of focus and view screens.
20 buttons to activate functions or adjust parameters appearing on upper row of focus and view screens.
Online mode follows timecode from external source.
On Air mode locks panel.
Controls for the Player/Recorder support recording performances/rehearsals, playback for Virtual Sound Checks
Cue Player controls - Jingle/Cart player for SFX stingers plus supports MIDI cues for triggering external devices.
Store and recall mixer settings and configurations.
Controls for source selection and monitor circuit selection.
Controls for master views and enabling masters on faders. View Only selection sends metering views to screen, when off selection targets faders.
Global controls include forward, back, undo and escape plus access the setup screen and 3 x USER defined buttons.
Controls for talkback to 4 groups, direct to channel and ALL. Dedicated cue mode button plus access the talkback setup screen.
1 x built in talkback microphone.
1 x 5-pin XLR headset
1 x 3-pin XLR Mic input
2 x 6.35mm headphone sockets
2 x 3-pin XLR audio monitor outputs.
Talkback groups, direct to channel, or all.
4
Fairlight Live
Blackmagic OS
Internal software upgrade via updater application.
Mac 15.0 Sequoia,
Mac 26.0 Tahoe or later.
Windows 11
Fairlight Live software when connected by Ethernet or USB.
2 x 100 ‑ 240V AC 50/60Hz internal power supplies.
2 x IEC C14 sockets.
TBC
0° to 40°C (32° to 104°F)
-20° to 60°C (-4° to 140°F)
0% to 90% non-condensing
Fairlight Live Audio Panel 20
Welcome wallet with QR code for software download
1 Year Limited Manufacturer’s Warranty.
