Aanbieding
  • Epiphan Pearl 2 Base Video Mixer
  • Epiphan Pearl 2 Base Video Mixer
Epiphan
Epiphan-Pearl-2

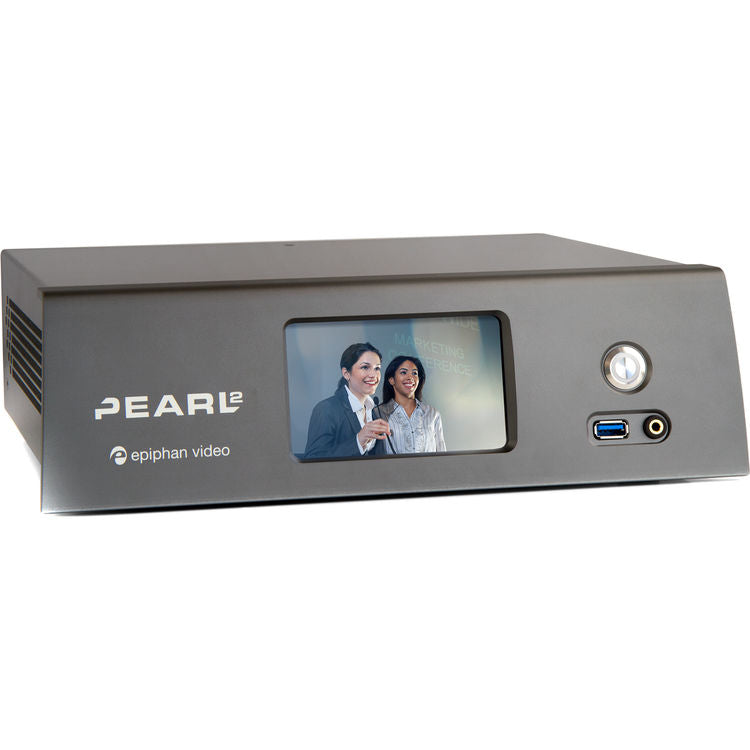

Epiphan Pearl 2 Base Video Mixer

De Pearl-2 van Epiphan is een videomixer die werkt met videosignalen van SD tot 4K. Beheer je streaming, recording en live switching met één apparaat.

1-3 werkdagen
  • €8.099,00 (excl. btw)
    €9.799,79 incl. btw
  • - 0%
Betrouwbare, eenvoudige live streaming met de geïntegreerde livevideo productieworkflow van de Pearl 2. Beheer uw streamen, opnemen en live schakelen op één plek met deze alles-in-één video-encoder en videoproductiesysteem.

De Pearl 2 werkt met videobronnen van SD tot 4K. Sluit maximaal zes bronnen tegelijk aan om één 4K Ultra HD-programma of maximaal zes Full HD-programma's van 1080p te coderen en te streamen. Gebruik een combinatie van uw videobronnen aangesloten op de HDMI, 4K HDMI, 12G SDI of USB-video ingangspoorten of van IP-camera's via uw netwerk.

Gebruik de kracht van de Intel i7-processor van de Pearl 2 om verbluffende 4K-video met 30 fps te maken. De hardware-versnelde encoder van de Pearl 2 biedt een onberispelijke H.264-codering voor maximale compatibiliteit en prestaties met elk videoportal of elke speler.



Epiphan Pearl-2 Specs

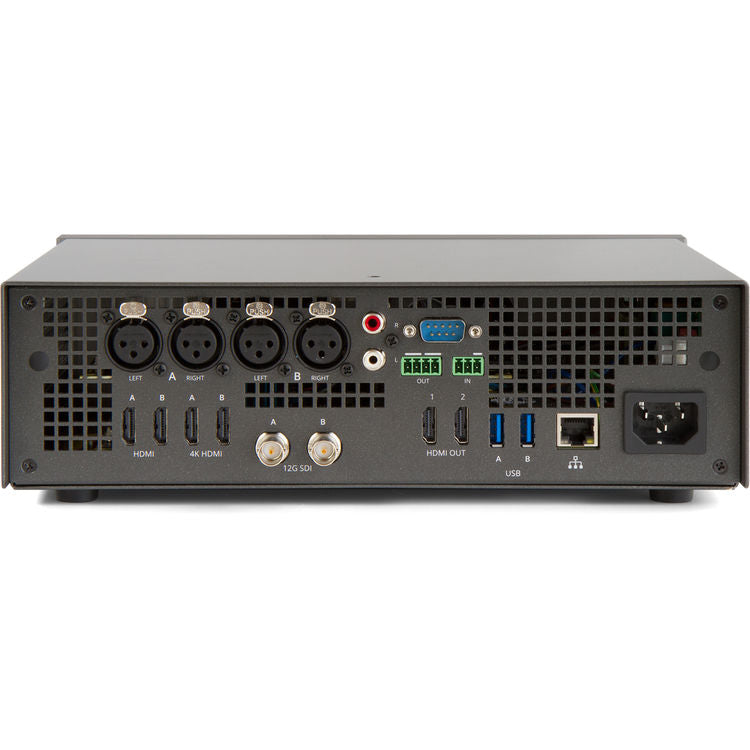

Video Inputs

Connectors

2 x 12G-SDI
2 x HDMI / DVI
2 x 4K HDMI / DVI

Network Inputs

RTSP Sources over IP (e.g. IP Cameras, or Channels from Pearl or Pearl-2 Systems)

Resolutions Supported

Up to 4096 x 2160 (DCI 4K)

HD Video Format Options

4K HDMI, HDMI
12G/6G/3G/HD/SD-SDI
DVI Single-Link (Through Adapter)



Audio Input

Connectors

2 x XLR, Stereo
1 x RCA, Stereo
2 x SDI, Embedded
4 x HDMI, Embedded

Analog Audio

XLR Maximum Signal: 12.3 V (RMS), +24 dBu
RCA Signal: -10 dBV



Video Output

Connectors

2 x 4K HDMI, with Audio for Local Video Display or Larger Confidence Monitoring

Built-In Display

Front Touchscreen Display Used for System Information, Confidence Monitoring, Simple Configuration, and Recording Control



Audio Output

Aux 3.5 mm Mini-Jack Line-In

Front-Mounted Jack for Confidence Monitoring

Built-In Display

Front Touchscreen Display for Live Switching, Confidence Monitoring, Quick Configuration, System Information, Recording Control, and Streaming Control



Video

Video Codecs

H.264, MPEG-4

Video Bit Rates

1 to 20 Mb/s

Key Frame Intervals

Programmable

Color Resolution

4:2:0

Output Frame Size

Configurable up to 4096 x 2160

Program

Encoded:
2 x Simultaneous 1080p60 Programs (with up to Six HD Sources)
6 x Simultaneous 1080p30 Programs (with up to Six HD Sources)
1 x UHD 4K Program at 30 fps (with up to two 4K and two HD Sources)



Audio Encoder

Audio Codecs

MP3: 64-320 kb/s
22/44/48 kHz

PCM: 22/44/48 kHz

AAC: 64-320 kb/s
16/22/44/48 kHz



Network Interface

Connector

1 x 10/100/1000 Ethernet RJ45

Streams

MPEG-TS and FLV
RTSP over TCP/UDP
Publish to Streaming Server/CDN (RTSP, RTMP, RTMPS)
HLS: Native Apple HTTP Stream for iPad, iPhone, and iPod Touch

Multicast Streams

RTP, MPEG-TS & RTP, and MPEG-TS over UDP

Network Discovery / Announce

UPnP, SAP

Network Security

802.1x EAP Methods: PEAP, EAP-TLS, EAP-TTLS



Video and Audio

Internal Storage

512 GB SSD
Automatically Removes Oldest Recordings from Internal Storage as Space is Required
File Maintenance Through Admin Panel (Web Interface)

Local Storage

3 x USB 3.0 Ports for Automatic/Manual Copy to Local USB Drives

Network Storage

FTP Server and FTP Client Capabilities (Automatic/Manual)

Playback and Recorded Formats

Download Recorded Videos (AVI, MOV, MP4, or MPEG-TS) Using Admin Panel; Play Back Through Compatible Player

Administration

Admin Panel for Full Administration
On-Screen Display and Mobile UI for Confidence Monitoring and Simple Administration/Control
Multiple User Accounts/Passwords
Included API for Integration into Existing Environments (via HTTP/HTTPS or RS-232)

Time Synchronization

NTP, TIME (RFC 868), PTP v1 (IEEE-1588-2002 v1)

Dimensions

11.81 x 9.45 x 3.54" / 30.0 x 24.0 x 9.0 cm

Weight

8.38 lb / 3.8 kg
