Big light, bold control. Dracast LED2000 Bi-Color delivers 2800K–8000K precision, app-based dimming, and rugged portability for pro shoots that demand power and flexibility.

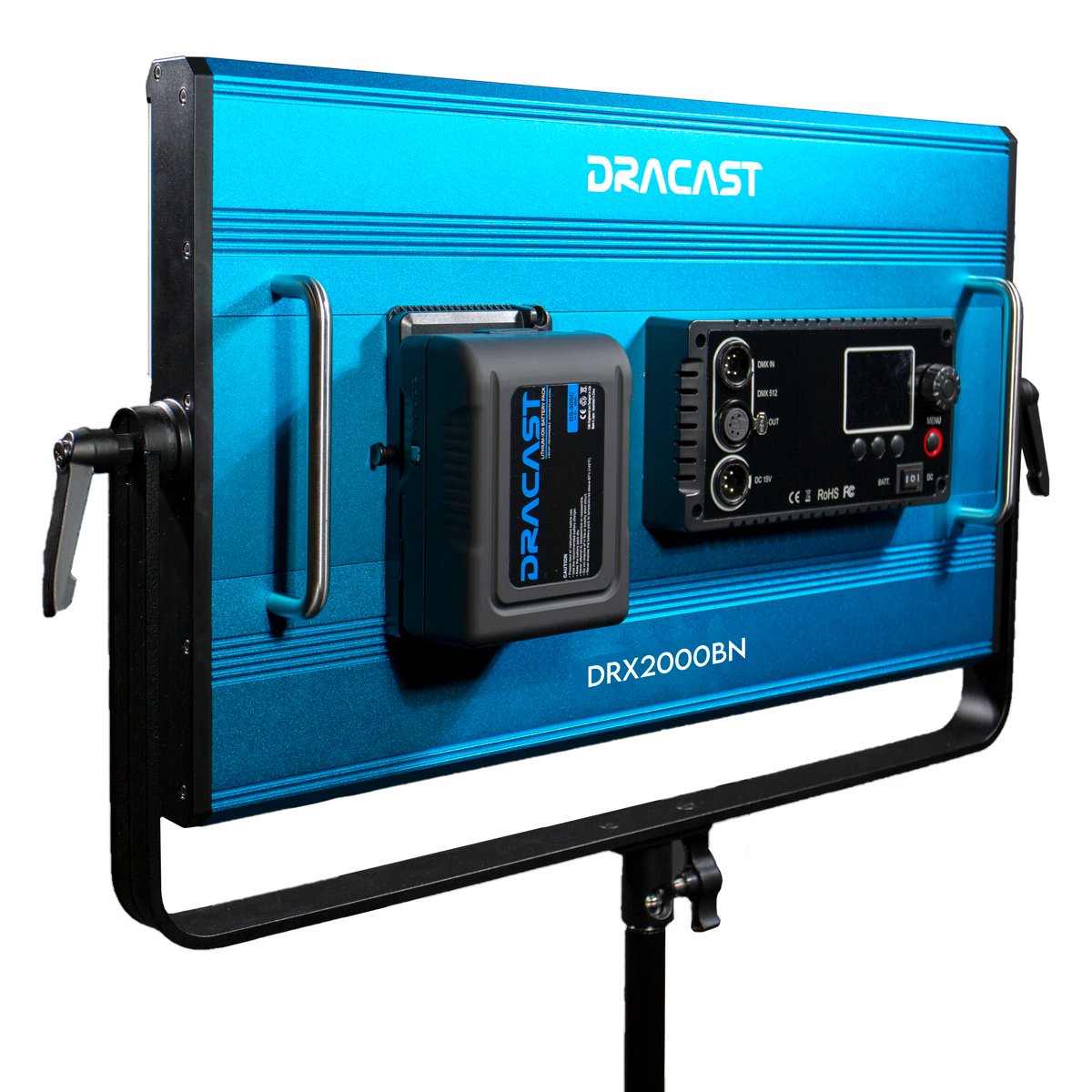

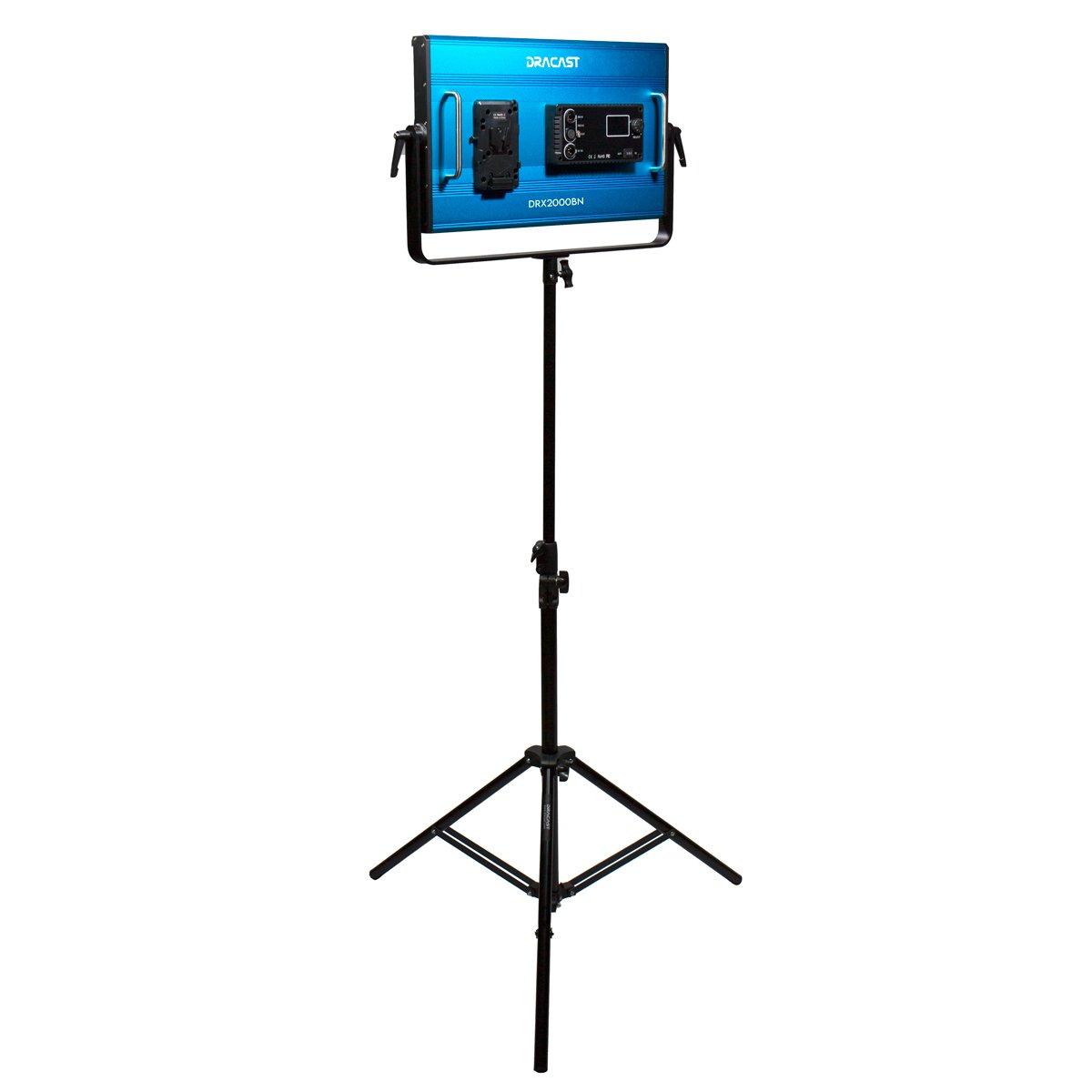

The X Series is the newest compact LED panel light from Dracast. Weighing just 8.0 lbs, the X Series is designed with portability in mind. The panel includes an installed mounting yoke with a 5/8″ baby pin receiver for fast and easy mounting on compatible light stands or C clamps. The X Series features adjustable white color temperature from 3200K to 5600K CCT.
The light can be adjust manually via the control panel on the back of the fixture, or by using the new free Dracast DRX companion app available for iOS and Android smartphones and tablets. Using the DRX companion app, all of the features of the light can be easily controlled along with the added ability to control multiple X Series lights simultaneously. The DRX app is the perfect companion to give you the look you need quickly and accurately.

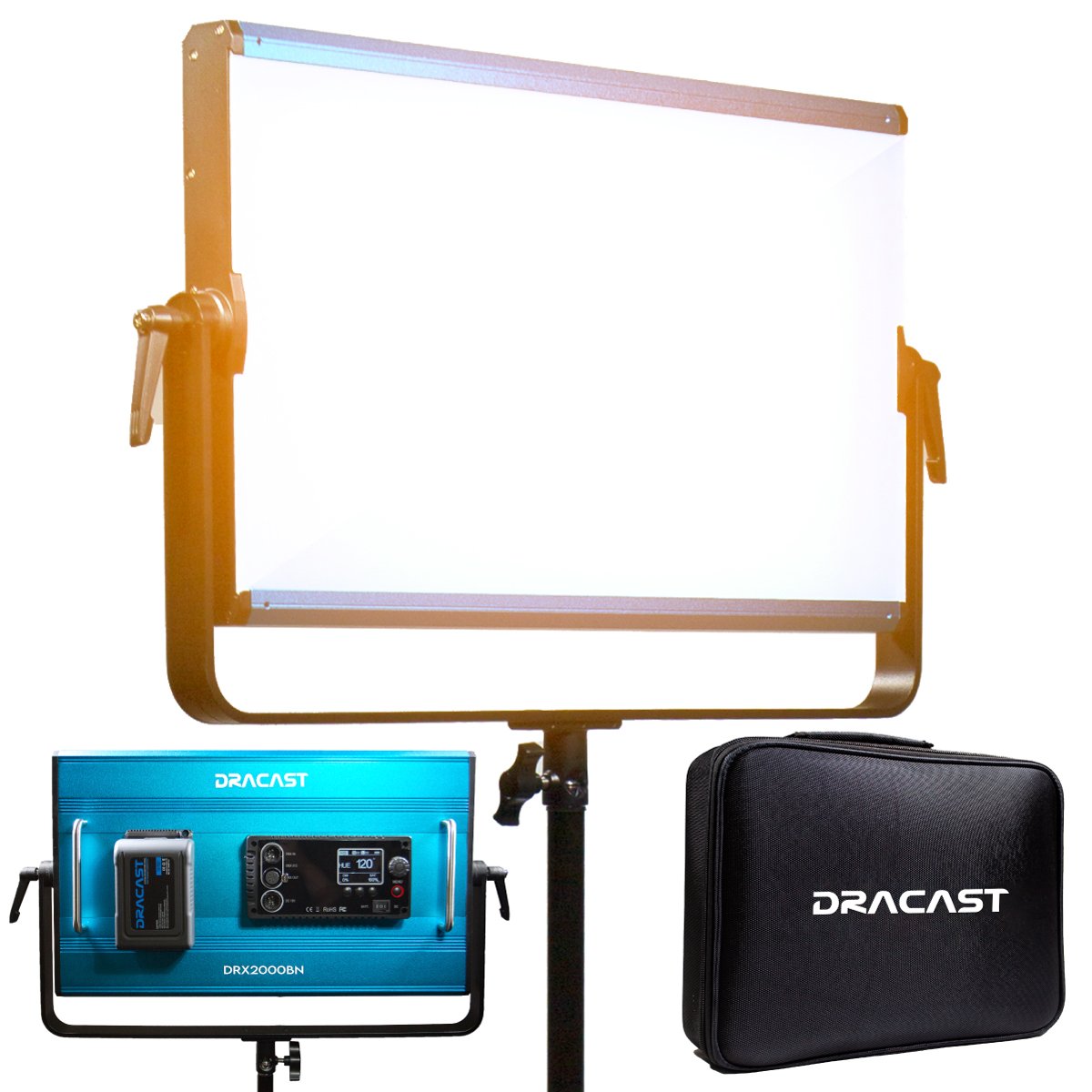

The X Series lights include the fixture, mounting yoke, soft carry case, power adapter, and power cable. Other accessories are available and sold separately.

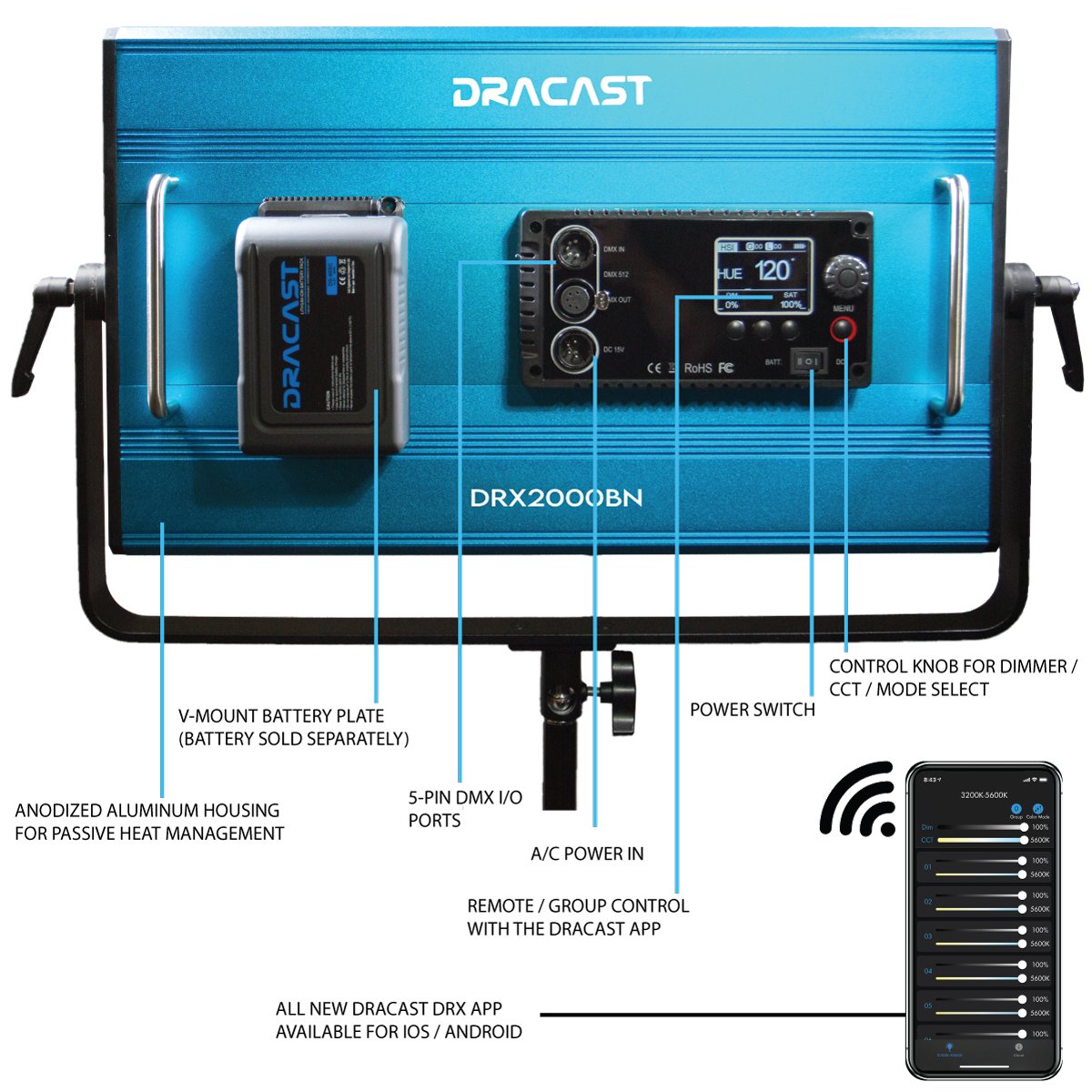

App Remote Control | Full control of your Dracast X Series lights. Using the new Dracast DRX app available for iOS and Android, you can control your light or groups of X Series lights simultaneously. Control dimmer, CCT, RGB, HSI, special effects and more right from your phone or tablet.
0% – 100% Dimming | X Series lights can be manually dimmed via the onboard controls for quick and easy light adjustment. Smoothly increase or decrease your light output from full output to total blackout with zero dimmer stepping.
Battery Power | Maximum portability. All X Series lights come battery ready. X Series 2000 Panels have a V-Mount battery slots while X Series On-Camera lights have a single NP-F battery slot. X Series Tube Lights include a 2600 mAh rechargeable battery pack built into the handle, so that your lights can easily be used on location.
Variable Color Temperature | Adjust the color temperature from 2800K – 6500K to match other light sources or ambient light in your shooting environment. Match subject skin tone easily and quickly without the need for color correction filters. (Note – Variable Color Temberature available only on bi-color and RGB + bi-color X-Series models)
Special Effects | Dracast X Series lights feature special effects including strobe, flash, pulse, color chase, fireworks, police car, paparazzi, and more. Effects can be adjusted and customized to get the perfect look for your scene. Effects can be controlled manually, via DMX, or with the X app. (Note – Color effects only available on RGB models)
DMX Input and Output Ports | Dracast X Series 2000 lights have 5 Pin DMX 512 input and output ports. Easily control dimmer, color temperature*, hue*, saturation*, and special effects*, with any DMX 512 control interface. (*Specific models)
Soft Diffusion Built In | X Series lights include soft diffusion filters built in, giving you an incredibly soft wash of light right out of the box.

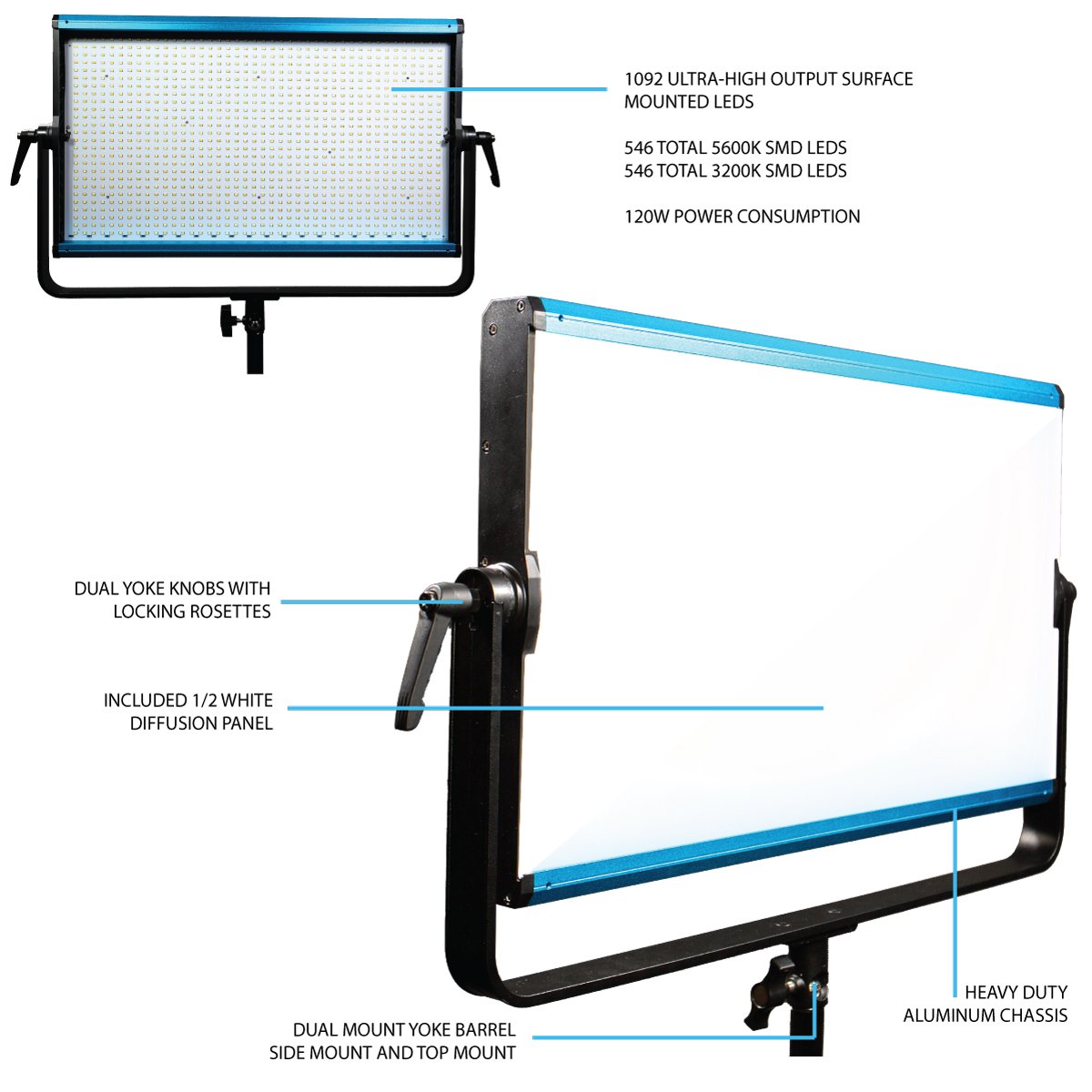

Optical System | 1092 SMD LED chips in 32 x 32 rectangle arrangment.

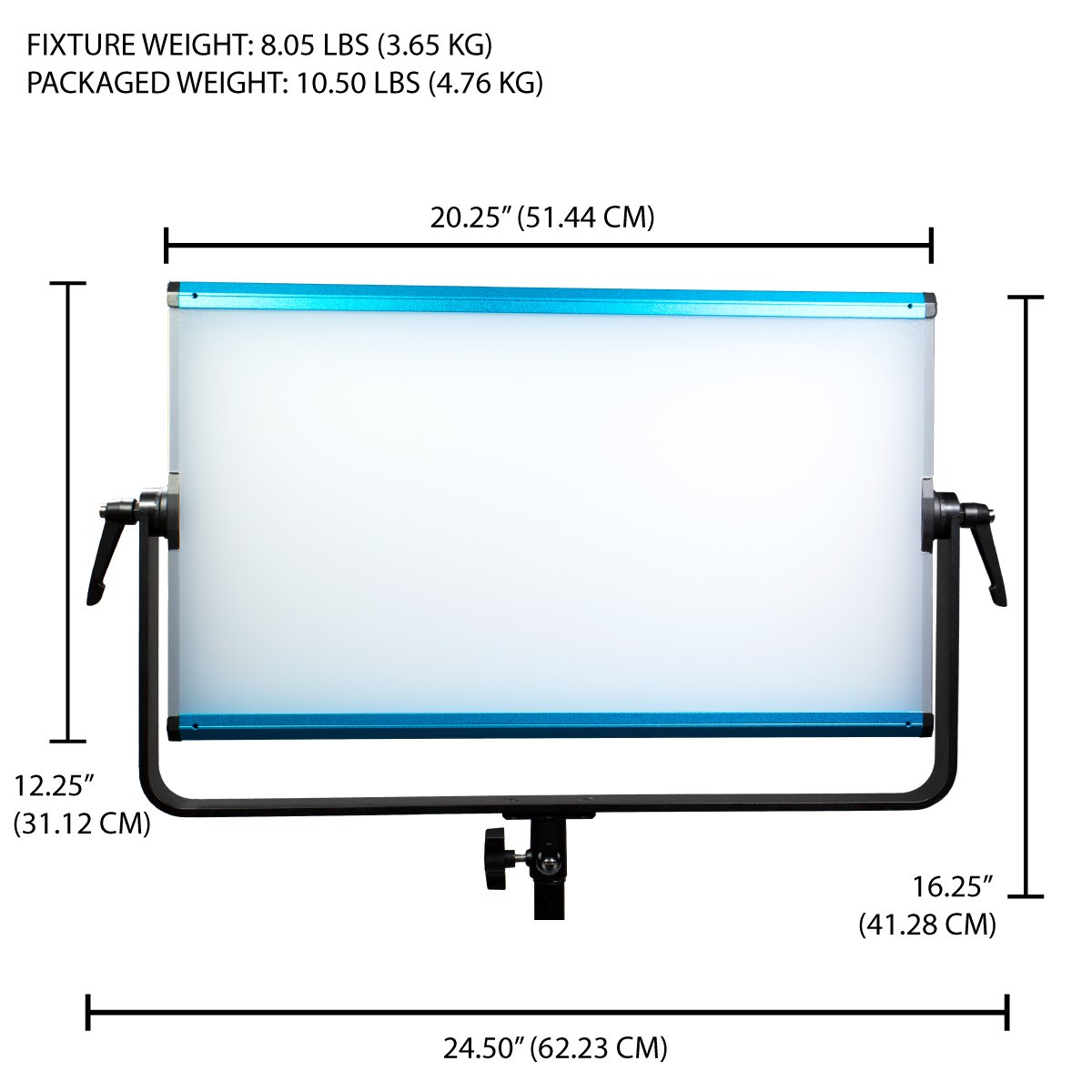

Light Aperture | 514mm x 305mm
Beam Angle | 120 degrees
Weight | 3,65 kg
Handling | Aluminum Yoke, Dual Locking Tilt Control
Mounting | Baby 5/8” Pin
Tilt Angle | +/- 180 degrees
Voltage Input | 12 V DC
Power Consumption | 120 W
Power Connection | Barrel connector, 100 - 240 VAC, 50 - 60 Hz, 4.0 A
Battery Connection | V-Mount or Gold Mount Battery Plate (included)
Battery DC Voltage | 14.8 V DC
Battery Light Output | 100% of Total Output
Color Temperature | 3200K - 5600K (Variable or fixed color temperature depending on model)
Color Rendition | CRI > 96
Dimming | 0% - 100% Continuous
Controls | Manual Controls, App Control, Group Master / Slave Control, DMX 5 Pin I/O
Housing Color | Anodized Blue / Black
Housing Build | Aluminum / Plastic
Est. LED Lifetime | 50,000 hour
