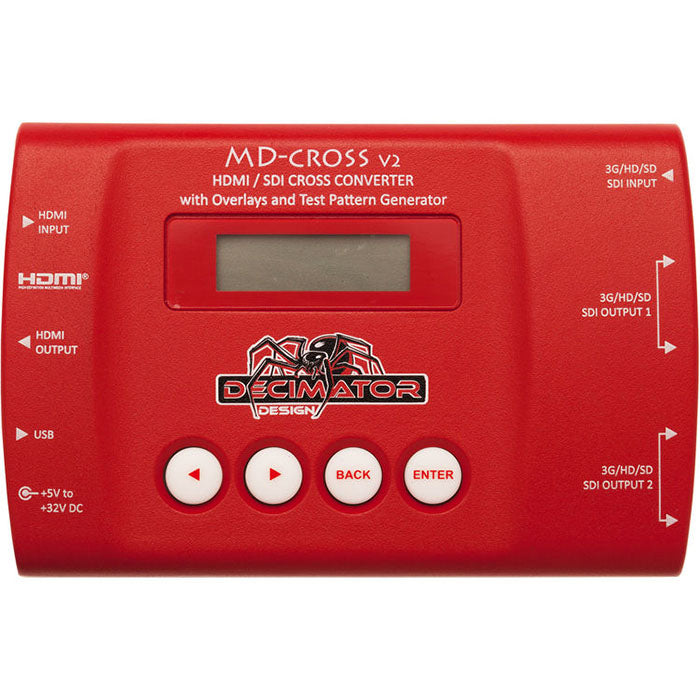

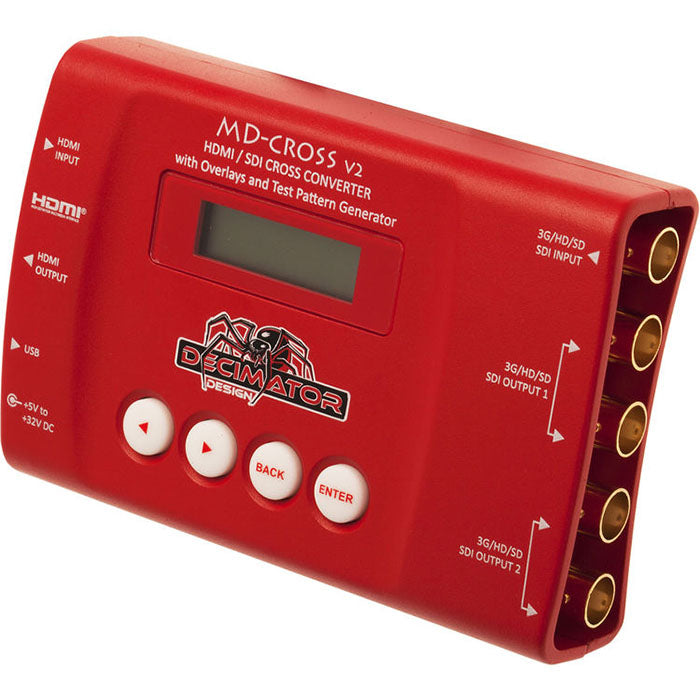

Decimator MD-Cross V2 HDMI/SDI Cross Converter
The Decimator MD-Cross V2 is a compact HDMI/SDI cross converter with advanced scaling, frame rate conversion, and multiple overlays, ideal for professional video production
The Decimator MD-Cross V2 is a compact HDMI/SDI cross converter with advanced scaling, frame rate conversion, and multiple overlays, ideal for professional video production
The Decimator MD-Cross V2 is a highly versatile HDMI/SDI cross converter that offers advanced scaling, frame rate conversion, and a variety of overlays. This compact device supports both 3G Level A and B on input and output, allowing seamless conversion between these standards. It features 4 (3G/HD/SD)-SDI outputs, which can be used as a 1 to 4 distribution amplifier. The built-in scaler allows for horizontal and vertical image flipping, making it ideal for a wide range of professional video applications. The MD-Cross V2 includes a professional 3G/HD/SD test pattern generator with 26 selectable output formats and 54 test patterns, including Luma and Chroma zone-plates. It also offers full 16-channel audio metering overlays, adjustable safe title and safe action overlays, and static center cross text overlays. The device is controlled via an intuitive LCD and button system, eliminating the need for dip switches or a computer for configuration. Additionally, it includes a USB port for control and firmware updates, and a new metal thread locking DC power socket for enhanced durability. The MD-Cross V2 is a truly portable converter, perfect for any professional video production environment.
SDI FORMATS
3G:SMPTE 424M@2.97 and 2.967Gb/s • 1080p@60/59.94/50Hz
HD:SMPTE 292M/274M/296M@1.485 and 1.435Gb/s • 1080i@60/59.94/50Hz • 1080p/psf@30/29.97/25/24/23.98Hz • 720p@60/59.94/50/30/29.97/25/24/23.98Hz
SD:SMPTE 259M@270Mb/s • 625i50 • 525i59.94
LCD / BUTTON MENU OPTIONS
• SDI output source from HDMI IN, SDI IN, TPG or Scaler • HDMI output type and source from HDMI IN, SDI IN, TPG or Scaler
• Scaler source, format and Aspect Controls
• Full control for Audio Meter Overlays
• Full control for Safe Action, Safe Title and Centre Cross Overlays
• Full control for Text Overlays
• Full control for Format Status Overlays
INPUTS
• HDMI • (3G/HD/SD)-SDI 10-bit
• Conditional Maximum Equalization cable length of 400M for SDI, 200M for HD-SDI and 100M 3G-SDI using Belden 1694A
OUTPUTS

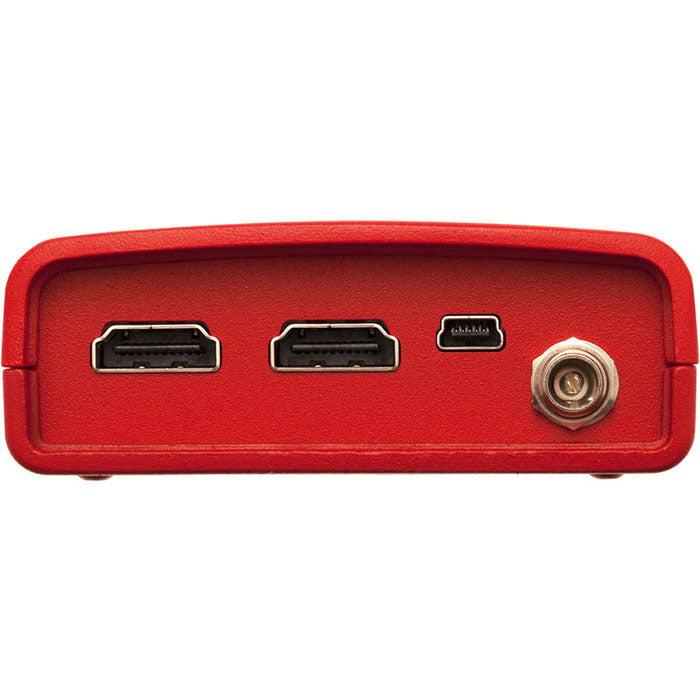

• HDMI

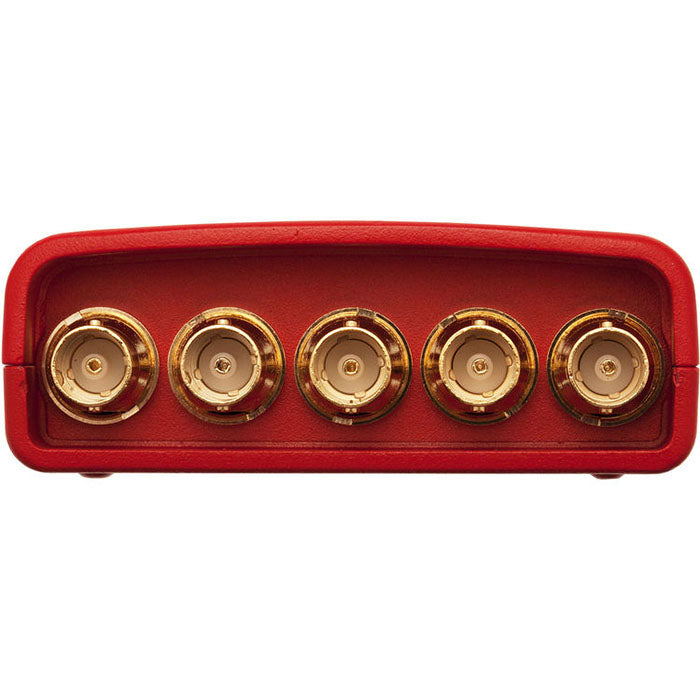

• 1 x (3G/HD/SD)-SDI Active Loop-Through
• 2 x (3G/HD/SD)-SDI 10-bit Outputs
POWER
• +5V to +32V DC
• Positive Centre Pin
DIMENSIONS
79.5mm x 123mm x 29.5mm (3.1” x 4.8” x 1.2”)
DD-CROSS HDMI/SDI cross converter
Power supply
USB cable
