Decimator
DD-4S

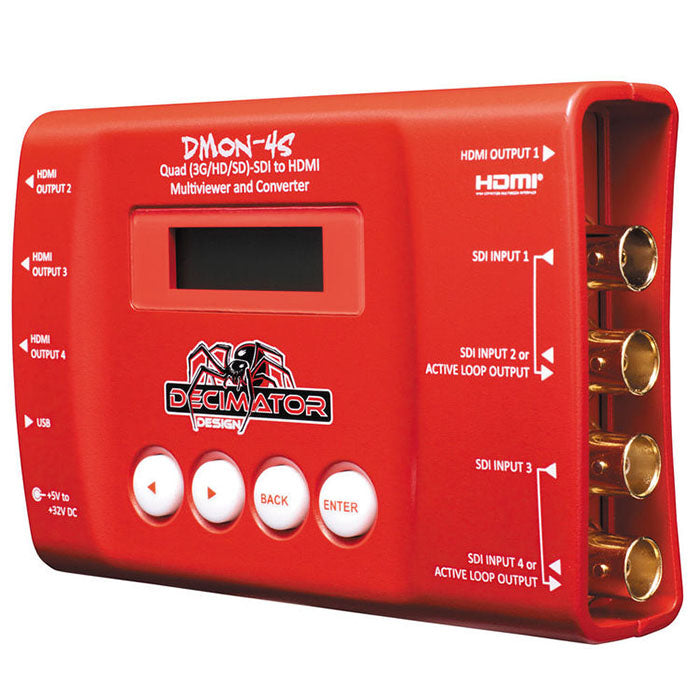

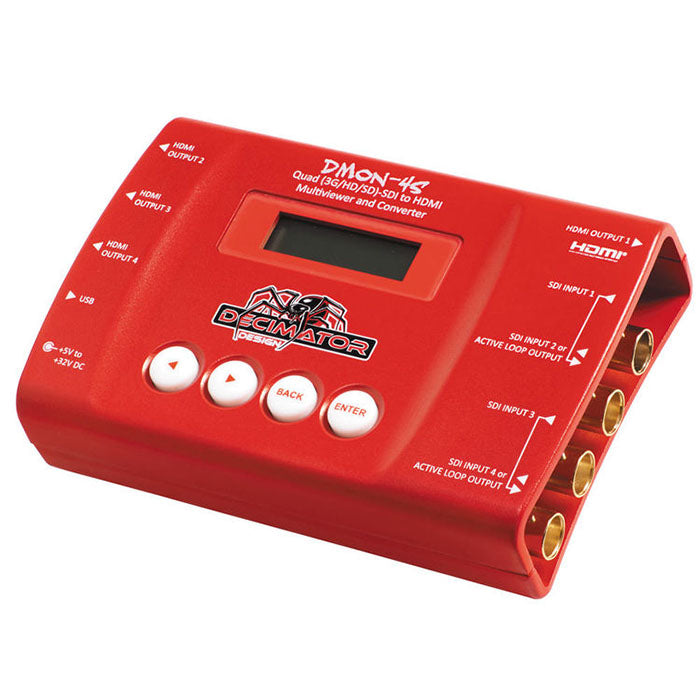

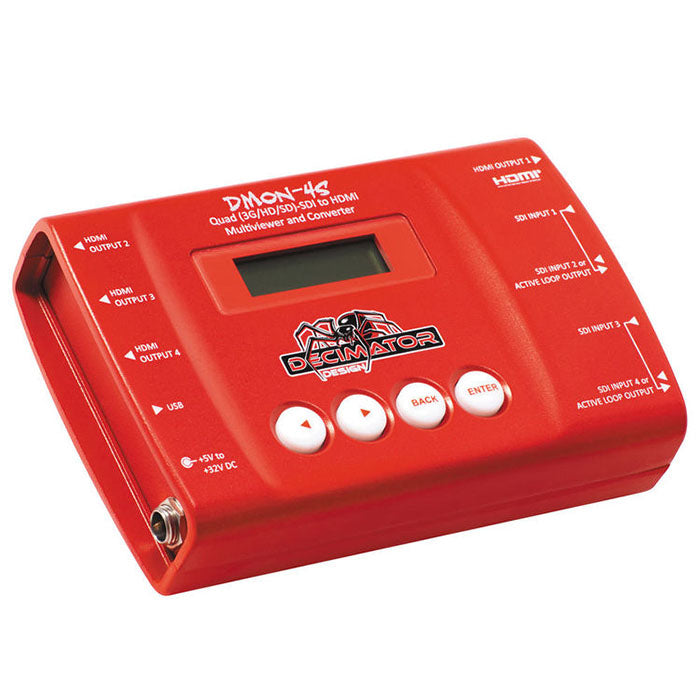

Decimator DMON-4S Multiviewer

The DD-4S is a compact and versatile 4-channel MultiViewer with custom layouts, independent window operation, and robust connectivity options, ideal for professional video production.

1-3 werkdagen
  • €550,00 (excl. btw)
    €665,50 incl. btw
  • - 0%

The DD-4S is a highly portable and versatile 4-channel MultiViewer with HDMI output, designed to support (3G/HD/SD)-SDI formats. This compact device allows for custom layouts, enabling users to display any combination of inputs in various configurations. Each window operates independently, supporting different formats and frame rates simultaneously. The DD-4S features 16 character UMD overlays, 8 channel audio metering, safe action and title overlays, and tally indicators for each window. It also includes a pass-through mode, allowing any of the four inputs to be routed to the HDMI output. The device is equipped with an easy-to-use LCD and button control system, eliminating the need for complex LED/button controls or dip switches. Additional features include 32 GPI on a 37-pin D-SUB connector for tallies and remote switching, RS422/485 for dynamic UMD and tallies via TSL protocol, and a USB port for control and firmware updates. The DD-4S is housed in a heavy-duty metal case with a metal thread locking DC power socket, ensuring durability and reliability in various environments.

SDI INPUT FORMATS

3G:SMPTE 424M@2.97 and 2.967Gb/s • 1080p@60/59.94/50Hz

HD:SMPTE 292M/274M/296M@1.485 and 1.435Gb/s • 1080i@60/59.94/50Hz • 1080p/psf@30/29.97/25/24/23.98Hz • 720p@60/59.94/50/30/29.97/25/24/23.98Hz

SD:SMPTE 259M@270Mb/s • 625i50 • 525i59.94



LCD / BUTTON MENU OPTIONS

• Status for all 4 inputs

• HDMI output type and source selection from SDI inputs 1 to 4

• Quad-Split output format selection

• Quad-Split output aspect and type of 16:9 or 4:3 at either 90 or 100% of screen size

• Quad-split individual aspect format for each input of Same as output, Letter-box or Pillar-box

• Quad-split Border Enable

• Quad-split mode reference of either Free-run or inputs 1 to 4 HDMI



OUTPUT FORMATS

• 1080p@60/59.94/50Hz

• 1080i@60/59.94/50Hz

• 1080p@30/29.97/25/24/23.98Hz

• 720p@60/59.94/50/30/29.97/25

• 625i50

• 525i59.94



INPUTS

• Up to 4 x (3G/HD/SD)-SDI Inputs

• Input Equalization > 100M using Belden 1694A

• USB for control and updates



POWER

• +5V to +32V DC, 6 Watts

• Positive Centre Pin



OUTPUTS

• 4 x mini HDMI Type C

• Optional SDI Active Loop Out of inputs 1 and/or input 3



DIMENSIONS

79.5mm x 123mm x 29.5mm (3.1” x 4.8” x 1.2”)

DD-4S 4-channel MultiViewer

Power supply

HDMI cable

USB cable
