Decimator DMON-12S 12-Kanaals Multiviewer
The DD-12S is a compact and versatile 1 to 12 channel MultiViewer with custom layouts, independent window operation, and robust connectivity options, ideal for professional video production.
The DD-12S is a compact and versatile 1 to 12 channel MultiViewer with custom layouts, independent window operation, and robust connectivity options, ideal for professional video production.

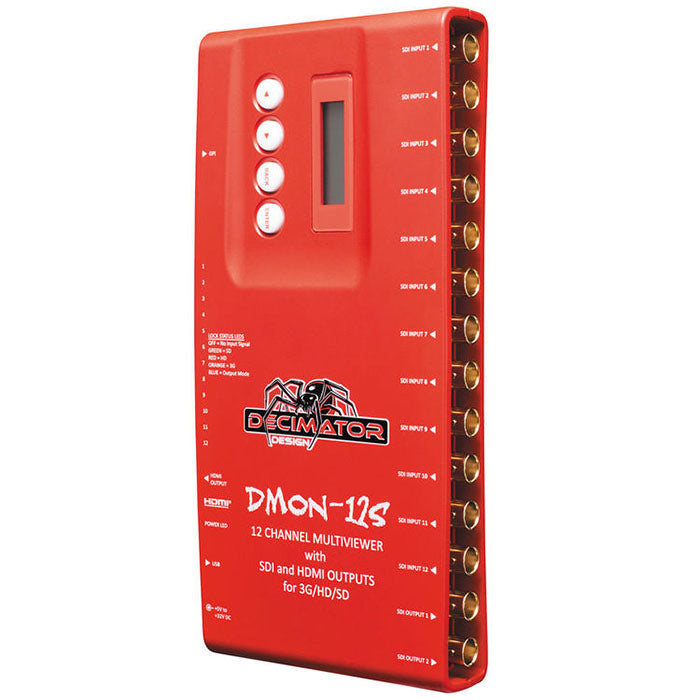

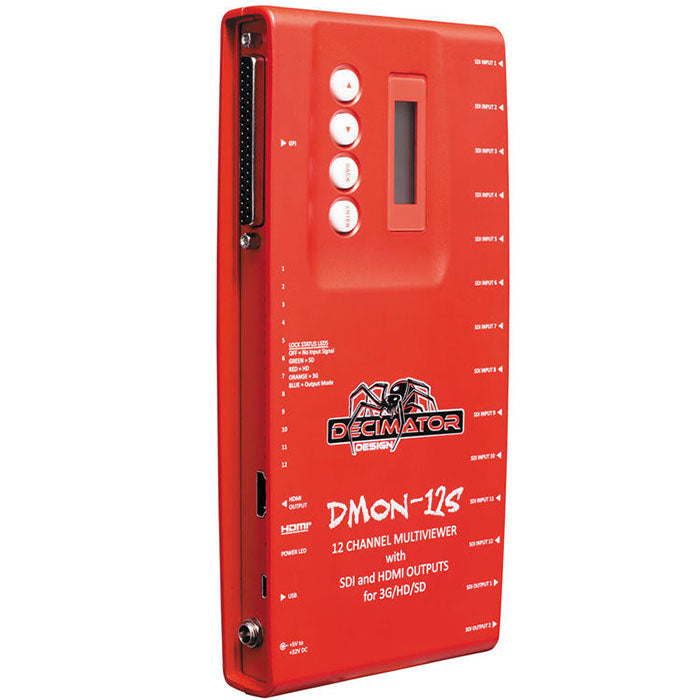

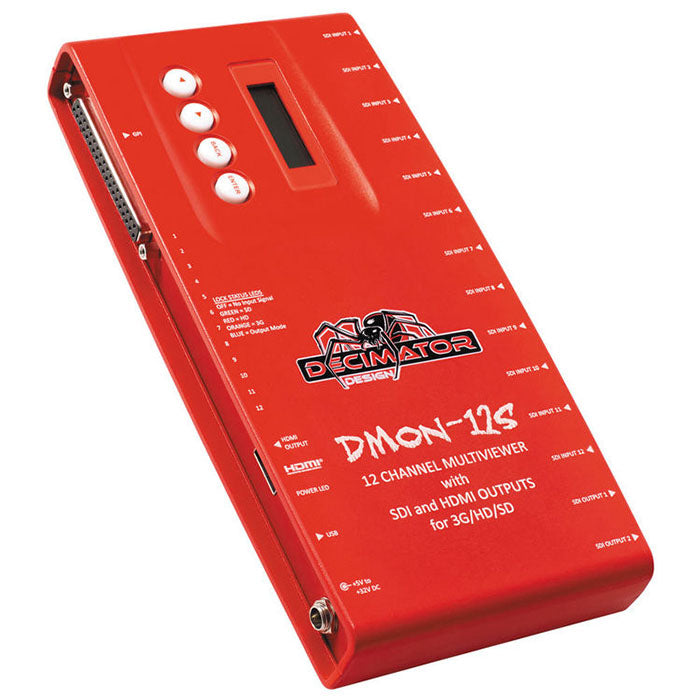

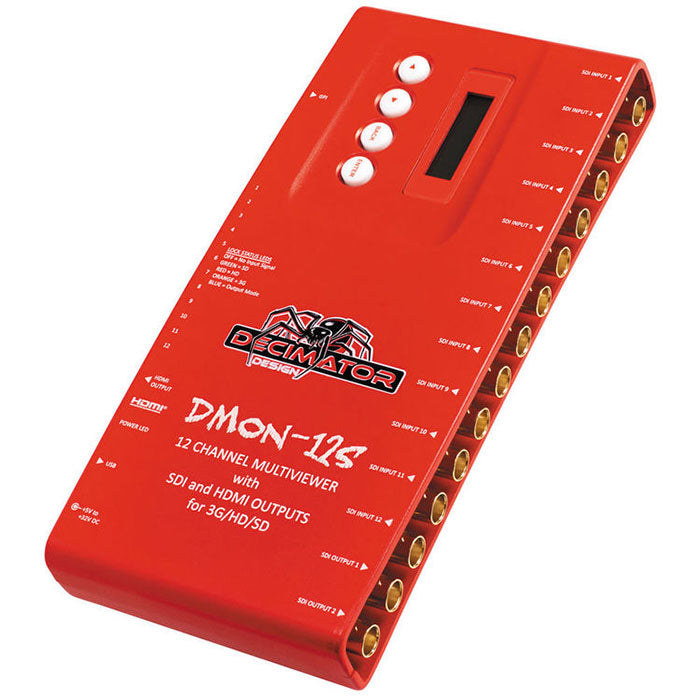

The DD-12S is a truly portable and versatile 1 to 12 channel MultiViewer with SDI and HDMI outputs, designed to support 3G/HD/SD formats. This compact device allows for custom layouts, enabling users to display any combination of inputs in various configurations. Each window operates independently, supporting different formats and frame rates simultaneously. The DD-12S features 16 character UMD overlays, 8 channel audio metering, safe action and title overlays, and tally indicators for each window. It also includes a pass-through mode, allowing any of the 12 inputs to be routed to both SDI and HDMI outputs. The device is equipped with an easy-to-use LCD and button control system, eliminating the need for complex LED/button controls or dip switches. Additional features include 32 GPI on a 37-pin D-SUB connector for tallies and remote switching, RS422/485 for dynamic UMD and tallies via TSL protocol, and a USB port for control and firmware updates. The DD-12S is housed in a heavy-duty metal case with a metal thread locking DC power socket, ensuring durability and reliability in various environments.
SDI INPUT & OUTPUT FORMATS
3G:SMPTE 424M@2.97 and 2.967Gb/s • 1080p@60/59.94/50Hz
HD:SMPTE 292M/274M/296M@1.485 and 1.435Gb/s • 1080i@60/59.94/50Hz • 1080p/psf@30/29.97/25/24/23.98Hz • 720p@60/59.94/50/30/29.97/25/24/23.98Hz
SD:SMPTE 259M@270Mb/s • 625i50 • 525i59.94
LCD / BUTTON MENU OPTIONS
• HDMI output type
• Output Select
• Multi-Viewer Output Format
• Multi-Viewer Number of Windows
• Multi-Viewer Layout
• Multi-Viewer Audio Source
• Multi-Viewer Reference
• Full Screen is Scaled
• Input Routing
• GPI mode
• Setup
HDMI OUTPUT FORMATS
• 1080p@60/59.94/50Hz
• 1080i@60/59.94/50Hz
• 1080p@30/29.97/25/24/23.98Hz
• 720p@60/59.94/50/30/29.97/25
• 625i50 • 525i59.94
INPUTS
• 12 x (3G/HD/SD)-SDI
• Input Equalization > 100M using Belden 1694A
• USB for control and updates
LED STATUS
• Power
• 12 x Signal lock and rate
OUTPUTS
• HDMI Type A
• 2 x SDI (3G/HD/SD)-SDI
POWER
• +5V to +32V DC
• Positive Centre Pin
DIMENSIONS
220mm x 103.7mm x 29.5mm (8.7” x 4.1” x 1.2”)
DD-12S 1 to 12 channel MultiViewer
Power supply
HDMI cable
USB cable
