Decimator Decimator 2 Converter
The Decimator 2 is a compact SDI to HDMI and NTSC/PAL converter with advanced scaling, low latency down-conversion, and robust audio metering, ideal for professional video production.
The Decimator 2 is a compact SDI to HDMI and NTSC/PAL converter with advanced scaling, low latency down-conversion, and robust audio metering, ideal for professional video production.

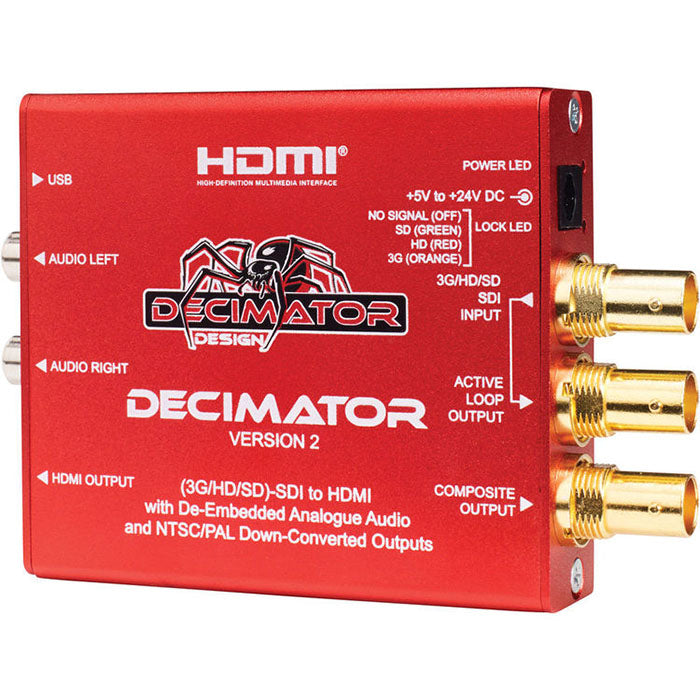

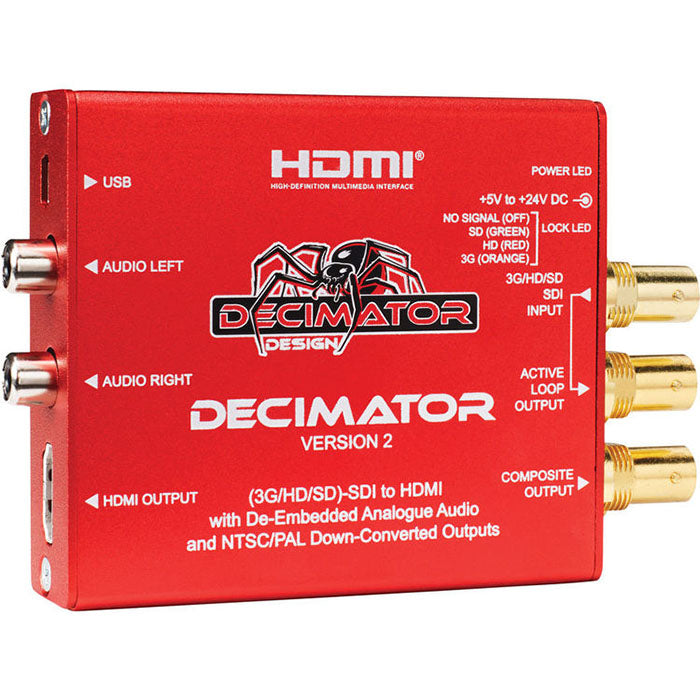

The Decimator 2 is a miniature (3G/HD/SD)-SDI to HDMI and NTSC/PAL converter, designed to deliver high-quality video conversion with simultaneous scaling on both outputs. This compact device auto-detects 3G, HD, or SD formats, handling 26 formats in total, and supports synchronous source switching. The HDMI output offers full scaling and aspect ratio conversion, while the down-converted composite output supports NTSC or PAL for 3G/HD inputs, with SD passed unchanged. The Decimator 2 features low latency 3G/HD to SD down-conversion with aspect ratio conversion options, including anamorphic, letterbox, and center cut. It boasts a full 10-bit data path, multipoint interpolation, and 16 times over-sampling for composite output. The device also supports EIA-708/608 closed captions, 16-channel audio metering on HDMI output, and de-embedded analog audio output on RCA connectors. Additional features include a 3G/HD/SD-SDI active loop-through output, external dip-switch configuration, USB port for control and firmware updates, and a locking DC power socket. The package includes a power supply, HDMI cable and USB cable.
VIDEO FORMATS
3G:SMPTE 424M@2.97 and 2.967Gb/s • 1080p@60/59.94/50Hz
HD:SMPTE 292M/274M/296M@1.485 and 1.435Gb/s • 1080i@60/59.94/50Hz • 1080p/psf@30/29.97/25/24/23.98Hz • 720p@60/59.94/50/30/29.97/25/24/23.98Hz
SD:SMPTE 259M@270Mb/s • 625i50 • 525i59.94
DIP SWITCH CONTROLS
• NTSC or PAL Selection
• SD Pedestal
• Crop 16:9 to 4:3
• 16:9 or 4:3 Aspect Selection
• Stereo Pair selection for RCA Analogue Audio
• HDMI Output format select
INPUTS
• (3G/HD/SD)-SDI 10-bit
• Conditional Maximum Equalization cable length of 400M for SDI, 200M for HD-SDI and 100M 3G-SDI using Belden 1694A
OUTPUTS
• HDMI
• SD-Composite
• 1 x (3G/HD/SD)-SDI Active Loop-Through
• 2 x RCA for De-embedded Analogue Audio (20dBFS=-10dBu)
LED STATUS
• Power
• Signal Lock
DIMENSIONS
90mm x 71mm x 23mm (3.5” x 2.8” x 0.9”)
POWER
• +5V to +24V DC, ~5 Watts
• Positive Centre Pin
Decimator 2 (3G/HD/SD)-SDI to HDMI and NTSC/PAL converter
Power supply
HDMI cable
USB cable
