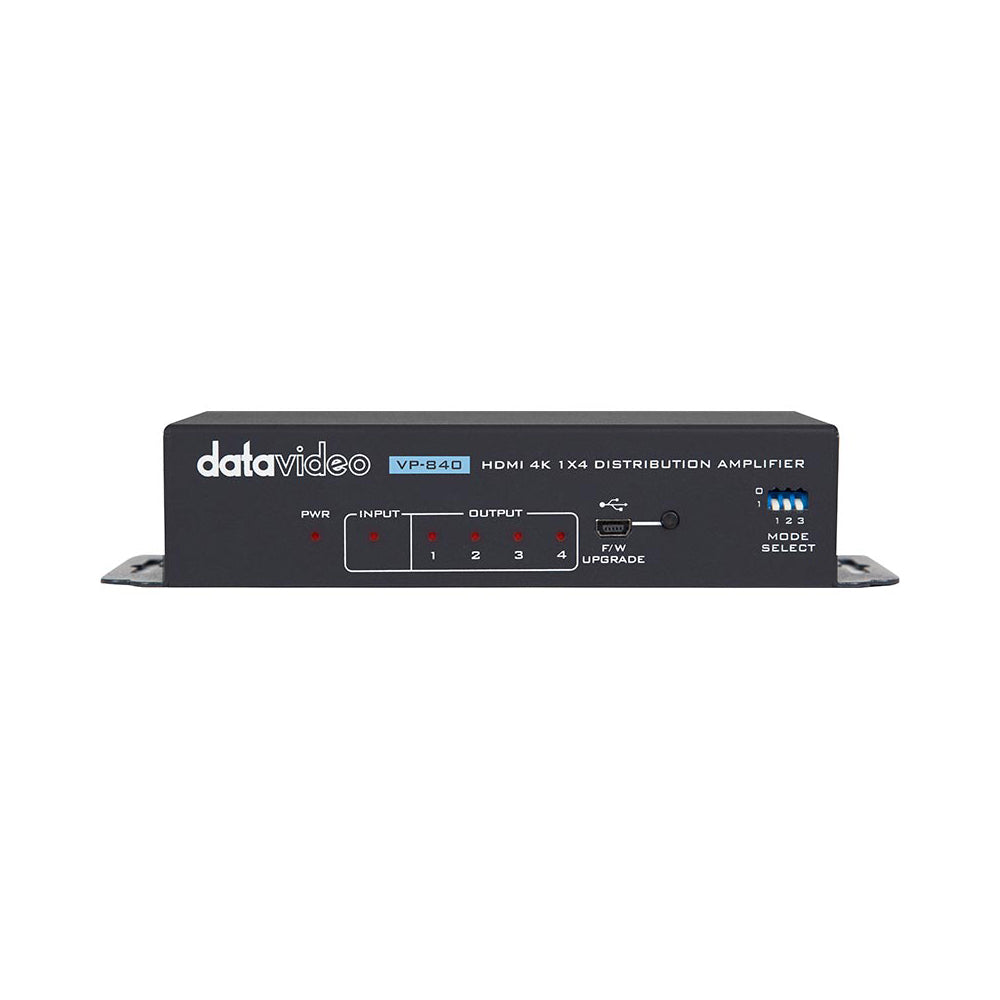

Datavideo VP-840 4K HDMI Distribution Amplifier 1x4
  • Datavideo VP-840 4K HDMI Distribution Amplifier 1x4
Datavideo
2200-0840

Datavideo VP-840 4K HDMI Distribution Amplifier 1x4

Met de Datavideo VP-840 kunt u een HDMI bron naar 4 displays tegelijk distributeren.

Op voorraad
  • €191,25 (excl. btw)
    €231,41 incl. btw
  • €225,00
  • - 0%

1 x HDMI input and 4x HDMI outputs

Supports 4K2K@60 4:4:4 8bits and High Dynamic Range, which is 4K2K@60 4:2:0 10bits.

Support Video Auto Downscale

Video bandwidth18 Gbps and HDMI 2.0a compliant, HDCP 2.2 and 1.4 compliant.

Supports Deep Color & 3D

Supports Dolby Digital, DTS-HD and Dolby TrueHD audio.

Front panel LED indicators

Supports default EDID and EDID learning from the display.
Model Number

VP-840

Video Input/Output

Input: 1 x HDMI
Output: 4 x HDMI

Video Format

HDMI Supported Resolutions
4096x2160p60/59.94/50
4096x2160p30/29.97/25/24/23.98
3840x2160p60/59.94/50
3840x2160p30/29.97/25/24/23.98
1080p60/59.94/50,
1080p30/29.97/25/24/23.98
1080i60/59.94/50, , 720p60/59.94/50
480p, 576p, 480i, 576i

PC Supported Resolutions
640x480@60Hz, 800x600@60Hz, 1024x768@60Hz, 1280x720@60Hz, , 1280x768@60Hz, 1280x960@60Hz, 1280x1024@60Hz, 1360x768@ 60Hz, 1366x768@60Hz, 1400x1050@60Hz, 1680x1200@60Hz, 1920x1080@60Hz, 1920x1200@60Hz

Video Standard

----

Video Processing

HDR 4K2K@60 4:2:0 10bits
4K2K 60Hz YCbCr4:4:4 8bit/YCbCr4:2:0 10bit
4K2K 30Hz YCbCr4:4:4 8bit

Video bandwidth

Single-link 600MHz (18Gbps)

Audio Format

DTS-HD Master Audio, Dolby TrueHD, Dolby Digital, DTS, DVD-Audio, LPCM, SACD, MPCM

Power

12V / 6W

Dimension (LxWxH)

174 x 63 x 35 mm

Weight

0.35 kg

Operating Temp. Range

0~40 °C



  • 1 x VP-840 product
  • 1 x AD Switch DC 12V
