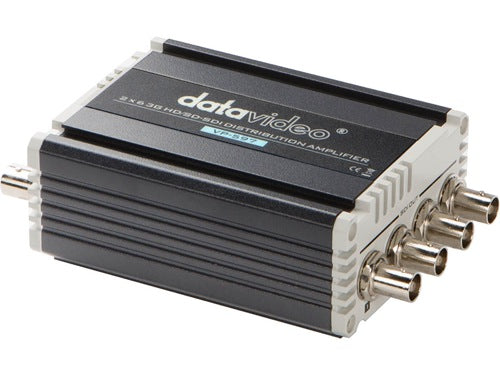

Datavideo VP-597 2x6 3G HD/SD-SDI Distribution Amplifier
  • Datavideo VP-597 2x6 3G HD/SD-SDI Distribution Amplifier
Datavideo
2300-0597

Datavideo VP-597 2x6 3G HD/SD-SDI Distribution Amplifier

De Datavideo VP-597 is een 3G HD-SD-SDI distributie versterker. Deze SDI verdeelversterker maakt van 2 inputs een totaal van 6 signalen.

Op voorraad
  • €293,25 (excl. btw)
    €354,83 incl. btw
  • €345,00
  • - 0%

Supports 3G/HD/SD SDI video with embedded Audio.

2 x 3G/HD/SD-SDI inputs and 6 x 3G/HD/SD-SDI distribution outputs

Supports 3G/HD/SD SDI video with embedded Audio and re-clock design for long distance transmission.

Supports embedded audio SDI

VP-597 is ideal for simple A/B source switching to multiple HD displays or it can be used as a backup 3G/HD/SD SDI input sources switcher for live events.

Two input video can be controlled by A/B switch or GPI remote

Datavideo VP-597 is a six output SDI distribution amplifier with A/B inputs switching control (non-locked)

    Model Number

    VP-597

    Video Input/Output

    Input: 2 x BNC
    Output: 6 x BNC

    Video Format

    1080p 60/59.94/50/29.97/23.98
    1080i 60/59.94/50
    720p 60/59.94/50
    525i, 625i

    Video Standard

    ----

    Video Processing

    ----

    Video bandwidth

    ----

    Audio Format

    Support SDI embedded audio
    Up to 8 channels, 48KHz, PCM audio

    Power

    12V / 2.8W

    Dimension (LxWxH)

    127 x 85 x 45 mm

    Weight

    0.5 kg

    Operating Temp. Range

    0~40 °C

    • 1 x VP-597 product
    • 1 x AD Switch 12V 500mA
    • 1 x 3.5Φ GPI Cable Stereo
