Datavideo
2210-3310

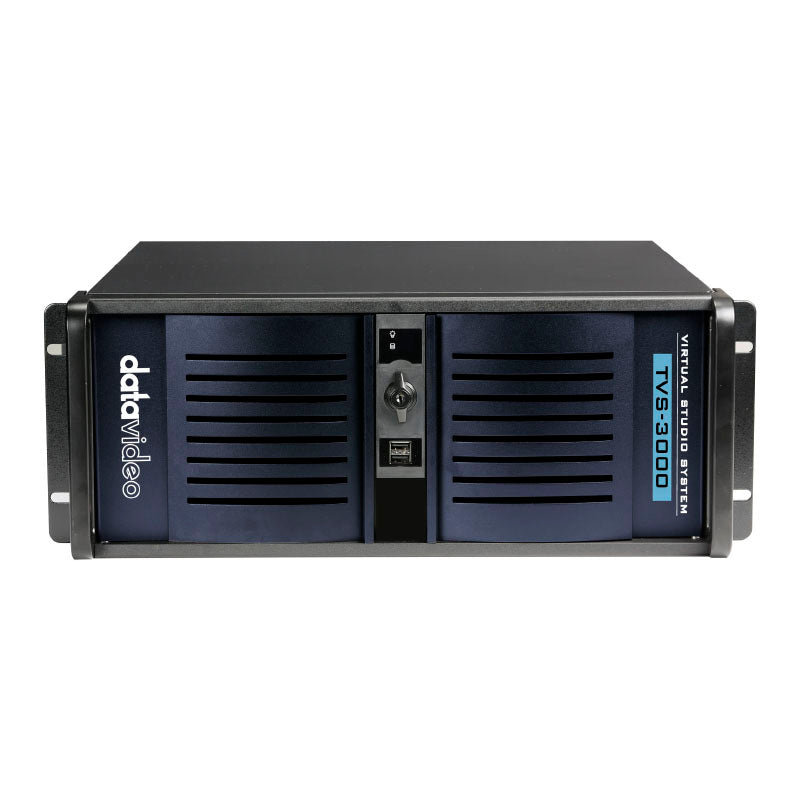

Datavideo TVS-3000 3D Tracking VR/AR 4K Virtual Studio System

De Datavideo TVS-3000 maakt gebruik van kosteneffectieve trackers van HTC die ook in VR-opstellingen worden gebruikt. Deze volgsystemen kunnen op uw gewone kraan worden gemonteerd en leveren perfecte resultaten zonder de bank te breken!

4-7 werkdagen
  • €32.200,00 (excl. btw)
    €38.962,00 incl. btw
  • - 0%

Professional graphic layout function provides a great stage for the video production.

deliver perfect results while not breaking the bank!

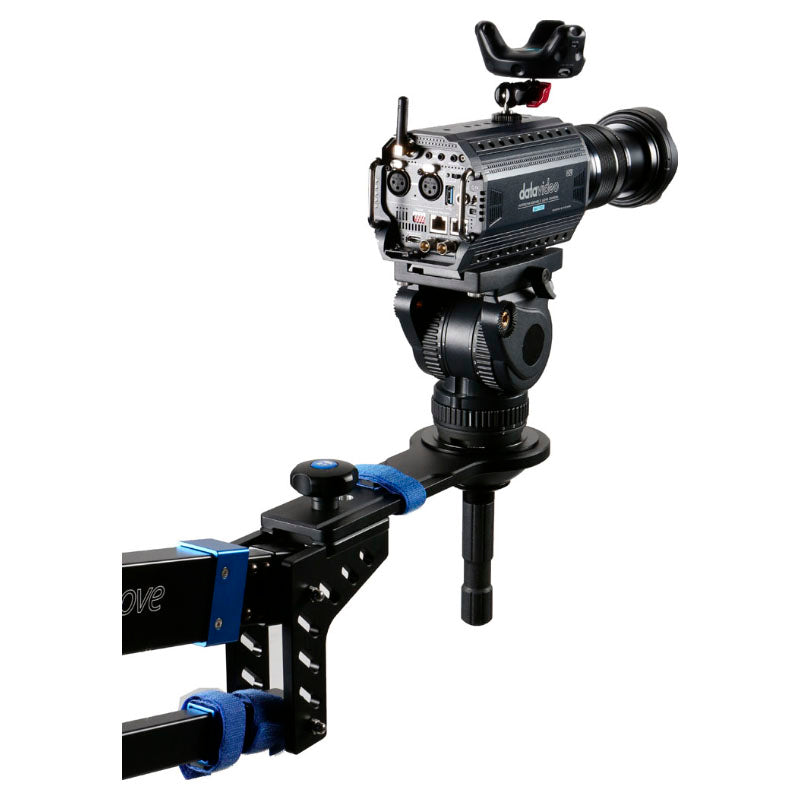

Most virtual studio solutions require expensive designated tracking devices or cranes with built in encoders. These devices are very expensive and require trained and skilled personnel. TVS-3000 uses cost effective trackers from HTC which are also being used in VR setups. These tracking devices can be mounted on your regular crane and deliver perfect results while not breaking the bank!

Support 4K UHD resolution input and multiple input configurations

Supports up to 8 channels of full HD or 2 channels of 4K mixed resolution input signals, unlimited streaming media input signals with multiple video formats, and input signals from DirectShow protocol device to achieve multi-channel video switching.

3D tracking with AR technology

TVS-3000 incorporates the most advanced AR technology into virtual studios. With the HTC Tracker application, it can easily overlay 3D virtual objects into real scene video, and also provides interaction with the AR object through real-time positioning.

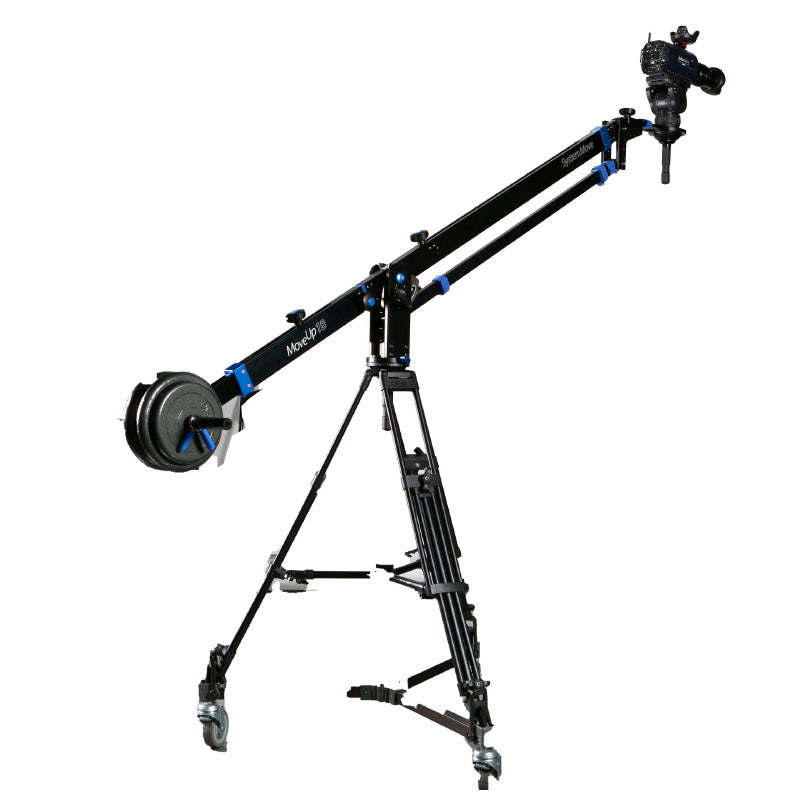

Smart 3D tracking crane

Replace the traditional tracking crane with low-cost and easy-to-operate advanced 3D tracking crane. The path, panning speed, and shooting time of the camera movement can be adjusted in real-time. The user can set up to 42 virtual shots with different 3D positions and angles in the same scene.

Supports NDI technology

Supports NDI streaming protocol, no need to set an IP address in intranet transmission, you can simply search for NDI signal sources on your local network and provide two-way transmission. Applied to the TVS- 3000, the function can be used to transmit different contents such as the browser interface, PPT, image, video as the input source in the virtual set or graphic layout, or can be used to send the live broadcast signal of the program to view from the local network.

Professional graphic layout function

TVS-3000 supports built-in graphic layout that combines input signals, video, images, text, and other contents as a complete editing file. You can choose from any image or video as a background, and add on multiple text content from free subtitle templates.

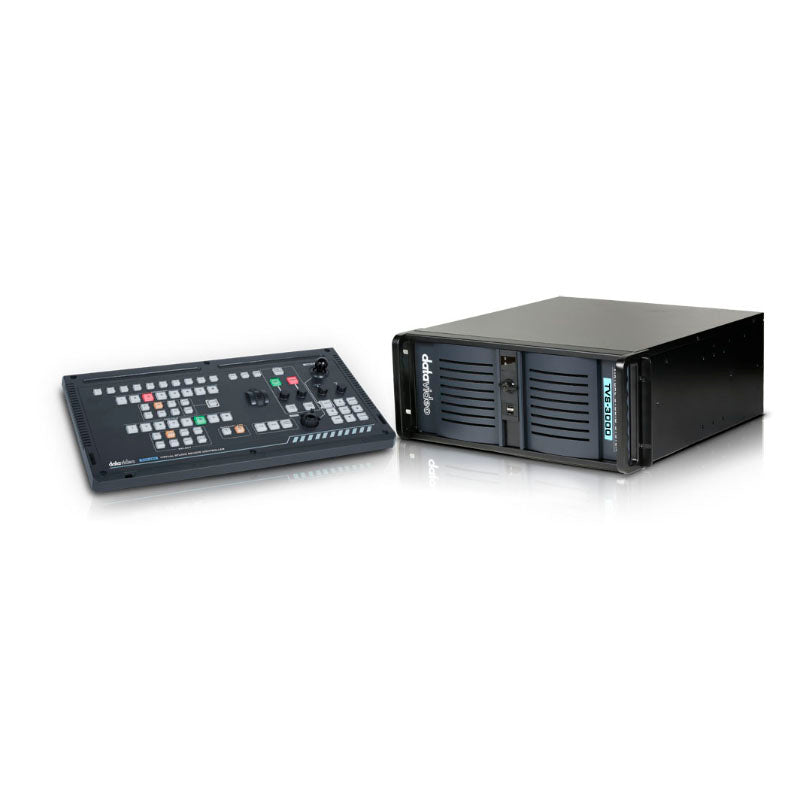

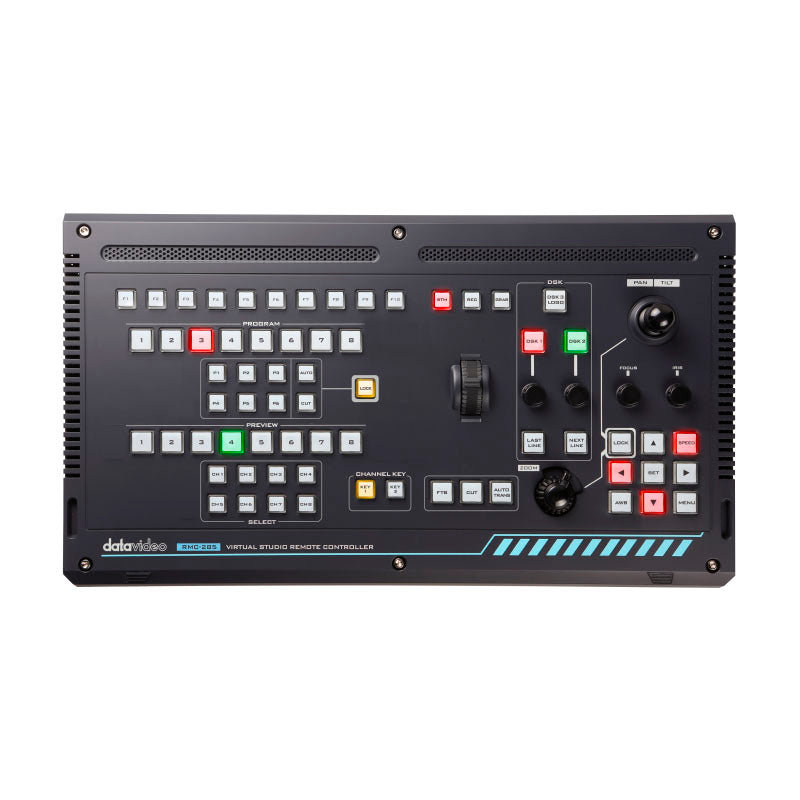

RMC-285 control panel included

RMC-285 control panel included for live virtual show and cameras control. Come with 10 function keys (F1-F10), can help to set quick animation, change scene or media content. Making production easier.

Model Number

TVS-3000

Tracking/Trackless

Tracking & Trackless

Video Input

4K mode:
6G-SDI x 2 or 12G-SDI x 1
HD mode:
3G-SDI x 3

Video Output

4K mode:
HDMI 2.0 x 1
HD mode:
3G-SDI x 1 + HDMI x 1

Video Input/Output Format

SDI Input/Output:
2160p 60/50/30/25 (Input only)
1080p 30/25
1080i 60/50
720p 60/50/30/25
HDMI Output:
2160p 60/50/30/25
1080p 60/50/30/25
720p 60/50/30/25

Audio Input

Mini Phone Jack x 1
SDI audio embedded

Operation Monitor

DP x2

Tally

Coming Soon

Media

3(DDR)

Virtual Studio

10 & Unlimited download from datavideovirtualset.com

Still Picture

1

Still Text

2

Keyer

Chromakey upto 8CH

Recording

Lossless 4:2:2 (.avi)
H.265 (.mov)
H.264 (.mp4;.wmv)
MPEG-2 (.ts;.mxf)

Live Streaming Protocols

TS over UDP
TS over TCP
RTMP
RTMPS
RTSP

Hard Disk Capacity

4TB HDD + 500G SSD

Dimension (LxWxH)

480 x 470 x 178mm

Weight

13.6 kg

Operating Temp. Range

0~40 °C

Power

AC 100-240V 750W

  • 1 x TVS-3000A Main Unit
  • 1 x Power AC Cord
  • 1 x USB Mouse
  • 1 x RMC-285 Unit(Include D-Sub 9 PIN Cable + DC 12V power adaptor)
  • 1 x 802.11AC Antenna / or USB dongle
  • 1 x LBK-2
  • 1 x Thank You Card
