8 input Video Switcher, 4 SDI & 4 HDMI, 6 outputs, 3 SDI & 3 HDMI, 4 Keying inp. Chromakey, Linear and Luma , PiP, 2 DSK's, 2 static or animated logos, 32 WIPE patterns, supports stinger transition. (Rackunit)

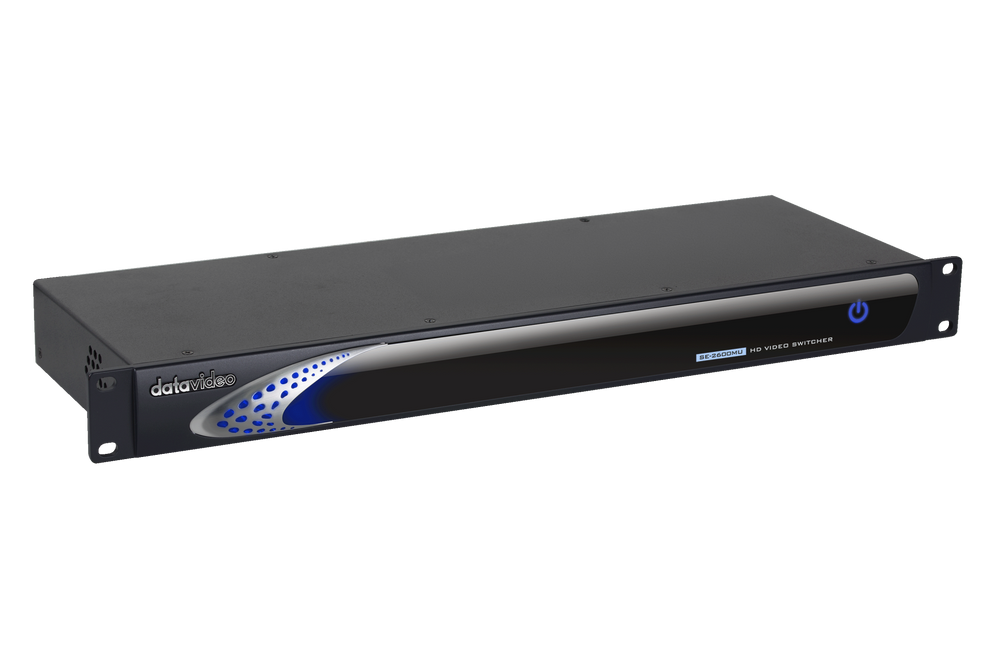

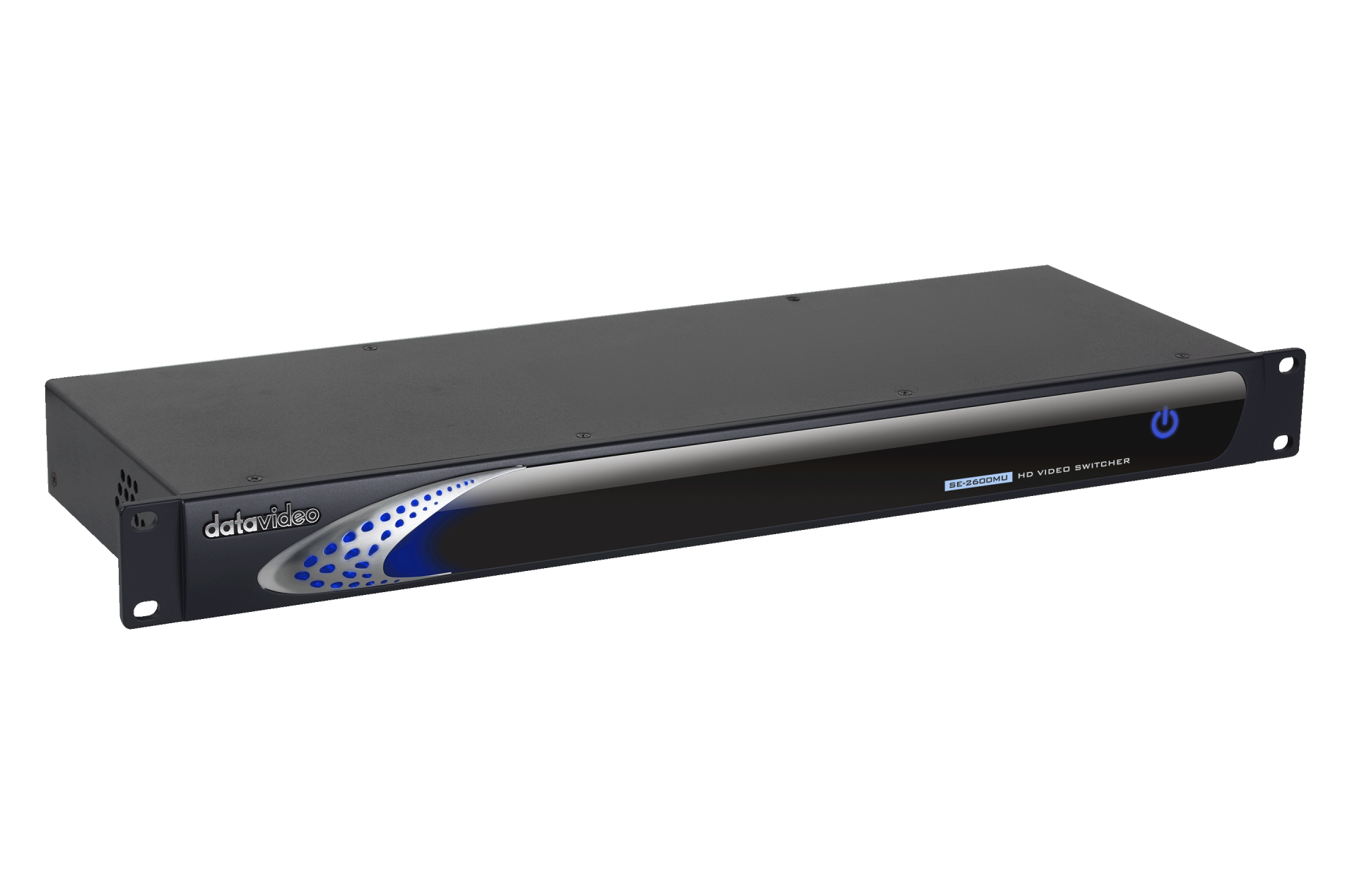

The SE-2600MU HD Video Switcher is a versatile and powerful 8-input live production switcher, ideal for professional AV environments such as corporate conference rooms and school classrooms. Supporting 1080p/60 (3G) High Definition video resolution, it offers a mix of 4x 3G-SDI and 4x HDMI inputs, along with 6 outputs including 3x 3G-SDI and 3x HDMI. Designed for versatile AV applications, it features advanced effects like Chroma Keyers, Luma Key, DSK, PIP, and DVE.
Additionally, it supports audio integration, logo insertion, title overlays, and offers a variety of transitions for a sophisticated production experience.

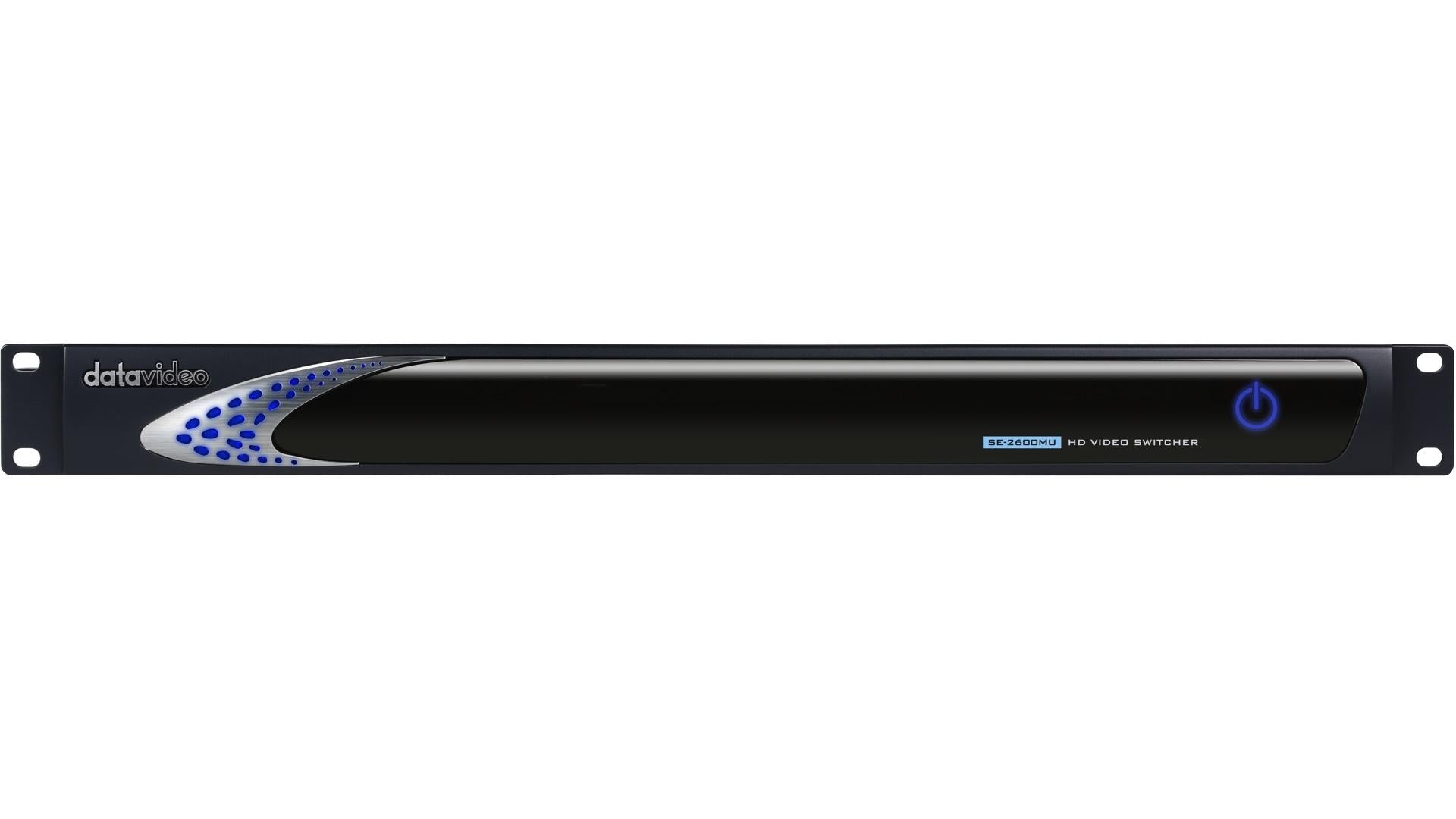

SE-2600MU's 1U rack-mounted design makes it very suitable for installation in various AV application environments such as corporate conference rooms or school classrooms. Users can connect through the network or RS-232/422 and remotely operate the SE-2600MU with full functionality, providing flexibility and convenience in different settings.
The Datavideo SE-2600MU HD 8-Channel Digital Video Switcher is designed for various AV applications in corporate conference rooms and school classrooms, allowing users to rapidly initiate live productions with its quick setup and user-friendly interface.
The SE-2600MU switcher also has powerful, easy-to-use effects such as Chroma / Luma Key, DSK, PIP, DVE / Wipe Generator, still stores, and logo insertion.
The SE-2600MU features Mini XLR (balanced) audio input, allowing for professional audio integration and ensuring high-quality sound in your live productions.
Each of the SE-2600MU's outputs can be designated as an AUX output signal, providing flexibility to route different signals to various displays or recording devices as needed.
With the built-in Tally output, the SE-2600MU allows for efficient communication between the director and camera operators, indicating which camera is live or on preview, enhancing coordination during live productions.
The SE-2600MU supports Analogue Gen-Lock with Black Burst and Tri-Level cross-reference, ensuring seamless synchronization with other equipment and providing stable video signals during live events.

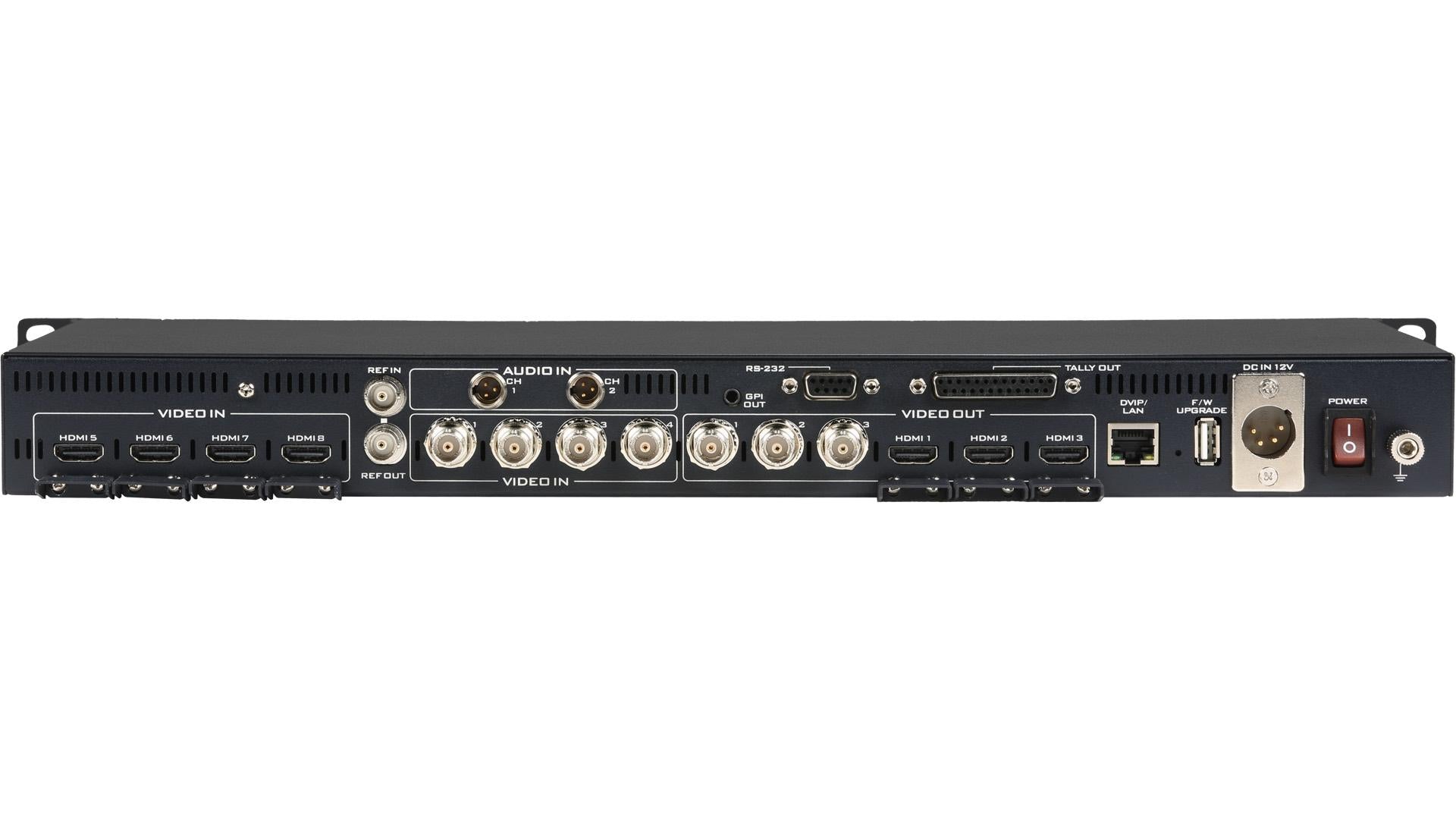

The SE-2600MU switcher is equipped with 8 inputs (4x X SDI+4 X HDMI) and 6 outputs (3 X SDI + 3 X HDMI) to help you produce a sophisticated and professional live event.
Full HD
Input:
1080p 50/ 59.94/ 60Hz
1080i 50/ 59.94/ 60Hz
720p 50/ 59.94/ 60Hz
Output:
1080p 50/ 59.94/ 60Hz
1080i 50/ 59.94/ 60Hz
720p 50/ 59.94/ 60Hz
SDI: 4:2:2
HDMI: YUV 4:2:2, RGB: 4:4:4
YES
Total 8 live inputs
4 x SDI
4 x HDMI
----
4 via HDMI
3 x SDI
3 x HDMI
assignable:
Multiview, PGM, PVW, PGM+DSK, Clean PGM, Clean PVW, Input 1-8, STILL 1, STILL 2, Flex source
-----
HDMI & SDI assignable
2x Balanced Mini XLR
----
SDI Input/Output 4 channels,
HDMI Input/Output 2 channels
Up to 16 fields or 8 frames per channel
Yes
4
Yes
4x Keyer support Chromakey/ Linear/ Luma Key
2x DSK support Lumakey & Linear key (Key / Fill)
4
2
999+ (1080p)
Cut, Auto, WIPE, Mix
Full transitions preview
1 x BNC Ref in
1 x BNC Ref out (loop-through)
1x D-sub 25pin, dual color
RS-232 / DVIP (Ethernet)
----
----
----
----
----
----
----
----
USB
User Memory Preset
Free Virtual Set and Stinger transition included
Unibody
483.60*223*44 mm
3.4 kg
DC 12V, 82W
0~40 °C
1 x SE-2600MU product
1 x AD Switch DC 12V
1 x AC Cord
4 x M5 Screws for Rack Mount Ear
2 x Mini XLR 3P-F to XLR 3P-F Cable
