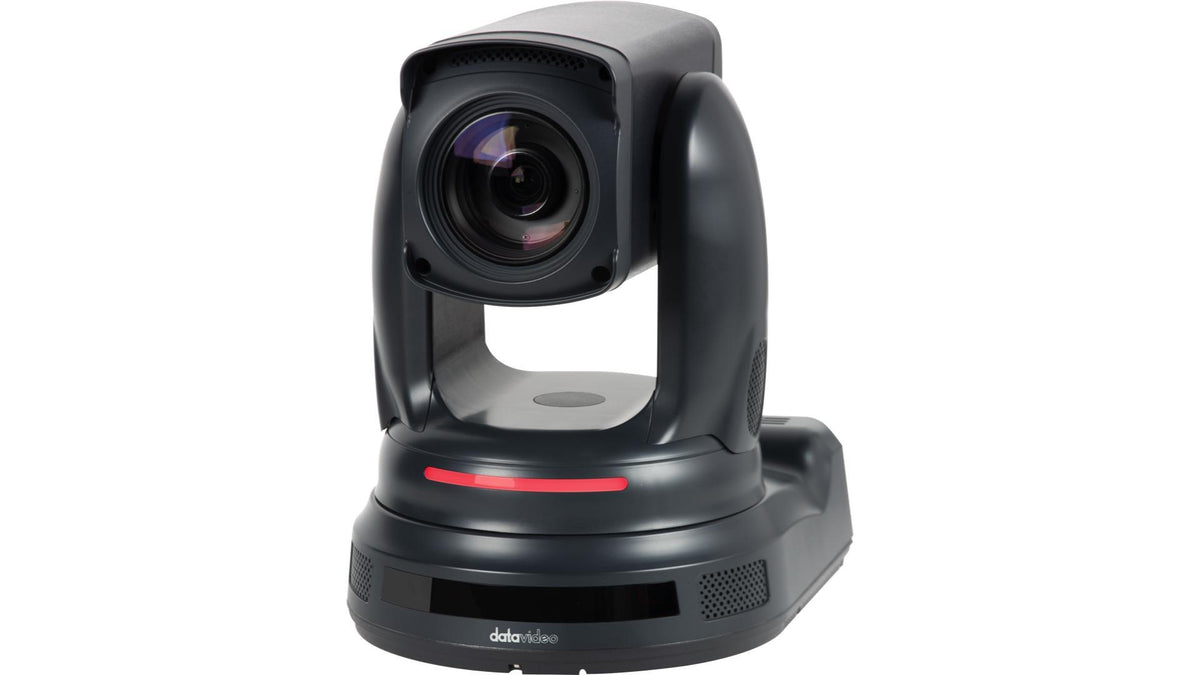

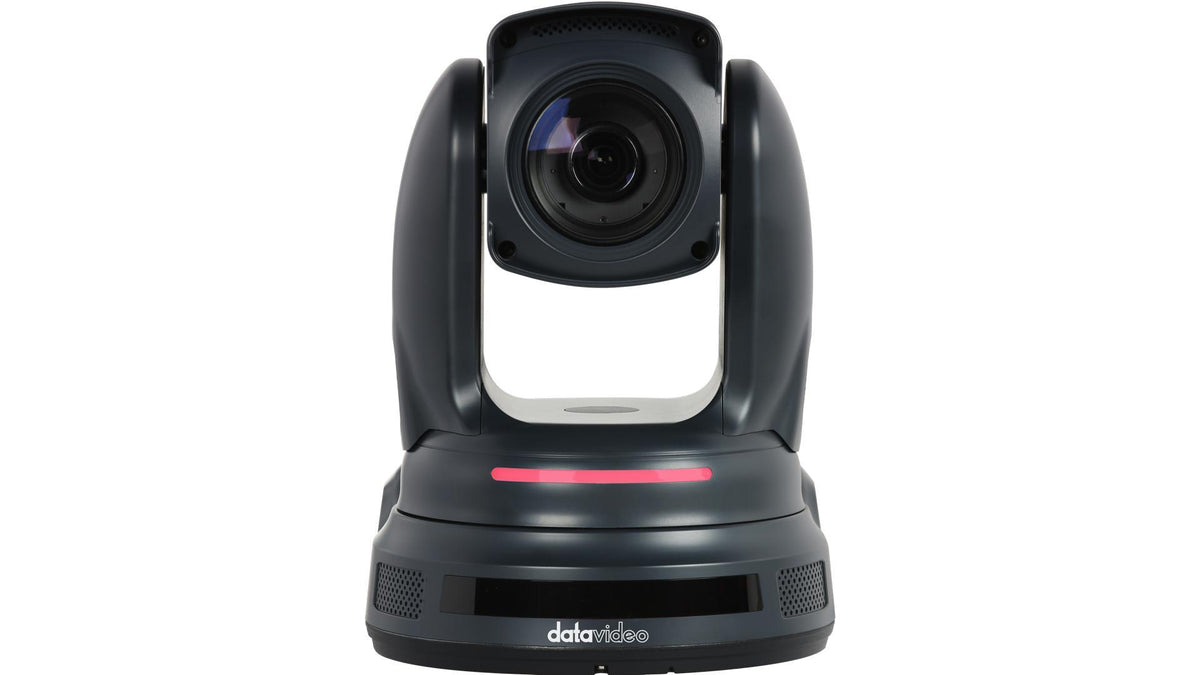

The Datavideo PTC‑600G is a high-end 4K AI auto-tracking PTZ camera engineered for demanding broadcast and live production environments where image quality, automation and seamless system integration are essential. Designed for large venues such as auditoriums, theaters, lecture halls and corporate event spaces, it delivers a fully autonomous camera solution with consistently professional results.
At the heart of the PTC‑600G is a large 1/1.8 inch Sony CMOS sensor that ensures exceptional detail, realistic color reproduction and reliable low-light performance. Combined with 4K60 video output and advanced image processing, the camera produces broadcast-quality images with smooth tonal transitions and accurate color fidelity, making it highly suitable for modern UHD workflows.
The integrated 30x optical zoom lens allows precise framing of subjects at long distances without sacrificing clarity. This makes the camera particularly effective in large-scale environments where capturing fine details is critical. The precision-engineered pan and tilt system offers wide movement ranges and smooth, near-silent operation, ensuring fluid camera motion that does not interfere with the production environment.
A key strength of the PTC‑600G is its advanced AI auto-tracking technology, which intelligently identifies and follows subjects while maintaining natural composition. This enables fully automated operation without the need for a dedicated camera operator, providing consistent framing in dynamic scenarios such as presentations, performances and live events.
The camera is designed for maximum flexibility within both traditional broadcast and modern IP-based infrastructures. With simultaneous outputs including 12G‑SDI and HDMI, alongside support for IP workflows such as NDI, it integrates effortlessly into complex production setups. This multi-output capability allows the same camera feed to be distributed across multiple systems without additional conversion hardware.
Extensive protocol support ensures compatibility with a wide range of control systems and streaming environments, making it suitable for scalable and future-proof AV architectures. Whether deployed in fixed installations or mobile production setups, the PTC‑600G can be integrated into existing ecosystems with minimal effort.
Installation is simplified through PoE++ support, allowing power, control and data to be delivered via a single Ethernet cable. This reduces cabling complexity and enables clean, efficient system design, particularly in multi-camera installations.
Built with a durable chassis and high-precision motor components, the PTC‑600G is designed for continuous professional use. Its combination of high-resolution imaging, intelligent tracking, flexible connectivity and reliable performance makes it a complete solution for high-end live production and broadcast applications.
Video format/Resolution
HDMI/12G-SDI:
2160p 60/59.94/50/30/29.97/25 (2160p60/59.94/50 YUV 4:2:2)
1080p 60/59.94/50/30/29.97/25
1080i 60/59.94/50
720p 60/59.94/50
SDI
2160p 60/59.94/50/30/29.97/25
1080p 60/59.94/50/30/29.97/25
720p 60/59.94/50
Image Sensor
Sony 1/1.8" CMOS
Effective Pixels (approx.)
8.42 Mega Pixels
S/N Ratio
≥55dB
Min. Illumination
0.5 Lux @ (F1.8, AGC ON)
Electronic Shutter
1/30s ~ 1/10000s
Zoom Ratio
30x Optical, 4x Digital Zoom
Effective Zoom Ratio
31.06x
Gamma Control
Off/Normal
Iris Control
Auto/Manual
Digital Noise Reductions
2D/3D
On-Screen Display (OSD)
English/Simplified Chinese/Traditional Chinese
White Balance
Auto, Indoor, Outdoor, One Push, Manual
AGC / Gain Control
Yes
HDR/WDR
N/A
Mirror / Flip Image
Yes
Focus Mode
Auto/Manual/One Push
Panning / Tilting Range
Pan: 340
Tilt: -20~+105
Preset
255 Positions
Focal Length
30x, f=6.91mm~214.64mm, F1.35(Wide) ~F4.6 (Tele)
Field of View (Horizontal, Wide)
60°
Image Compensation
Back light compensation

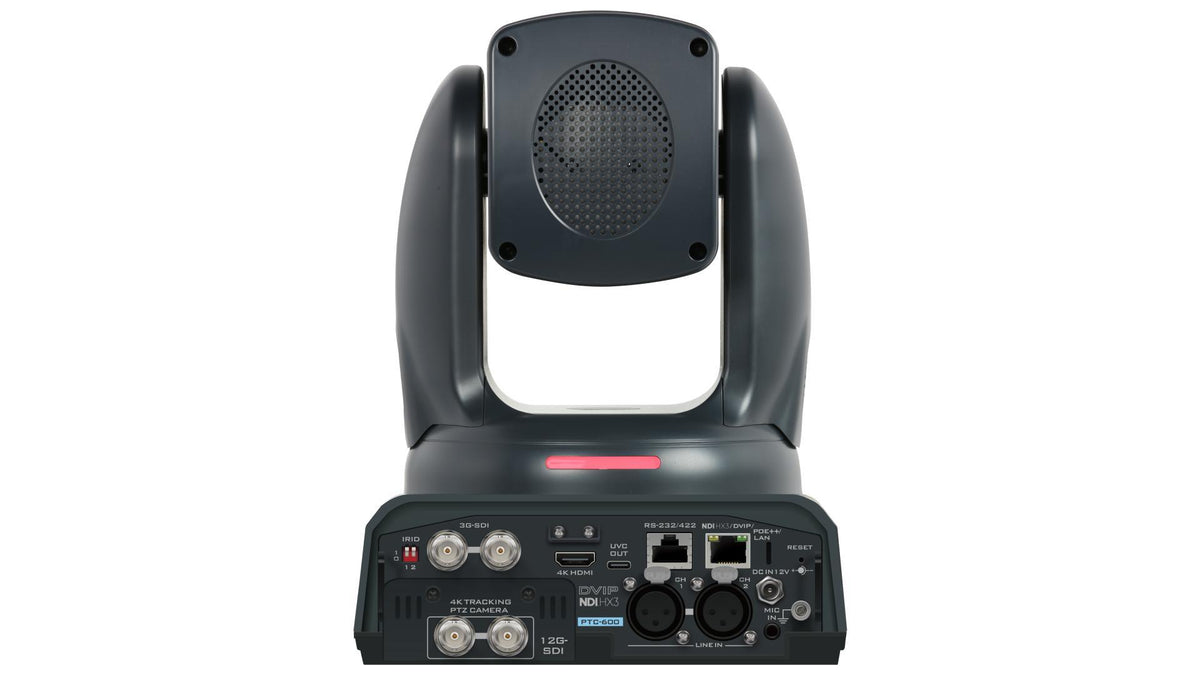

Video Output
HDMI 2.0 x 1
3G-SDI x1
12G-SDI x1
10/100/1000M RJ45 (802.3bt, PoE++) x1
UVC out (USB type C) x1
Audio Input
XLRx2 (line in), 3.5mm x1 (mic in)
Tally LED
Yes
Lens Filter
N/A
Control Protocol
Pelco-D, Pelco-P, VISCA, VISCA over IP, DVIP, ONVIF, NDI, FreeD
Remote Control Interface
Standard/12G-SDI Version:
IR, Web GUI, RS-422/RS-232, DVIP, NDI
Video Compression Format
H.264/H.265/MJPEG
Audio Compression Format
AAC
Audio Bitrate
96Kbps, 128Kbps, 256Kbps
HD IP Interface
----
Streaming Protocols
RTSP, RTMP(S), ONVIF, Multicast, SRT, NDI | Hx3
First Stream Supported Resolution
3840x2160
1920x1080
1280x720
1024x576
960x540
640x480
640x360
Second Stream Supported Resolution
1280x720
1024x576
720x576 (50Hz)
720x480 (60Hz)
720x408
640x360
480x270
320x240
Video Bitrate
32Kbps ~ 50Mbps (Single Stream)
Video Bitrate Mode
VBR, CBR
Encoding Frame rate
50Hz: 1-50fps
60Hz: 1-60fps
POE
PoE++
F/W Update
Via Web UI or USB 3.0 (type C)
IR Control
Yes
Camera Control Unit
RMC-2P
RMC-180 series/
RMC-300 series/
PTZ View Assist APP
Tripod Mount
1/4-20 UNC
Color
Black/White
Dimension (LxWxH)
187(W)x 253(H)x233(D) mm
Weight
3.0 kg
Operating Temp. Range
0~40 °C
Power
12V 5A (37.4W)
