  • Datavideo PTC-285W 4K Tracking PTZ Camera
  • Datavideo PTC-285W 4K Tracking PTZ Camera
  • Datavideo PTC-285W 4K Tracking PTZ Camera
Datavideo
7000-3086

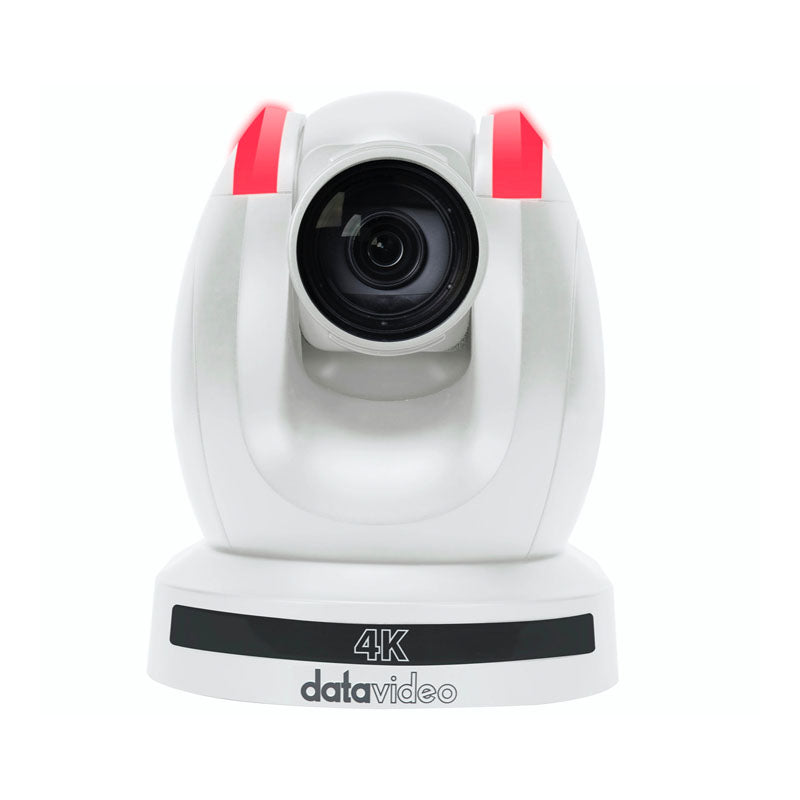

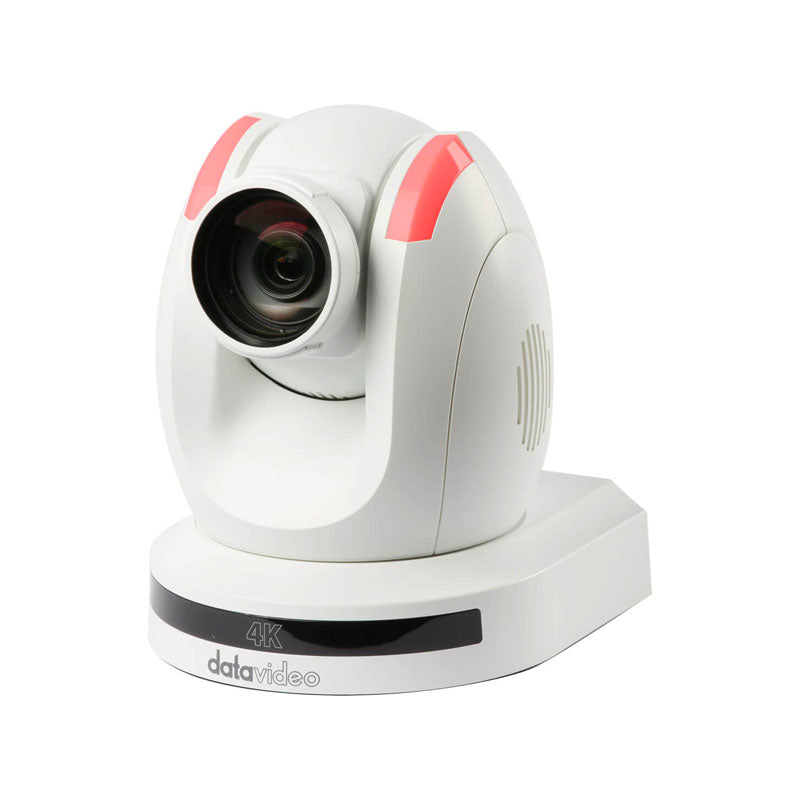

Datavideo PTC-285W 4K Tracking PTZ Camera

Datavideo introduceert de 4K50/60p Ai tracking PTZ-camera PTC-285W, professionele PTZ-camera's helpen u uw evenement vast te leggen.

Op voorraad
  • €1.840,00 (excl. btw)
    €2.226,40 incl. btw
  • €2.095,00
  • - 0%

Brand New 4K Auto Tracking PTZ Camera

Live productions depend on high performance cameras and camera controllers.

Datavideo is introducing the 4K50/60p Ai tracking PTZ camera PTC-285, professional PTZ cameras help you capture your event. PTC-285 can be easily controlled via traditional RS-422 serial port, or IP remote control via DVIP (Datavideo proprietary protocol) or Sony VISCA over IP. This brand new 4K camera series supports dual streaming output for A/V market application, you can easily stream to Facebook (RTMPS), YouTube and dvCloud.

PTC-285 is a series of products, Datavideo also provides extended models such as PTC-285T 4K HDBaseT and NDI to meet the needs of different workflows.

Simultaneous Outputs

Connect your PTC-285 to multiple devices in your workflow for flexibility. All the outputs are active at the same time.

Quick Access to Camera's AI Tracking

You will be allowed direct access to auto tracking via various external controllers such as the supplied RMC-1 remote control and DVIP controllers (RMC-300A, RMC-180 MARK II and PTC View Assist). In addition to camera controllers, you can also easily enable AI tracking on smart switchers which include KMU-200, SHOWCAST 100, etc as well as total solution systems like ZR-1 Zoom Room Classroom.

Model Number

PTC-285W

Video format/Resolution

2160p60/59.94/50/30/29.97/25
1080p60/59.94/50/30/29.97/25
1080i60/59.94/50
720p60/59.94/50
*2160p60/59.94/50 YUV 4:2:2

Image Sensor

1/2.8" CMOS

Effective Pixels (approx.)

8.51Mega Pixels

S/N Ratio

≥55dB

Min. Illumination

0.5 Lux @ (F1.8, AGC ON)

Electronic Shutter

1/30s ~ 1/10000s

Zoom Ratio

12x Optical Zoom, 16x Digital Zoom

Gamma Control

Off / Normal

Iris Control

Auto / Manual

Digital Noise Reductions

3D

On-Screen Display (OSD)

English/Simplified Chinese/Traditional Chinese

White Balance

Auto, Indoor, Outdoor, OnePush, Manual, VAR

AGC / Gain Control

Yes

Mirror / Flip Image

Yes

Focus Mode

Auto/Manual

Panning / Tilting Range

Pan: 300°
Tilt: +130° to -15°

Panning / Tilting Speed

Pan: 0.876°/s~43°/s
Tilt: 0.693°/s ~21.32°/s

Preset

255

Focal Length

12x, f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6

Field of View (Horizontal, Wide)

80°

Image Compensation

Back light compensation

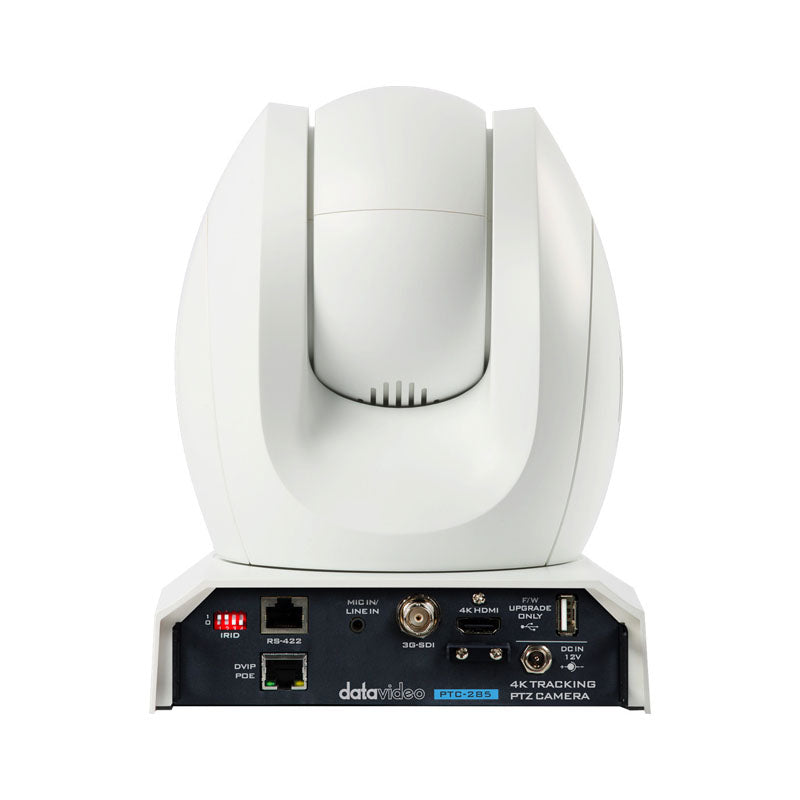

Video Output

HDMI 2.0 x1
3G-SDI x1
10/100/1000M RJ45 (PoE) x1

Audio Input

3.5 mm x1 (mic in/line in)
switch from Web UI

Tally LED

Yes

Lens Filter

N/A

Control Protocol

Pelco-D, Pelco-P,
VISCA, VISCA over IP,
DVIP

Remote Control Interface

IR
Web UI
RS-422
DVIP

Video Compression Format

H.264/H.265/MJPEG

Audio Compression Format

AAC

Audio Bitrate

96Kbps, 128Kbps

HD IP Interface

----

Streaming Protocols

TCP/IP, HTTP, RTSP, RTMP(S), SRT, ONVIF, DHCP, Multicast

First Stream Supported Resolution

3840x2160
1920x1080
1280x720
1024x576
960x540
640x480
640x360

Second Stream Supported Resolution

720x480
640x360
480x270
320x240

Video Bitrate

32Kbps ~ 50Mbps (Single Stream)

Video Bitrate Mode

VBR, CBR

Encoding Frame rate

50Hz: 1-50fps
60Hz: 1-60fps

POE

IEEE 802.3at

F/W Update

Via Web UI or USB 2.0

IR Control

Yes

Camera Control Unit

RMC-180 series/ RMC-300C /PTZ View Assist APP

Tripod Mount

1/4-20 UNC

Optional Accessories

WM-1/ WM-10/ WM-11

Color

Black/White

Dimension (LxWxH)

173 (W) x 219 (H) x 189.08 (D)

Weight

2.6 kg

Operating Temp. Range

0~40 °C

Power

DC 12V 21W

  • 1 x PTC-285W product
  • 1 x RMC-1 IR remote controller
  • 1 x Ceiling mount bracket-A
  • 1 x Ceiling mount bracket -B
  • 6 x Ceiling mount bracket screw M3*4mm
  • 1 x DC 12V Power Adaptor
  • 1 x A tightrope
