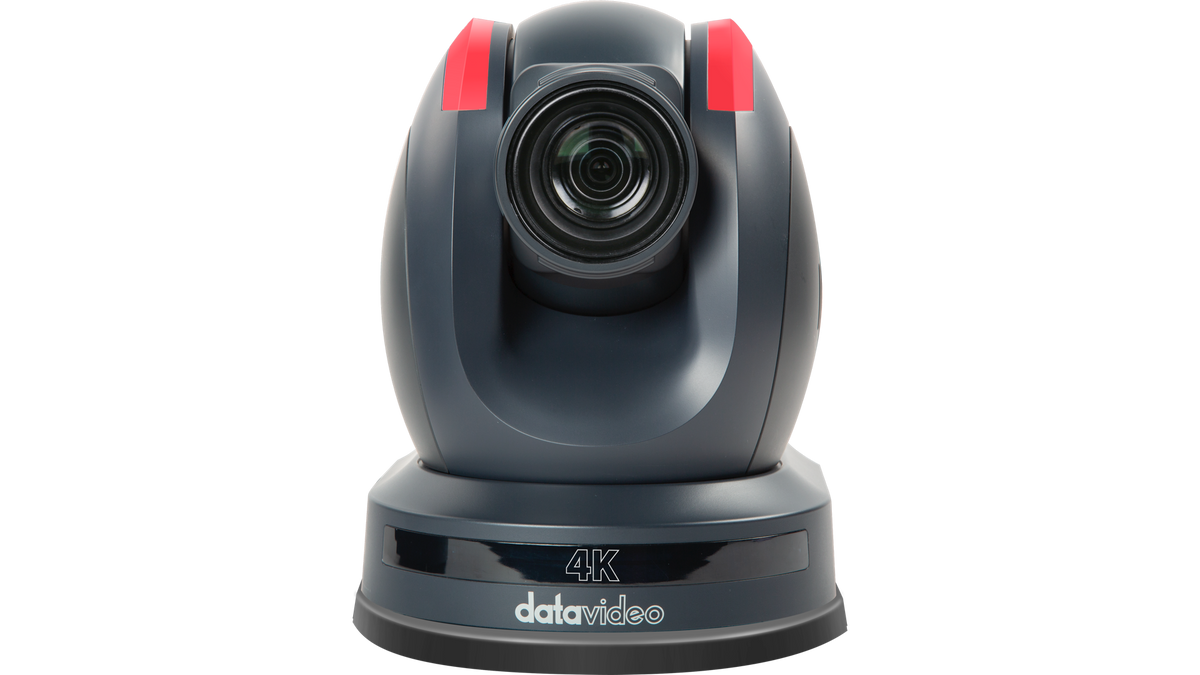

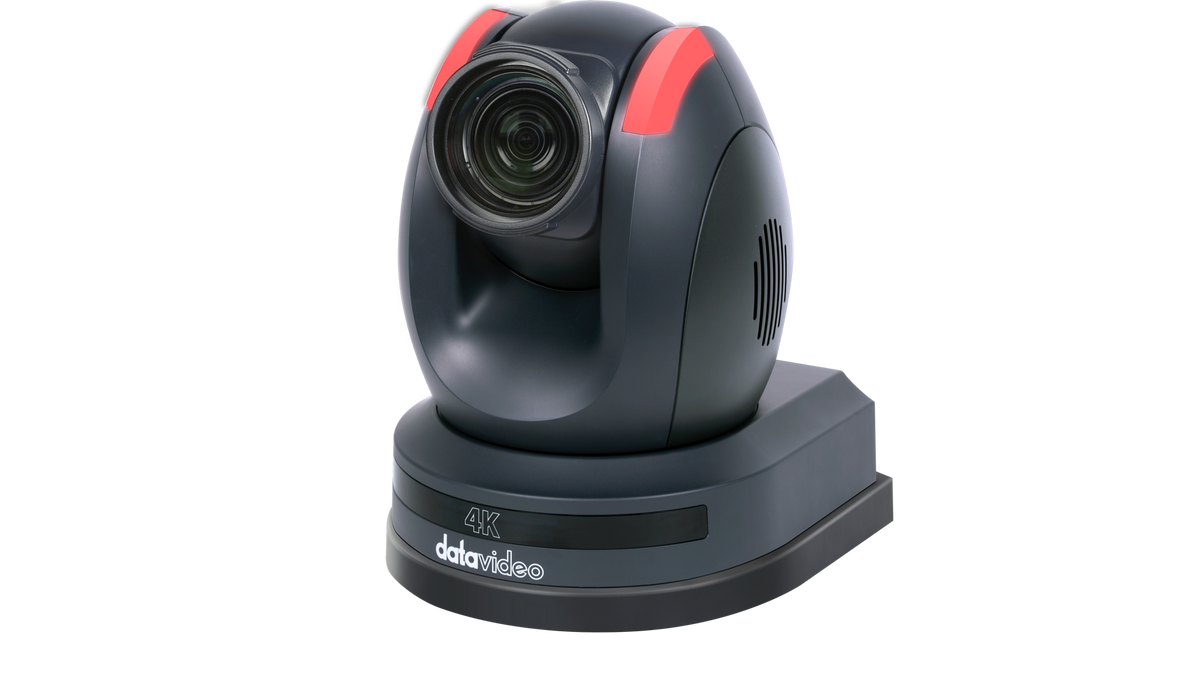

Datavideo PTC-285T 4K HDBaseT Tracking PTZ Camera

The Datavideo PTC-285T is a 4K60 auto-tracking PTZ camera with a Sony CMOS sensor, 12x optical zoom, HDBaseT connectivity, and simultaneous HDMI, SDI, and streaming outputs. It delivers professional video, intelligent tracking, and single-cable transmission of video, control, power, and tally.

1-3 werkdagen

€2.675,00 (excl. btw)
€3.236,75 incl. btw
- 0%

Kleur

Aantal

The Datavideo PTC-285T is a professional 4K auto-tracking PTZ camera with integrated HDBaseT technology, designed for live production, corporate environments, education, houses of worship, and broadcast applications. Featuring a high-quality 1/2.8" Sony CMOS sensor and a 12x optical zoom lens, the camera delivers Ultra HD video at up to 2160p50/60 while maintaining excellent image quality and reliable performance across a wide range of production environments.

Advanced AI-powered auto-tracking technology allows the camera to automatically follow a selected subject without continuous operator intervention. Users can quickly switch between full-body, half-body, and close-up framing, while intelligent tracking algorithms help maintain smooth and accurate subject positioning. Custom auto-tracking functions enable a specific individual to be selected and tracked, reducing interference from other people or moving objects within the scene.

A key advantage of the PTC-285T is its HDBaseT connectivity. Video, control, power, and tally signals can be transmitted over a single CAT-6 cable, simplifying installation and reducing cabling complexity. This makes the camera particularly well suited for fixed installations and long-distance deployments where streamlined infrastructure and reliable signal transmission are essential.

The camera supports simultaneous HDMI 2.0, 3G-SDI, HDBaseT, and streaming outputs, providing flexibility for modern production workflows. Dual-stream functionality and support for RTSP, RTMPS, SRT, and other streaming protocols allow direct streaming to multiple destinations while integrating easily into IP-based production environments.

For control and integration, the PTC-285T supports RS-422, DVIP, VISCA over IP, ONVIF Profile S, and web-based management. Operators can remotely control pan, tilt, zoom, presets, and image settings through Datavideo controllers, the PTZ View Assist application, or browser-based interfaces.

Advanced image processing features include 3D noise reduction for improved low-light performance and intelligent PTZ speed adaptation for smooth camera movement. With an 80-degree horizontal field of view, support for H.264 and H.265 compression, and availability in both black and white finishes, the PTC-285T offers a versatile solution for professional 4K video production and automated tracking applications.

Model Number

PTC-285T

Video format/Resolution

HDMI/HDBaseT:
2160p60/59.94/50/30/29.97/25
1080p60/59.94/50/30/29.97/25
1080i60/59.94/50
720p60/59.94/50
*2160p60/59.94/50 YUV 4:2:2

SDI:
1080p 60/59.94/50/30/29.97/25
1080i 60/59.94/50
720p 60/59.94/50

Image Sensor

Sony 1/2.8" CMOS

Effective Pixels (approx.)

8.51Mega Pixels

S/N Ratio

≥55dB

Min. Illumination

0.5 Lux @ (F1.8, AGC ON)

Electronic Shutter

1/30s ~ 1/10000s

Zoom Ratio

12x Optical Zoom, 16x Digital Zoom

Effective Zoom Ratio

12x

Gamma Control

N/A

Iris Control

Auto / Manual

Digital Noise Reductions

On-Screen Display (OSD)

English/Simplified Chinese/Traditional Chinese

White Balance

Auto, Indoor, Outdoor, OnePush, Manual, VAR

AGC / Gain Control

Yes

HDR/WDR

N/A

Mirror / Flip Image

Yes

Focus Mode

Auto/Manual

Panning / Tilting Range

Pan: 300°
Tilt: +90° to -15°

Panning / Tilting Speed

Pan: 0.876°/s~43°/s
Tilt: 0.693°/s ~21.32°/s

Preset

255

Focal Length

12x, f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6

Field of View (Horizontal, Wide)

80°

Image Compensation

Back light compensation

Video Output

HDMI 2.0 x1
3G-SDI x1
HDBaseT (PoE) x 1
Cable Type: Cat6A Shielded

Audio Input

3.5 mm x1 (mic in/line in)
switch from Web UI

Tally LED

Yes

Lens Filter

N/A

Control Protocol

Pelco-D, Pelco-P,
VISCA, VISCA over IP,
DVIP, ONVIF

Remote Control Interface

IR
Web GUI
RS-422/RS-232
DVIP
HDBaseT(RJ-45)/Serial control on Receiver Box: Transmit up to 100m

Video Compression Format

H.264/H.265/MJPEG

Audio Compression Format

AAC, G711

Audio Bitrate

96Kbps, 128Kbps, 256Kbps

HD IP Interface

----

Streaming Protocols

RTSP, RTMP(S), ONVIF, Multicast, SRT

First Stream Supported Resolution

3840x2160
1920x1080
1280x720
1024x576
960x540
640x480
640x360

Second Stream Supported Resolution

720x480
640x360
480x270
320x240

Video Bitrate

32Kbps ~ 50Mbps (Single Stream)

Video Bitrate Mode

VBR, CBR

Encoding Frame rate

50Hz: 1-50fps
60Hz: 1-60fps

POE

IEEE 802.3at

F/W Update

Via Web UI or USB 2.0

IR Control

Yes

Camera Control Unit

HS-1650T/HS-1600T Mark II/RMC-2P/RMC-180 series/RMC-300 series/PTZ View Assist APP

Tripod Mount

1/4-20 UNC

Optional Accessories

WM-1/ WM-10/ WM-11

Color

Black/White

Dimension (LxWxH)

184(W) x 228.5(H) x 194(D)

Weight

2.7 kg

Operating Temp. Range

0~40 °C

Power

DC 12V 22W

1 x PTC-285TW product
1 x RMC-1 IR remote controller
1 x Ceiling mount bracket-A
1 x Ceiling mount bracket -B
6 x Ceiling mount bracket screw M3*4mm
1 x DC 12V Power Adaptor
1 x A tightrope
