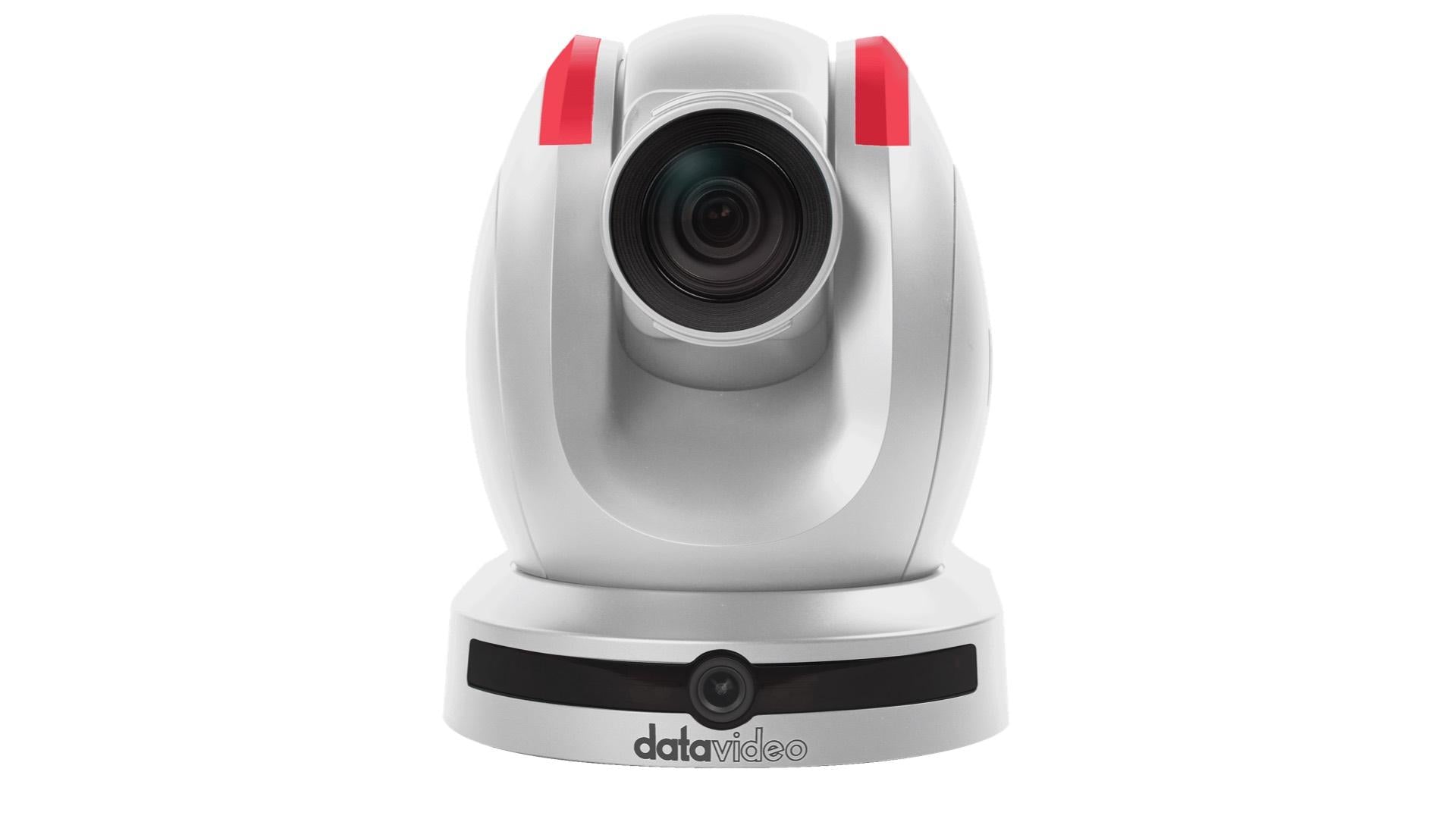

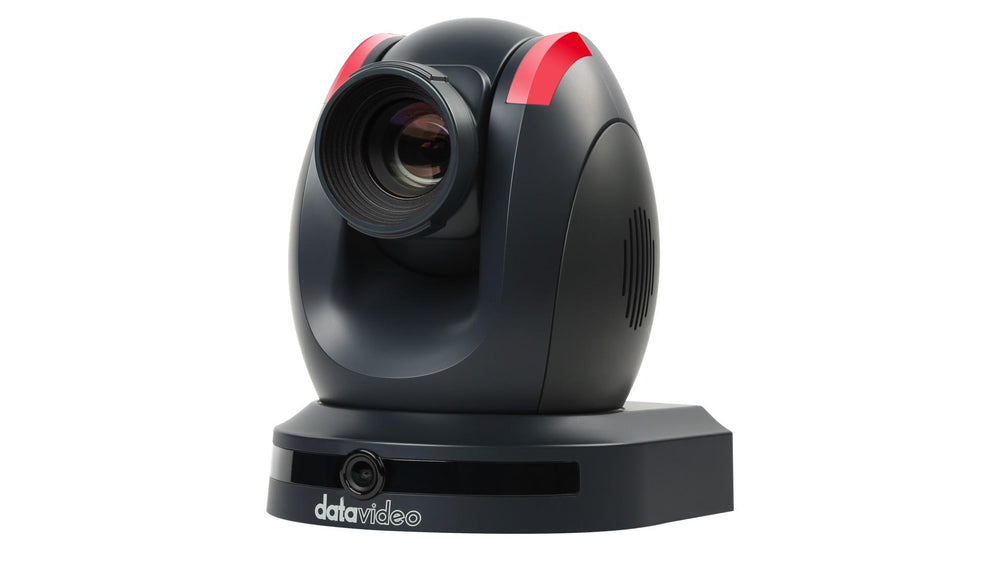

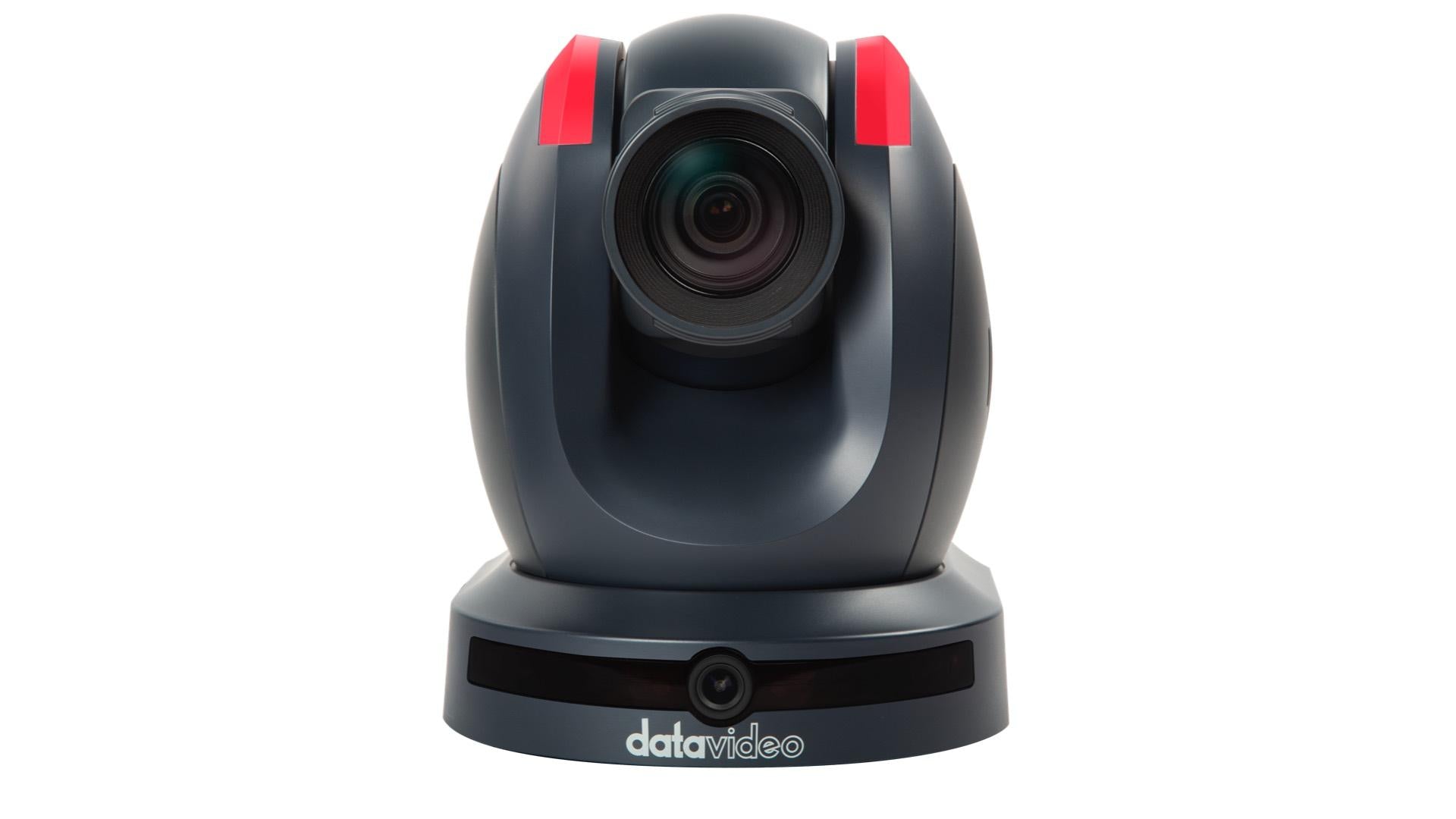

Datavideo PTC-155
Dual lens Full HD Auto Tracking PTZ camera with 30x zoom, comes with HDMI/SDI and NDI output
Stunning Full HD Resolution with Auto Tracking
Introducing the PTC-155 Series, Datavideo’s latest AI-powered PTZ camera engineered for professional video production.
Designed with a 1/2.8" CMOS sensor, 30x optical zoom, and an intelligent dual-lens system, the PTC-155 delivers smooth, natural tracking and premium Full HD 1080/60P image quality.
Whether it’s a grand performance hall, a classroom lecture, a corporate conference, or a place of worship, the PTC-155 excels in capturing every moment with unmatched clarity and stability.
Simultaneous Output of Multiple Signal Formats
Supports SDI, HDMI, and UVC video output. Built-in H.264, H.265, and Motion JPEG encoding allows simultaneous live streaming to two platforms, meeting both on-site and online playback requirements.
Key Features
AI Auto-Tracking
Dual-lens system ensures precise subject tracking.
Stunning Image Quality
Broadcast-grade 1/2.8” CMOS sensor delivers Full HD at 60fps.
Versatile Connectivity
SDI, HDMI, UVC, and NDI|HX3 support, plus built-in streaming.
Easy Control
Operate via controllers, apps, switchers, or web UI.
30x Optical Zoom, 16x Digital Zoom
The PTC-155's 30x optical zoom and 16x digital zoom allows you to mount it near or far and still get great, sharp shots.
Dual-Lens Camera for Precise Tracking and Full Coverage
The dual-lens camera technology to accurately identify the subject's position and movement track. Even in complex environments, it ensures stable tracking. The secondary lens offers an ultra-wide-angle view, enabling output of HD footage of the entire scene.
One Ethernet Cable with NDI® | HX Technology
Eliminate the need for complex wiring— a single Ethernet cable handles video, audio, power, tally, and control signal transmission.
Video format/Resolution
1080p60/59.94/50/30/29.97/25
720p60/59.94/50
Image Sensor
1/2.8" CMOS
Effective Pixels (approx.)
2.14 Mega pixels
S/N Ratio
≥50dB
Min. Illumination
0.5 Lux @ (F1.8, AGC ON)
Electronic Shutter
1/25s ~ 1/10000s
Zoom Ratio
30x Optical Zoom, 16x Digital Zoom
Gamma Control
N/A
Iris Control
Auto / Manual
Digital Noise Reductions
2D/3D
On-Screen Display (OSD)
English/Simplified Chinese/Traditional Chinese
White Balance
Auto, OnePush, Manual
AGC / Gain Control
Yes
HDR/WDR
N/A
Mirror / Flip Image
Yes
Focus Mode
Auto / Manual
Panning / Tilting Range
Pan: 300° Tilt: +130° to -15°
Panning / Tilting Speed
Pan: 0.1~ 60°/Sec Tilt: 0.1° to 30°/sec
Preset
255 Positions
Focal Length
f = 5.5mm (wide) to 150.43 mm (tele)
F1.66(Wide) ～ F4.99 (Tele)
Field of View (Horizontal, Wide)
54°
Image Compensation
Backlight Compensation

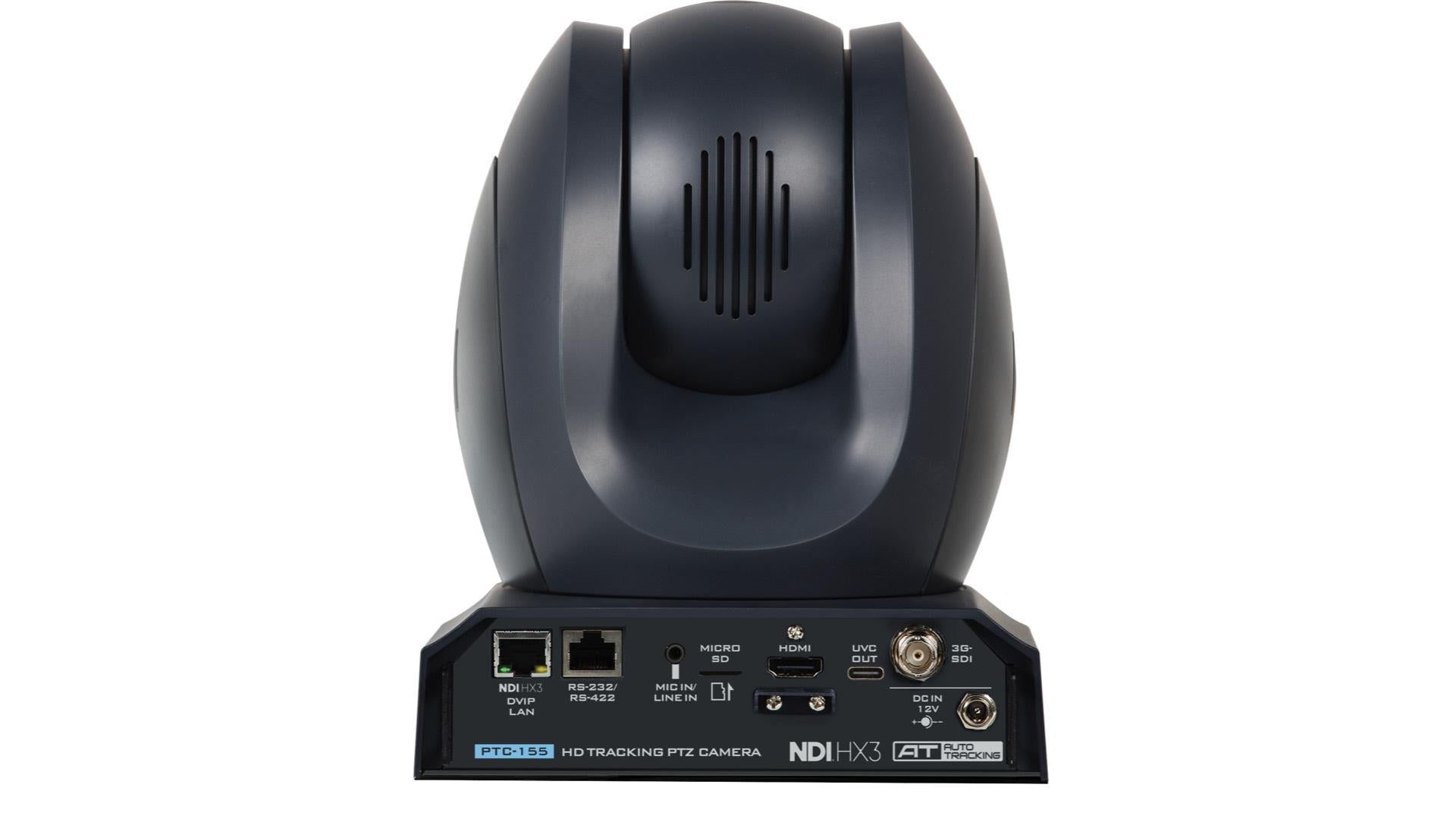

Video Output
HDMI 1.3 x1
3G-SDI x1
UVC output x1
10/100M RJ45 (PoE) x1
Audio Input
3.5mm x1 (line in/mic in)
Tally LED
Yes
Lens Filter
----
Control Protocol
Pelco-D, Pelco-P,
VISCA, VISCA over IP,
NDI, DVIP, ONVIF
Remote Control Interface
IR
Web UI
RS-422/RS-232 (RJ-45)
DVIP
NDI
Video Compression Format
H.264/H.265/MJPEG
Audio Compression Format
AAC, G711
Audio Bitrate
96Kbps, 128Kbps
HD IP Interface
----
Streaming Protocols
RTSP, RTMP(S), ONVIF, Multicast, SRT, NDI|Hx3
First Stream Supported Resolution
1920x1080
1280x720
1024x576
960x540
640x480
640x360
Second Stream Supported Resolution
720x480
640x360
640x480
320x240
Video Bitrate
32Kbps ~ 20Mbps (First Stream)
32Kbps ~ 5Mbps (Second Stream)
Video Bitrate Mode
VBR, CBR
Encoding Frame rate
50Hz: 1-50fps
60Hz: 1-60fps
POE
IEEE 802.3at
F/W Update
Via Web UI
IR Control
Yes
Camera Control Unit
RMC-2P
RMC-180 series/
RMC-300 series/
PTZ View Assist APP
Tripod Mount
1/4-20 UNC
Optional Accessories
WM-1/ WM-10/ WM-11
Color
Dark Blue/White
Dimension (LxWxH)
173 (W) x 219 (H) x 189.08 (D)
Weight
2.7 kg
Operating Temp. Range
0~40 °C
Power
DC 12V 19W
1 x PTC-155 product
1 x IR remote controller
1 x Ceiling mount bracket-A
1 x Ceiling mount bracket -B
6 x Ceiling mount bracket screw M3*4mm
1 x DC 12V Power Adaptor
1 x Safety cable
