Blackmagic Videohub Mini 8x4 12G

High‑density 12G‑SDI routing in a compact format, combining clean switching, reference locking and emergency patching for professional broadcast and live production environments.

1-3 werkdagen
  • €925,00 (excl. btw)
    €1.119,25 incl. btw
  • €832,50
  • - 0%
This compact router is designed for professional SDI systems that require more inputs and outputs while preserving valuable rack space. Built in a two‑thirds rack width chassis, it enables simultaneous routing of SD, HD and Ultra HD signals with zero latency. All connections are based on 12G‑SDI technology, allowing the unit to support every common SDI format up to 2160p60 and making it suitable for both current and future workflows.
Eight rear‑panel 12G‑SDI inputs provide ample connectivity for cameras, playback devices and auxiliary sources. Each input features automatic multi‑rate detection, enabling SD‑SDI, HD‑SDI, 6G‑SDI and 12G‑SDI signals to coexist on the same device. Four dedicated 12G‑SDI outputs deliver stable, high‑quality signals to downstream equipment, with full SDI reclocking applied on all outputs to maintain signal integrity across longer cable runs and complex installations.
Clean switching is achieved through integrated input re‑synchronisation on all eight inputs. In addition, reference connections for tri‑sync or black burst allow clean switch outputs to be locked to house sync, ensuring frame‑accurate switching in studio and broadcast environments. Clean switching is selected per output rather than per input, allowing the same source to be routed as a clean feed to one destination while remaining a direct feed to another.

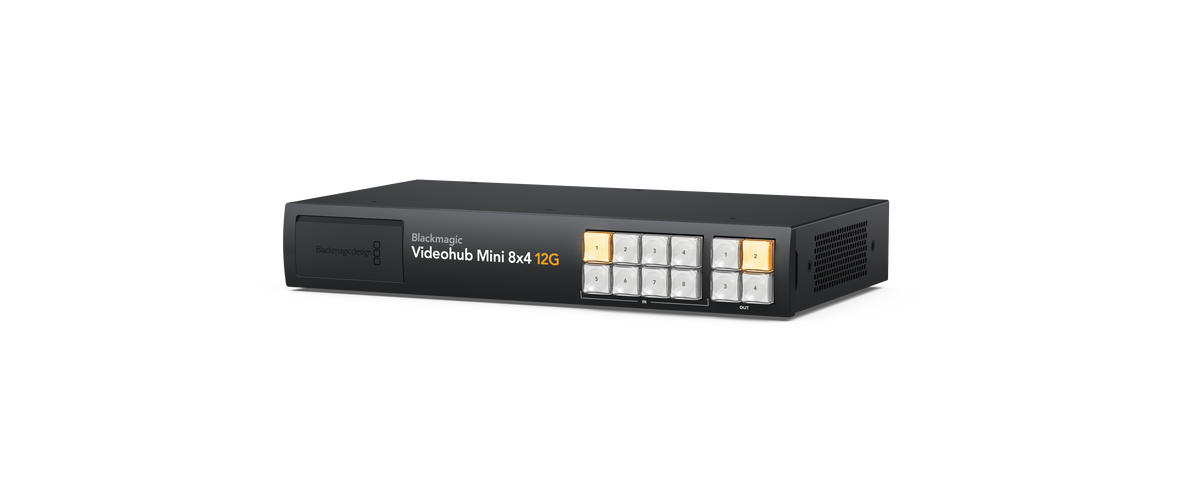

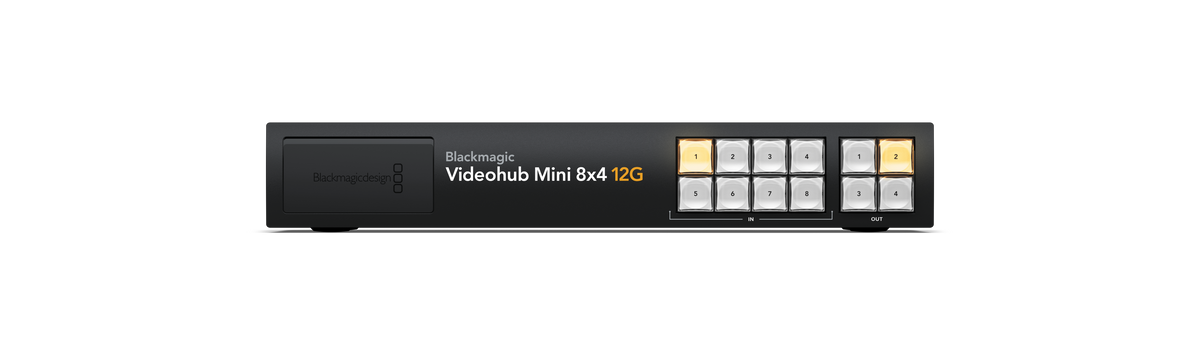

The front panel is optimised for fast, confident operation. Dedicated routing buttons enable cut‑bus style switching without external control panels. A front‑panel 12G‑SDI input provides an emergency patch point for temporary or unexpected equipment, automatically overriding one rear input. A mirrored 12G‑SDI output is also available on the front, alongside a USB‑C webcam output that allows professional SDI video to be connected directly to computers for streaming, conferencing or capture.
Ethernet connectivity enables full remote control using the Videohub software control panel for macOS and Windows, as well as compatibility with hardware control surfaces. USB‑C is used for firmware updates and configuration. With its balance of size, routing capacity and clean switching capabilities, this model is ideally suited for OB vans, flypacks and compact studios that demand flexibility without compromise.

Connections

SDI Video Inputs

8

Front panel input overrides rear input 8

SDI Video Outputs

4

Front panel output mirrors rear output 4

SDI Rates

270Mb, 1.5G, 3G, 6G, 12G.

Video Input Re-Sync

On all 8 inputs for clean switch.

SDI Reclocking

On all SDI outputs.

Reference Inputs

Tri-Sync or Black Burst.

Reference Outputs

Reference terminating loop output.

Webcam Output

USB‑C

Ethernet

Supports 10/100/1000 BASE‑T.

Computer Interface

1 x USB Type‑C 3.1 Gen 1 for webcam out, software updates and Videohub Setup Utility connection.

Blackmagic Videohub Mini 8x4 12G

Standards

SD Video Standards

525i59.94 NTSC, 625i50 PAL

HD Video Standards

720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30

2K Video Standards

2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60

4K Video Standards

4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10, ITU‑R BT.656 and ITU‑R BT.601

SDI Audio Sampling

Television standard sample rate of 48kHz and 24‑bit.

SDI Video Sampling

YUV 4:2:2 and RGB 4:4:4

SDI Color Precision

10, 12‑bit RGB 4:4:4 in all HD and 2K modes, Ultra HD modes up to 2160p30 and 4K modes up to 4Kp30 DCI. 10-bit YUV 4:2:2 in all modes.

SDI Color Space

REC 601, REC 709, REC 2020

SDI Auto Switching

Automatically selects between 270Mb SD‑SDI, 1.5G HD‑SDI, 3G level A and level B HD-SDI, 6G HD‑SDI and 12G‑SDI on each input so that each input can be running a different television standard.

SDI Metadata Support

Video payload identification ancillary data as per SMPTE 352M.

Control

Built in Control Panel

12 x buttons

External Control Panel

Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Blackmagic Smart Control Pro and Blackmagic Master Control Pro hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol.

Control Panel Connection

Ethernet

Software

Software Control

Router control included free for Windows™ and Mac™.

Internal Software Upgrade

Via included updater application.

Operating Systems

Mac icon

Mac 14.0 Sonoma,
Mac 15.0 Sequoia or later.

Windows Icon

Windows 10, 64-bit.
Windows 11.

Power Requirements

Power Supply

1 x Internal 100 - 240V AC 50/60Hz.

IEC power cable required. 1 x 12V DC input with reverse polarity protection.

Power Usage

23W max.

Physical Specifications

Blackmagic Videohub Mini 8x4 12G

Environmental Specifications

Operating Temperature

0° to 40° C (32° to 104° F)

Storage Temperature

-20° to 60° C (-4° to 140° F)

Relative Humidity

0% to 90% non-condensing

What's Included

Blackmagic Videohub Mini 8x4 12G

Welcome wallet with QR code for software download

Warranty

1 Year Limited Manufacturer’s Warranty.
