Blackmagic Videohub 80x80 12G

A massive 12G-SDI routing core with zero latency, redundant power and a full HD monitoring display, engineered for large scale broadcast facilities and mission critical live production.

1-3 werkdagen
  • €8.050,50 (excl. btw)
    €9.741,11 incl. btw
  • €8.945,00
  • - 0%

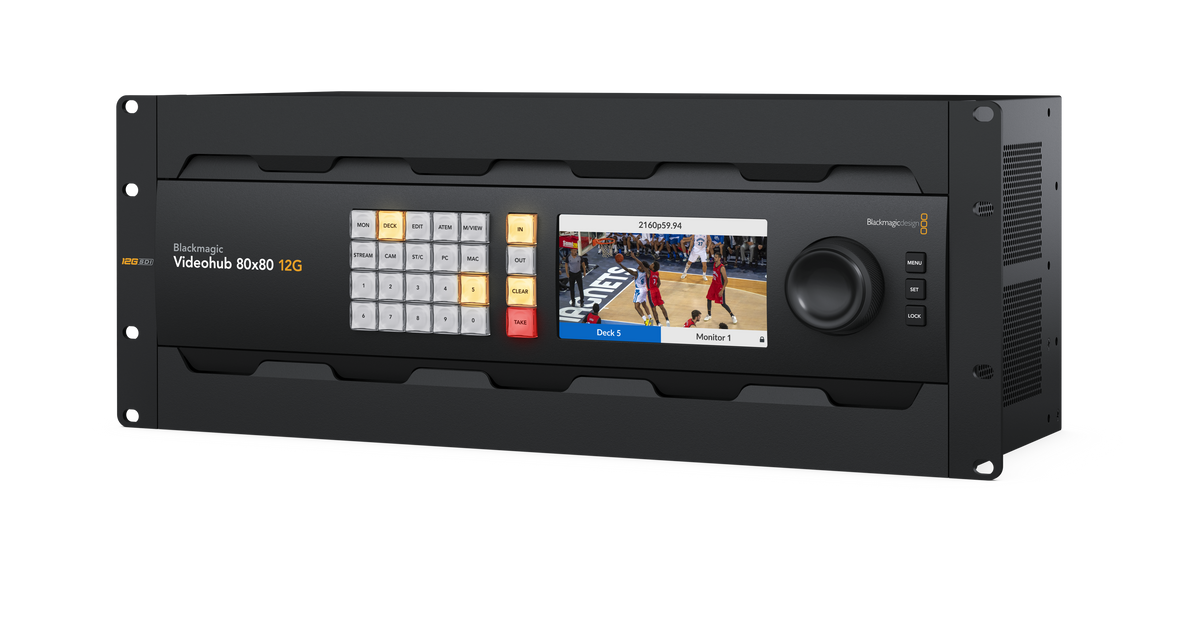

This high capacity video router is designed for large broadcast infrastructures, central machine rooms and live production environments where reliability, flexibility and signal integrity are essential. Housed in a robust four rack unit chassis, it enables simultaneous routing of SD, HD and Ultra HD signals without any latency, ensuring flawless performance even in the most demanding workflows. By supporting all SDI standards up to 2160p60, it provides long term format security for modern and future proof installations.

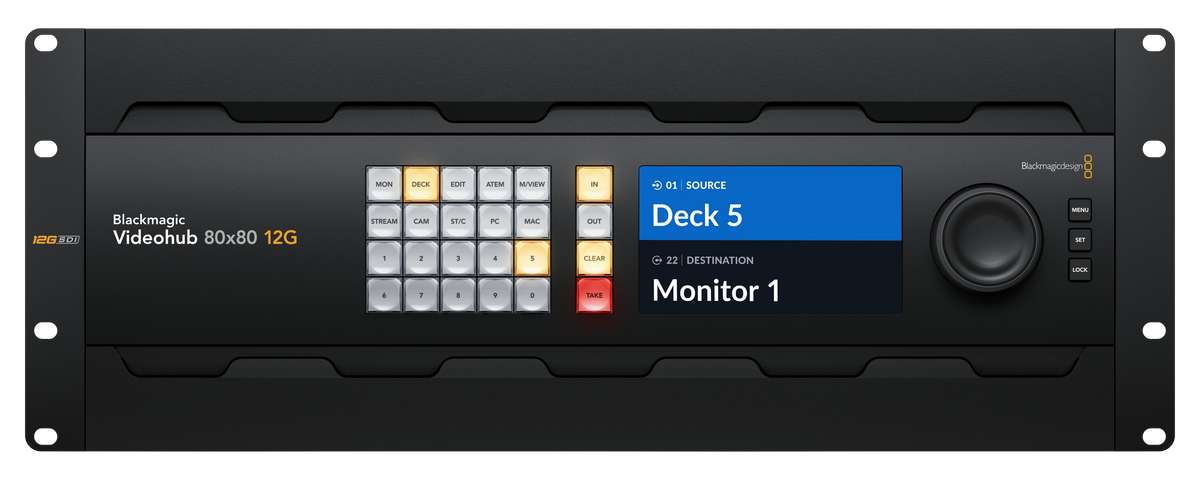

The front panel is built for confident, fast paced operation. A large full HD LCD display allows operators to view live video sources before routing, while clearly presenting routing labels and detected video standards. This visual feedback is invaluable in complex systems with many connected sources and destinations. Direct entry buttons combined with a large precision spin knob featuring an electronic clutch allow accurate routing decisions to be made quickly and safely.
Eighty 12G-SDI inputs and eighty 12G-SDI outputs provide extensive connectivity, making this unit ideal as the central routing hub of a facility. Each input automatically detects its SDI standard independently, allowing different formats and frame rates to coexist seamlessly. LEDs on every input BNC give instant visual confirmation of signal presence, simplifying troubleshooting and system verification. Full SDI reclocking on all outputs ensures clean, stable signals across long cable runs, maintaining broadcast quality throughout the distribution chain.
Designed for continuous operation, the chassis incorporates redundant power supplies to maximise uptime and operational security. Reference connectivity supports both tri sync and black burst, with a loop through reference output for easy integration into synchronised environments. External control is provided via Ethernet, supporting software control panels for macOS and Windows as well as dedicated hardware panels. A USB-C connection is included for configuration and software updates, while crosspoint settings are preserved and instantly restored after power interruptions.
With its combination of exceptional routing density, intuitive local control and enterprise level reliability, this solution is perfectly suited for national broadcasters, large studios, OB vans and complex live event systems that demand uncompromising performance at scale.


Connections

SDI Video Inputs

80

Please click here for a summary of compatible media.

SDI Video Outputs

80

SDI Rates

DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G.

Video Input Re-Sync

None

SDI Reclocking

On all SDI outputs.

Reference Inputs

Tri-Sync or Black Burst.

Reference Outputs

Reference terminating loop output.

Ethernet

Supports 10/100/1000 BASE‑T.

Computer Interface

USB-C

Blackmagic Videohub 80x80 12G

Standards

SD Video Standards

525i59.94 NTSC, 625i50 PAL

HD Video Standards

720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30

2K Video Standards

2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60

4K Video Standards

4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B
SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10, ITU‑R BT.656 and ITU‑R BT.601

SDI Audio Sampling

Television standard sample rate of 48kHz and 24-bit.

SDI Video Sampling

YUV 4:2:2 and RGB 4:4:4

SDI Color Precision

10, 12‑bit RGB 4:4:4 in all HD and 2K modes, Ultra HD modes up to 2160p30 and 4K modes up to 4Kp30 DCI. 10-bit YUV 4:2:2 in all modes.

SDI Color Space

REC 601, REC 709, REC 2020

SDI Auto Switching

Automatically selects between 270Mb SD‑SDI, 1.5G HD‑SDI, 3G level A and level B HD‑SDI, 6G HD‑SDI, 12G‑SDI on each input so that each input can be running a different television standard.

SDI Metadata Support

Video payload identification ancillary data as per SMPTE 352M.

Control

Built in Control Panel

24 buttons for local control of Videohub with 3 buttons and search dial for menu control. 5 inch color display.

External Control Panel

Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Videohub Smart Control Pro and Videohub Master Control Pro hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol.

Control Panel Connection

Ethernet

Software

Software Control

Router control included free for Windows™ and Mac™.

Internal Software Upgrade

Via included updater application.

Operating Systems

Mac icon

Mac 13.0 Ventura,
Mac 14.0 Sonoma or later.

Windows Icon

Windows 10, 64-bit.
Windows 11.

Display

Displays

Built in 5 inch LCD for video and menu settings.

Power Requirements

Power Supply

2 x Internal 100 - 240V AC 50/60Hz.
IEC power cables required.

Power Fail Protection

Crosspoint connections preserved and restored instantly at power on.

Power Usage

92 W max.

Physical Installation

4 rack units height.

Physical Specifications

Blackmagic Videohub 80x80 12G

Environmental Specifications

Operating Temperature

0° to 40° C (32° to 104° F)

Storage Temperature

-20° to 60° C (-4° to 140° F)

Relative Humidity

0% to 90% non-condensing

What's Included

Blackmagic Videohub 80x80 12G

Welcome wallet with QR code for software download

Warranty

3 Year Limited Manufacturer’s Warranty.
