Blackmagic Studio Converter

Full studio camera control, video, talkback and power over a single Ethernet cable, delivering a cost‑effective SMPTE‑style workflow without fiber.

1-3 werkdagen

€742,50 (excl. btw)
€898,43 incl. btw
€825,00
- 0%

Aantal

Designed to simplify complex studio cabling, this compact control‑room interface enables a full SMPTE‑style workflow over standard copper Ethernet. By using high‑speed 10 Gb/s Ethernet, it allows video, return feed, timecode, reference sync, talkback and camera control to travel through a single Cat 6A cable instead of traditional fiber. This dramatically reduces infrastructure cost while maintaining the reliability and functionality expected in professional broadcast environments.

The unit is intended for use at the studio end of a live production chain and works seamlessly with compatible studio cameras. All essential connections are broken out locally, making it easy to integrate cameras into an SDI‑based control room. A built‑in power supply delivers power to the camera over the same Ethernet connection using PoE, eliminating the need for separate power cables at the camera position and keeping installations clean and efficient.

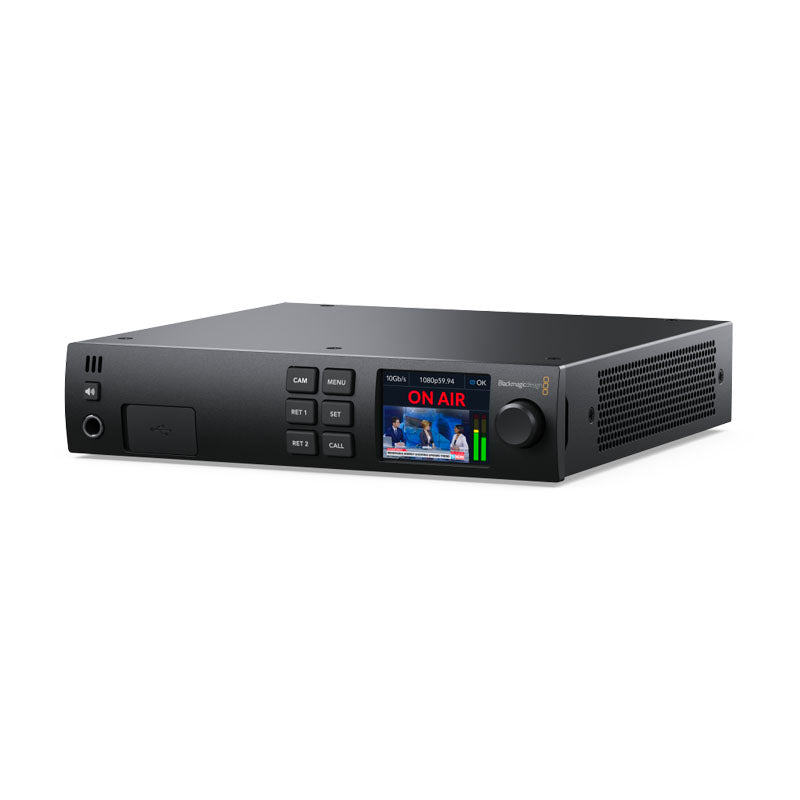

A colour LCD display and integrated front‑panel controls provide clear system status and fast access to configuration settings. Engineers can monitor signals, manage talkback channels and adjust parameters directly on the device without external software. The built‑in speaker and headphone output make it easy to monitor intercom audio locally, which is especially useful during setup or troubleshooting.

Audio handling is comprehensive and designed for professional workflows. Embedded SDI audio supports multiple intercom channels, separating production and engineering communications for clear coordination during live broadcasts. Additional analog and digital audio connections allow flexible integration with existing intercom systems. Reference and timecode inputs and outputs ensure accurate synchronisation across multi‑camera productions, supporting both Tri‑Sync and Black Burst standards.

Support for HD and Ultra HD formats up to 2160p60 ensures the system remains suitable for modern and future productions. With 10‑bit 4:2:2 video processing and full compliance with current SMPTE standards, image quality and signal integrity are preserved throughout the workflow. This makes the device an ideal solution for studios, houses of worship, event venues and broadcasters seeking a robust yet cost‑effective alternative to traditional fiber‑based camera systems.

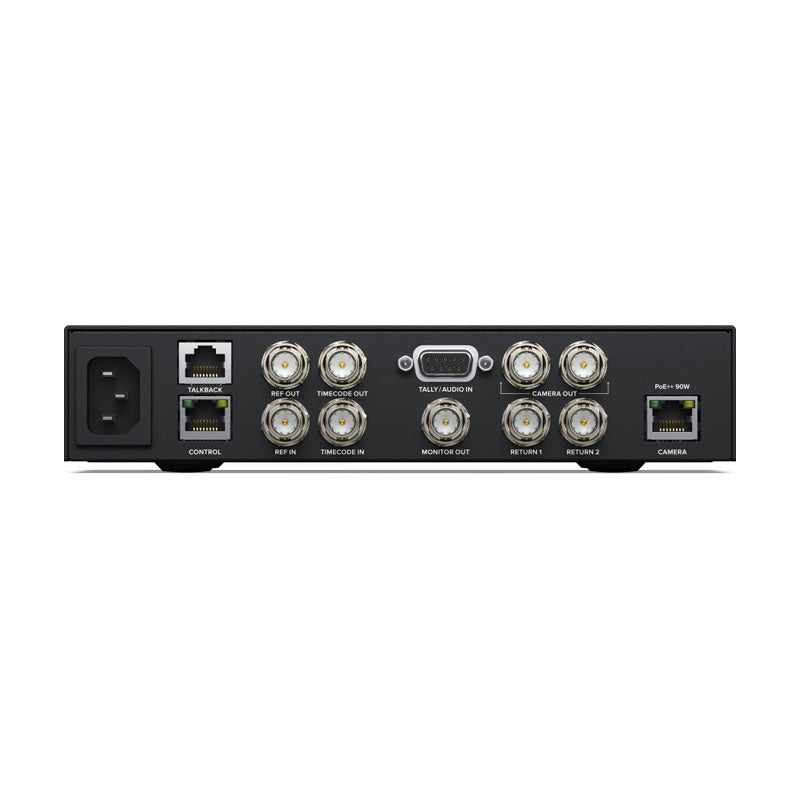

Connections

SDI Video Inputs

SDI Video Outputs

SDI Monitor Outputs

SDI Rates

1.5G, 3G, 6G, 12G.

Built in Speaker

Mono

Analog Audio Inputs

2 channel analog Program audio in supported via 9‑pin connector.

Analog Audio Outputs

1 x 6.35 mm headphone jack.

SDI Audio Input

Return 1 with 2 channels of Program audio embedded in 1.5G/3G/6G/12G-SDI.

4 talkback channels on 13, 14, 15 and 16.

Return 2 with 2 channels of audio embedded in 1.5G/3G/6G/12G-SDI.

SDI Audio Output

2 channels of Program audio embedded in 1.5G/3G/6G/12G-SDI.

4 talkback channels on 13, 14, 15 and 16.

Timecode Connections

1 x BNC In, 1 x BNC Out.

Reference Connections

1 x BNC In, 1 x BNC Out.

Tri-Sync or Black Burst.

Talkback Audio

SDI channels 13 and 14 for Engineering talkback.

SDI channels 15 and 16 for Production talkback.

RJ-45 Talkback connector for analog external talkback systems.

Screen

2.2 inch LCD

Ethernet

1 x 10Gb/s PoE RJ‑45 Camera connector for SMPTE Fibre style workflow over Cat 6A network cable.

1 x 1Gb/s for external control and software updates.

Computer Interface

1 x USB-C.

Standards

HD Video Standards

1080p23.98, 1080p24, 1080p25, 1080p29.97,
1080p30, 1080p50, 1080p59.94, 1080p60,
1080i50, 1080i59.94, 1080i60

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97,
2160p30, 2160p50, 2160p59.94, 2160p60

SDI Compliance

SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10.

Audio Sampling

Television standard sample rate of 48kHz and 24‑bit.

Video Sampling

4:2:2

Color Precision

10-bit

Color Space

REC 709, REC 2020.

Multiple Rate Support

SDI switches between HD, 3G-SDI, 6G-SDI and 12G-SDI.

Control

Built in Control Panel

7 buttons with spin knob control and 2.2 inch color display for device control and menu settings.

External Control

RJ-45 1Gb/s Ethernet.

Software

Software Included

Camera Utility for firmware update.

Operating Systems

Mac 13.0 Ventura,
Mac 14.0 Sonoma or later.

Windows 10 and 11.

Power Requirements

Power Supply

100 - 240V AC input.

Power Supply

1 x Internal 100 - 240V AC 50/60Hz.

Power Usage

40 W max plus camera power usage.

Optional Accessories

Blackmagic Universal Rack Shelf

Blackmagic Studio Camera 6K Pro

Blackmagic Studio Camera 4K Pro G2

Blackmagic Studio Camera 4K Pro

Physical Specifications

Environmental Specifications

Operating Temperature

0° to 40° C (32° to 104° F)

Storage Temperature

-20° to 45° C (-4° to 113° F)

Relative Humidity

0% to 90% non-condensing

What's Included

Blackmagic Studio Converter

Warranty

1 Year Limited Manufacturer’s Warranty.
