A powerful standalone H.264 streaming encoder with 12G‑SDI input, built‑in downconversion, USB‑C webcam output, and Ethernet or mobile data support, delivering professional HD streaming to major online platforms with unmatched simplicity and reliability.
The Blackmagic Streaming Encoder HD is a self‑contained professional hardware encoder designed to deliver high‑quality H.264 live streaming with exceptional reliability and broadcast‑grade performance. Engineered for simplicity and portability, its compact one‑third‑rack form factor houses a powerful streaming engine capable of sending pristine HD video directly to leading platforms such as YouTube, Facebook, X, and many others via RTMP and SRT protocols. Equipped with a 12G‑SDI input, it accepts professional cameras and switchers while incorporating a built‑in Ultra HD to HD downconverter, ensuring instant compatibility and optimized bandwidth for efficient streaming.
A USB‑C webcam output allows the encoder to function like a standard webcam for seamless integration with computers and conferencing platforms, while HDMI monitoring provides clear status feedback and visual confidence during live transmission. Its robust connectivity options include Ethernet for hard‑wired reliability and support for 4G or 5G mobile broadband through a connected smartphone, enabling portable and redundant streaming workflows. With setup streamlined through Blackmagic Streaming Utility software, users can configure platforms, enter stream keys, or customize XML‑based presets for advanced parameter control. Designed to eliminate the complexities of computer‑based streaming systems, it offers a purpose‑built, stable, and broadcast‑ready solution ideal for production environments ranging from live events and corporate presentations to mobile streaming and field broadcasts.
1
1
1
1.5G, 3G, 6G, 12G
1
16 channels embedded audio.
16 channels embedded audio on Loop Out.
2 channels embedded audio on Monitor Out.
1 x USB-C up to 1080p60
Ethernet supports 10/100/1000 BASE-T for live streaming, configuration and software updates.
720p50, 720p59.94, 720p60,
1080i50, 1080i59.94, 1080i60,
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60,
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE 2084 and SMPTE 2108‑1.
Rec. 709, Rec. 2020
Auto detects SMPTE level A or B on SDI input.
1080p50, 1080p59.94, 1080p60
720p25, 720p30, 720p50, 720p60,
1080i50, 1080i59.94, 1080i60,
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.
Blackmagic Streaming Encoder HD supports direct live streaming over ethernet using Real Time Messaging Protocol (RTMP) in H.264, and Secure Reliable Transport (SRT) in H.264 and H.265.
Blackmagic Streaming Encoder HD supports embedding CEA‑608 and CEA‑708 closed captions in your live RTMP stream.
Support source timecode over RTMP and SRT streams.

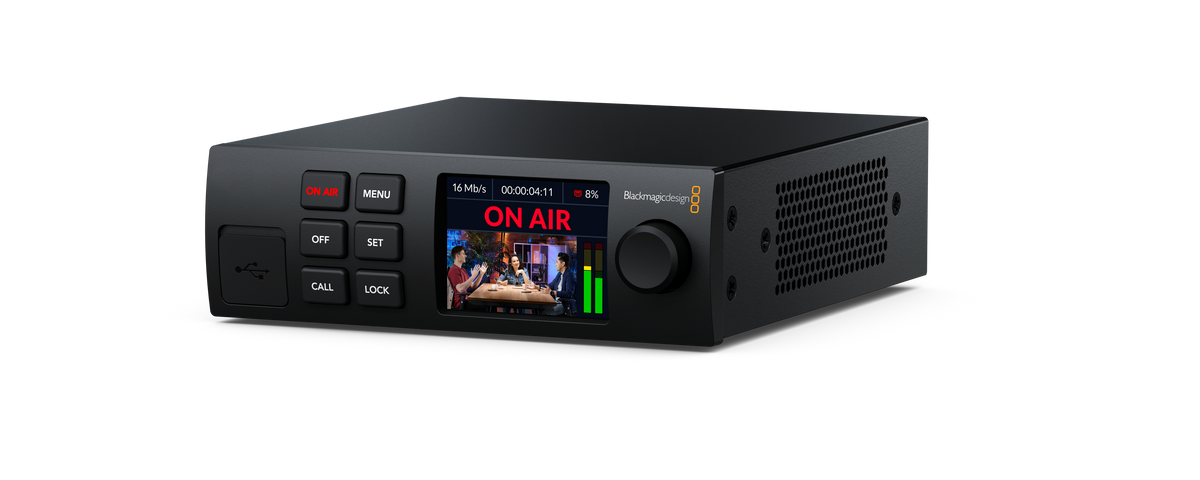

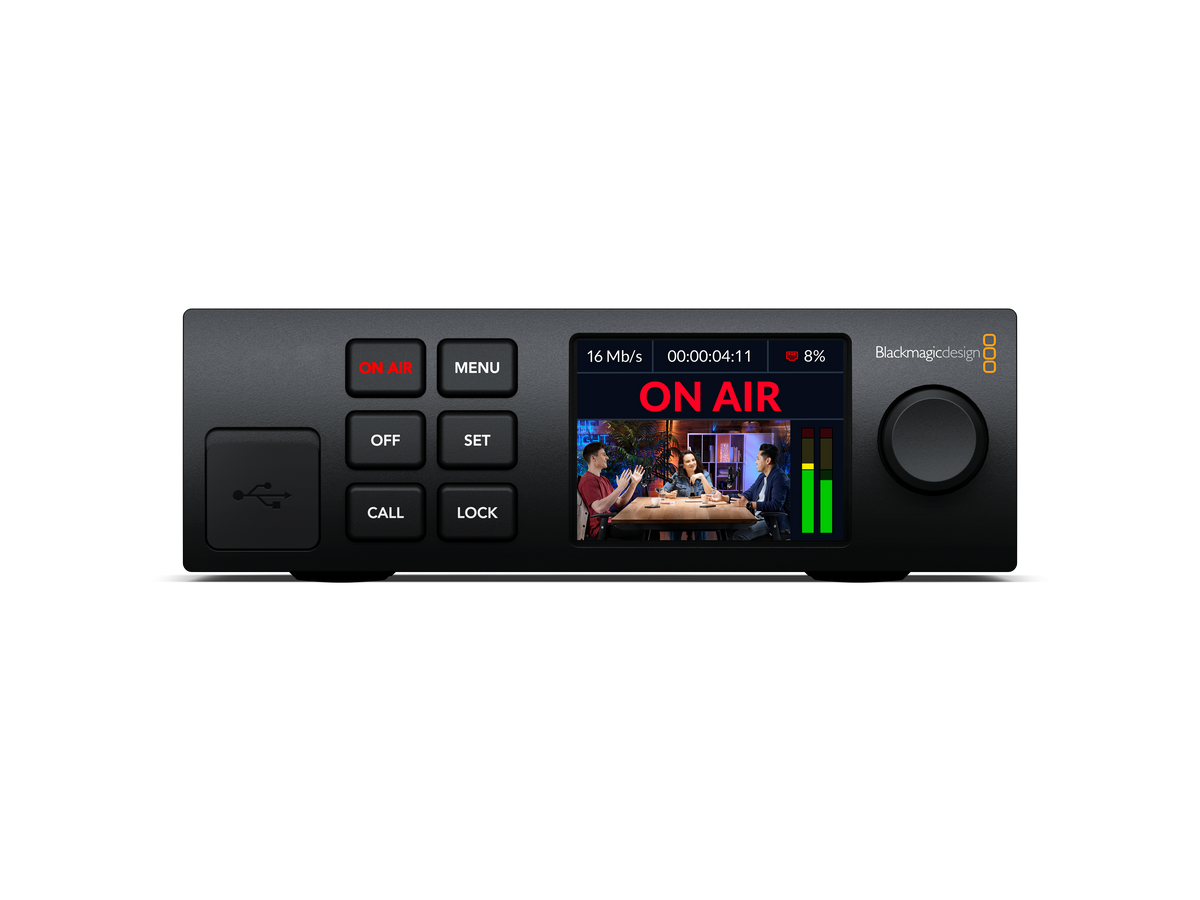

Built in control panel including 6 buttons, spin knob control and 2.2 inch color display.
Front panel, USB‑C or Ethernet.
Supports remote camera control, color corrector, tally and talkback.
REST API over Ethernet for external control via HTTP when used with REST client applications.
Built in 2.2 inch LCD for monitoring video, audio and status plus menu settings.
Facebook, Twitch, YouTube, Twitter, Restream.IO, Vimeo, BoxCast, Castr, AfreecaTV, Bilibili, DouYu, Weibo, Zoom, Skype, Microsoft Teams, QuickTime Player, FaceTime, OBS Studio, Open Broadcaster, VLC, Wirecast Play, Wowza Streaming Engine.
Mac 14.0 Sonoma,
Mac 26.0 Tahoe or later.
Windows 10, 64-bit.
Windows 11.
Linux
Chrome OS
1 x Internal 100 - 240V AC.
1 x 4-pin XLR for +12V DC input for external power supply or battery use.
21 W
One third rack unit width, 1 rack unit height.
0° C to 40° C (32° - 104°F)
-20° to 45° C (-4° to 113° F)
0% to 90% non-condensing
Blackmagic Streaming Encoder HD
Welcome wallet with QR code for software download
3 Year Limited Manufacturer’s Warranty.
Blackmagic Streaming Encoder HD
Welcome wallet with QR code for software download
