Blackmagic Hyperdeck Extreme 8K HDR
Blackmagic Hyperdeck Extreme 8K HDR
Blackmagic Hyperdeck Extreme 8K HDR
Blackmagic Hyperdeck Extreme 8K HDR
Blackmagic Hyperdeck Extreme 8K HDR
Blackmagic Hyperdeck Extreme 8K HDR
BlackMagic Design
HYPERD/RSTEX8KHDR

Blackmagic Hyperdeck Extreme 8K HDR

A next‑generation 8K broadcast recorder combining native HDR monitoring, space‑efficient H.265 recording and full Quad Link 12G‑SDI connectivity for the most demanding live and post‑production environments.

1-3 werkdagen
  • €3.959,10 (excl. btw)
    €4.790,51 incl. btw
  • €4.399,00
  • - 0%
This advanced broadcast deck is engineered for facilities and live production teams that require uncompromising performance at the highest resolutions. It builds on the proven reliability of the HyperDeck platform and extends it with native 8K support, HDR workflows and modern codecs that significantly reduce storage requirements without sacrificing image quality. Designed for studio racks or mobile production setups, it fits seamlessly into contemporary broadcast infrastructures.

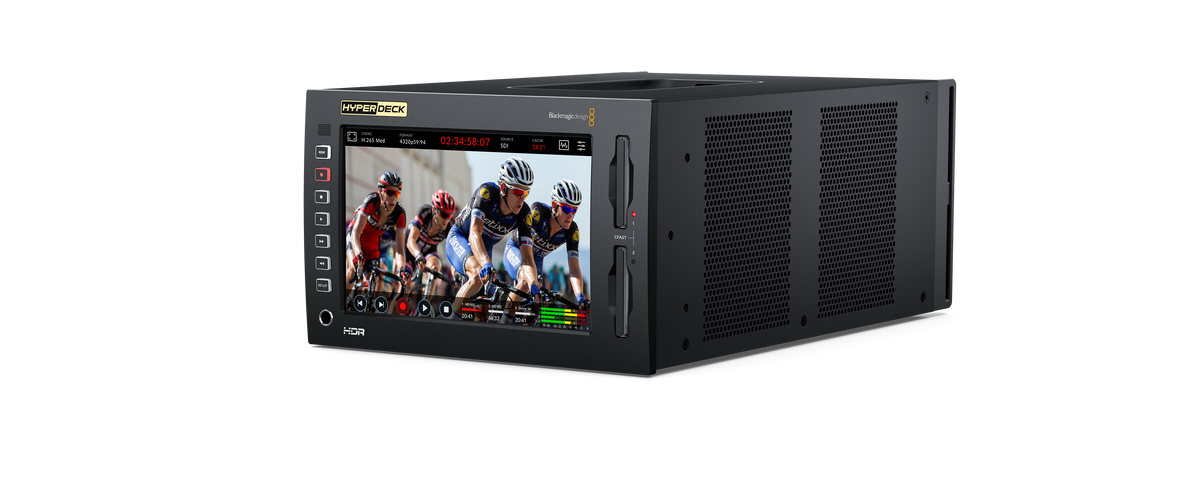

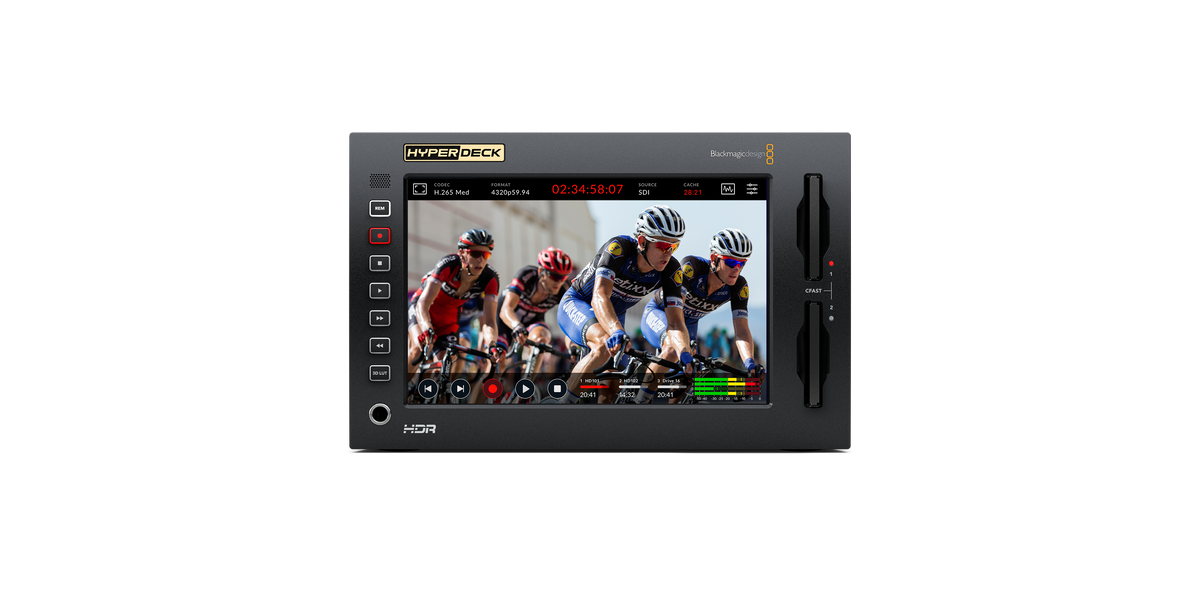

A large seven inch HDR touchscreen dominates the front panel, offering a sharp 1920 by 1200 display with 2000 nit brightness and full DCI‑P3 colour coverage. This integrated screen provides clear monitoring in HDR, along with a rich heads‑up display showing timecode, format, media status and audio meters. Touch gestures allow intuitive scrubbing through clips using a mini timeline, while dedicated transport buttons ensure familiar, reliable operation during critical recordings.
Recording capabilities are designed for modern broadcast efficiency. Native 8K up to 4320p60 can be captured in H.265 or ProRes, enabling high quality masters with dramatically reduced file sizes when using H.265. Support for an optional internal NVMe cache helps eliminate dropped frames if media becomes full or momentarily slows down, making long‑form recording more secure. Media can be recorded to dual CFast 2.0 slots or to fast external storage via USB‑C, offering flexibility for different workflows.
Connectivity is extensive and broadcast ready. Quad Link 12G‑SDI enables full 8K input and output, complemented by HDMI, analog component and composite inputs for archiving legacy sources. Professional audio is supported through balanced XLR inputs, consumer RCA inputs and extensive embedded audio over SDI and HDMI. Timecode, reference input, RS‑422 control and 10G Ethernet ensure smooth integration into existing broadcast control systems and automated environments.
Advanced monitoring tools are built in, including scopes, HDR metadata support and 33‑point 3D LUTs for accurate colour evaluation and quality control. With both AC and DC power connections, front‑panel speaker and headphone output, this recorder is equally at home in fixed installations or on location. It is a future‑proof solution for 8K, HDR and multi‑format broadcast production.

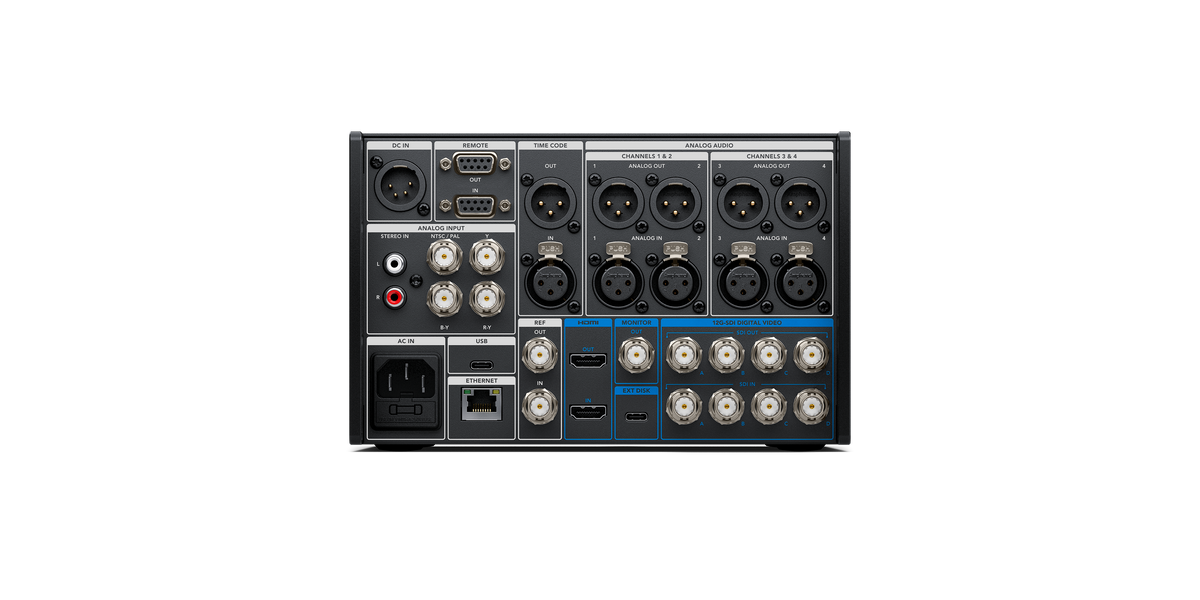

Connections

SDI Video Inputs

4

SDI Video Outputs

5  (12G-SDI A, B, C, D and 3G-SDI Monitor Out)

SDI Rates

270Mb, 1.5G, 3G, 6G, 12G.

HDMI 2.0 Video Inputs

1

HDMI 2.0 Video Outputs

1

Analog Video Inputs

1 x Component YUV on 3 BNCs,
1 x Composite NTSC/PAL on 1 BNC.

Analog Video Outputs

None

Analog Audio Inputs

4 Channels of professional balanced analog audio via XLR connectors and 2 channels of consumer unbalanced via RCA connectors.

Built in Speaker

Mono

Screen

7 inch 1920 x 1200. 2000 nit DCI-P3 100% HDR LCD

Timecode Connections

1 x XLR in and 1 x XLR out.

Reference Input

Tri-Sync or Black Burst.

SDI Audio Inputs

64 channels embedded audio.

SDI Audio Outputs

64 channels embedded audio.

HDMI Audio Inputs

8 channels embedded audio.

HDMI Audio Outputs

8 channels embedded audio.

Remote Control

1 x RS-422 In, 1 x RS-422 Out.

Recorder Configuration

Via user interface or Blackmagic HyperDeck Ethernet Protocol.

Ethernet

10Gb/s

External Recording

1 x USB-C 3.1 Gen 2 (up to 10Gb/s) for external disk recording.

Computer Interface

1 x USB-C for software updates.

HyperDeck Extreme 8K HDR

Standards

SD Video Standards

525i59.94 NTSC, 625i50 PAL

HD Video Standards

720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30

2K DCI Video Standards

1080p23.98 DCI, 1080p24 DCI, 1080p25 DCI
1080PsF23.98 DCI, 1080PsF24 DCI, 1080PsF25 DCI

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

4K DCI Video Standards

2160p23.98 DCI, 2160p24 DCI, 2160p25 DCI

8K Video Standards

4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p50, 4320p59.94, 4320p60

8K DCI Video Standards

4320p23.98 DCI, 4320p24 DCI, 4320p25 DCI

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10 and SMPTE 2084.

SDI Metadata Support

HD RP188 and closed captioning CEA-708. HDR Metadata supported on SDI.

Audio Sampling

Television standard 24-bit, 48 kHz sample rate.

Video Sampling

4:2:2 YUV

Color Precision

10-bit

Color Space

REC 601, REC 709, REC 2020. 33 point 3D LUTS can be applied via the LUTS menu tab.

Multi Rate Support

Auto detection of SD, HD, 6G‑SDI, 12G-SDI, 2SI Quad Link 12G-SDI.

Copy Protection

HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

Media

Cache or Internal Recording

Slot for optional M.2 PCIe NVMe card for cache recording or internal recording. Slot supports 60mm 80mm and 110mm cards up to 16Gb/s.

Media Type

CFast card and external USB-C flash drives.

Media Format

Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.

Recording

Source

Input options include SDI, 4 x SDI (simultaneously records 4 SDI inputs up to 2160p60 as separate files), HDMI, Component, Composite.

Supported Codecs

Video Codecs

ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for all formats up to 4320p60. Playback only of ProRes 4444 QuickTime up to 2160p60 with auto routing of fill and key over SDI A and B outputs. DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60fps. DNxHR HQX, DNxHR HQX MXF, DNxHR SQ, DNxHR SQ MXF, DNxHR LB, DNxHR LB MXF for 2K DCI and 2160p formats up to 60fps. H.265 Medium 4:2:0 10‑bit, H.265 Low 4:2:0 10‑bit for all 2160p formats up to 60 fps. H.264 SDI 4:2:2 10‑bit, H.264 High 4:2:0 8‑bit, H.264 Medium 4:2:0 8‑bit, H.264 Low 4:2:0 8‑bit for all formats up to 1080p60.

Audio Codecs

AAC 2 Channels.
PCM 2, 4, 8, 16, 32 or 64 Channels.

Scopes

Scopes

Waveform, RGB Parade, Vector and Histogram scopes in broadcast quality 10-bit.

Viewing Modes

Picture in picture, picture overlay with opacity control. Waveform and RGB parade with standard and HDR graticules and Vector with zoom.

Computer Capture

None

Control

Built in Control Panel

Integrated capacitive touchscreen LCD with onscreen controls for settings and navigating menus.

External Control

RS-422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck Ethernet Protocol.

Software

Software Included

Blackmagic OS

Blackmagic HyperDeck Setup

Internal Software Upgrade

Loaded at system start, or via Blackmagic HyperDeck Setup using USB port.

Operating Systems

Mac icon

Mac 15.0 Sequoia,
Mac 26.0 Tahoe or later.

Windows Icon

Windows 11

Displays

Built in LCD for video, audio and timecode monitoring and menu settings.

Power Requirements

Power Supply

1 x Internal 100 - 240V AC.
1 x 4 pin XLR 12V DC IN for external power or battery use.

Power Usage

190W max.

Accessories

Optional Accessories

HyperDeck Extreme Control
HyperDeck Extreme Rack Kit

Physical Installation

3 rack units height, half rack width.

Physical Specifications

HyperDeck Extreme 8K HDR

Environmental Specifications

Operating Temperature

0° to 40° C (32°to 104° F)

Storage Temperature

-20° to 60° C (-4° to 140° F)

Relative Humidity

0% to 90% non-condensing

What's Included

HyperDeck Extreme 8K HDR

Welcome wallet with QR code for software download

Warranty

1 Year Limited Manufacturer’s Warranty.


  • HyperDeck Extreme 8K HDR
  • Welcome wallet with QR code for software download
