Blackmagic Web Presenter HD

Met de Blackmagic Design Web Presenter kunt u nu professionele SDI en HDMI videobronnen gebruiken voor hoge kwaliteit streaming op het internet.

1-3 werkdagen
  • €435,00 (excl. btw)
    €526,35 incl. btw
  • €495,00
  • - 0%

Add live streaming to the internet to your video production setup using the Web Presenter HD from Blackmagic Design. The Web Presenter HD is a compact desktop device that allows you to connect any SDI video input and stream it live onto the Internet using Ethernet or tethering via USB to your smartphone using a 5G or 4G connection. The SDI and HDMI monitor outputs allow you to see a wide range of live status information along with your broadcast.

The USB Type-C port allows you to connect any USB video source such as a webcam or computer, so it's capable of broadcasting video and audio on any webcam-compatible platform and software such as Skype, YouTube Live, Facebook Live, Twitch, Periscope, Teams, and more on Mac, Windows, Linux, and Chrome OS systems. It supports the H.264 codec and streams via RTMP and can stream in resolutions up to 1080p60.

The SDI and HDMI monitor ports provide detailed status information on your feed, so you can monitor whether you are ON AIR as well as input status such as bit depth and stream quality, embedded audio input status, video and audio history, trend graphs, and video and audio meters. You can also see basic status information on the bright LCD screen on the front of the unit. There is also an SDI loop output for monitoring the original feed and sending it to a switcher or router.

The compact form factor allows you to fit it right into your broadcast setup, and it is compatible with the optional Teranex Mini Rack Shelf in case you want to install it in a 1 RU rack. Its dual AC/DC redundant power input is handy in case you lose mains power and you can utilize the 4-pin XLR input for DC power. The Web Presenter HD is also compatible with the Blackmagic ATEM Streaming Bridge to decode the streams back into HDMI or SDI signals for additional routing options.

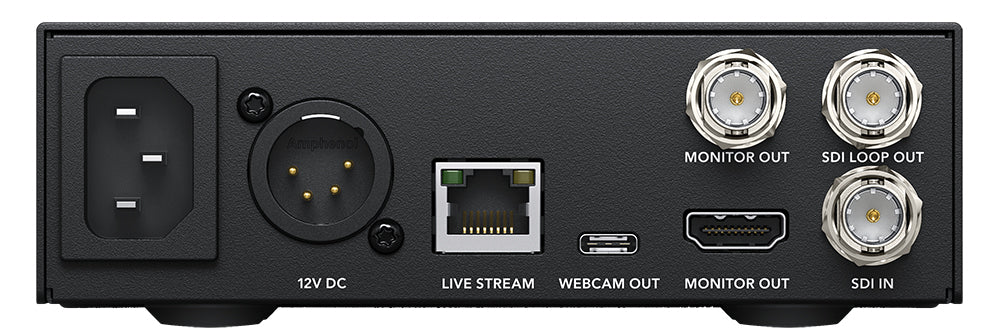

Connections

SDI Video Inputs

1

SDI Video Outputs

1 x loop out, 1 x monitor out.

SDI Rates

1.5G, 3G, 6G, 12G

HDMI Video Outputs

1 x monitor out

Webcam Output

1 x USB-C up to 1080p60

Ethernet

Ethernet supports 10/100/1000 BaseT for live streaming, software control and software updates.

Blackmagic Web Presenter HD

Standards

HD Video Input Standards

720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60

Ultra HD Video Input Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

Video Input Color Space

Rec.601, Rec.709, Rec.2020

3G SDI

Auto detects SMPTE level A or B on SDI input.

SDI and HDMI Monitor Out Video Standards

1080p50, 1080p59.94, 1080p60

Video Streaming Standards

720p25, 720p30, 720p50, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

Streaming

Direct Streaming

Blackmagic Web Presenter HD supports direct live streaming over ethernet using Real Time Messaging Protocol (RTMP).

Closed Captions

Web Presenter HD supports embedding CEA-608 and CEA-708 closed captions in your live RTMP stream.

Control

Control Panel

Built in control panel with 2.2 inch color display for video preview, audio meters and status.

Device Control

Front panel, USB‑C or ethernet.

Software

Compatible Services and Software

YouTube Live, Facebook Live, Twitter, Twitch, Skype, Microsoft Teams, Open Broadcaster and Wowza Streaming Engine.

Operating Systems

Mac icon

Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.

Windows Icon

Windows 10, 64-bit.
Windows 11.

Linux icon

Linux

Chrome Icon

Chrome OS

Power Requirements

Power Supply

1 x Internal 100 - 240V AC.

12V DC Input

1 x +12V DC 4‑pin XLR.

Power Usage

21 W

Physical Specifications

Blackmagic Web Presenter HD

Environmental Specifications

Operating Temperature

0° C to 40° C (32° - 104°F)

Storage Temperature

-20° to 45° C (-4° to 113° F)

Relative Humidity

0% to 90% non-condensing
