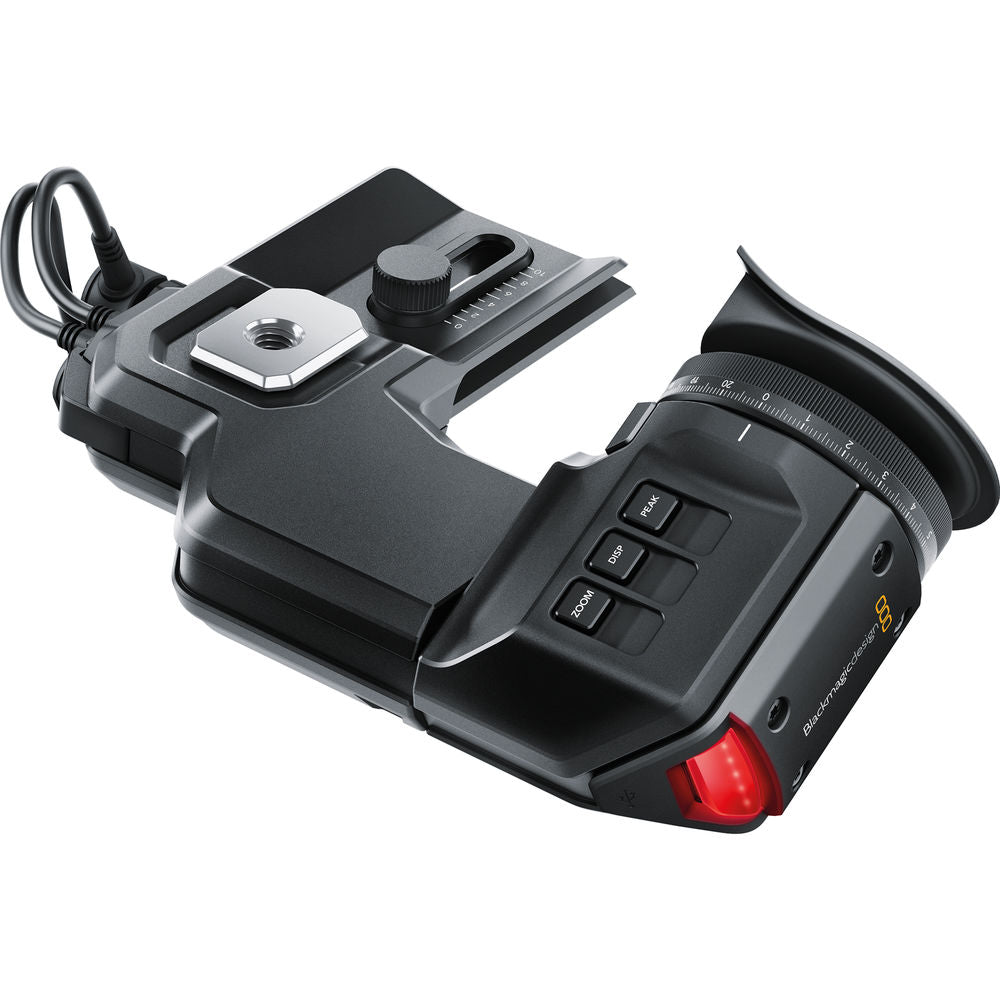

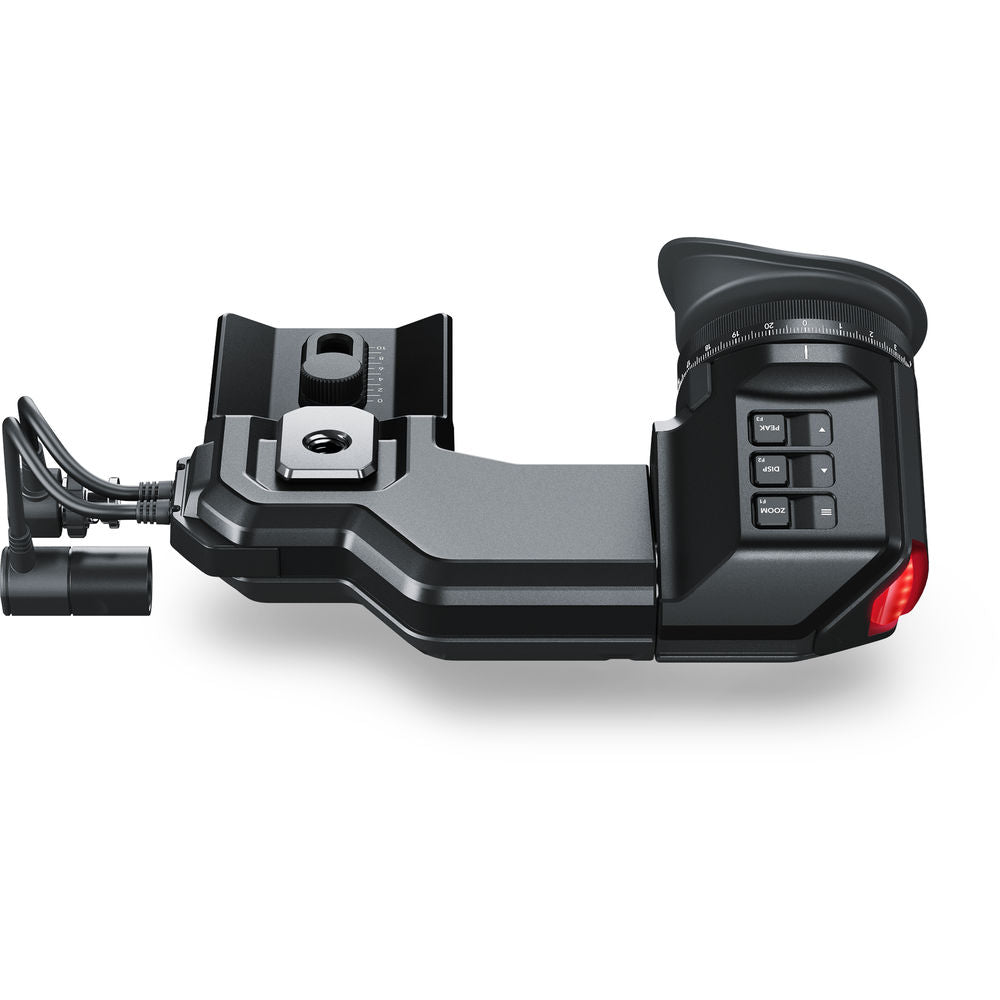

Blackmagic URSA Viewfinder

Deze viewfinder van Blackmagic Design is speciaal ontwikkeld voor de URSA en URSA Mini en bevat een 1920 x 1080 OLED display.

1-3 werkdagen
  • $1,514.00 (excl. btw)
    $1,831.94 incl. btw
  • $1,721.00
  • - 12%

The Blackmagic URSA Viewfinder is the perfect accessory to make outdoors and handheld shooting with your URSA or URSA Mini digital film camera easy. You get an extremely high quality viewfinder with 1080HD resolution display, true precision glass optics, built in tally light and built in menus, overlays and even a digital focus chart!

Connections

SDI Video Inputs

1 x 3G-SDI BNC.

Power Input

1 x 4 pin XLR 12V.

Computer Interface

USB 2.0 Mini-B port for software updates.

Features

Display Resolution

Full 1920 x 1080.

Frame Rates

Up to 60fps

Display Type

OLED

Display Pixels

6.22 Million Pixels

Color Precision

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M 2084.

Focus

4 Element diopter.

Diopter Range

-4 to +3

Controls

Buttons for settings, short cut features and navigating menus.

Overlays

Built in overlay display processor and top mounted buttons.

Eyepiece

Can be tilted vertically and extended for left or right eye use.

Tally

LED tally light.

Mounting Options

Camera mount with adjustment.

Metadata Support

Detects camera information embedded in the SDI signal from URSA, URSA Mini and Blackmagic 3G-SDI Shield for Arduino.

Operating Systems

Mac icon

Mac 10.14 Mojave,
Mac 10.15 Catalina or later.

Windows Icon

Windows 8.1 and 10.

Power Requirements

12V power input via 4 pin XLR connected via 12v power output.

Physical Specifications

Blackmagic URSA Viewfinder

Environmental Specifications

Operating Temperature

0° to 40° C (32° to 104° F)

Storage Temperature

-20° to 60° C (-4° to 140° F)

Relative Humidity

0% to 90% non-condensing


  • Blackmagic URSA Viewfinder
  • 3/8 inch viewfinder mounting thumb screw for URSA
