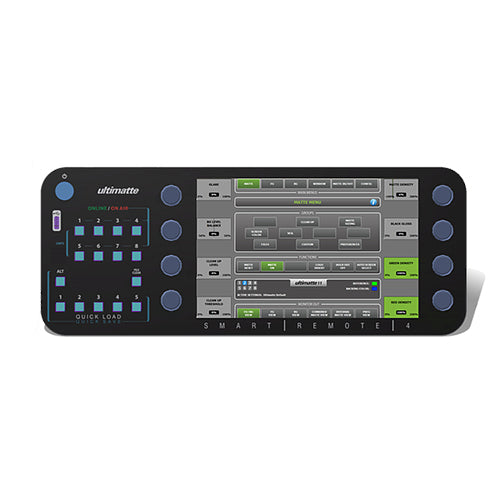

Met de Blackmagic Design Ultimatte Smart Remote 4 kunt u tot wel acht Ultimatte 11 of 12 units beheren.
Now you can control up to 8 different Ultimatte 12 units at the same time via Ethernet. Smart Remote 4 features a 10.1 inch touchscreen for quickly navigating menus and adjusting settings, along with hard buttons with online and on air indicators for quickly switching between units. The file clear button automatically adjusts the most important settings to instantly give you incredible composites!
2 x USB 2.0 and 1 x USB 3.0 for software updates.
SVGA and Display Port outputs allows for graphics to be viewed on an external monitor.
2 x 10/100 Mbps Ethernet ports to connect to LAN networks for controlling Ultimatte 12.
2 x for controlling Ultimatte 11.
8 x rotary knobs for adjusting parameters.
8 x buttons. Illuminated blue for active.
Illuminated green for online and red for on air.
Alt button plus 5 buttons for saving presets.
5 x buttons for loading presets.
1 x button for Auto Key.
Alt button plus file clear button for Auto Key using some user defined presets.
4 x menus for building your own menu with your most used controls.
User adjustable brightness control for LEDs.
User adjustable.
Software updates via USB to load Smart Remote utility.
10.1 inch 1280 x 800 colour display panel. Integrated capacitive touchscreen with onscreen controls for settings and navigating menus.
Windows 10, 64-bit.
100 - 240V AC.
24W
Adjustable desk mounting option.
0° to 35°C (32° to 95°F)
-20° to 60° C (-4° to 140° F)
0% to 90% non-condensing.
