Blackmagic Ultimatte 12 HD Mini

De Ultimatte 12 van Blackmagic Design is meer dan ‘s werelds beste keyer: het is een geavanceerde real time compositing processor voor broadcast graphics. Ultimatte 12 heeft volledig nieuwe algoritmes en color science wat zorgt voor fotorealistische composities.

1-3 werkdagen
  • €418,00 (excl. btw)
    €505,78 incl. btw
  • €475,00
  • - 0%

Ultimatte 12 HD Mini is an advanced real time keyer designed for creating next generation virtual sets and more with consumer cameras. The HDMI connections are perfect for use with Blackmagic Studio Cameras, Pocket Cinema Cameras and ATEM Mini live production switchers. Plus there’s a massive 6 GB frame store for realistic fixed camera virtual sets from pre rendered still frames. Ultimatte 12 HD Mini features broadcast quality algorithms and color science to deliver photorealistic composites.

Add an Ultimatte 12 to Each Camera!

When you’re working live with multiple cameras shooting from different angles, it’s common for the green screens to suffer from variations. Plus the keyers built into live production switchers often have to be shared between cameras, which complicates keying because each camera sees the green screen a little differently.

The new Ultimatte 12 eliminates these problems because you get incredible technology at an affordable price, allowing each camera to have a separate Ultimatte. That means each Ultimatte can be tuned to a specific camera’s view! With a dedicated Ultimatte on each camera, your compositions can go well beyond what's possible with set design, so you can create whole new worlds!

Generate Live VirtualEnvironments for Broadcast!

Whether you’re working in broadcast news, sports, film production, or magazine style entertainment programming, Ultimatte 12 has the quality for incredibly life like composites that place your talent into any scene! Plus the new Ultimatte 12  models include built in frame stores so you don't need live video sources for all inputs.

You can also use Ultimatte 12 to layer computer generated augmented reality foreground objects into a scene, complete with realistic transparency that your talent can walk behind! Ultimatte 12 is also perfect for on set pre visualization in film production because it lets actors and directors watch the scene while they’re shooting.

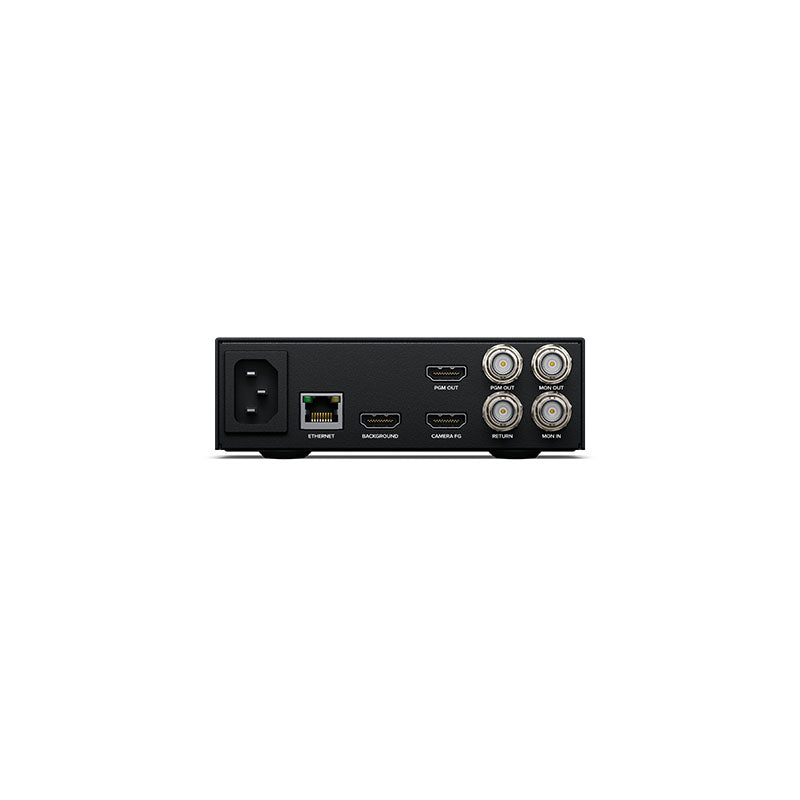

Connections

SDI Video Inputs

2

Monitor In for monitor cascade
plus Return In for camera control.

SDI Video Outputs

2

HDMI Video Inputs

2

HDMI Video Outputs

1

Video Input Re-Sync

On all inputs.

SDI Rates

270Mb, 1.5G, 3G.

Ethernet

Up to 1Gb/s for device control and loading stills into Media Pool.

Computer Interface

1 x USB-C 3.0 for device configuration and software updates.

Ultimatte 12 HD Mini

Standards

SD Video Standards

525i59.94 NTSC, 625i50 PAL

HD Video Standards

720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B.

Video Sampling

4:2:2

Color Precision

10-bit

Color Space

REC 601, REC 709.

Multiple Rate Support

Auto detection of SD and HD.

Composite Sources

Foreground

1 x HDMI In

Background

1 x HDMI In

Still from Media Pool

Background Matte

Internal Window

Still from Media Pool

Garbage Matte

Internal Window

Still from Media Pool

Holdout Matte

Internal Window

Still from Media Pool

Layer

Still from Media Pool

Layer Matte

Internal Window

Still from Media Pool

Composite Outputs

Program

1 x HDMI

1 x 3G-SDI

Monitor

Monitor In

1 x 3G-SDI

for monitor cascade

Monitor Out

1 x 3G-SDI

For monitoring Program, Foreground Input, Background Input, Combined Matte, Internal Matte, Fill Out, Layer Input, Background Matte Input, Garbage Matte Input, Holdout Matte Input, Layer Matte Input, Processed Layer Matte, Processed Holdout Matte, Processed Garbage Matte, Processed Background Matte, Screen Correction.

Media Pool

Background Still Image Formats

TGA, TIFF, BMP, PNG, JPG.

Background with Alpha Still Image Formats

TGA, TIFF, BMP.

Layer Image Still Image Formats

TGA, TIFF, BMP, PNG, JPG.

Layer with Alpha Still Image Formats

TGA, TIFF, BMP.

Garbage Matte Still Image Formats

TIFF, BMP, PNG, JPG.

Holdout Matte Still Image Formats

TIFF, BMP, PNG, JPG.

Media Pool Memory

6GB non-volatile internal storage.

Displays

Built in 2.2 inch color display for device name, video preview, video standard audio meters, status and menus.

Control

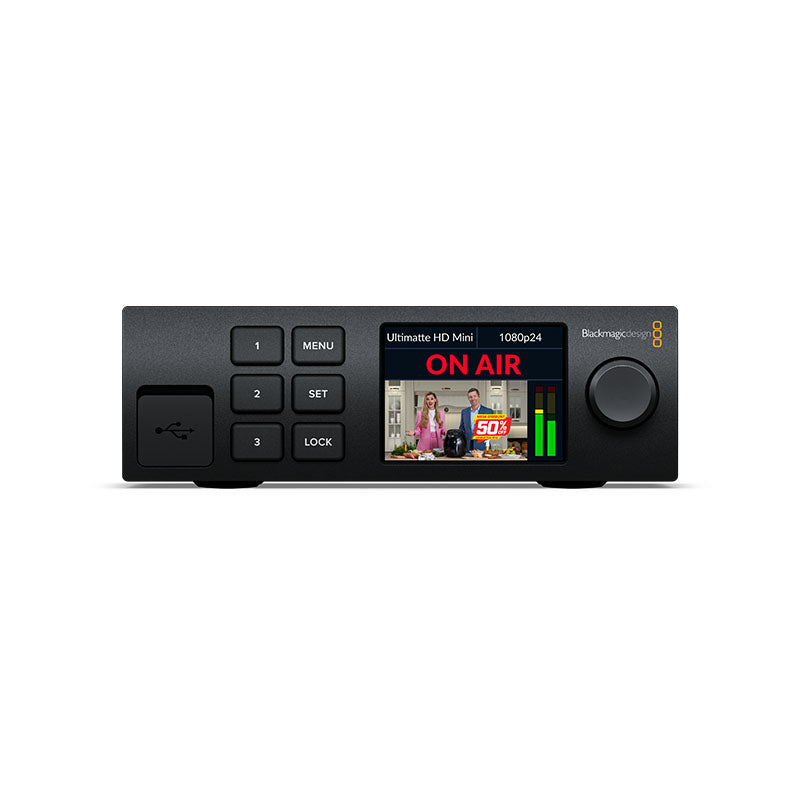

Front Panel

2.2 inch color display, 3 preset buttons, 3 menu buttons and spin knob.

Control Connection

Network or direct Ethernet connection to a computer running Ultimatte Software Control or Ultimatte Smart Remote 4.

Software Control

Ultimatte Software Control

supported on Mac™ or Windows™ computers.

Hardware Control Panel

Ultimatte Smart Remote 4

Camera Control

Blackmagic camera control and tally supported when used with compatible cameras and ATEM switchers.

Software

Software Updates

Using USB‑C or Ethernet connection to Mac™ or Windows™ computers.

Configuration

Ultimatte IP address is set via the front panel or Ultimatte setup utility connected via USB.

Operating Systems

Mac icon

Mac 11.0 Big Sur,
Mac 12.0 Monterey or later.

Windows Icon

Windows 10, 64-bit.
Windows 11.

Power Requirements

Power Supply

1 x Internal 100-240V AC, 50/60Hz

Power Usage

12W

Accessories

Optional Accessories

Ultimatte Smart Remote 4

Physical Installation

One third rack unit width, 1 rack unit height.

Physical Specifications

Ultimatte 12 HD Mini

Environmental Specifications

Operating Temperature

0° to 40°C (32° to 104°F)

Storage Temperature

-20° to 60°C (-4° to 140°F)

Relative Humidity

0% to 90% non-condensing.

  • Ultimatte 12 HD Mini
  • Welcome wallet with QR code for software download
