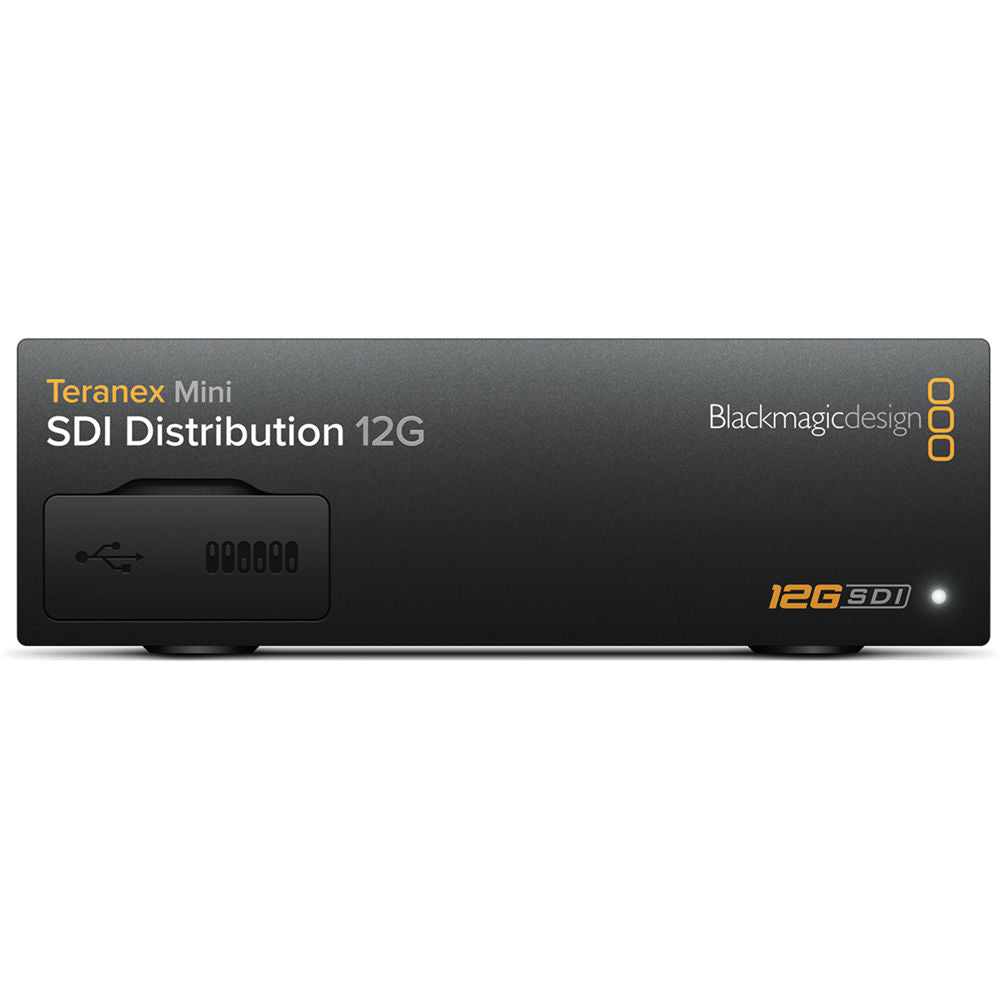

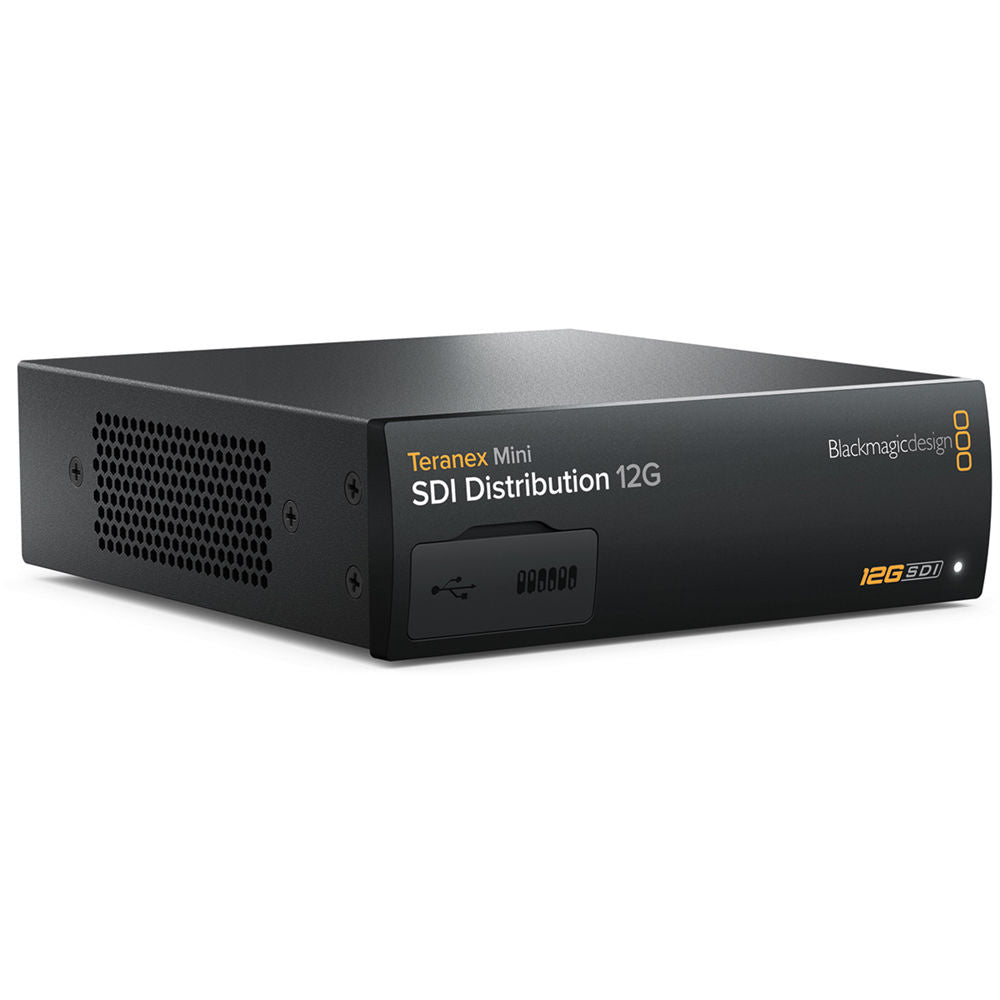

Blackmagic Teranex Mini SDI Distribution 12G

BlackMagic Design

CONVNTRM/EA/DA

Blackmagic Teranex Mini SDI Distribution 12G

Ultra‑clean, multi‑rate SDI distribution for professional broadcast, delivering a perfectly reclocked 12G signal to eight destinations at once.

1-3 werkdagen

$537.00 (excl. btw)
$649.77 incl. btw
$597.00
- 10%

Aantal

This compact distribution interface is engineered to deliver a single SDI source to multiple endpoints with absolute reliability and precision. Built around advanced multi rate 12G technology, it allows a single incoming signal to be fanned out to as many as eight outputs while maintaining full quality across all formats from standard definition through cutting edge Ultra HD at 2160p60. This makes it exceptionally useful in environments where a single camera, router feed or playback source must be fed simultaneously to monitors, switchers, encoders or large venue display systems without introducing signal degradation or timing inconsistencies.

Every output is fully reclocked, ensuring long cable runs remain stable and resistant to signal jitter. The unit automatically adapts to SD, HD, 2K, UHD and 4K signals without manual intervention. This capability is essential in broadcast infrastructures where signal formats change frequently throughout a production day. Operators can work confidently knowing that each connected device receives a perfectly synchronized and consistent feed regardless of resolution or frame rate. The hardware supports high precision color sampling at 4:2:2 and 4:4:4 as well as REC 601 and REC 709 color spaces, making it suitable for critical monitoring and post production pipelines where color accuracy must be preserved.

Designed for professional deployment, this model integrates USB and Ethernet configuration options, allowing easy remote management across facility networks. Optional front panel controls add an LCD interface and tactile buttons for convenient on‑device operation, especially valuable when the hardware is rack mounted. It also features an international AC power supply suitable for 100 to 240 volt systems and can alternatively be powered via PoE plus, offering installation flexibility in modern technical racks and OB trucks. Its rugged design and compact form factor allow multiple units to be densely racked without airflow concerns, ensuring reliable multi display distribution even in demanding environments such as event venues, multi screen installations and broadcast control rooms.

With its combination of pristine signal integrity, multi rate compatibility and professional management features, this distribution unit is an essential building block for any SDI‑based workflow requiring stable, simultaneous Ultra HD output across multiple destinations.

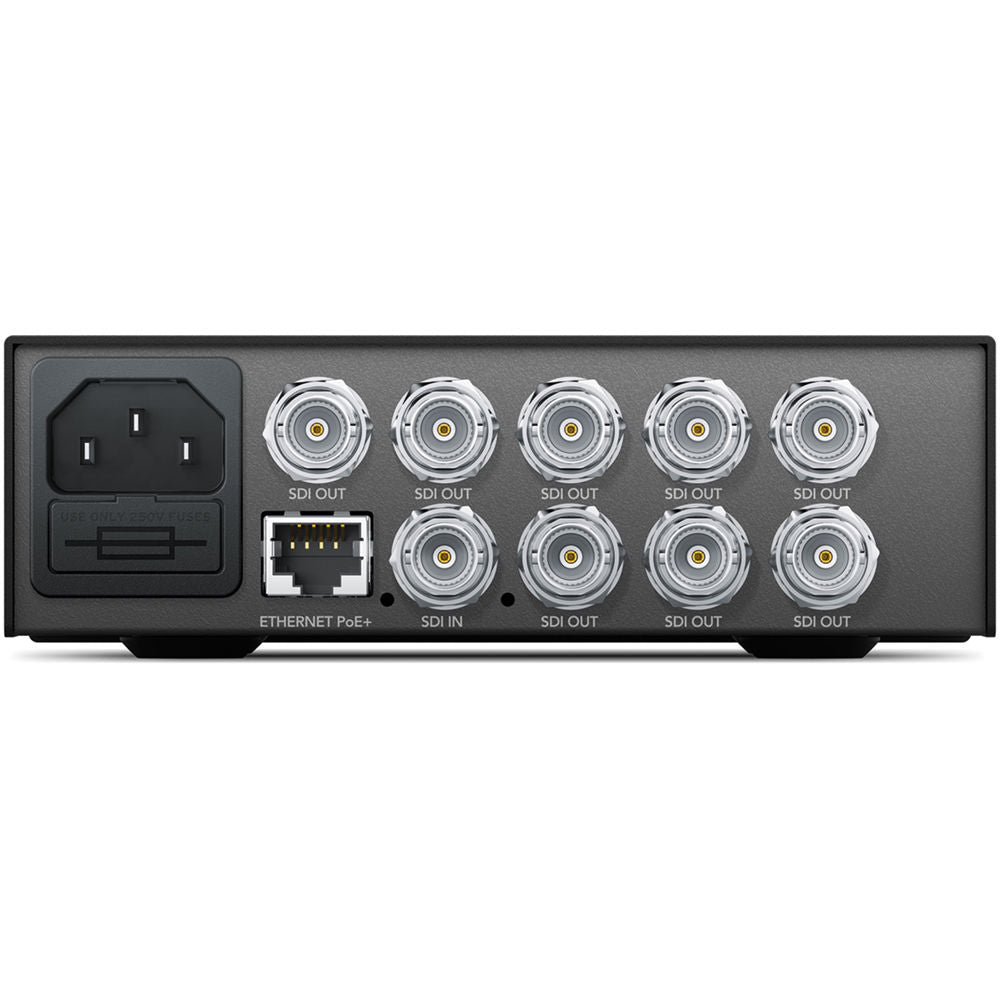

Connections

SDI Video Inputs

1 x 12G-SDI SD/HD/2K/4K auto switching.

Please click here for a summary of recommended cables to use with Blackmagic 12G‑SDI products.

SDI Video Outputs

8 x 12G-SDI automatically matches the SD/HD/2K/4K 12G-SDI input

Embedded Audio Support

16 channels.

Multi Rate Support

Automatic switching between SD/HD/2K and 4K

Updates and Configuration

USB or Ethernet

Reclocking

Yes

Standards

SD Video Standards

525i59.94 NTSC, 625i50 PAL

HD Video Standards

720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30

2K Video Standards

2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

4K Video Standards

4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10

SDI Video Rates

SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI.

SDI Video Sampling

4:2:2 and 4:4:4

SDI Audio Sampling

Television standard sample rate of 48 kHz and 24‑bit.

SDI Color Space

YUV & RGB

Software

Software Control

Mac™ and Windows™ software upgrade via USB and Ethernet.

Internal Software Upgrade

Via included updater application.

Operating Systems

Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.

Windows 10, 64-bit.

Settings Control

Basic Settings Control

Mini Switches, USB and Ethernet via free software utility.

Optional Front Panel Control

Front mounted Smart Panel with LCD, rotary knob and six settings buttons.

Power Requirements

Power Supply

1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input.

Power Over Ethernet

Can be powered via 48V DC using PoE+ (power over ethernet).

Power Consumption

16 Watts

Operational Voltage Range

100 - 240V AC

Physical Specifications

Environmental Specifications

Operating Temperature

0° to 40°C (32° to 104°F)

Storage Temperature

-20° to 60°C (-4° to 140°F)

Relative Humidity

0% to 90% non‑condensing

What's Included

Teranex Mini SDI Distribution 12G

Welcome wallet with QR code for software download

Warranty

3 Year Limited Manufacturer’s Warranty.
