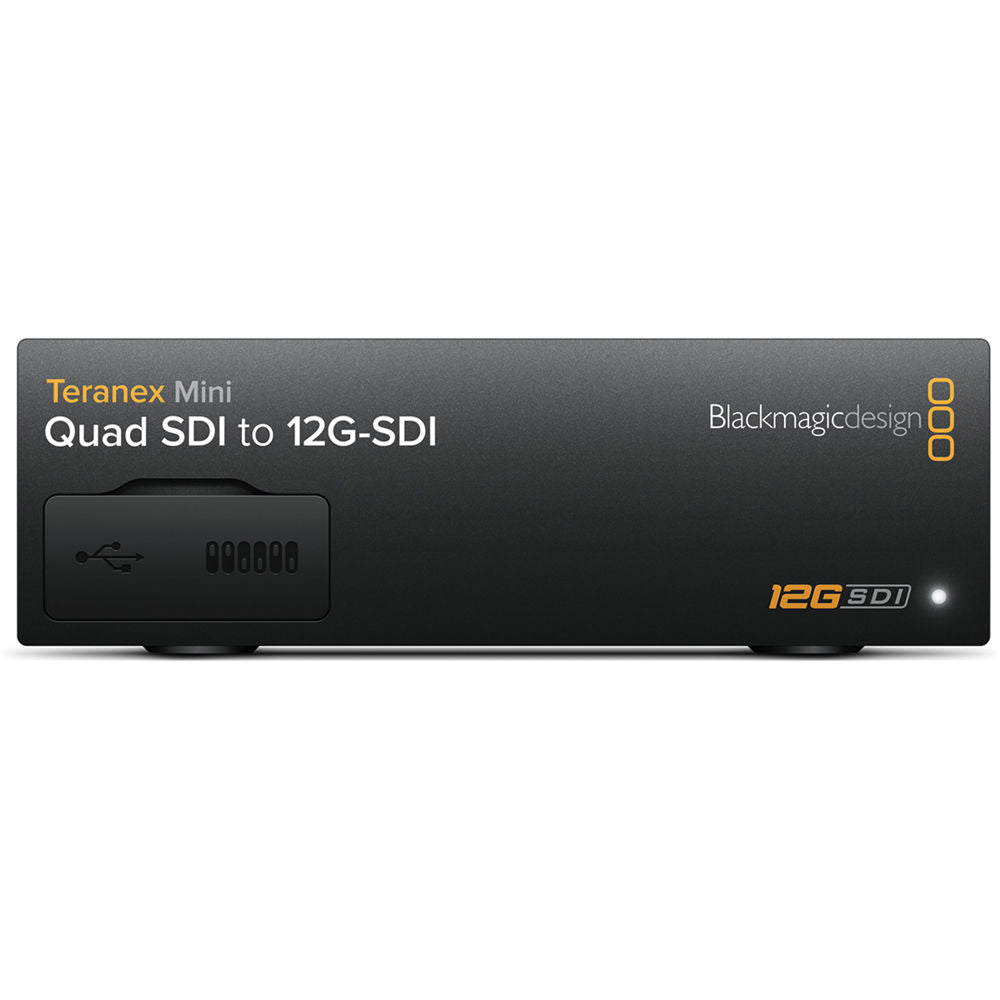

Blackmagic Teranex Mini Quad SDI to 12G‑SDI

A compact broadcast converter that merges Quad Link SDI into a single 12G‑SDI signal, simplifying Ultra HD workflows while preserving full professional signal integrity.

1-3 werkdagen

€445,50 (excl. btw)
€539,06 incl. btw
€495,00
- 0%

Aantal

This high performance converter is designed to seamlessly connect legacy Quad Link SDI equipment to modern single cable Ultra HD infrastructures. It enables Quad Link SDI signals to be combined into a single 12G‑SDI output, allowing older four‑cable Ultra HD sources to integrate effortlessly with contemporary routers, switchers, monitors and recorders. By reducing complex cabling to one streamlined connection, it simplifies system design while preserving full broadcast quality across all supported formats.

The unit supports all standard definition, high definition and Ultra HD video formats up to 2160p60, including DCI 4K standards. Automatic multi rate switching ensures compatibility with SD, HD, 3G, 6G and 12G‑SDI signals, while full support for both Level A and Level B 3G‑SDI guarantees reliable operation with a wide range of professional equipment. This makes the converter ideal for upgrading facilities gradually, without the need to replace existing Quad Link infrastructure all at once.

Built on the Teranex Mini platform, the design is optimized for broadcast installations as well as mobile and rental environments. A built in international AC power supply removes the need for external adapters, while Power over Ethernet support provides an alternative power source for clean, centralized installations. Ethernet connectivity allows remote management and configuration, enabling technicians to monitor and adjust settings across multiple units from a single location. Settings can also be changed locally using the onboard mini switches or via USB using the free Blackmagic software utility.

For enhanced usability, an optional Smart Panel can be added to the front of the converter. This panel includes a color LCD, rotary control and dedicated buttons, allowing operators to view the incoming video signal and adjust settings directly on the device. The compact metal enclosure can be used on a desktop or mounted in a rack, making it flexible enough for permanent installations, OB vans or temporary production setups where space and reliability are equally important.

By combining robust Teranex processing with modern 12G‑SDI connectivity, this converter provides a future proof solution for bridging older Quad Link systems with today’s high bandwidth Ultra HD workflows.

Connections

SDI Video Inputs

4 x 12G-SDI SD/HD/2K/4K auto switching.

Please click here for a summary of recommended cables to use with Blackmagic 12G‑SDI products.

SDI Video Outputs

2 x 12G‑SDI.

Multi Rate Support

Automatic switching between SD/HD/2K and 4K

Embedded Audio Support

16 channels.

Updates and Configuration

USB or Ethernet

Reclocking

Yes

Standards

SD Video Standards

525i59.94 NTSC, 625i50 PAL

HD Video Standards

720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30

2K Video Standards

2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

4K Video Standards

4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10

SDI Video Rates

SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI.

SDI Video Sampling

4:2:2 and 4:4:4

SDI Audio Sampling

Television standard sample rate of 48 kHz and 24-bit.

SDI Color Space

YUV & RGB

Software

Software Control

Mac™ and Windows™ software upgrade via USB and Ethernet.

Internal Software Upgrade

Via included updater application.

Operating Systems

Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.

Windows 10, 64-bit.

Settings Control

Basic Settings Control

Mini Switches, USB and Ethernet via free software utility.

Optional Front Panel Control

Front mounted Smart Panel with LCD, rotary knob and six settings buttons.

Power Requirements

Power Supply

1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input.

Power Over Ethernet

Can be powered via 48V DC using PoE+ (power over ethernet).

Power Consumption

16 Watts

Operational Voltage Range

100 - 240V AC

Physical Specifications

Environmental Specifications

Operating Temperature

0° to 40°C (32° to 104°F)

Storage Temperature

-20° to 60°C (-4° to 140°F)

Relative Humidity

0% to 90% non‑condensing

What's Included

Teranex Mini Quad SDI to 12G‑SDI

Welcome wallet with QR code for software download

Warranty

3 Year Limited Manufacturer’s Warranty.
