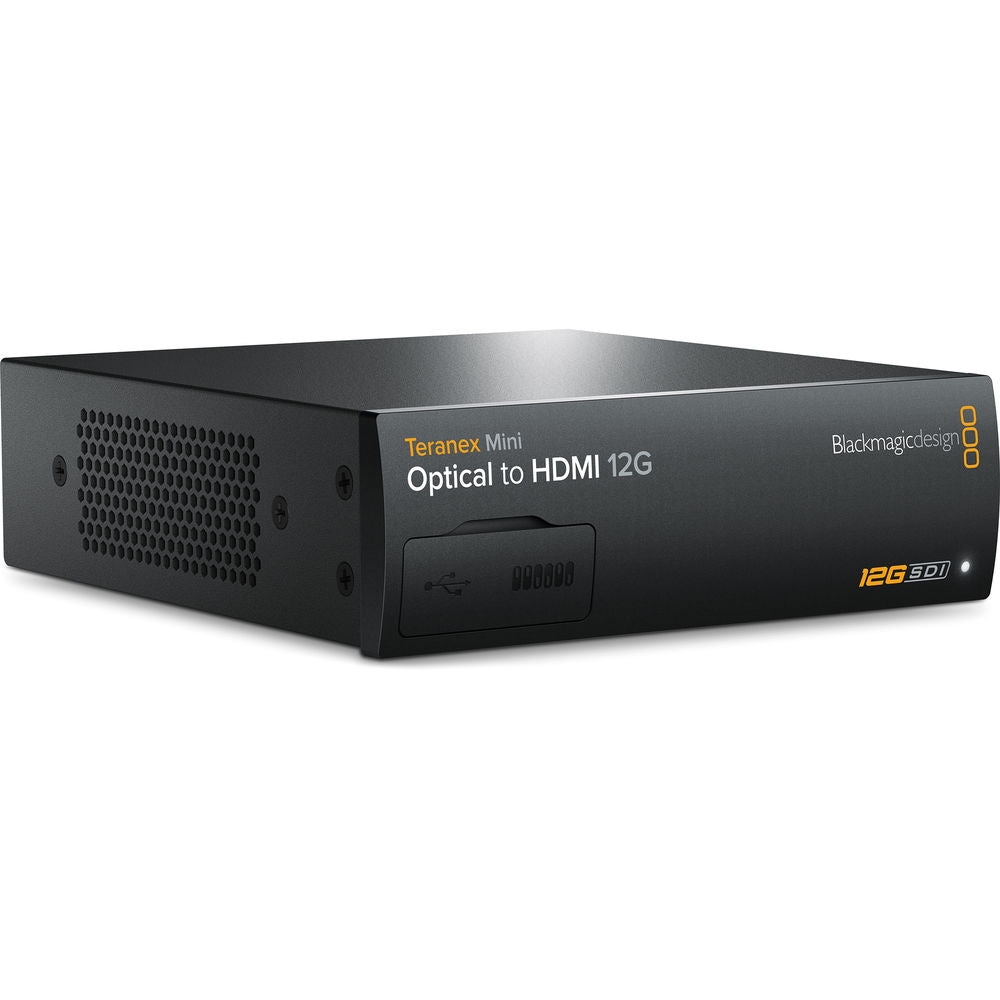

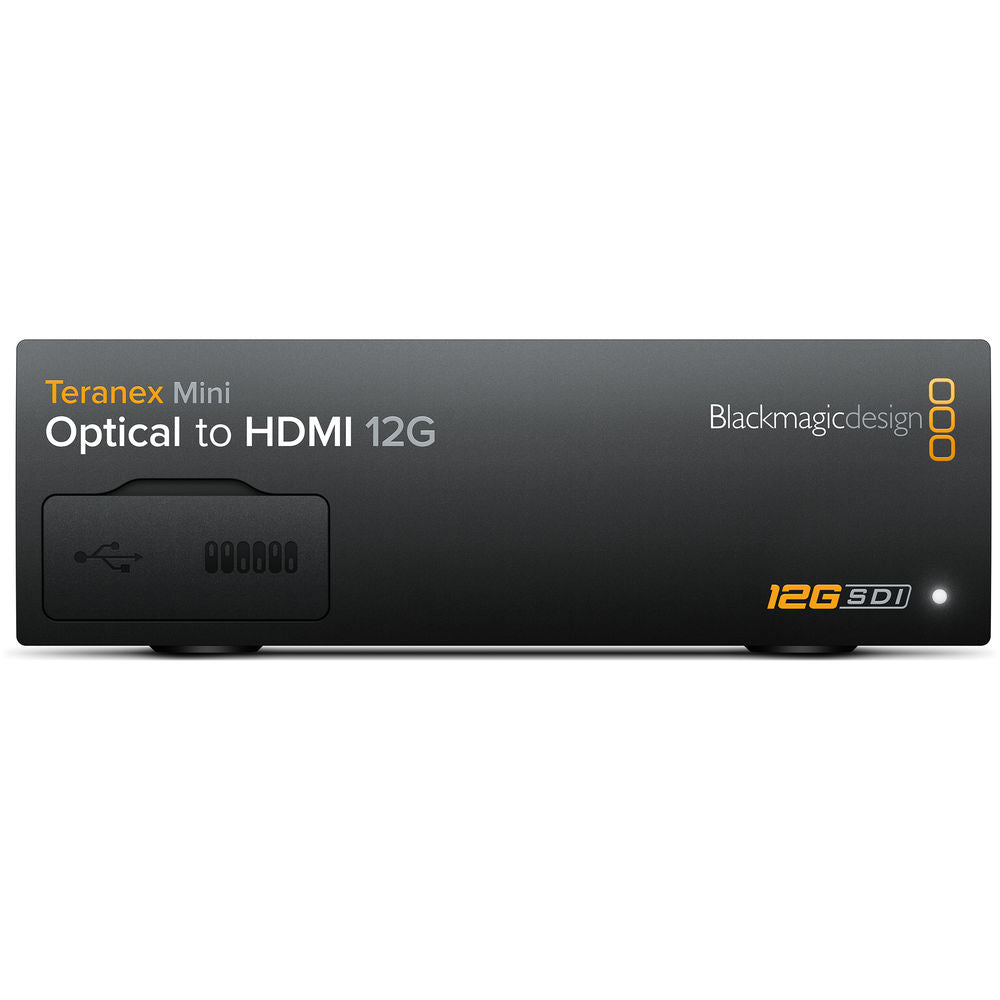

De Blackmagic Design Teranex Mini Optical naar HDMI 12G is een converter welke het mogelijk maakt om SDI en SMPTE optical fiber om te zetten naar HDMI!
Now you can convert from SDI and SMPTE optical fiber to HDMI! Simply insert the SMPTE optical fiber module of your choice to get video and embedded audio over massive distances using 3G, 6G, or 12G-SDI optical fiber! You get professional 12G-SDI and XLR connections, a down converter for viewing Ultra HD sources on HD displays plus ethernet for remote admin control. The optical fiber SFP module is sold separately so you can purchase the SMPTE compatible 3G-SDI, 6G-SDI or 12G-SDI SFP module to suit your workflow. You can even add an optional Smart Panel to add LCD monitoring and push button controls to your Teranex Mini!
1 x 12G-SDI SD/HD/2K/4K auto switching.
Optional 3G, 6G or 12G-SDI single mode 1310 nm SFP module with LC connector.
1 x 12G-SDI SD/HD/2K/4K auto switching.
1 x 12G-SDI loop output.
1 x HDMI 2.0 type A connector with support for 2160p60.
2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for Timecode output.
4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for Timecode output.
8 channels.
Auto detection of SD, HD or 12G-SDI.
USB and Ethernet.
Yes
525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10
SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI.
4:2:2 and 4:4:4.
Television standard sample rate of 48 kHz and 24-bit.
4:2:2 and 4:4:4.
YUV and RGB.
525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
REC 601, REC 709
YUV 4:2:2 in HD, 2K and 4K. 33 point LUT can be loaded via the Teranex Utility.
Mac™ and Windows™ software upgrade via USB or Ethernet.
Via included updater application.
Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.
Windows 10, 64-bit.
Mini Switches, USB and Ethernet via free software utility.
Front mounted Smart Panel with LCD, rotary knob and six settings buttons
1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input.
Can be powered via 48V DC using PoE+ (power over ethernet).
16 Watts
100 - 240V AC
0° to 40°C (32° to 104°F)
-20° to 60°C (-4° to 140°F)
0% to 90% non‑condensing
