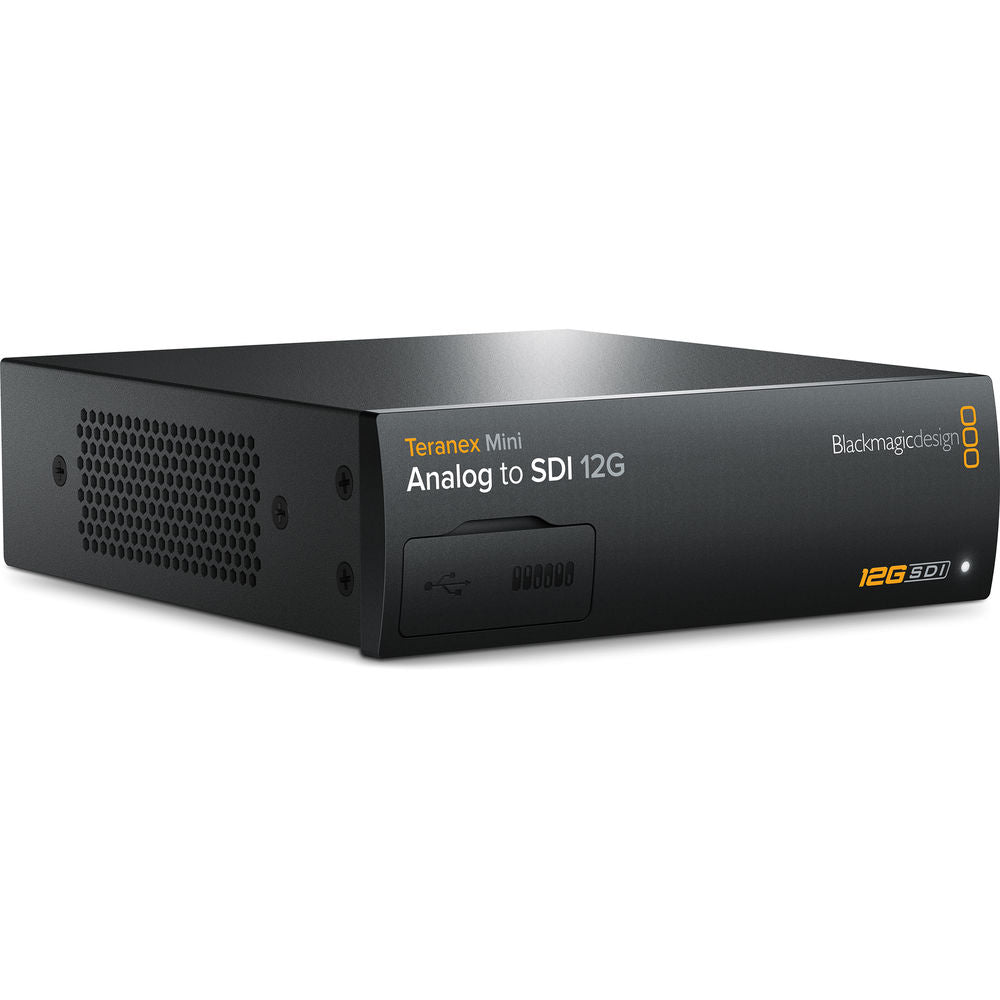

Blackmagic Teranex Mini Analog to SDI 12G

BlackMagic Design

CONVNTRM/BB/ANSDI

Blackmagic Teranex Mini Analog to SDI 12G

Pristine Ultra HD SDI from classic analog sources, delivered through high‑end 12G processing for modern broadcast workflows.

1-3 werkdagen

€445,50 (excl. btw)
€539,06 incl. btw
€495,00
- 0%

Aantal

This professional‑grade conversion unit is designed to bring legacy analog equipment into cutting edge Ultra HD environments with uncompromised quality. Built around advanced 12G processing, it accepts analog component, composite or Y/C sources and transforms them into clean SDI signals that integrate seamlessly into modern routing, monitoring and recording workflows. This makes it ideal for facilities managing archival content, transferring older formats or maintaining compatibility with long‑standing analog infrastructure while upgrading to high bandwidth pipelines.

The device automatically detects incoming analog formats across SD, HD, 2K and 4K standards, ensuring a smooth and reliable workflow even when working with mixed legacy sources. Ultra HD signals are output over a single 12G SDI connection, allowing long cable runs and high frame rates without additional hardware. Internal down‑conversion ensures that material originating in Ultra HD can still be recorded or monitored in SD or HD if required. This adaptability makes the converter suitable for multi‑stage production environments, including archival digitization, broadcast facilities and post production suites that require precise signal consistency.

Color accuracy is maintained through support for REC 601 and REC 709 color spaces, while high precision 4:2:2 and 4:4:4 processing ensures smooth tonal reproduction even in demanding grading and restoration workflows. Its audio architecture includes both balanced analog and AES/EBU digital outputs via XLR, allowing flexible integration with professional mixers, recorders or digital audio systems. The right XLR connector can also be configured for timecode output, supporting synchronization for multi‑device setups. Embedded SDI audio is preserved with support for up to sixteen channels, ensuring that legacy formats can be brought into modern workflows without losing multichannel structure.

Operation is managed through onboard mini switches or via USB or Ethernet, allowing remote administration and simplifying deployment across machine rooms and facility racks. Optional front panel controls add an LCD and menu interface for quick configuration and real time signal confidence. Reclocking on SDI outputs ensures a stable, jitter free signal suitable for long cable runs or demanding broadcast environments. With an integrated international AC power supply and PoE+ capability, installation remains flexible whether in fixed units, portable fly‑packs or mobile production vehicles.

Connections

SDI Video Outputs

2 x 12G-SDI outputs.

Analog Video Inputs

Composite, Y/C or Component.

Please click here for a summary of recommended cables to use with Blackmagic 12G‑SDI products.

Analog Audio Inputs

2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for timecode input.

Digital Audio Inputs

4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for timecode input.

Multi Rate Support

SDI output switchable between HD for composite and S-Video and Ultra HD for component HD.

Updates and Configuration

USB or Ethernet.

Reclocking

Yes

Standards

SD Video Standards

525i59.94 NTSC, 625i50 PAL

HD Video Standards

720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p25, 1080p29.97, 1080p50, 1080p59.94

Ultra HD Video Standards

2160p25, 2160p29.97, 2160p50, 2160p59.94

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10

SDI Video Rates

SDI video connections are switchable between standard definition and high definition.

SDI Video Sampling

4:2:2 and 4:4:4.

SDI Audio Sampling

Television standard sample rate of 48 kHz and 24-bit.

SDI Color Precision

YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.

SDI Color Space

REC 601, REC 709

Analog Video Standards

525i59.94 NTSC, 625i50 PAL

Analog Color Space

REC 601, REC 709

Analog Color Precision

4:2:2

Software

Software Control

Mac™ and Windows™ software upgrade via USB and Ethernet

Internal Software Upgrade

Via included updater application.

Operating Systems

Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.

Windows 10, 64-bit.

Settings Control

Basic Settings Control

Mini Switches, USB and Ethernet via free software utility

Optional Front Panel Control

Front mounted Smart Panel with LCD, rotary knob and six settings buttons

Power Requirements

Power Supply

1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input.

Power Over Ethernet

Can be powered via 48V DC using PoE+ (power over ethernet).

Power Consumption

16 Watts

Operational Voltage Range

100 - 240V AC

Physical Specifications

Environmental Specifications

Operating Temperature

0° to 40°C (32° to 104°F)

Storage Temperature

-20° to 60°C (-4° to 140°F)

Relative Humidity

0% to 90% non-condensing

What's Included

Teranex Mini Analog to SDI 12G

Welcome wallet with QR code for software download

Warranty

3 Year Limited Manufacturer’s Warranty.
