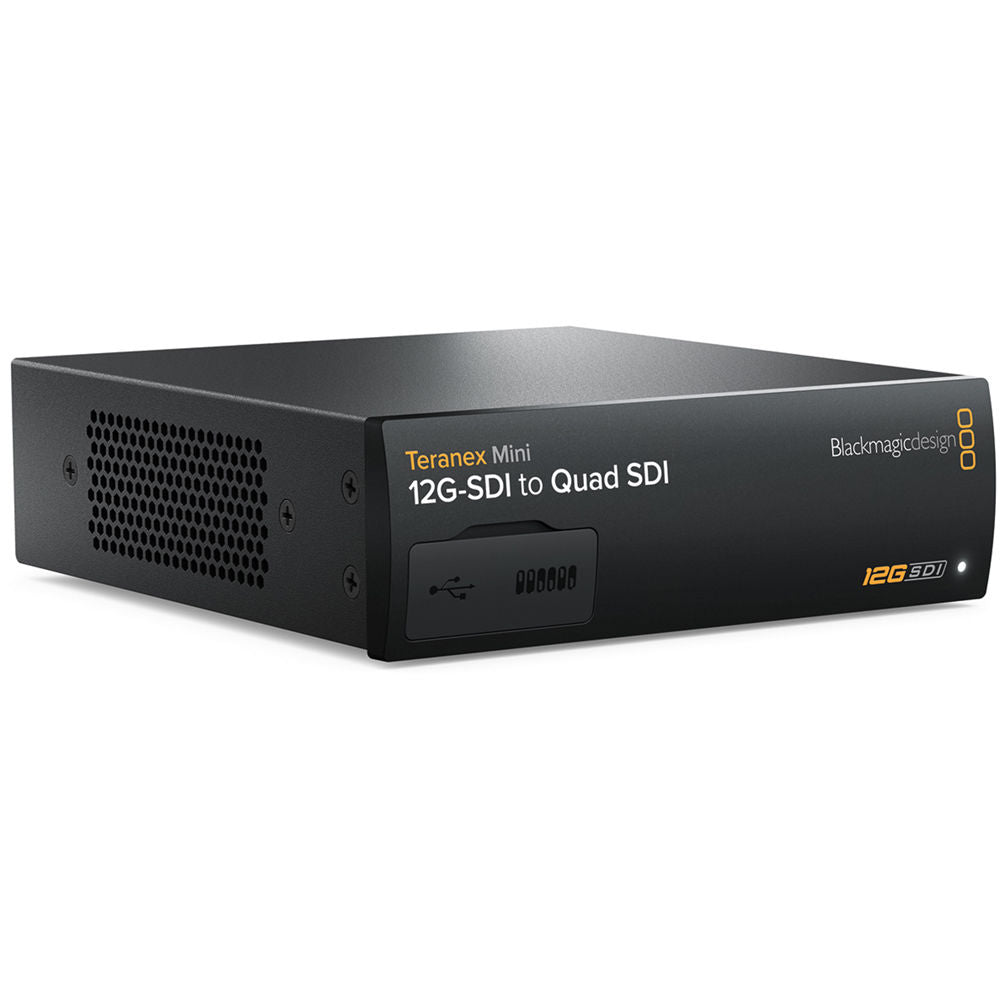

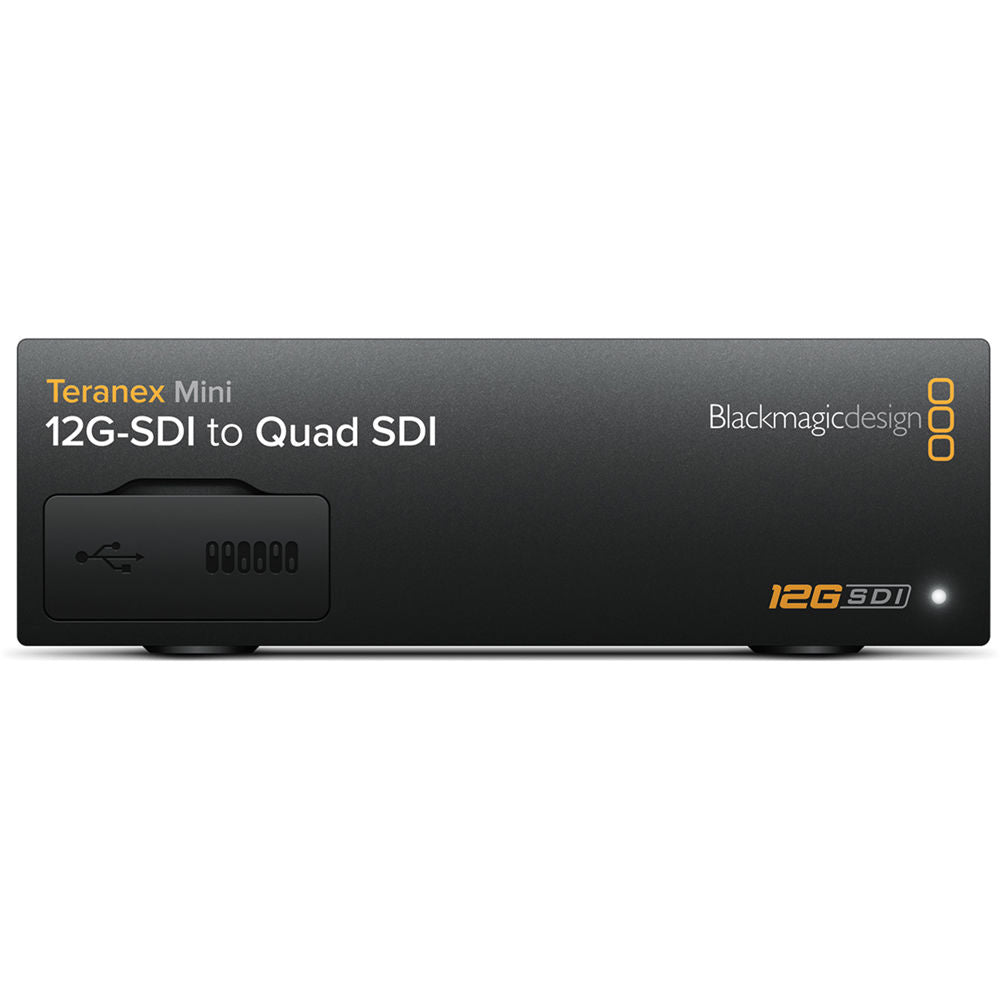

Blackmagic Teranex Mini - 12G-SDI to Quad SDI

Effortlessly bridge high bandwidth 12G workflows with Quad Link SDI systems while enabling versatile Ultra HD distribution and creative multi‑display installations.

1-3 werkdagen

$535.00 (excl. btw)
$647.35 incl. btw
$595.00
- 10%

Aantal

This compact converter enables seamless integration between modern single cable 12G SDI infrastructures and legacy Quad Link SDI systems. It has been designed to maintain full Ultra HD quality while offering the flexibility required in broadcast control rooms, production stages and large scale display environments. Its ability to translate a high bandwidth signal into four synchronized 3G SDI outputs makes it the ideal tool for connecting newer devices to existing multi cable systems without compromising image fidelity or workflow stability. The unit also includes a dedicated 12G SDI loop output that allows the original signal to pass downstream while the converter handles distribution, ensuring no loss of routing options or signal paths.

The design accommodates both traditional 3G SDI Level A and Level B equipment, providing broad compatibility across Ultra HD and HD broadcast infrastructures. This makes the device suitable for mixed environments where equipment from different generations must be combined. Its internal processing automatically detects incoming formats across SD, HD, 2K and 4K resolutions, adapting the output accordingly without user intervention. This allows operators to maintain focus on production rather than configuration, which is particularly beneficial in fast paced environments such as live broadcast and OB vehicles.

One of its most versatile features is the ability to divide an Ultra HD signal into four separate HD signals. These individual outputs can drive multiple standard HD displays, making it possible to build cost effective Ultra HD video walls using readily available monitors. With stable reclocking on all outputs, long cable runs and complex routing topologies remain fully reliable. Embedded audio with support for sixteen channels is maintained throughout conversion, ensuring that multichannel soundtracks travel cleanly through the system.

Control and configuration can be performed through USB or Ethernet using the dedicated software utility. For installations requiring hands on adjustments or real time visibility, an optional front mounted smart panel adds an LCD display, a rotary selector and menu controls.

Connections

SDI Video Inputs

1 x 12G-SDI SD/HD/2K/4K auto switching.

Please click here for a summary of recommended cables to use with Blackmagic 12G‑SDI products.

SDI Video Outputs

4 x 3G-SDI and 1 x 12G-SDI loop output.

Embedded Audio Support

16 channels.

Multi Rate Support

Automatic switching between SD/HD/2K and 4K

Updates and Configuration

USB or Ethernet

Reclocking

Yes

Standards

SD Video Standards

525i59.94 NTSC, 625i50 PAL

HD Video Standards

720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30

2K Video Standards

2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

4K Video Standards

4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10

SDI Video Rates

SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI.

SDI Video Sampling

4:2:2 and 4:4:4

SDI Audio Sampling

Television standard sample rate of 48 kHz and 24-bit.

SDI Color Space

YUV & RGB

Software

Software Control

Mac™ and Windows™ software upgrade via USB and Ethernet.

Internal Software Upgrade

Via included updater application.

Operating Systems

Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.

Windows 10, 64-bit.

Settings Control

Basic Settings Control

Mini Switches, USB and Ethernet via free software utility.

Optional Front Panel Control

Front mounted Smart Panel with LCD, rotary knob and six settings buttons.

Power Requirements

Power Supply

1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input.

Power Over Ethernet

Can be powered via 48V DC using PoE+ (power over ethernet).

Power Consumption

16 Watts

Operational Voltage Range

100 - 240V AC

Physical Specifications

Environmental Specifications

Operating Temperature

0° to 40°C (32° to 104°F)

Storage Temperature

-20° to 60°C (-4° to 140°F)

Relative Humidity

0% to 90% non-condensing

What's Included

Teranex Mini 12G-SDI to Quad SDI

Welcome wallet with QR code for software download

Warranty

3 Year Limited Manufacturer’s Warranty.
