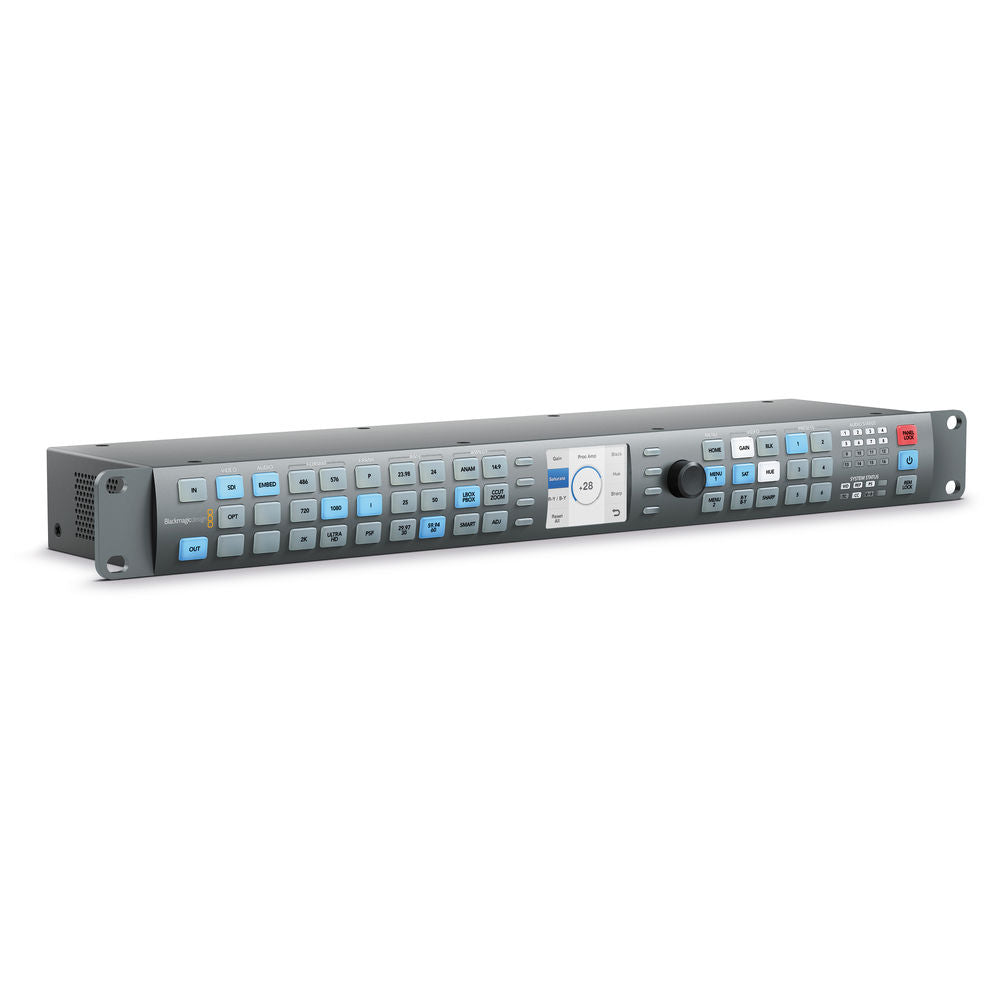

De BlackMagic Design Teranex Express is een converter welke beschikt over 12G en 6G-SDI inputs, loops en outputs en bevat ook een optical fiber connectie!
Teranex Express is the world’s first real time SD, HD and Ultra HD broadcast standards converter! Featuring advanced patented algorithms, Teranex Express gives you the visually transparent, high-quality conversions that are mandated by major broadcasters and studios worldwide! You get an incredible 1089 SD, HD and Ultra HD up, down and standards conversions in full 10-bit quality! You also get amazing processing with high quality de-interlacing, noise reduction, automatic cadence detection, removal and correction even with edited content, adjustable scaling and aspect ratio conversion, all with full timecode and multi-channel audio conversion.

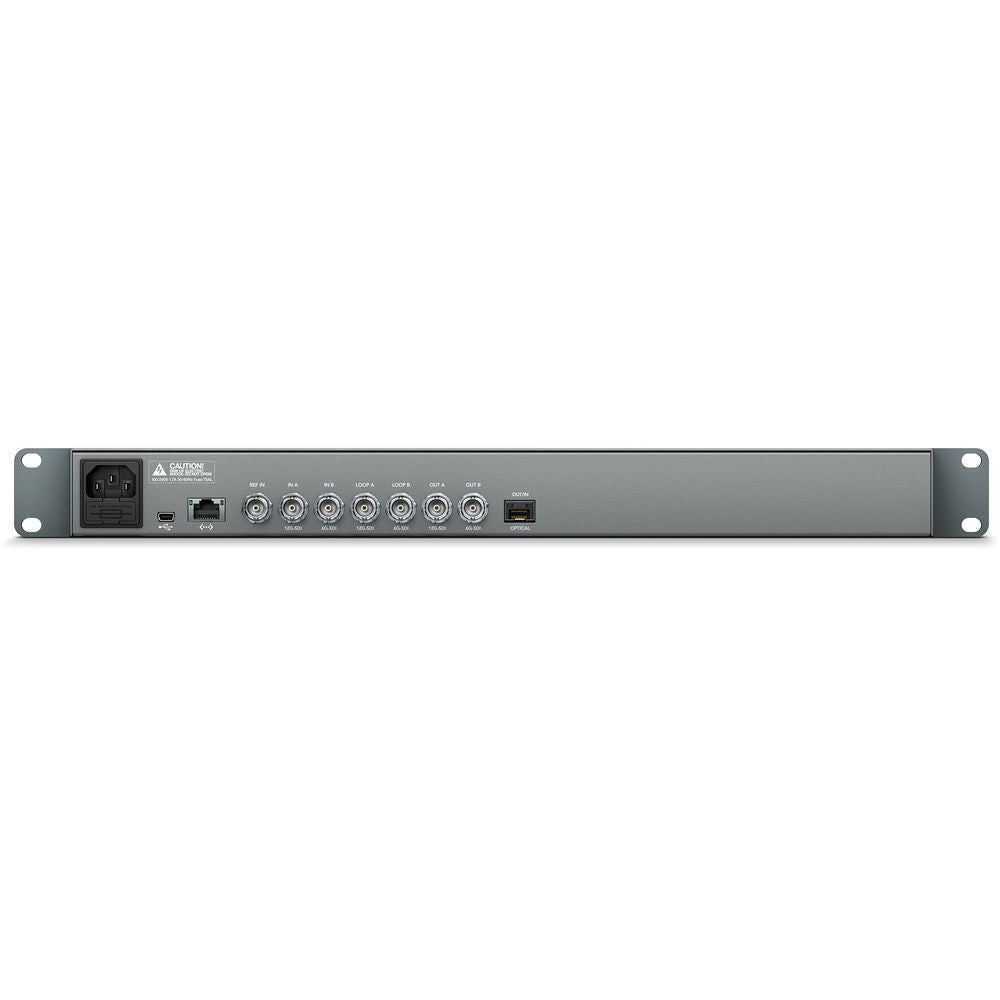

1x BNC (IN A) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching.
1x BNC (IN B) – 10-bit SD, HD, 2K, 3G HD and 6G Ultra HD auto switching. Usable as dual link input for 4:2:2 3G or 6G UHD.
1x BNC (IN A Loop) – Reclocked, 10-bit SD, HD, 2K, 3G HD, 6G and 12G Ultra HD auto switching.
1x BNC (IN B Loop) – Reclocked, 10-bit SD, HD, 2K, 3 Gb/s HD, 6G Ultra HD auto switching.
1x BNC (OUT A) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching.
1x BNC (OUT B) – 10-bit SD, HD, 2K, 3G HD levels A and B and 6G Ultra HD auto switching. Usable as dual link output for 4:2:2 3G or 6G Ultra HD.
SMPTE 435-1 - Quad HD Split (square division method) only. Utilizes SDI Out A for quadrant A, SDI Out B for quadrant B; reconfigures SDI In A Loop for quadrant C, SDI In B Loop for quadrant D.
1x 10bit SD, HD, 3G HD, 2K, Ultra HD auto switching.
1x 10bit SD, HD, 3G HD, 2K, Ultra HD auto switching. Not available while operating in Dual Link or Quad Link output modes.
16 channels in SD, HD, 3G HD, 2K and Ultra HD.
16 channels in SD, HD, 3G HD, 2K and Ultra HD.
1x SMPTE optical fiber SFP socket.
16 channels in SD, HD, 3G HD, 2K and Ultra HD.
16 channels in SD, HD, 3G HD, 2K and Ultra HD.
Dolby® AC-3 pass through in all conversions. Dolby® E pass through except during video frame rate conversions.
Support for VITC/ATC. No support for LTC.
Support for VITC/ATC. No support for LTC.
SDI connections are switchable between standard definition, high definition and UltraHD. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI and 2K SDI, 3G HD, 6G and 12G Ultra HD.
1x BNC - Black Burst or Tri-level sync.
1x USB 2.0 mini B port for software updates.
1x RJ45 10/100 Ethernet for remote control and configuration.

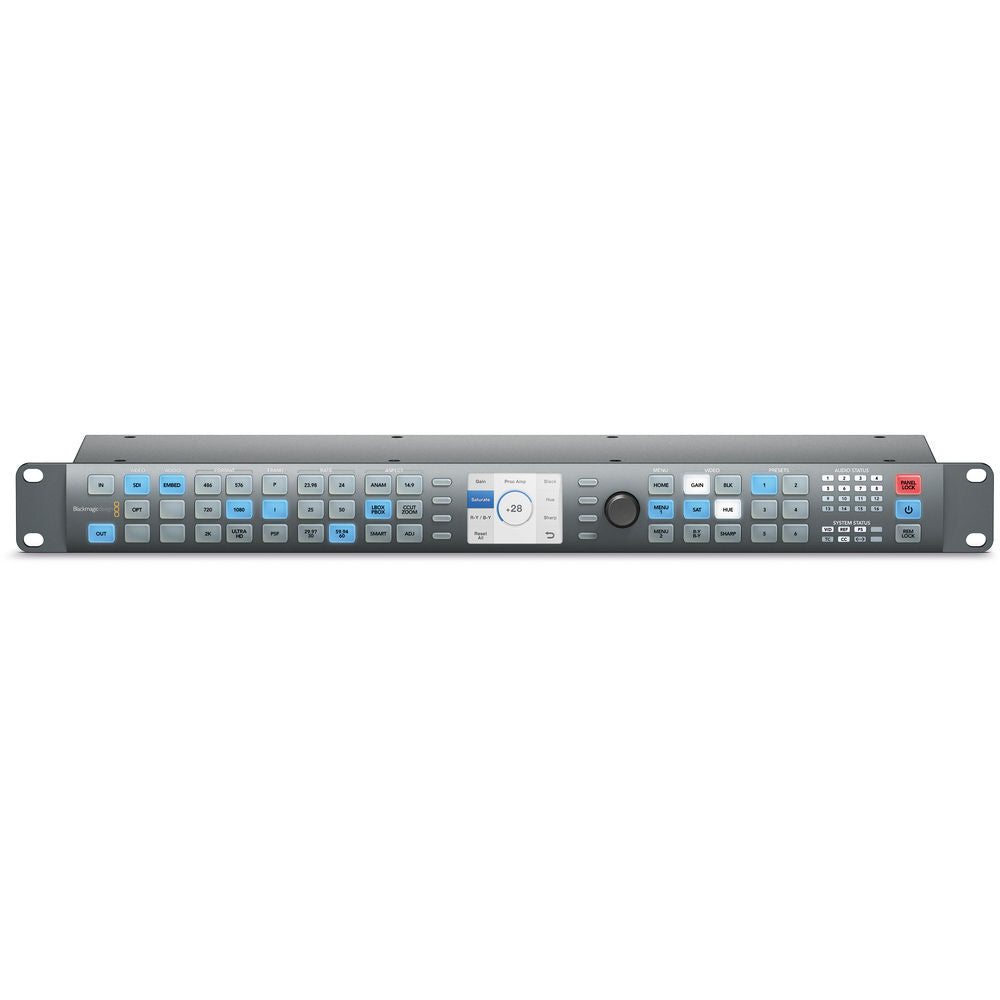

Illuminated pushbuttons, status LEDs and LCD with easy to use onscreen menus.
525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30,
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
1080p50, 1080p59.94, 1080p60 levels A and B
2K DCI 23.98p, 2K DCI 24p
2K DCI 23.98PsF, 2K DCI 24PsF
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M
VITC/ATC support, SMPTE 12M. Video indexing support including WSS, RP186 and AFD, SMPTE 2016. Closed captioning support for conversions to and from 608 and 708, SMPTE 334M.
Television standard sample rate of 48kHz and 24-bit
4:2:2 SDI
10-bit
REC 601, REC 709
525 NTSC, 625 PAL, 720HD, 1080HD, 2K 2048 x 1080 and Ultra HD 3840 x 2160 auto switching.
Real time variable and fixed aspect ratio conversions.
Includes noise reduction, cadence detection with insertion/removal, scene cut detection, color correction and proc amp control
Real time up conversion, down conversion , cross conversion and SD/HD/UHD standards conversion.
Hardware based real time
SMPTE 75% Bars; full field color bars 75%; convergence grid; multiburst ; black.
Teranex Setup software control application included free of charge for changing settings via Windows 8.1, Windows 10 and Mac.
Via USB Type-B 2.0 using the included Teranex Setup application
Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.
Windows 10, 64-bit.
1 rack unit size. Less than 5 inches deep.
1 x built-in international AC power supply with IEC C14 inlet. IEC power cable required. 100-240V, 50-60Hz
42 watts
0° to 40° C (32° to 104° F)
-20° to 45° C (-4° to 113° F)
0% to 90% non-condensing
