Blackmagic Studio Fiber Converter

Centralise power, control and monitoring for remote broadcast cameras over a single SMPTE fibre link, delivering studio grade reliability for demanding live productions.

1-3 werkdagen

$3,095.00 (excl. btw)
$3,744.95 incl. btw
$3,439.00
- 10%

Aantal

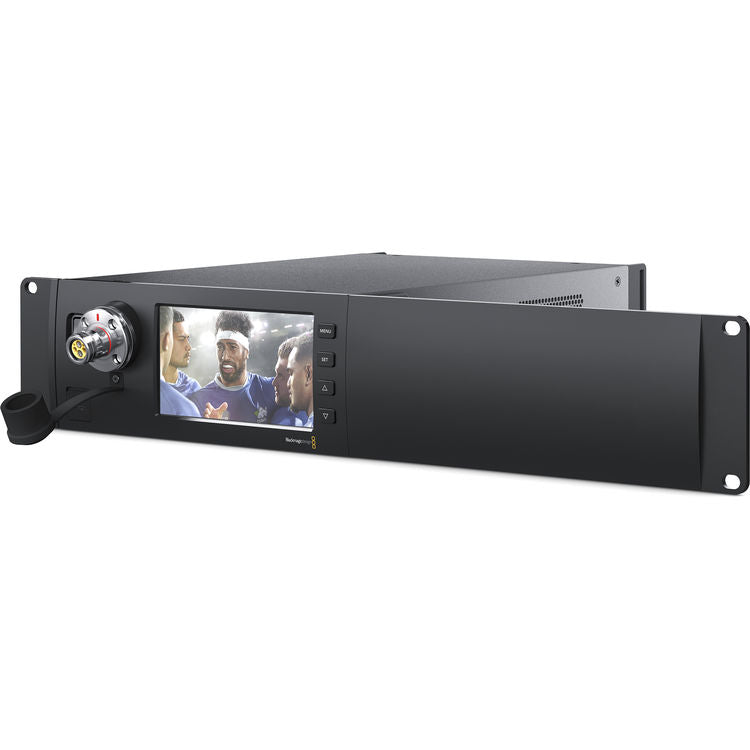

This rack based fibre interface is designed to sit at the studio or outside broadcast end of a professional SMPTE fibre workflow, acting as the central hub between remote cameras and standard broadcast equipment. By converting a single hybrid fibre connection back into familiar video, audio, control and power connections, it enables cameras to be positioned up to 2 km away without compromising quality, latency or operational safety.

Using industry standard SMPTE 311M hybrid fibre with SMPTE 304 connectors, the unit delivers all essential signals and provides full power to the camera and accessories. Built in multi layer safety monitoring continuously checks cable integrity before and during operation. Power is only enabled once safe conditions are confirmed, and is instantly disabled if a fault is detected, making it suitable for permanent installations as well as touring broadcast environments.

At the studio end, it converts the fibre link into a 12G SDI camera feed supporting both HD and Ultra HD formats up to 2160p60, alongside three independent HD return feeds. These return paths can be used for program, preview, teleprompter or graphics, and also carry embedded camera control, tally, genlock and intercom data for seamless integration with modern production switchers. All video and data are transported using standard IP internally to ensure extremely low latency broadcast quality performance.

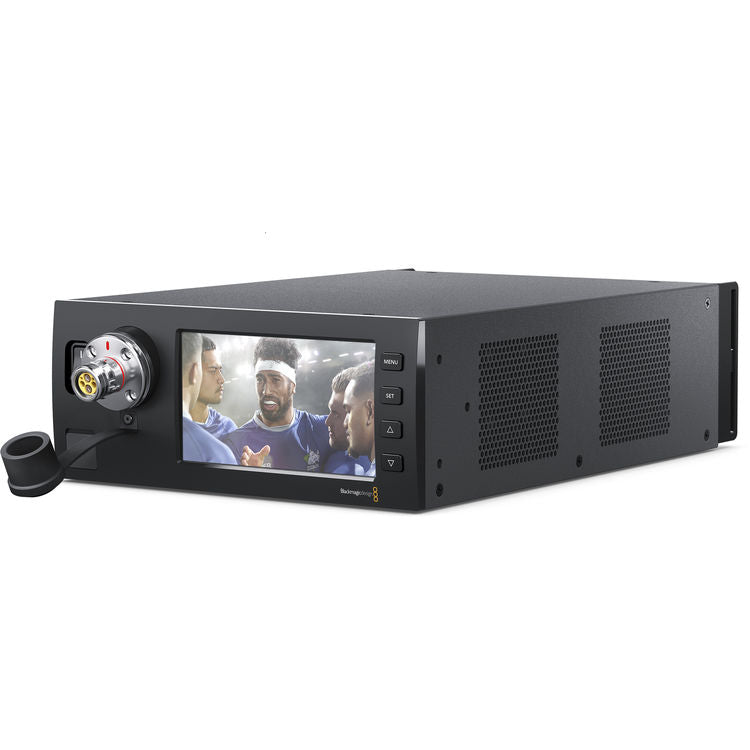

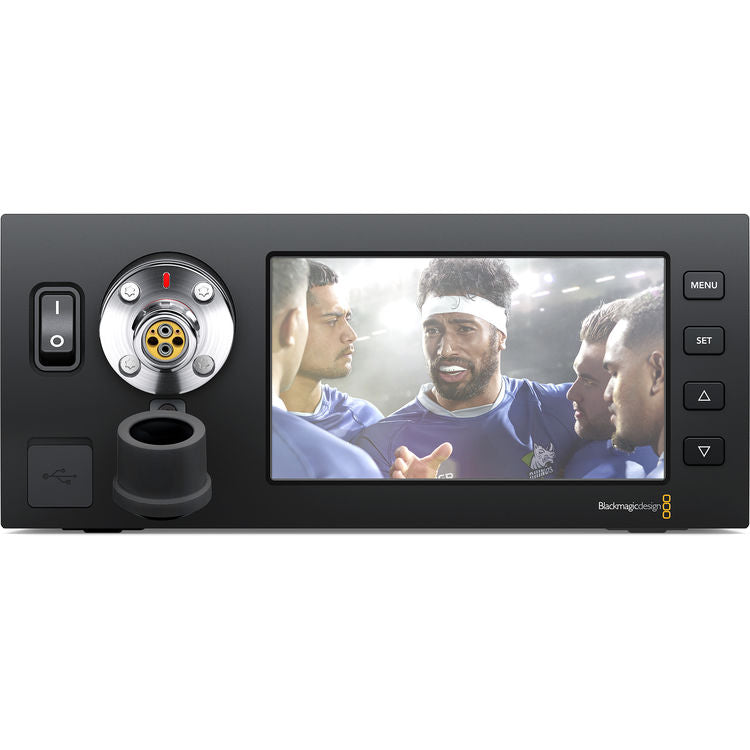

Monitoring and control are enhanced by an integrated 5 inch LCD screen on the front panel, allowing operators to view the incoming camera signal and return feeds directly at the rack. Comprehensive talkback support is included, with dual channel intercoms for production and engineering, tracker talkback, and tally signals, making coordination with camera operators straightforward during live shows. The system is designed to pair directly with a compatible camera side fibre unit, forming a complete end to end fibre solution for studio and OB workflows.

This converter is ideal for studios, sports venues, theatres and houses of worship where cameras need to be placed far from the control room, yet still require full power, control and monitoring from a single, robust connection.

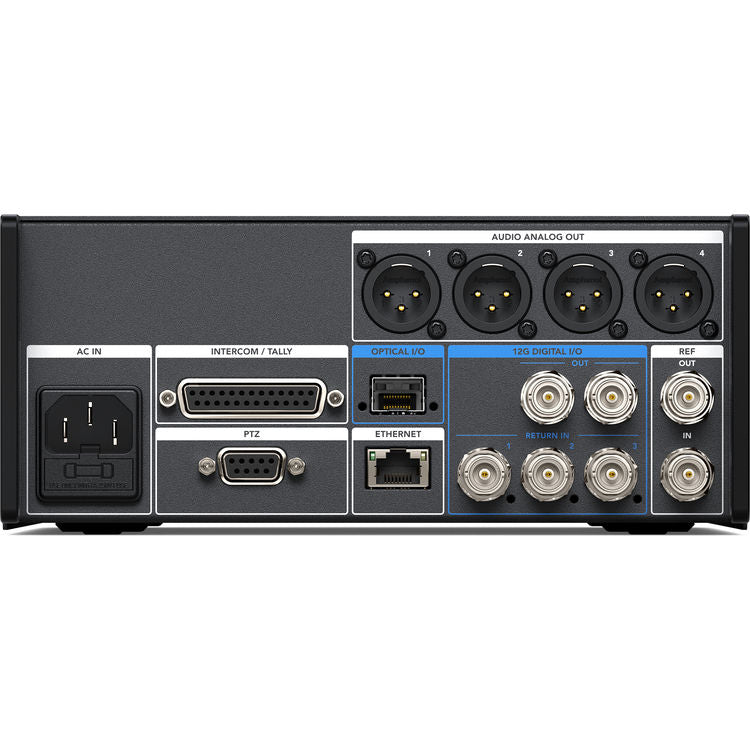

Connections

Optical Fiber Input

1x SMPTE Hybrid Fiber Optic
with Female SMPTE 304 connector.

SDI Video Input

3x 12G SDI Return feeds with Program,
Camera Control, Tally, Genlock and Intercom on Return 1.

SDI Video Output

2x 12G SDI for Ultra HD up to 60p.

Talkback Audio

SDI Channels 15 and 16 for Production,
Analogue in and out supported via 25-pin connector for Production and Engineering talkback support.

Balanced XLR Audio Outputs

4x camera analogue audio outputs.

Optical Fiber Outputs

1x Optical I/O via 10 Gb-E
(not currently active).

Computer Interface

1x USB-C.

Standards

HD Video Standards

720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

SDI Compliance

SMPTE 259M, SMPTE 292M, 296M,
372M, 424M Level B, 425M.

Audio Sampling

Television standard sample
rate of 48Khz, 24 bit A/D conversion.

Video Sampling

4:2:2

Color Precision

10-bit

Color Space

REC 709, REC 2020.

Multiple Rate Support

SDI switches between HD,
3G-SDI, 6G-SDI and 12G-SDI.

Software

Software Included

Camera Utility for firmware update.

Operating Systems

Mac 13.0 Ventura,
Mac 14.0 Sonoma or later.

Windows 10 and 11.

Power Requirements

Power Supply

100 - 240V AC input.

Physical Specifications

Environmental Specifications

Operating Temperature

0° to 40° C (32° to 104° F)

Storage Temperature

-20° to 45° C (-4° to 113° F)

Relative Humidity

0% to 90% non-condensing

What's Included

Blackmagic Studio Fiber Converter

Welcome wallet with QR code for software download

Warranty

1 Year Limited Manufacturer’s Warranty.
