Blackmagic HyperDeck Studio HD Mini

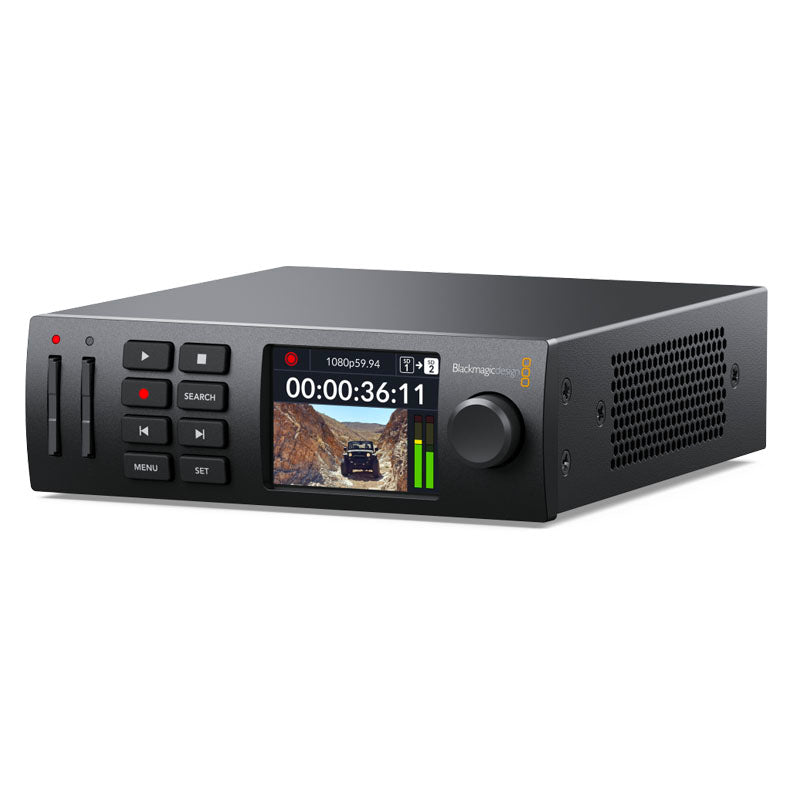

Het meest compacte model van HyperDeck Studio is gebaseerd op de Teranex Mini-vormfactor.
SDI Video Inputs
1
Aanbieding
The most compact model of HyperDeck Studio is based on the Teranex Mini form factor. This modular design means that you can use a Teranex Mini Rack Shelf to rack mount 3 HyperDeck Studio HD Minis in a single rack unit, or you can combine them with other products such as switchers, converters or streaming processors. It might be small, but you still get powerful features, such as 3G-SDI in and out, HDMI output, dual SD card media slots, built in sync and timecode generators, front panel controls and both AC and DC power inputs. You can even connect the USB to a computer as HyperDeck Studio HD Mini works like a webcam so you can use any video software!

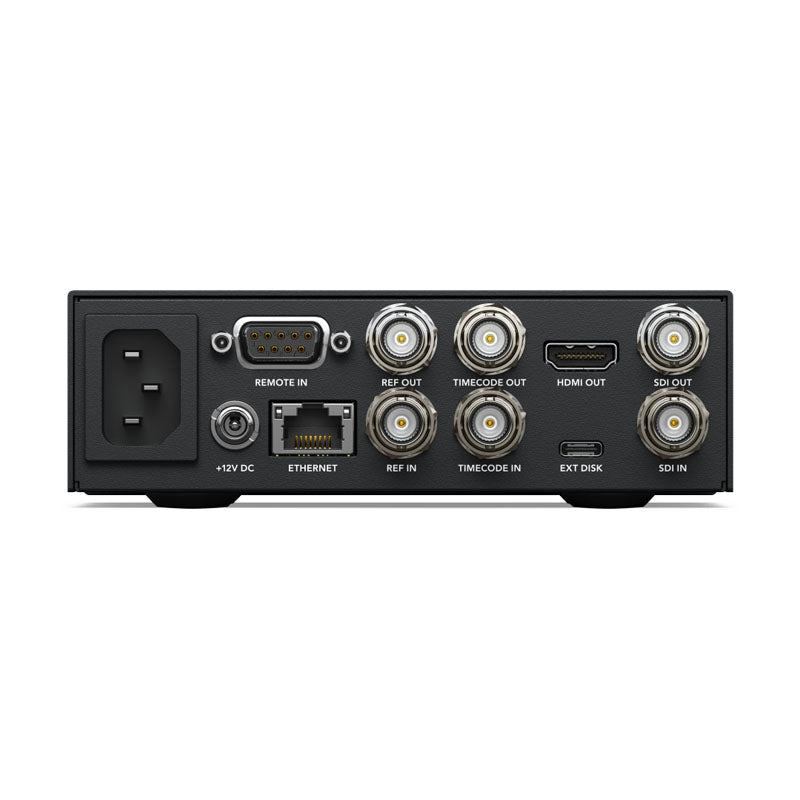

Connections
SDI Video Outputs
1
SDI Rates
270Mb, 1.5G, 3G.
HDMI Video Outputs
1
Screen
2.2 inch LCD
Timecode Connections
1 x BNC In, 1 x BNC Out.
Reference Connections
1 x BNC In, 1 x BNC Out.
Tri-Sync or Black Burst.
SDI Audio Inputs
16 channels embedded audio.
SDI Audio Outputs
16 channels embedded audio.
HDMI Audio Outputs
8 channels embedded audio.
Remote Control
1 x RS-422 In.
Recorder Configuration
Via user interface orBlackmagic HyperDeck Ethernet Protocol.
Ethernet
1Gb/s
Computer Interface
1 x USB Type-C 3.0 (up to 5Gb/s) forexternal drive recording, webcam out,software configuration and updates.
Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
2K DCI Video Standards
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2084and SMPTE 2108‑1.
SDI Metadata Support
HD RP188 and closed captioning CEA‑708. HDR Metadata supported on SDI.
Supported HDMI Formats
525i59.94 NTSC, 625i50 PAL,
720p50, 720p59.94, 720p60,
1080i50, 1080i59.94, 1080i60,
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60,
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI
Audio Sampling
Television standard 24‑bit, 48 kHz sample rate.
Video Sampling
4:2:2 YUV
Color Precision
10‑bit
Color Space
REC 601, REC 709, REC 2020.
HDR Support
Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084
Multi Rate Support
Auto detection of SD and HD.
Media
Media
2 x SD card slots1 x USB-C 3.0 expansion port for externalrecording of SD, HD and 2K DCI.
Media Type
UHS-I and UHS-II SD cards.
Media Format
Can format media to ExFAT (Windows/Mac)or HFS+ (Mac) file systems.
Supported Codecs
ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for all formats up to 1080p60. DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60fps. H.264 High 4:2:0 8‑bit, H.264 Medium 4:2:0 8‑bit, H.264 Low 4:2:0 8‑bit for all formats up to 1080p60.
Control
Built in Control Panel
8 buttons for transport and device control with search dial and 2.2 inch color display.
External Control
RS-422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck Ethernet Protocol. Supports remote FTP file upload.
Software
Software Included
Blackmagic OSBlackmagic HyperDeck SetupInternal Software UpgradeLoaded at system start, or via Blackmagic HyperDeck Setup using USB port.
Operating Systems
Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.
Windows 10, 64-bit.
Displays
Built in 2.2 inch LCD for video, audio and timecode monitoring and menu settings.
LED indicator lights above the SD media slots.
Power Requirements
Power Supply
1 x Internal 100 - 240V AC 50/60Hz.
1 x Locking 5.5mm barrel 12V DC Infor external power supply or battery use.
Power Usage
50 W max.
Accessories
Optional Accessories
HyperDeck Extreme Control
Teranex Mini Rack Shelf
Physical Installation
One third rack unit width, 1 rack unit height.
Physical Specifications
Environmental Specifications
Operating Temperature
0° to 40° C (32°to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non‑condensing
- HyperDeck Studio HD Mini
