Blackmagic Audio Monitor 12G G3

A powerful 1RU audio monitoring solution delivering precision metering, deep sound and direct SMPTE‑2110 IP connectivity for modern broadcast workflows.

1-3 werkdagen
  • $1,201.00 (excl. btw)
    $1,453.21 incl. btw
  • $1,334.00
  • - 10%
This compact rack‑mount monitoring solution is engineered for professional broadcast, live production and post‑production environments where accurate audio monitoring and clear metering are essential. Housed in a single rack unit, it combines powerful amplification, precision meters and extensive connectivity, making it ideal for control rooms, OB vans and fly‑away kits where space is limited but performance cannot be compromised.
A key advancement in this generation is native support for SMPTE‑2110 IP workflows via an integrated 10 Gb Ethernet connection. This allows direct monitoring of IP‑based broadcast systems without the need for external converters, while maintaining compatibility with traditional SDI infrastructures. A multi‑rate 12G‑SDI input supports SD, HD and Ultra HD formats, with a reclocked loop output for seamless signal pass‑through. An HDMI 2.0 output enables convenient video monitoring on standard displays when working with either SDI or IP sources.
Audio performance is defined by a high‑power amplifier driving an internal stereo speaker system with a two‑way crossover and independent stereo subwoofers. This design delivers surprisingly deep bass and clear mid‑range detail despite the shallow rack profile, ensuring reliable monitoring even in noisy live environments. Multiple audio input options are provided, including balanced analog XLR, RCA HiFi and professional AES/EBU, alongside up to 16 channels of embedded audio from SDI and IP sources. A front‑panel headphone output allows silent monitoring when required.

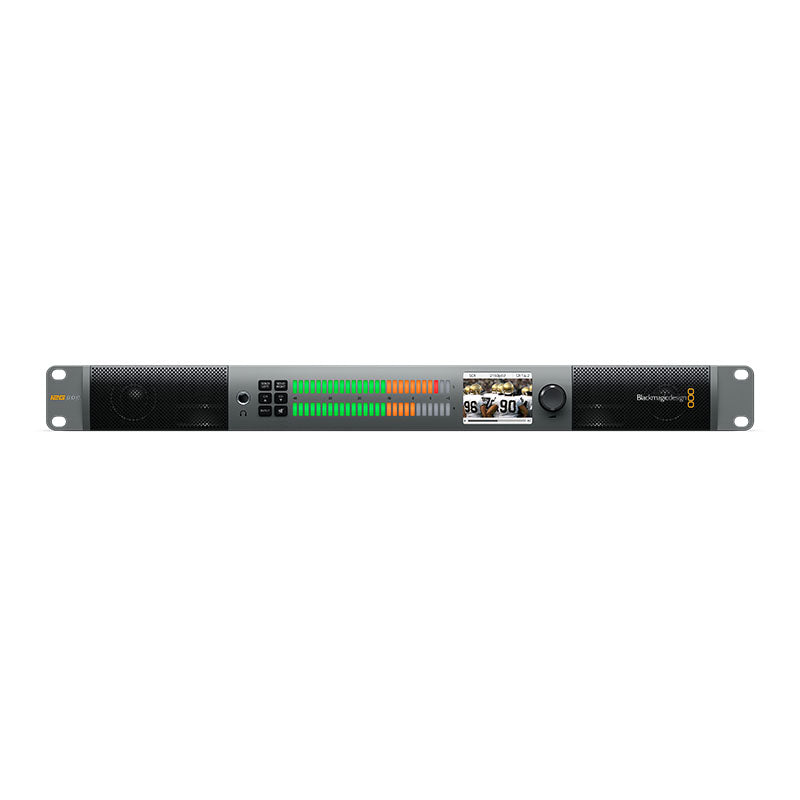

Visual feedback is dominated by two large, high‑resolution RGB LED meters, each featuring 27 segments with precise analog‑style ballistics. These meters can be configured for VU, PPM or Loudness standards, including EBU, BBC and LUFS modes, making the unit suitable for a wide range of broadcast compliance requirements. Each segment is individually isolated within the machined metal front panel to prevent light bleed, resulting in exceptionally clear meter readability.
Operation is intuitive thanks to dedicated front‑panel controls for input selection, channel soloing, mute and volume adjustment via a smooth scroll wheel. Configuration and firmware updates are handled via USB‑C or Ethernet, ensuring straightforward integration into modern facilities. The all‑metal chassis minimizes acoustic resonance and matches the aesthetic of professional broadcast equipment.

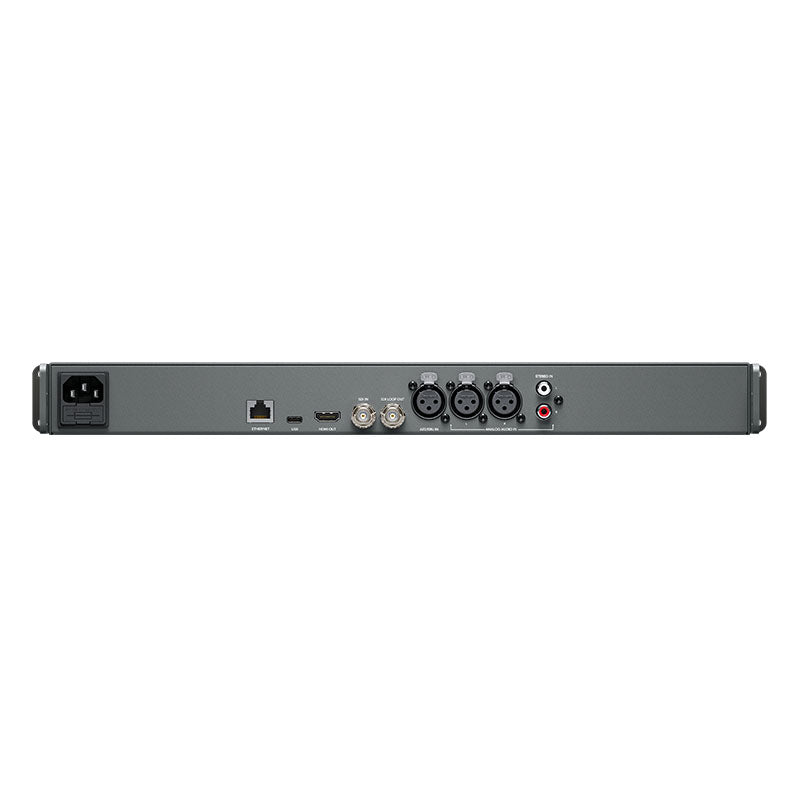

Connections

SDI Video Inputs

1

SDI Video Outputs

1 loop out.

SDI Rates

270Mb, 1.5G, 3G, 6G, 12G.

HDMI 2.0 Video Outputs

1

Multi Rate Support

SDI and HDMI are switchable between standard definition, high definition and ultra high definition.

SDI Video Loop

1 x reclocked 10‑bit SD‑SDI, HD‑SDI, 3G‑SDI, 6G‑SDI and 12G‑SDI.

Analog Audio Inputs

2 x XLR. 2 x RCA HiFi.

Analog Audio Outputs

1 x 6.5mm headphone socket.

Digital Audio Inputs

1 x XLR.

Built in Speaker

Stereo with 2‑way crossover and independent stereo subwoofers.

AES/EBU Audio Inputs

2 channels balanced 110Ω AES/EBU via XLR.

SDI Audio Inputs

16 channels embedded in SD, HD and UltraHD 4K.

SDI Audio Outputs

16 channels embedded audio loop out.

HDMI Audio Outputs

8 Channels embedded in SD, HD and 4K.

Ethernet

1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for SMPTE-2110 IP video in, configuration and firmware updates.

Computer Interface

USB‑C for configuration and firmware updates.

Metering

2 x 27 RGB segment LED VU, PPM or Loudness meters.

Modes

Push button interface allows for input selection, channel selection, independent left and right audio, mute and volume control with scroll wheel.

Blackmagic Audio Monitor 12G G3

Standards

SD Video Standards

525i59.94 NTSC, 625i50 PAL

HD Video Standards

720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30

2K Video Standards

2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K 23.98PsF, 2K 24PsF, 2K 25PsF

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

4K Video Standards

4KDCIp23.98, 4KDCIp24, 4KDCIp25, 4KDCIp29.97, 4KDCIp30, 4KDCIp50, 4KDCIp59.94, 4KDCIp60

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE 2110‑20, SMPTE 2110‑21, SMPTE 2110‑30, SMPTE 2110‑40, SMPTE 2084, SMPTE 2108‑1.

SDI Auto Switching

Automatically selects between SD, HD, 3G‑SDI level A and B, 6G‑SDI and 12G‑SDI.

Audio Sampling

96 KHz and 24 bit.

Video Sampling

4:2:2 and 4:4:4

Audio Meter Ballistics

54 RGB segment LEDs allowing selection of metering with VU, PPM EBU, PPM BBC or Loudness. Includes replaceable level scale.

IP Video Compliance

SMPTE 2110‑20 (Uncompressed Video)

IGMP v2

SMPTE 2110‑21 (Traffic Shaping)

Sender: Narrow

Receiver: Narrow, Wide Synchronous, Asynchronous

SMPTE 2110‑30 (PCM)

Audio Conformance level: Level C

SMPTE 2110‑40 (Ancillary Data)

Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.

Precision Time Protocol

IEEE 1588‑2008 (PTP v2)

ST 2059‑1

ST 2059‑2

NMOS IS‑04 Discovery and Registration

v1.3.2

Peer‑to-peer via mDNS/DNS‑SD

NMOS IS‑05 Connection Management

v1.1.2

NMOS BCP‑002‑01

Natural Grouping

NMOS BCP‑004‑01

Receiver capabilities

Codec

Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video.

Control

Built-in Control Panel

2.2 inch display for viewing video input, video standard and selected audio input.

Software

Internal Software Upgrade

Via USB connection and Ethernet

Operating Systems

Mac icon

Mac 13.0 Ventura,
Mac 14.0 Sonoma or later.

Windows Icon

Windows 10 and 11.

Display

Display Element

2.2 inch diagonal color LCD.

Display Resolution

320 x 240.

Input Display

SDI video, format, audio type and audio channels.

Power Requirements

Power Supply

1 x Internal 100 - 240V AC.

Power Usage

55 Watts

Physical Installation

1 rack unit.

Physical Specifications

Blackmagic Audio Monitor 12G G3

Environmental Specifications

Operating Temperature

0° to 40° C (32° to 104° F)

Storage Temperature

-20° to 45° C (-4° to 113° F)

Relative Humidity

0% to 90% non-condensing

What's Included

Blackmagic Audio Monitor 12G G3

PPM and Loudness Scale Stickers

Welcome wallet with QR code for software download

Warranty

1 Year Limited Manufacturer’s Warranty.

  • Blackmagic Audio Monitor 12G
  • PPM and Loudness Scale Stickers
  • Welcome wallet with QR code for software download
