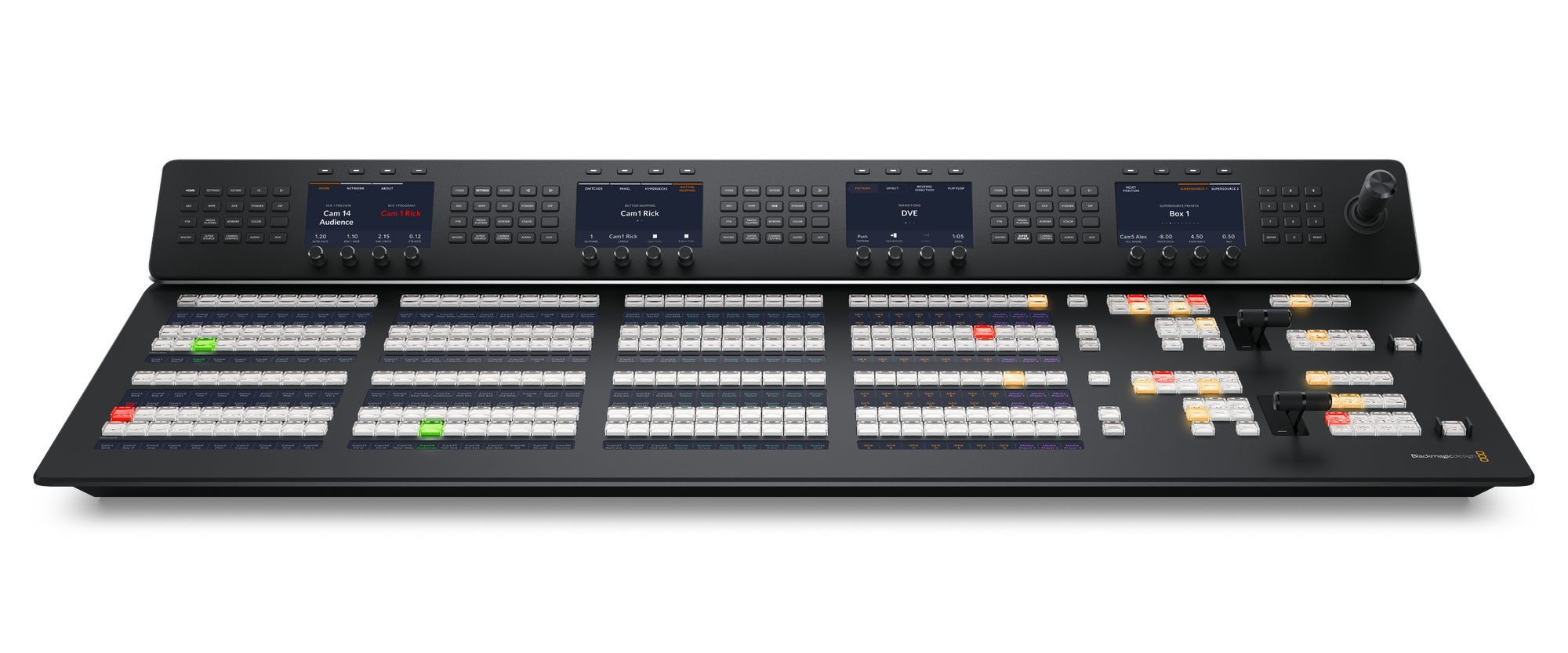

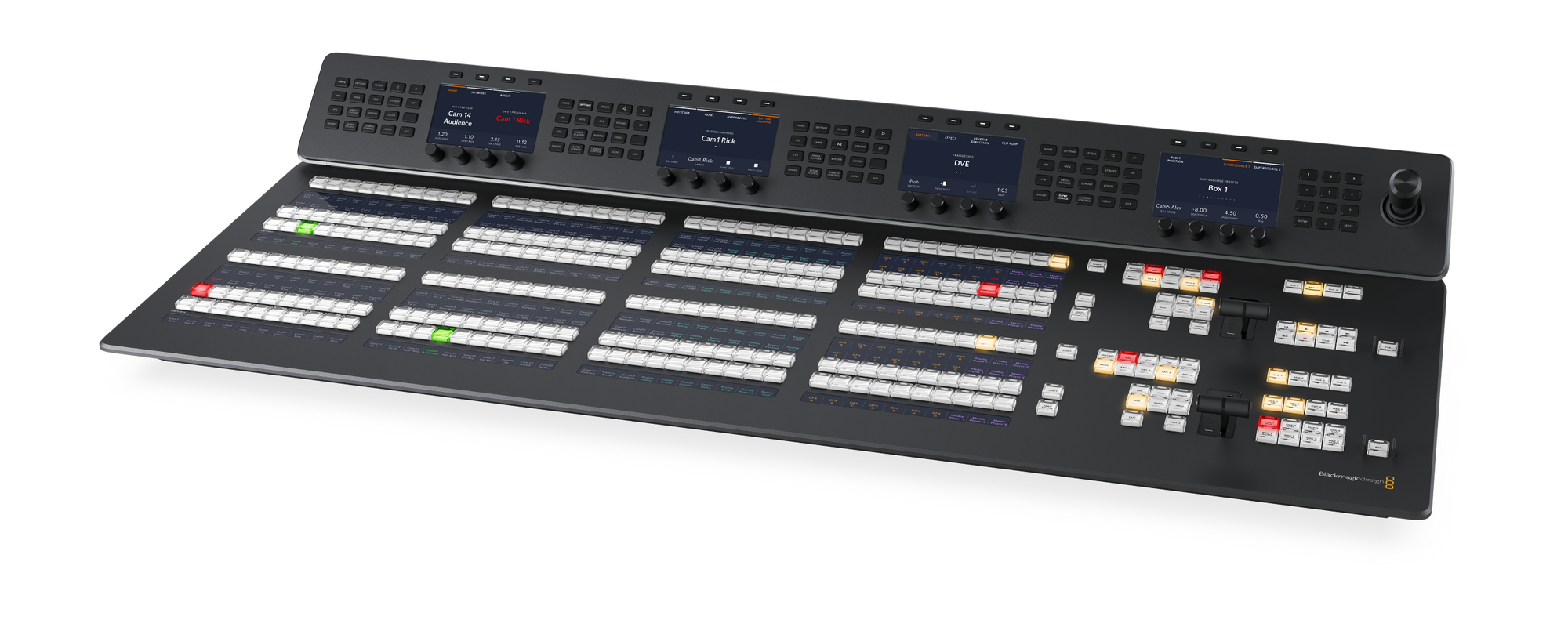

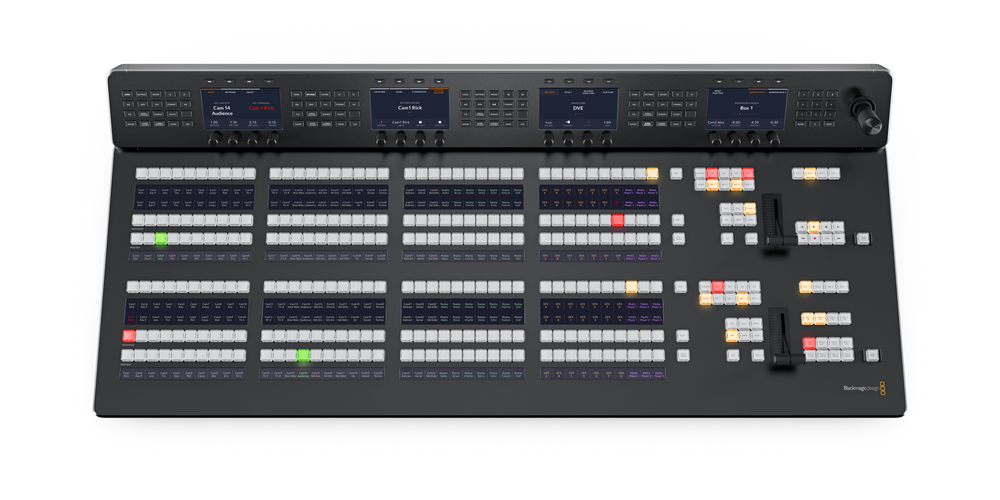

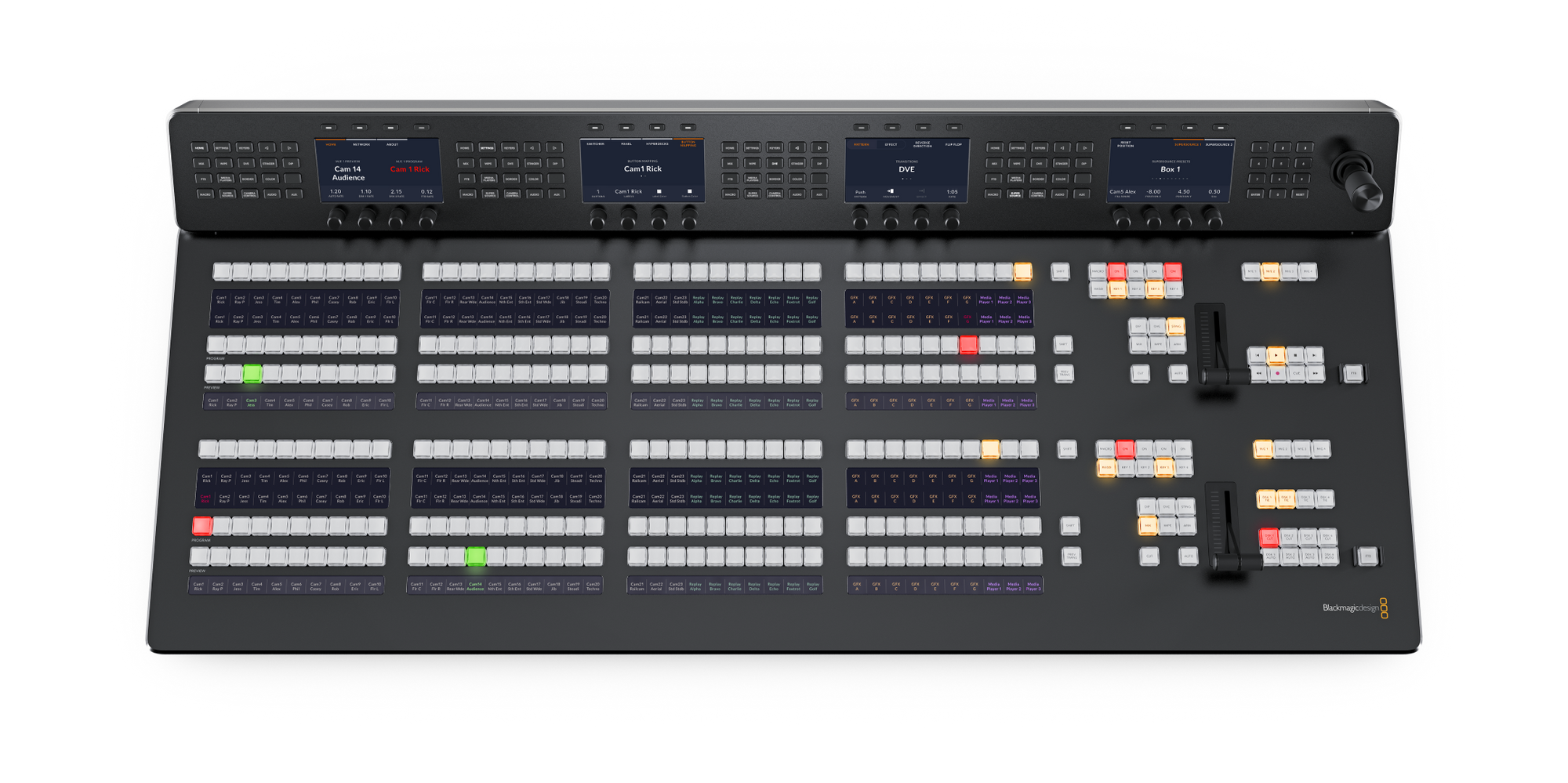

Blackmagic ATEM 2 M/E Advanced Panel 40

Dual‑row ATEM panel with forty buttons per row, four system LCDs, select buses, T‑bar and joystick, delivering fast and precise control for advanced multi‑layer live productions.

1-3 werkdagen
  • $9,159.00 (excl. btw)
    $11,082.39 incl. btw
  • $10,176.00
  • - 10%

The Blackmagic ATEM 2 M/E Advanced Panel 40 is a top‑tier broadcast control surface engineered for high‑pressure, multi‑layer live production environments. Featuring two full M/E rows with forty illuminated input buttons per row, the panel provides direct access to extensive routing setups and large multi‑camera systems. Every button is equipped with customizable LCD labeling, giving operators instant visual clarity even during complex switching operations. The panel includes four independent system control LCD screens, allowing deep access to switcher functions such as keyers, transitions, macros, aux routing and multi‑M/E configuration without relying on software interfaces. Each M/E row also includes its own dedicated select bus, enabling lightning‑fast source assignment for upstream keyers, downstream keyers and DVE selections.

A professional weighted T‑bar fader delivers precise manual control over mixes, wipes and dynamic transitions, while the high‑accuracy three‑axis joystick offers powerful control for DVE positioning, keyframe animation and camera adjustments. Built to integrate seamlessly with ATEM Constellation and all compatible ATEM switchers, the panel communicates over low‑latency Ethernet, supporting multi‑panel and multi‑operator workflows. Its robust metal chassis, production‑grade buttons and ergonomic layout ensure durability and responsiveness in studios, OB trucks and large‑scale live event operations. Designed for productions that demand absolute control, speed and flexibility, the ATEM 2 M/E Advanced Panel 40 empowers operators to handle sophisticated multi‑layer workflows with maximum efficiency and confidence.

Ethernet

4 x 10/100/1000 BASE-T with loop outputfor additional control panels or computers.

Software Updates

1 x USB-C for firmware updates.

ATEM 2 M/E Advanced Panel 40

Product Specifics

Number of Mix Effects Rows

2

Direct Cross Points

40

Shifted Cross Points

80

Crosspoint Button Type

Tri-Color LED

Crosspoint Label

6 rows 24 character LCD

On-Air indicator

12

Power Status Indicators

None

DSK Transition Selectors

4 x Auto, Cut, Tie/Preview

Preview Transition

2

Transition Rate Displays

Via main menu

LCD Menu Displays

4

Menu Control

4 x 20 buttons

Dedicated Macro Buttons

2 x 40

Transport Control Buttons

8

Destination Bus

2

Source Select Bus

2

Fader Bar

2

3 Axis Joystick

1

Numeric Keypad

1

Software

Software Applications

ATEM Software Control Panel.

Operating Systems

Mac icon

Mac 14.0 Sonoma,
Mac 15.0 Sequoia or later.

Windows Icon

Windows 10 and 11.

Power Requirements

Input Voltage

2 x Internal 100 - 240V AC.

Redundant Power

Yes

Power Usage

160W

Physical Specifications

ATEM 2 M/E Advanced Panel 40

Environmental Specifications

Operating Temperature

0° to 40° C (32° to 104° F)

Storage Temperature

-20° to 60° C (-4° to 140° F)

Relative Humidity

Up to 95%

What's Included

ATEM 2 M/E Advanced Panel 40

Welcome wallet with QR code for software download

Warranty

1 Year Limited Manufacturer’s Warranty.
