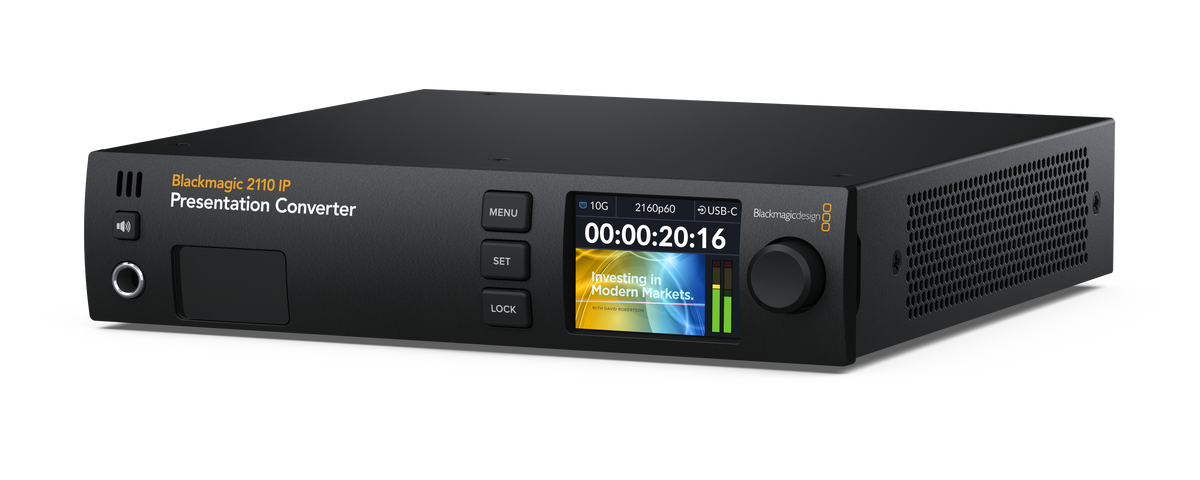

A single‑box podium solution that connects laptops, microphones and projectors directly to SMPTE 2110 networks with professional audio, automatic video conversion and simple one‑cable operation.
1 x front USB‑C plus 1 x rear USB‑C with 45W host charging capability.
1
1
1
Automatically standards converted to destination
270Mb, 1.5G, 3G, 6G, 12G.
1 x 10G Ethernet
1 x 10G Ethernet
2 x Combination 3-pin XLR / TRS 1/4 inch Jack connectors, switchable between +24dB line and mic level with support for +48V phantom power.
2 channels of professional balanced analog audio with 3-pin XLR connectors.
1 x 6.35 mm headphone jack.
16 Channels embedded in SD/HD/2K/UHD/4K.
8 Channels embedded in SD/HD/UHD/4K.
8 Channels embedded in SD/HD/UHD/4K.
2 x USB‑C 3.1 Gen 1 (up to 5 Gb/s).
1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for SMPTE-2110 IP video in and out, configuration and firmware updates.
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
SMPTE 274M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑10, SMPTE ST2108‑1, SMPTE ST2110‑20, SMPTE ST2110‑21, SMPTE ST2110‑30, SMPTE ST2110‑40.
RP 188/SMPTE 12M-2 and closed captioning.
SDI video connections are switchable between HD/2K/UHD and 4K.
Television standard sample rate of 48 kHz and 24‑bit.
4:2:2, 4:4:4
8, 10, 12-bit RGB 4:4:4 in 2D modes up to 4Kp30 DCI and 8, 10-bit YUV 4:2:2 in all 2D modes.
8, 10, 12-bit RGB 4:4:4 in 3D modes up to 2Kp60 DCI and 8, 10-bit YUV 4:2:2 in all 3D modes.
REC 709 and REC 2020
HDR static metadata packing, HLG and PQ transfer characteristics.
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
Television standard sample rate of 48 kHz and 24-bit.
4:4:4, 4:2:2 and 4:2:0
8, 10 and 12-bit
REC 709 and REC 2020
HDR static metadata packing, HLG and PQ transfer characteristics.
HDMI 2.0 supports Deep Color and HDR. Automatically configures to connected display.
HDMI video connections are switchable between HD/UHD and 4K.
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
IGMP v2
Sender: Narrow
Receiver: Narrow, Wide Synchronous, Asynchronous
Audio Conformance level: Level C
Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video.
IEEE 1588-2008 (PTP v2)
ST 2059-1
ST 2059-2
v1.3.2
Peer-to-peer via mDNS/DNS-SD
v1.1.2
Natural Grouping
Receiver capabilities

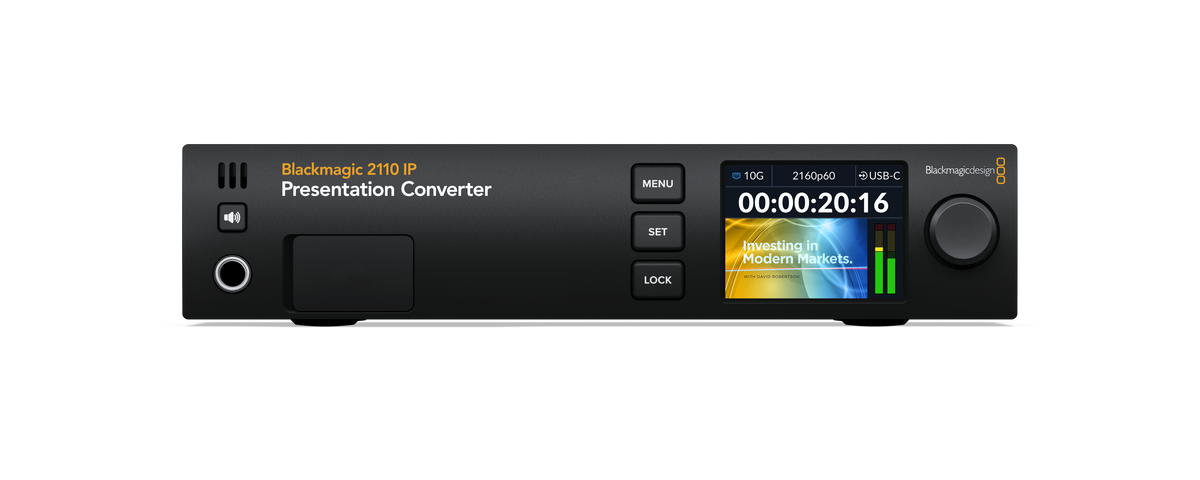

3 buttons, spin knob and 2.2 inch color display for menu and settings. Front speaker on/off button.
Half rack unit width, 1 rack unit height.
Mac 13.0 Ventura,
Mac 14.0 Sonoma or later.
Windows 10 and 11.
1 x Internal 100 - 240V AC 50/60Hz with IEC C14 socket.
TBA
5° to 40° C (41° to 104° F)
-20° to 45° C (-4° to 113° F)
0% to 90% non‑condensing
Blackmagic 2110 IP Presentation Converter
Blackmagic 2110 IP Presentation Converter Mounting Plate
Welcome wallet with QR code for software download
1 Year Limited Manufacturer’s Warranty.
