Blackmagic 2110 IP Mini IP to HDMI SFP

Fiber ready SMPTE 2110 monitoring in a tiny box, delivering IP video straight to any HDMI display with full broadcast timing, standards support and clean behind screen installation.

1-3 werkdagen
  • $277.00 (excl. btw)
    $335.17 incl. btw
  • $307.00
  • - 10%

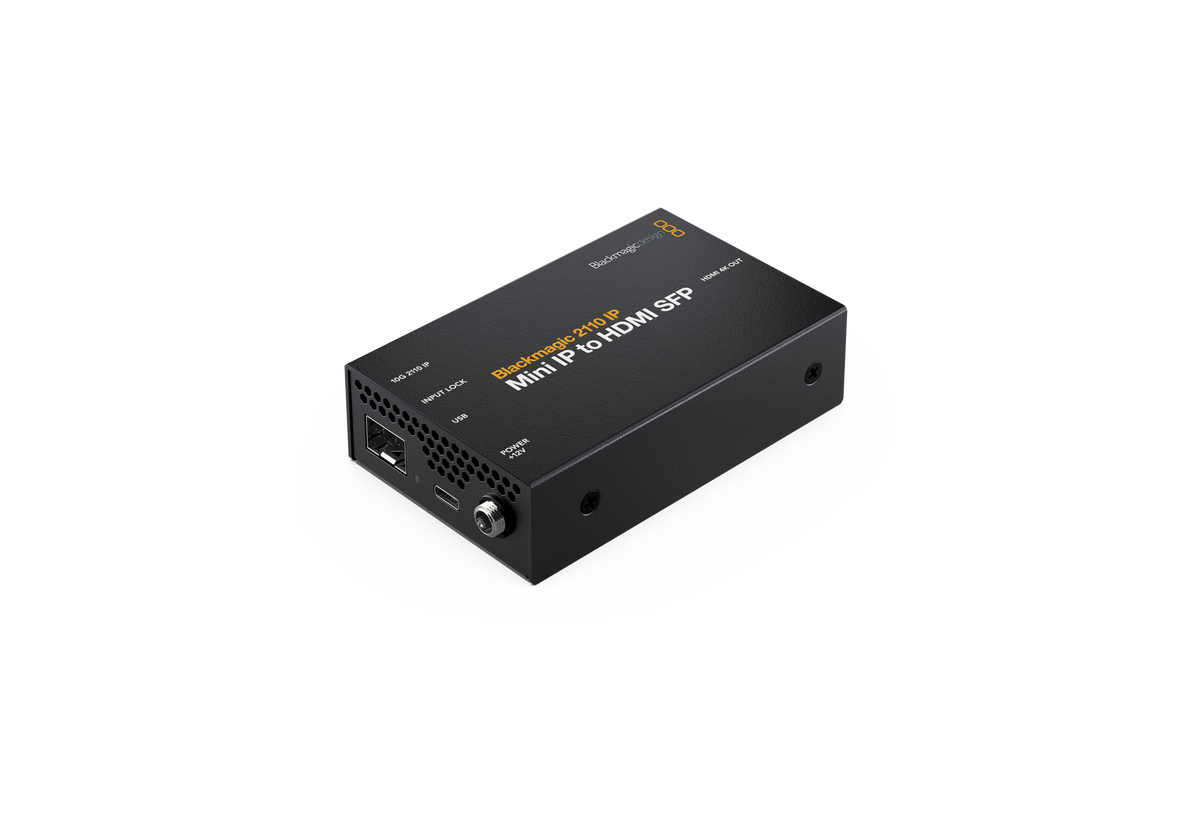

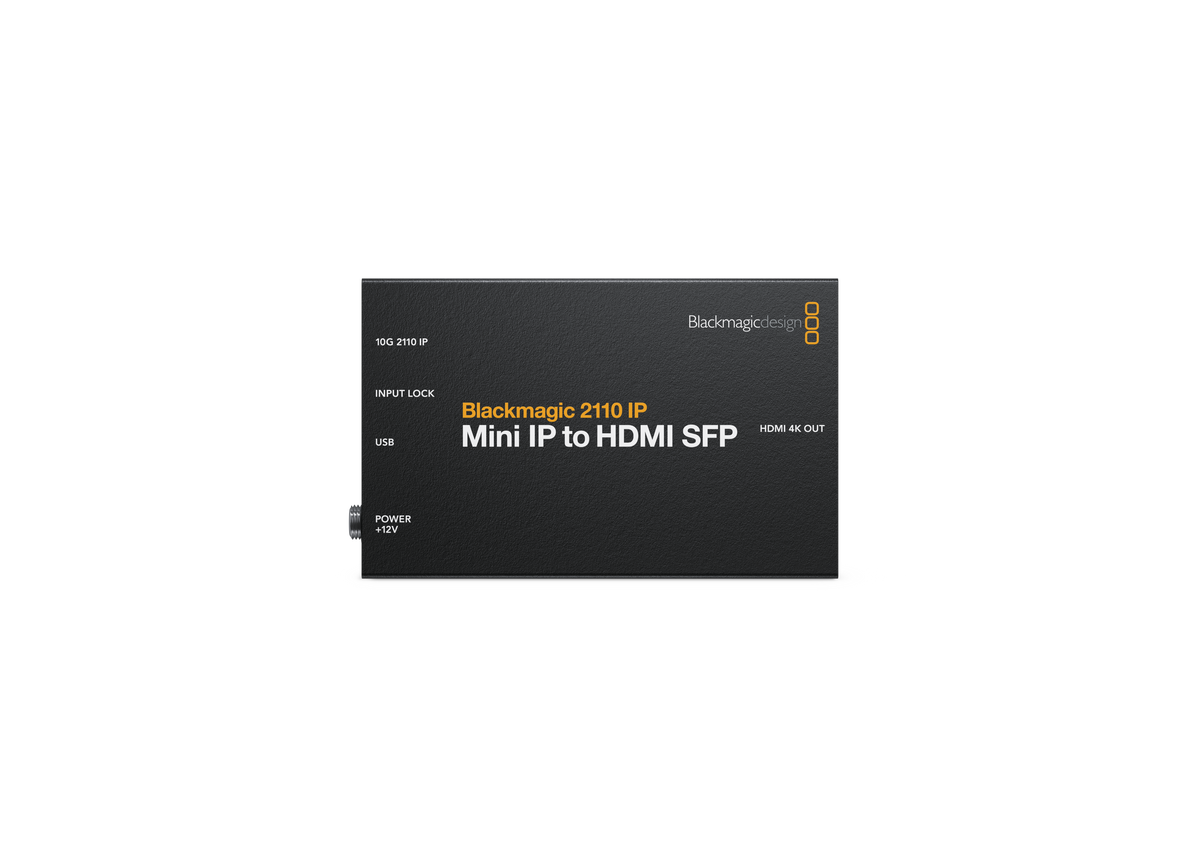

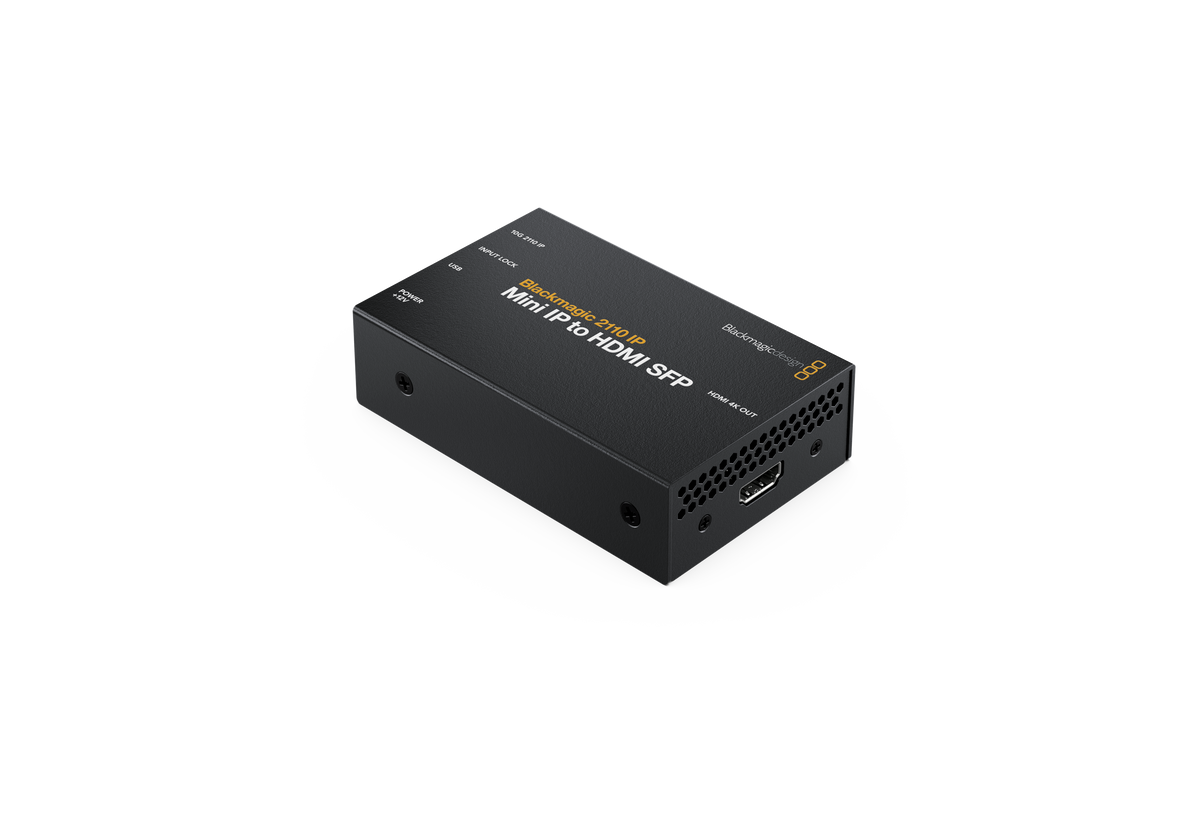

This compact monitoring interface is built for SMPTE ST 2110 installations where displays need to be connected over long distances without sacrificing broadcast precision. Its tiny enclosure is designed to sit discreetly behind a television or monitor, while a front status indicator confirms IP input lock so operators can quickly verify connectivity at the screen location.

Video and audio are received as SMPTE ST 2110 streams over 10G and output to HDMI, so any modern HDMI display can be used as a high quality endpoint for IP sources. The device supports a very wide range of formats, including HD, Ultra HD and DCI 4K standards up to 2160p60, making it suitable for mixed format environments and future upgrades. HDMI output uses YUV 4:2:2 colour with consistent broadcast handling.
For timing critical systems, synchronization is handled via Precision Time Protocol with IEEE 1588 2008 and ST 2059 support, and the unit also supports NMOS discovery and connection management so it can integrate into modern IP routing ecosystems. Configuration and firmware updates are performed via USB C, keeping field maintenance simple. Power is supplied by the included 12V DC universal power supply with a locking barrel connector and international adapters, which is especially useful behind displays where accidental disconnection must be avoided.

Connections

HDMI Video Outputs

1

HDMI Audio Outputs

8 Ch embedded audio on SDI loop output.

SMPTE ST-2110 IP Video Inputs

1 x 10G Ethernet

SMPTE ST 2110 IP Audio Inputs

16 Ch embedded audio on ST-2110 IP video via 10G Ethernet.

Ethernet

1 x 10Gb/s SFP optical fibre sockets supporting up to 10/100/1000/10G BASE-T for SMPTE-2110 IP video in, configuration and firmware updates.

Computer Interface

1 x USB-C 3.0 for configuration and firmware updates.

Blackmagic 2110 IP Mini IP to HDMI SFP

Video Standards

HDMI HD Video Standards

720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60

HDMI Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60

HDMI 4K Video Standards

4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.

SMPTE Compliance

SMPTE ST2110‑20, SMPTE ST2110‑21, SMPTE ST2110‑30, SMPTE ST2110‑40.

HDMI Color Precision

4:2:2

HDMI Color Space

YUV

IP Video Compliance

SMPTE 2110-20 (Uncompressed Video)

IGMP v2

SMPTE 2110-21 (Traffic Shaping)

Sender: Narrow

Receiver: Narrow, Wide Synchronous, Asynchronous

SMPTE 2110-30 (PCM)

Audio Conformance level: Level C

SMPTE 2110-40 (Ancillary Data)

Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.

Codec

Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video.

Precision Time Protocol

IEEE 1588-2008 (PTP v2)

ST 2059-1

ST 2059-2

NMOS IS-04 Discovery and Registration

v1.3.2

Peer-to-peer via mDNS/DNS‑SD

NMOS IS-05 Connection Management

v1.1.2

NMOS BCP-002-01

Natural Grouping

NMOS BCP-004-01

Receiver capabilities

Displays

1 x IP Input Lock LED indicator light

Operating Systems

Mac icon

Mac 13.0 Ventura,
Mac 14.0 Sonoma or later.

Windows Icon

Windows 10 and 11.

Power Requirements

Power Supply

1 x +12V DC external universal power supply with locking 5.5mm barrel Jack plus international socket adapters for most countries.

Operational Voltage Range

12 - 16 V

Power Usage

TBA

Physical Specifications

Blackmagic 2110 IP Mini IP to HDMI SFP

Environmental Specifications

Operating Temperature

5° to 40° C (41° to 104° F)

Storage Temperature

-20° to 45° C (-4° to 113° F)

Relative Humidity

0% to 90% non‑condensing

What's Included

Blackmagic 2110 IP Mini IP to HDMI SFP

Welcome wallet with QR code for software download

Warranty

1 Year Limited Manufacturer’s Warranty.
